6A – 100 ENGINE MECHANICAL

REMOVAL

1. Disconnect battery ground cable
2. Drain engine coolant
3. Remove front exhaust pipe
4. Remove heat protector
5. Remove exhaust valve assembly
6. Oil cooler assembly

1) Remove water hoses from inlet and outlet pipe.
2) Put rag beneath side of oil cooler to prevent oil

leaking.

3) Remove fixing bolts and oil cooler assembly.

INSTALLATION

1. Oil Cooler

1) Tighten oil cooler fixing bolt to the specified

torque and connect water hose.

Torque: 29 N·m (3.0 kg·m/22 lb ft)

2. Exh. Valve Assembly

1) Install exhaust valve assembly with gasket and

tighten fixing bolts to the specified torque.

Torque: 57 N·m (5.8 kg·m/42 lb ft)

3. Heat Protector
4. Front Exhaust Pipe

1) Install front exhaust pipe and tighten fixing bolts

to the specified torque.

Exh. Valve Side:  67 N·m (6.8 kg·m/49 lb ft)
Intermediate Pipe Side:  43 N·m (4.4 kg·m/32 lb ft)

5. Fill engine coolant.
6. Connect battery ground cable.
7. Start engine and check for oil and water leakage

carefully.

ENGINE COOLING  6B – 1

ENGINE COOLING

CONTENTS

General Description . . . . . . . . . . . . . . . . . .

6B–2

On-Vehicle Service . . . . . . . . . . . . . . . . . . .

6B–6

Water Pump . . . . . . . . . . . . . . . . . . . . . .

6B–6

Thermostat . . . . . . . . . . . . . . . . . . . . . . .

6B–7

Radiator . . . . . . . . . . . . . . . . . . . . . . . . .

6B–9

Drive Belt Adjustment . . . . . . . . . . . . . . .

6B–11

SECTION

6B – 2 ENGINE COOLING

Legend

(1)

Turbocharger

(2)

Thermostat

(3)

Reservoir Tank

(4)

Radiator

(5)

Bypass

(6)

Oil Cooler

(7)

Cooling fan

(8)

Water Pump

(9)

Thermo Valve

(10)

Car Heater

(11)

EGR Cooler

GENERAL DESCRIPTION

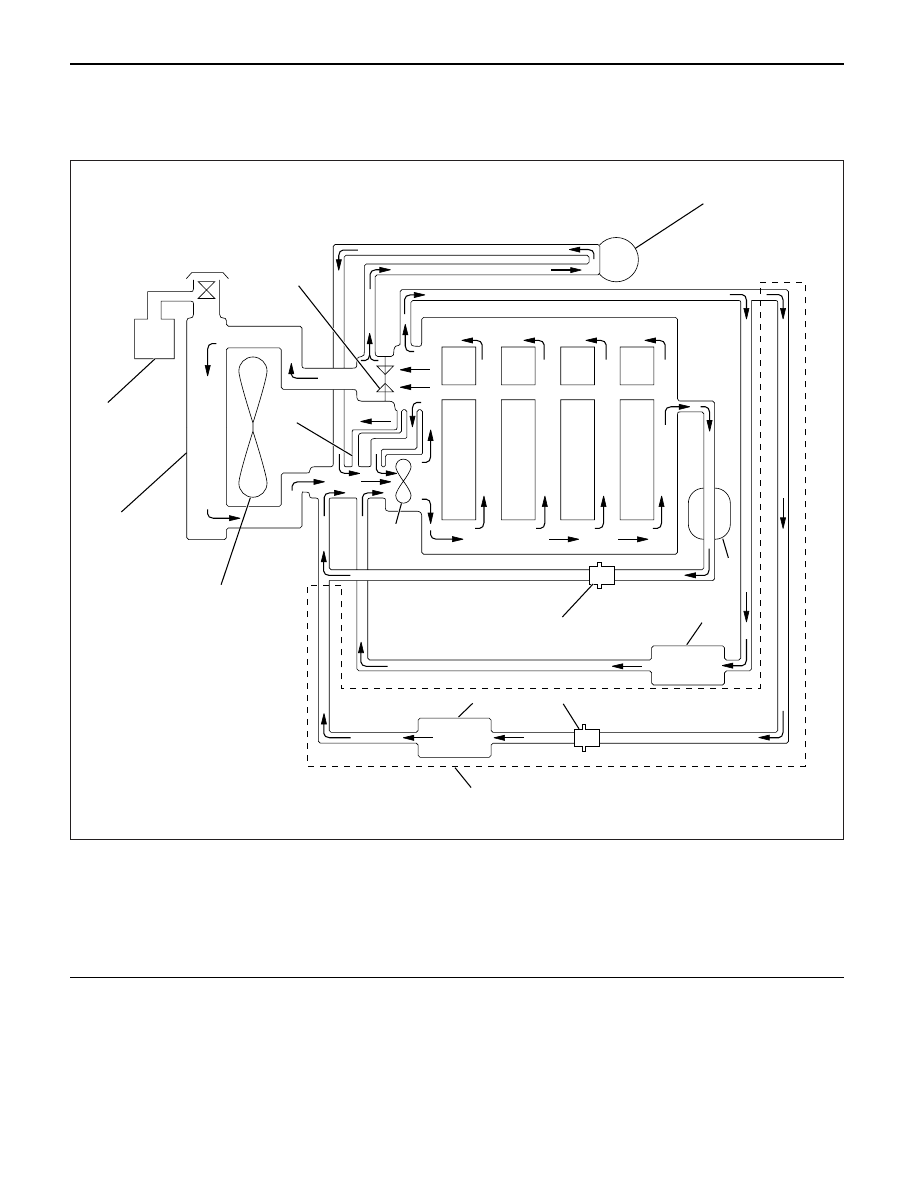

COOLANT FLOW

1

6

9

9

For Europe only

10

8

4

3

2

5

7

11

032R200001

The cooling system is a pressurized coolant forced
circulation type which consists of water pump,
thermostat, cooling fan, radiator and other components.

The circulating coolant cools the lubricating oil in the oil
cooler and turbocharger.

ENGINE COOLING  6B – 3

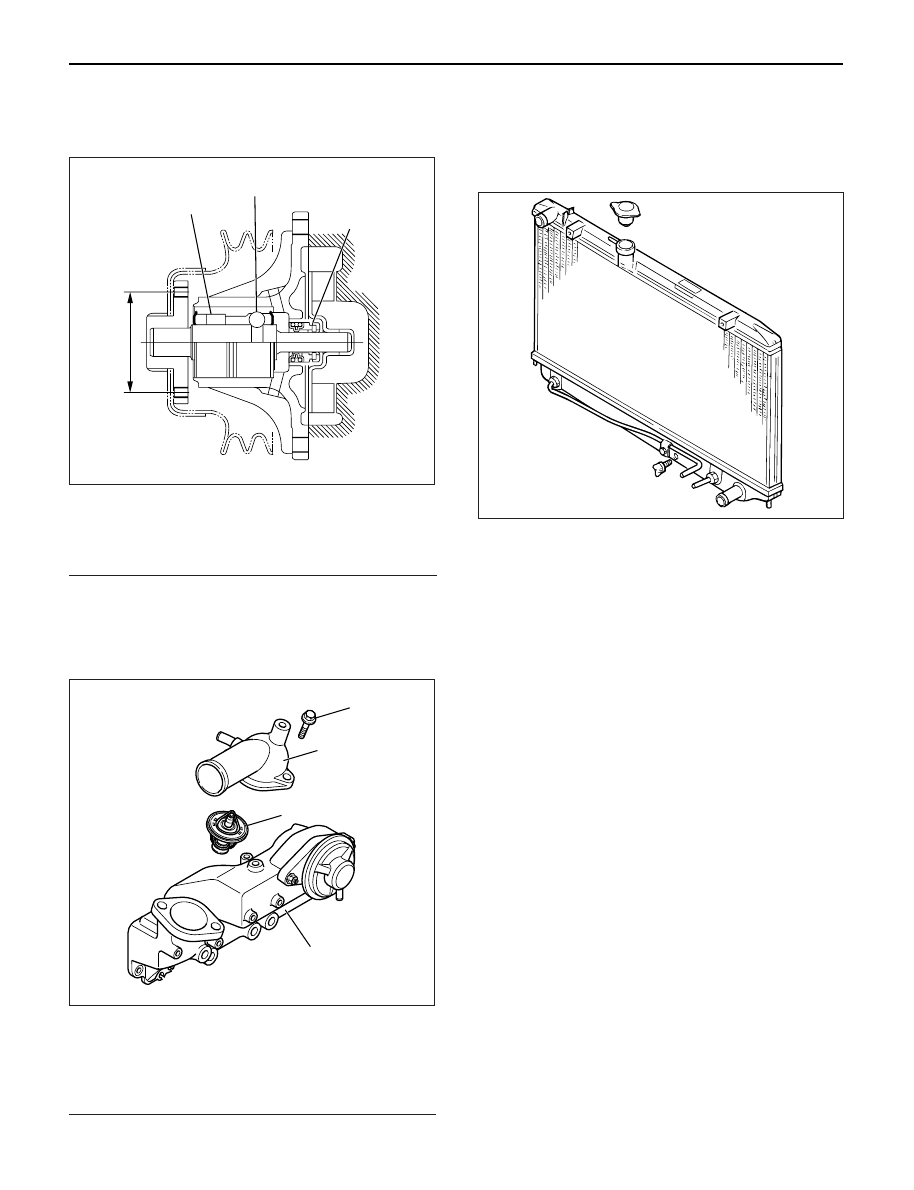

WATER PUMP

The coolant pump is a centrifugal impeller type and is
driven by V type drive belt.

Legend

(1) Roller Bearing
(2) Ball Bearing
(3) Seal Unit

THERMOSTAT

The thermostat is a wax pellet type with a jiggle valve
and is installed in the thermostat housing.

Legend

(1) Bolt
(2) Thermostat Housing
(3) Thermostat
(4) Intake Manifold

RADIATOR

The radiator is a tube type with corrugated fins. In order
to raise the boiling point of coolant, the radiator is fitted
with a cap in which the valve is operated under the
pressure.

1

3

2

PCD 60

A06RW024

1

2

3

4

032RW002
