6E–50

6VE1 3.5 ENGINE DRIVEABILITY AND EMISSIONS

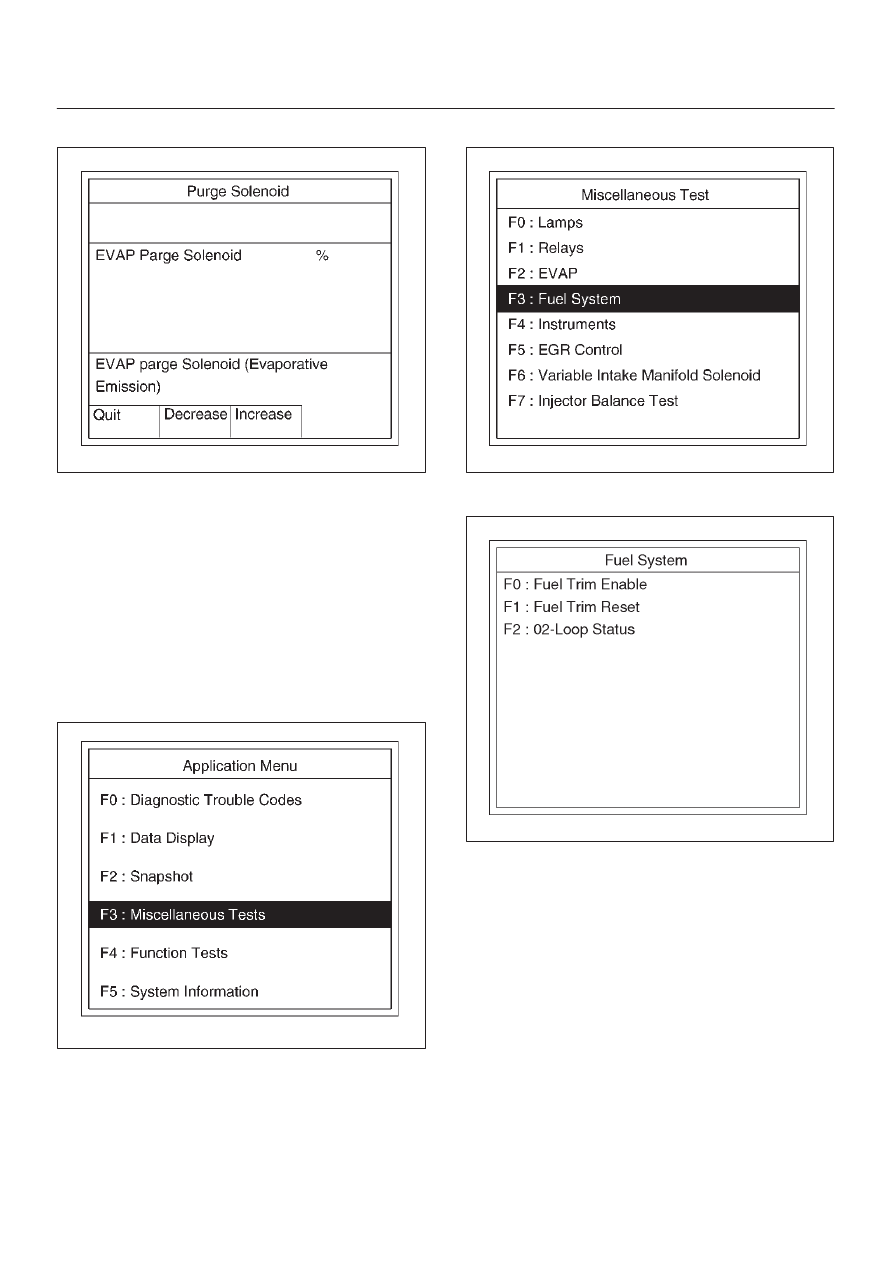

6. Push “Decrease” or “Increase” soft key.

060RY00095

7. Control EVAP Purge Solenoid and check a data list.
8. If the data list changes, the Purge Solenoid is normal.

Fuel System Test

This test is conducted check Fuel system for proper
operation.
Tech 2 must be used for this test.
Test Procedure:

1. Connect Tech 2 to the vehicle DLC.
2. Ignition SW is “On”.
3. Select F3: Miscellaneous Test in the Application

Menu.

060R100078

4. Select F3: Fuel System in the Miscellaneous Menu.

060RY00083

5. Select F0: Fuel Trim Enable.

060R200071

6E–51

6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

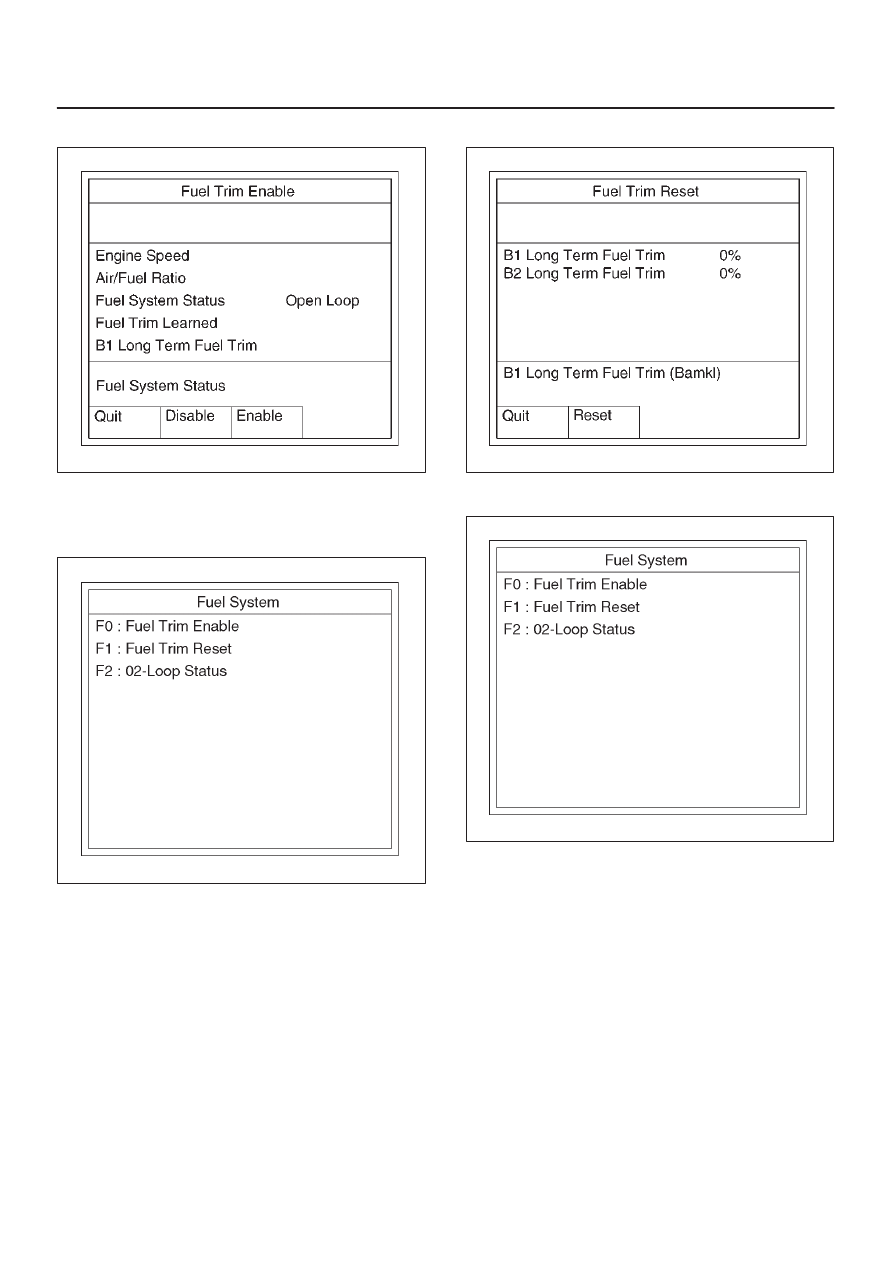

6. Push “Disable” or “Enable” soft key.

060RY00097

7. Control Fuel Trim and check data list.
8. If data list changes, the Fuel Trim is normal.
9. Select F1: Fuel Trim Reset.

060R200071

10. Push “Reset” soft key.

060RY00098

11. Select F2: O2-Loop status.

060R200071

12. This test is check the “Closed Loop Status”

performance.

6E–52

6VE1 3.5 ENGINE DRIVEABILITY AND EMISSIONS

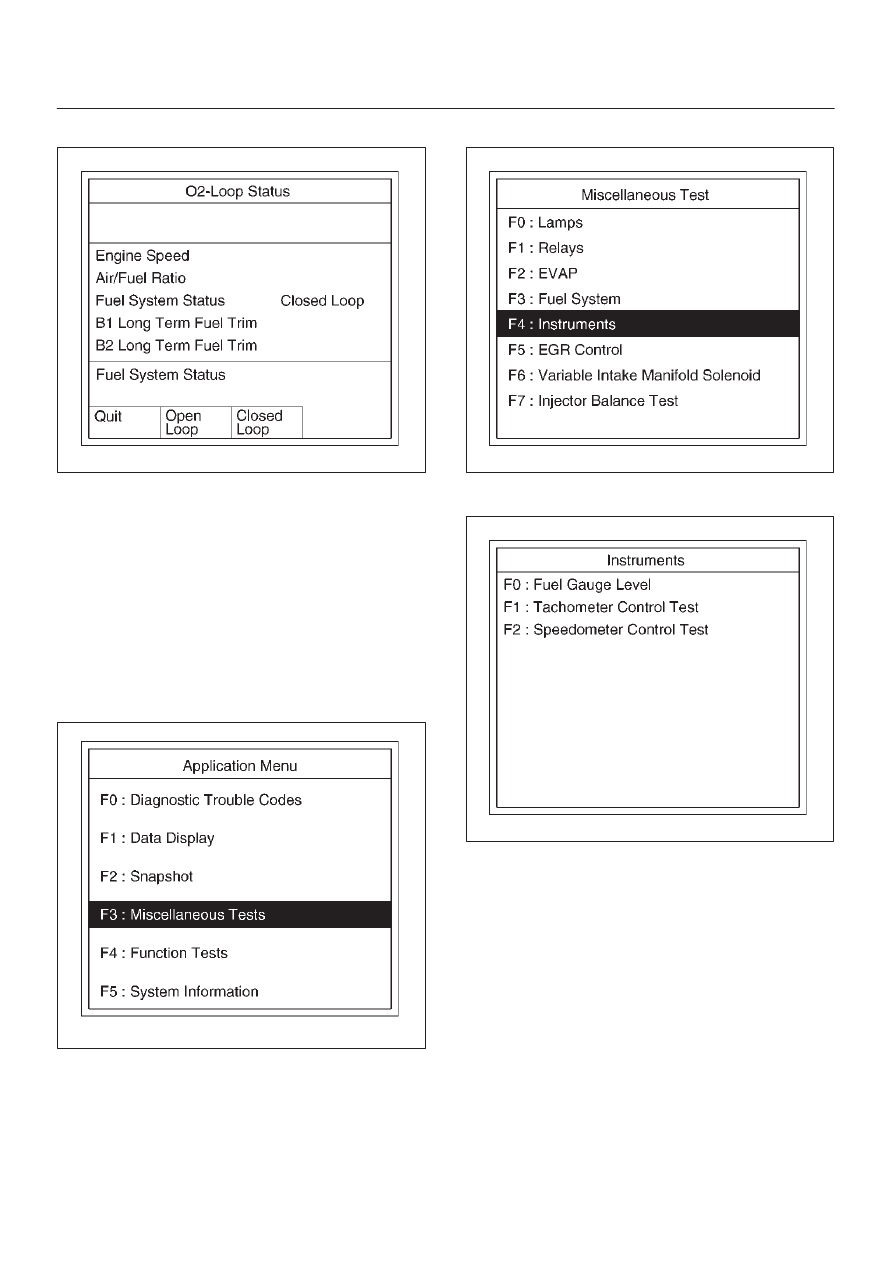

13. Push “Open Loop” or “Closed Loop” soft key.

060RY00099

14. Control O2-Loop and check data list.
15. If data list changes, the O2-Loop is normal.

Instruments Test

This test is conducted check Instruments for proper
operation.
Tech 2 must be used for this test.
Test Procedure:

1. Connect Tech 2 to the vehicle DLC.
2. Ignition SW is “On”.
3. Select F3: Miscellaneous Test in the Application

Menu.

060R100078

4. Select F4: Instruments in the Miscellaneous Menu.

060RY00106

5. Select F0: Fuel Gauge level.

060RY00107

6E–53

6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

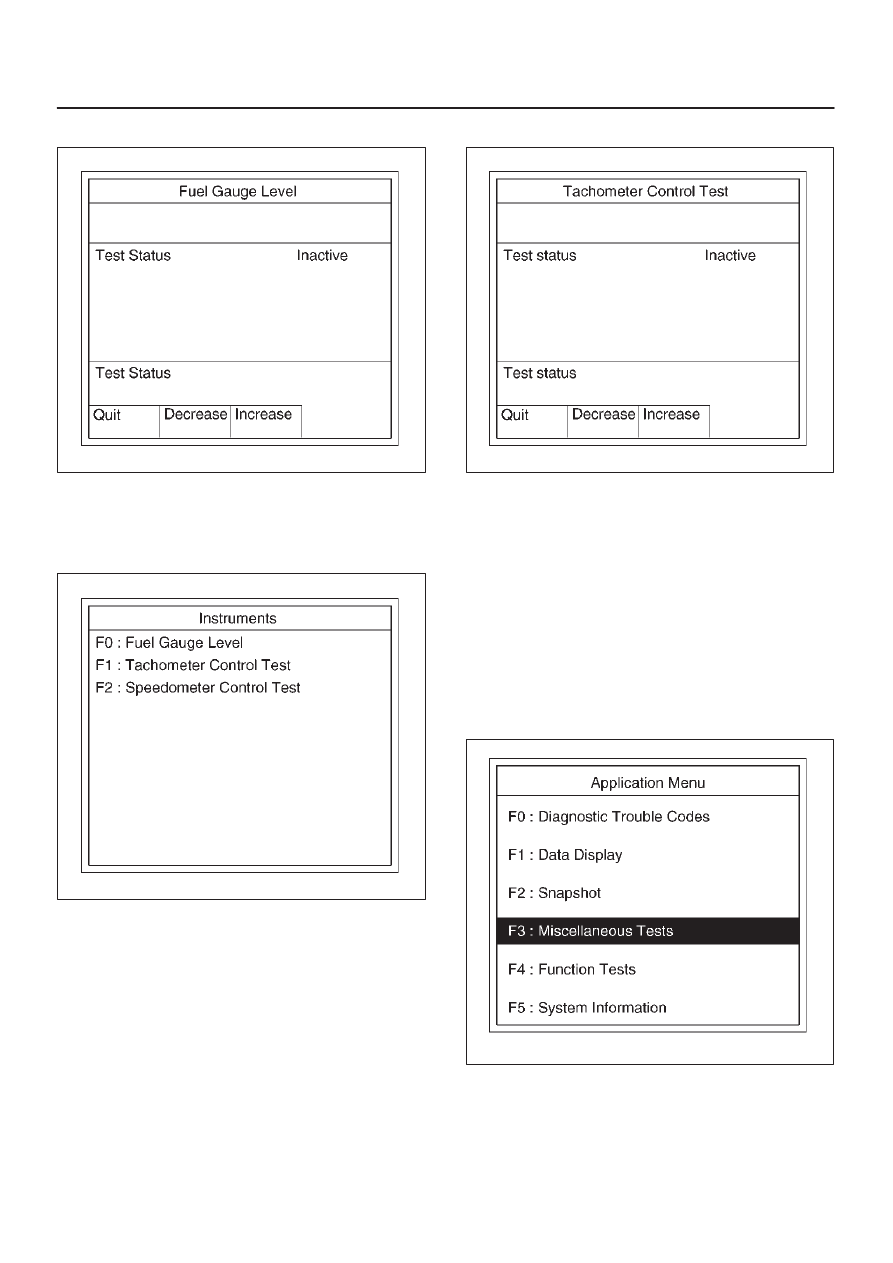

6. Push “Decrease” or “Increase” soft key.

060RY00100

7. Control Fuel Level and check data list.
8. If data list and Fuel gauge meter changes, Fuel

Gauge level is normal.

9. Select F1: Tachometer Control Test.

060RY00107

10. Push “Inactive” or “active” soft key.

060RY00101

11. Control tachometer and data list.

12. If data list and meter changes, the tachometer control

is normal.

EGR Control Test

This test is conducted check EGR valve for proper
operation.
Tech 2 must be used for this test.
Test Procedure:

1. Connect Tech 2 to the vehicle DLC.
2. Run the Engine at idle.
3. Select F3: Miscellaneous Test in the Application

Menu.

060R100078
