6E–46
6VE1 3.5 ENGINE DRIVEABILITY AND EMISSIONS
Not Run Since Code Cleared
This option will display up to DTCs that have not run since
the DTCs were last cleared. Since any displayed DTCs
have not run, their condition (passing or failing) is
unknown.
Test Failed Since Code Cleared
This selection will display all active and history DTCs that
have reported a test failure since the last time DTCs were
cleared. DTCs that last failed more than 40 warm-up
cycles before this option is selected will not be displayed.
Miscellaneous Test

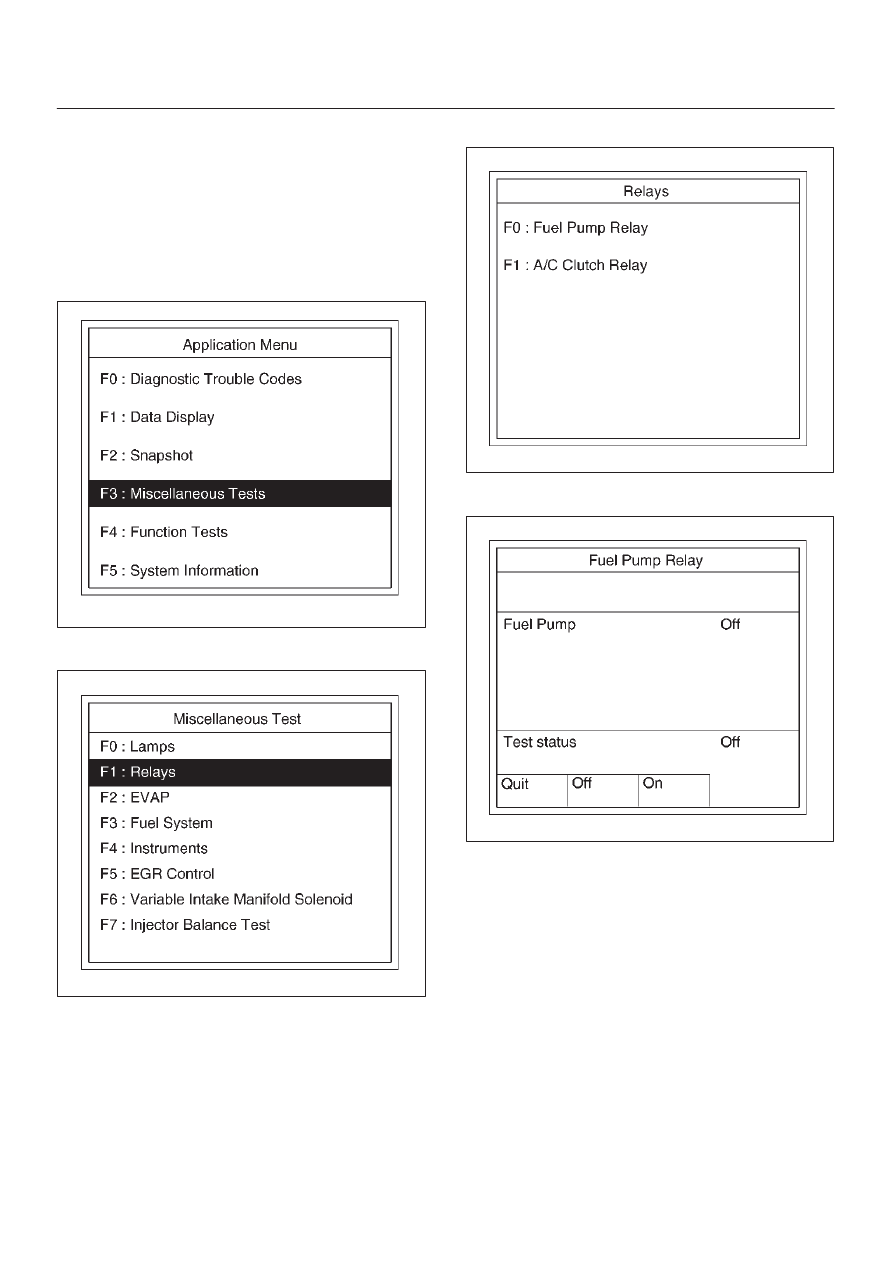

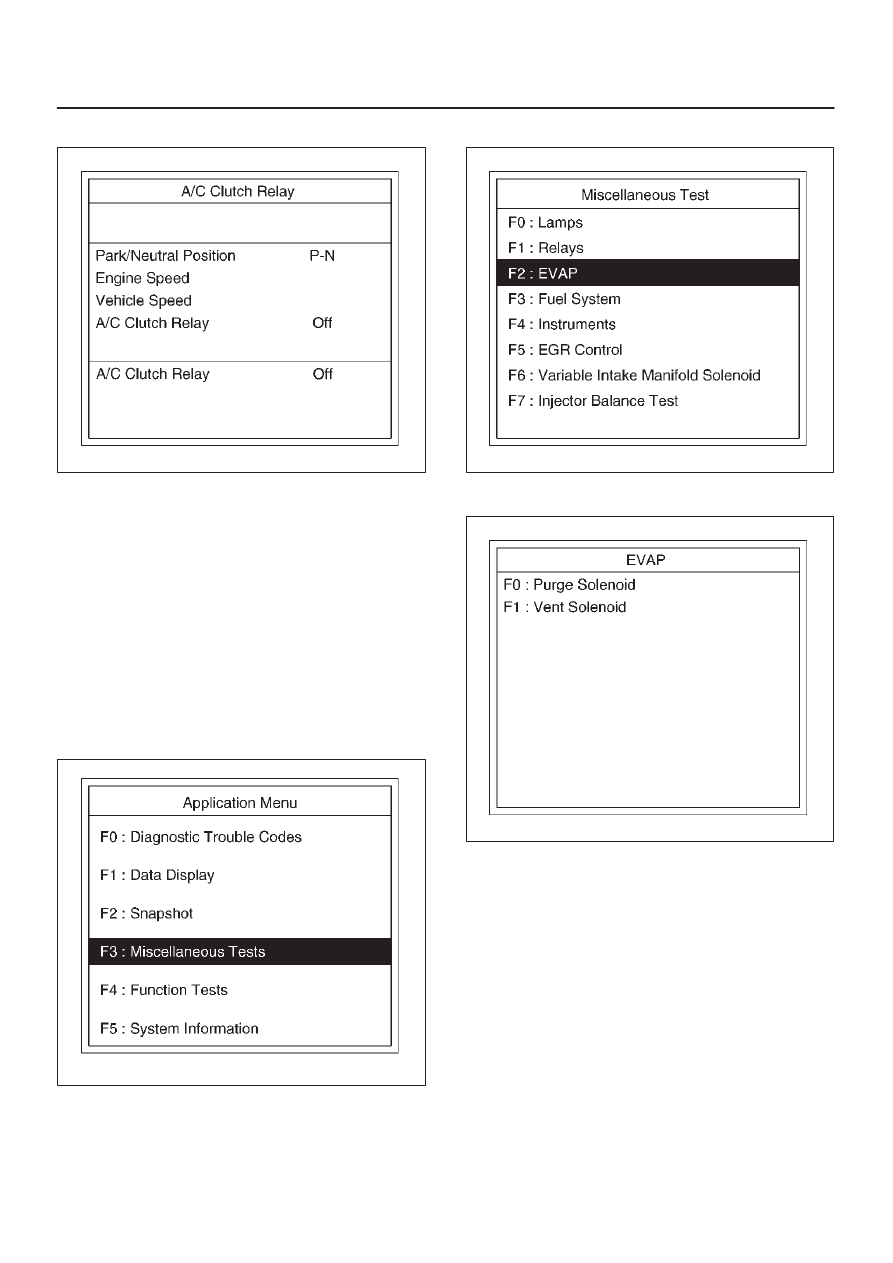

This test consists of eight menus-Lights, Relays, EVAP,
Fuel System, Instruments, EGR Control, Variable Intake
Manifold Solenoid, and Injector Balance Tests.
In these tests, Tech 2 sends operating signals to the
systems to confirm their operations thereby to judge the
normality of electric circuits.
To judge intermittent trouble,
1. Confirm DTC freeze frame data, and match the
freeze frame data as test conditions with the data list
displayed by Miscellaneous Test.
2. Confirm DTC setting conditions, and match the
setting conditions as test conditions with the data list
displayed by Miscellaneous Test.
3. Refer to the latest Service Bulletin.
Check to see if the Latest software is released or not.
Down load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Lamps Test

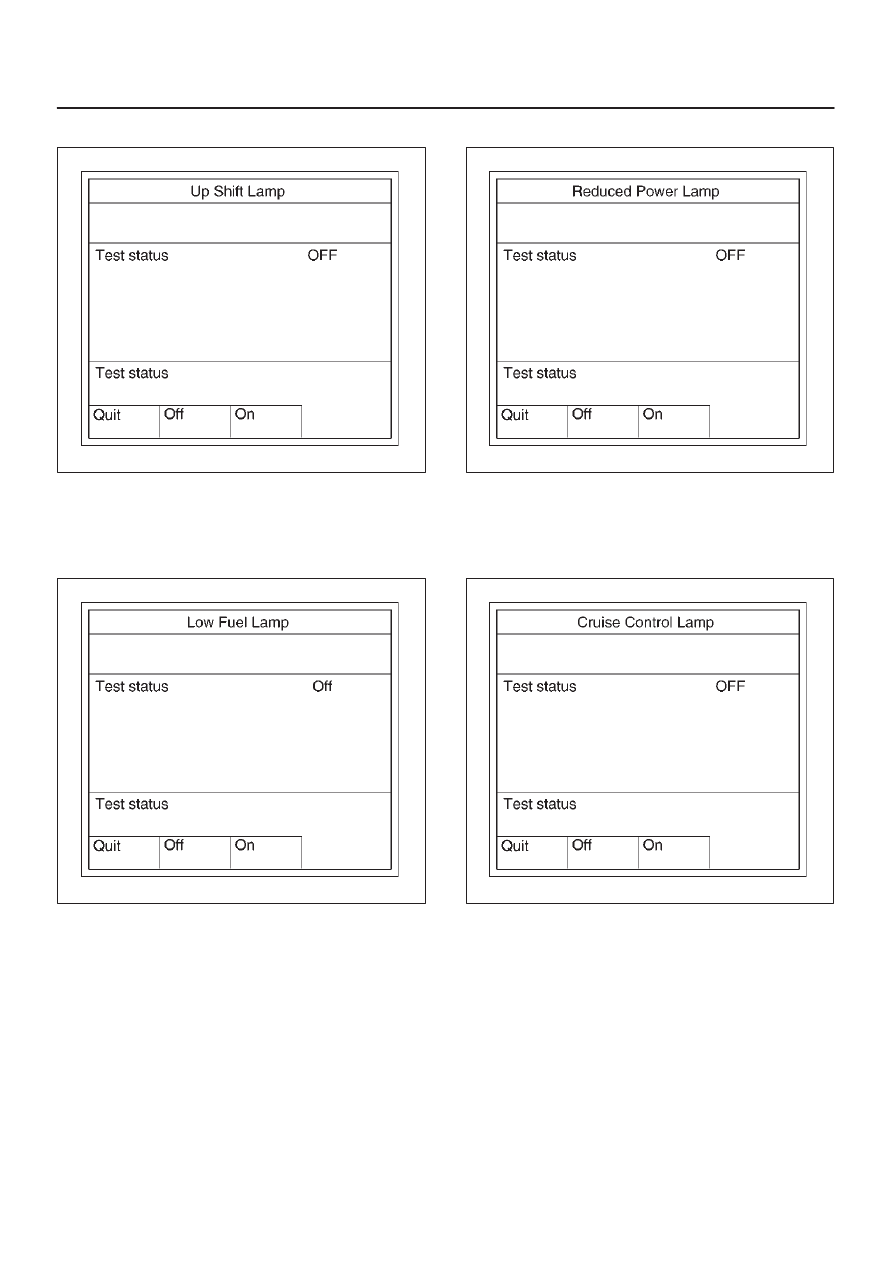

This test is conducted check MIL, Up Shift Lamp, Low
Fuel Lamp, Reduced Power Lamp and Cruise Control
Lamp for its working.
Tech2 must be used for this test.
Test Procedure:
1. Connect Tech 2 to the vehicle DLC.
2. Run the Engine at idle.

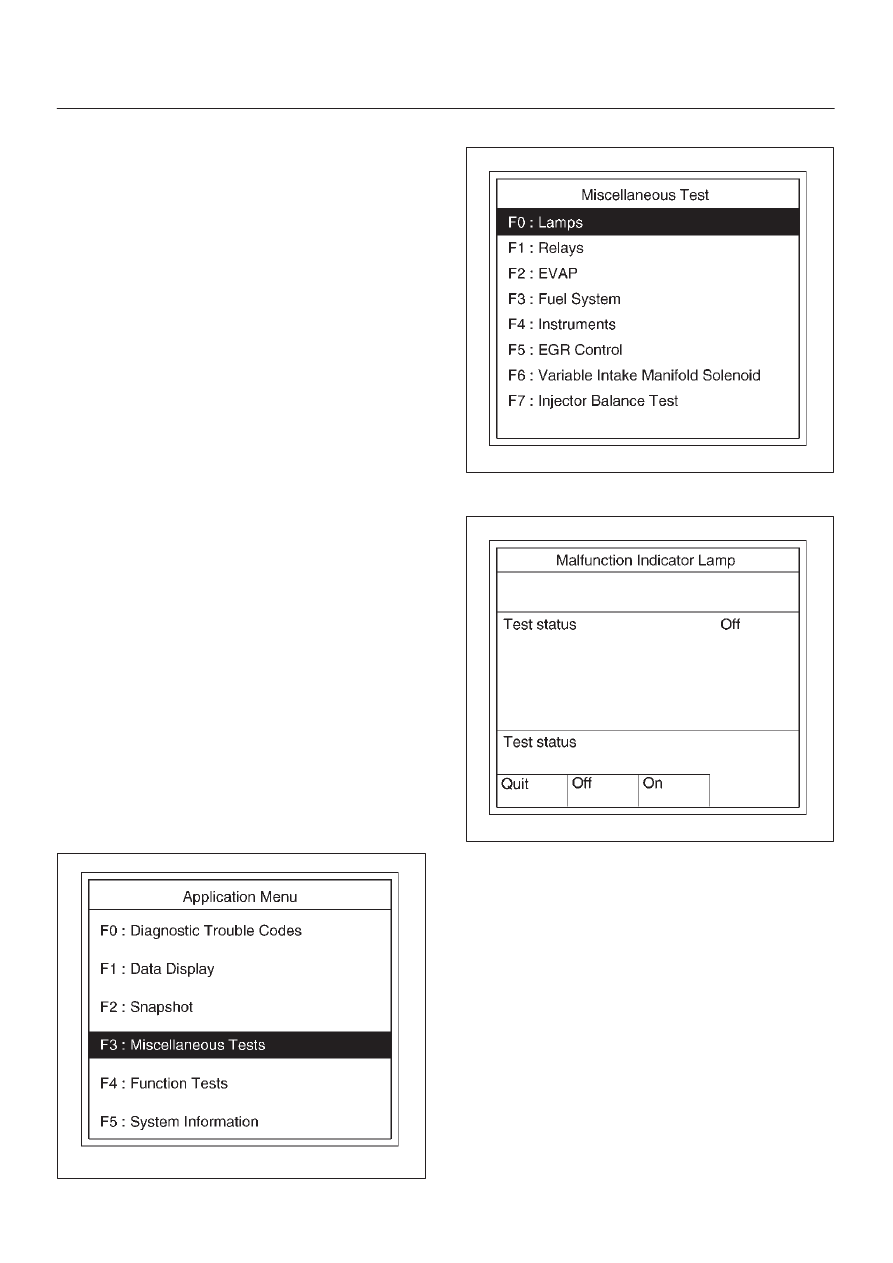

3. Select F3: Miscellaneous Test in the Application
Menu.
060R100078
4. Select F0:Lamps Test in the Miscellaneous Test.
060RY00080
5. Select F0:Malfunction Indicator Lamp.
060RY00091
6. Push”On” soft key.
7. Make sure Lamp illuminates.
8. If lamp illuminates, the Lamp is operating correctly.
