Isuzu Trooper (1998-2002 year). Manual - part 410





6E–10

6VE1 3.5 ENGINE DRIVEABILITY AND EMISSIONS

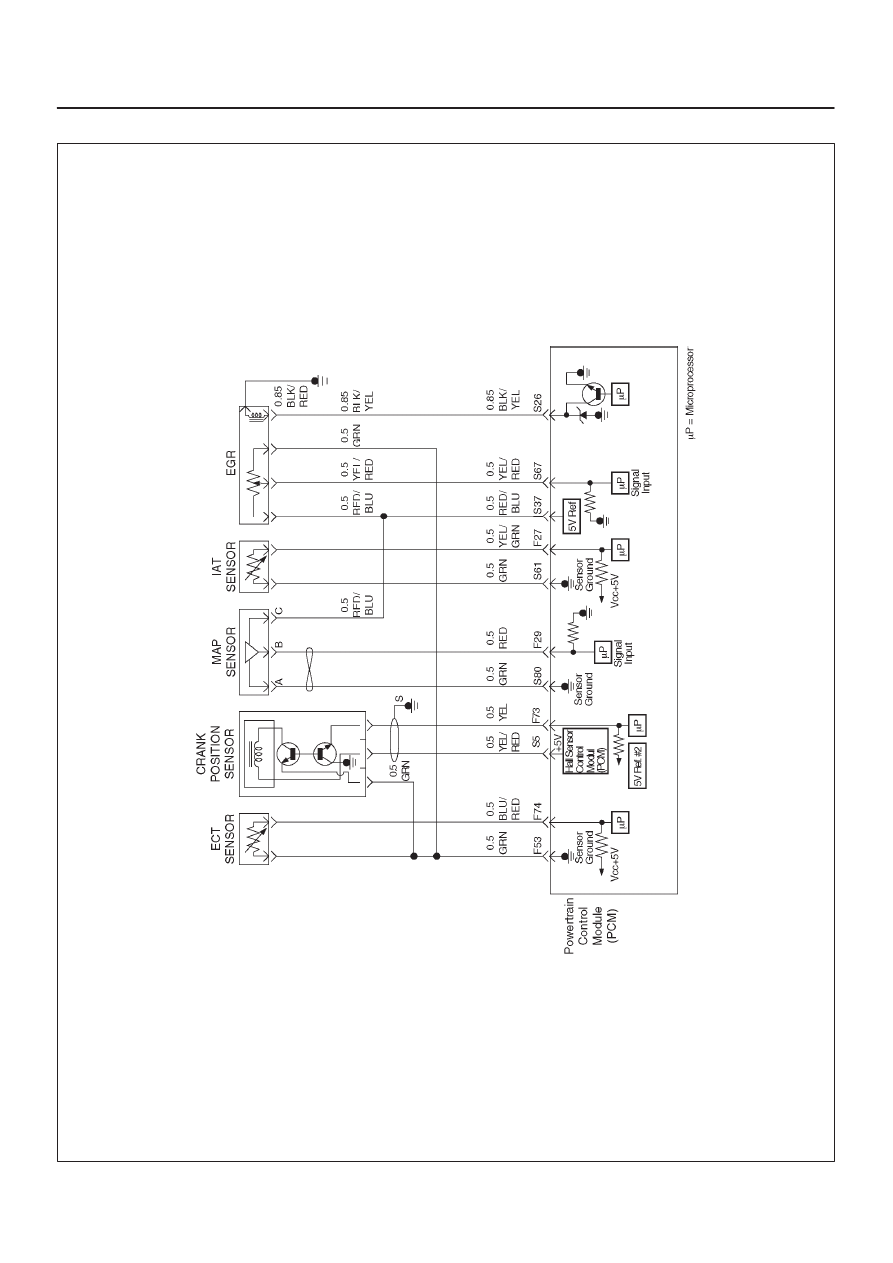

PCM Wiring Diagram (4 of 7)

D06R200033

6E–11

6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

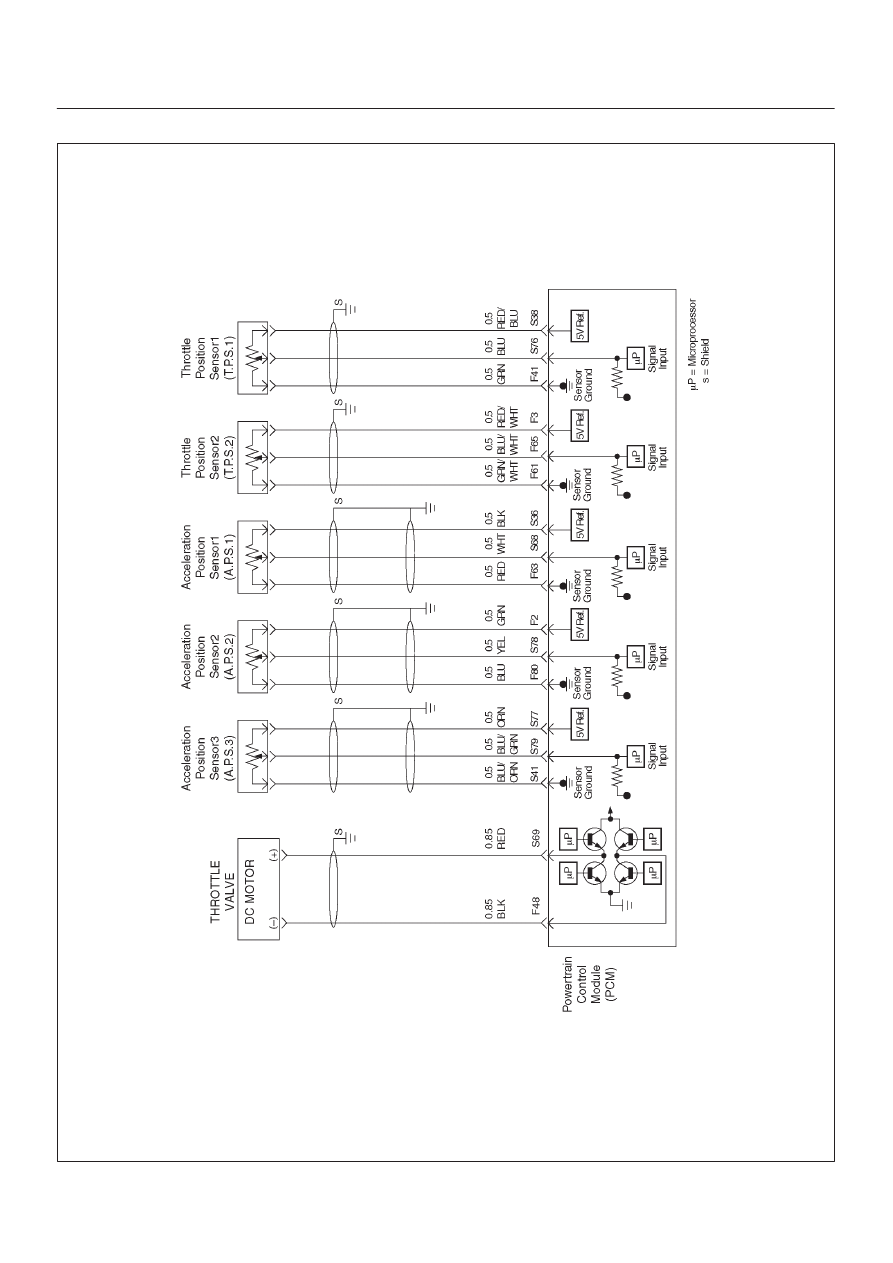

PCM Wiring Diagram (5 of 7)

D06R200082

6E–12

6VE1 3.5 ENGINE DRIVEABILITY AND EMISSIONS

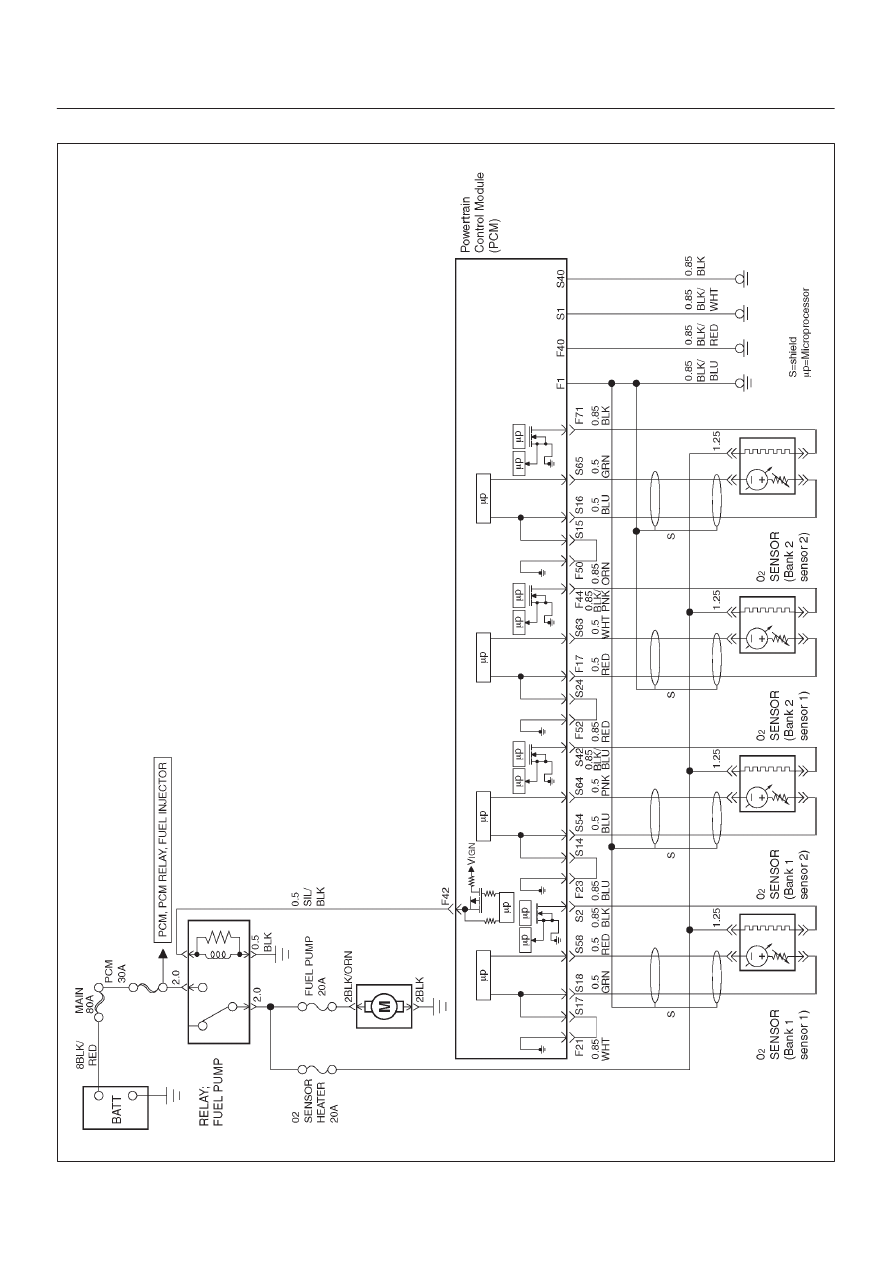

PCM Wiring Diagram (6 of 7)

D06R200007

6E–13

6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

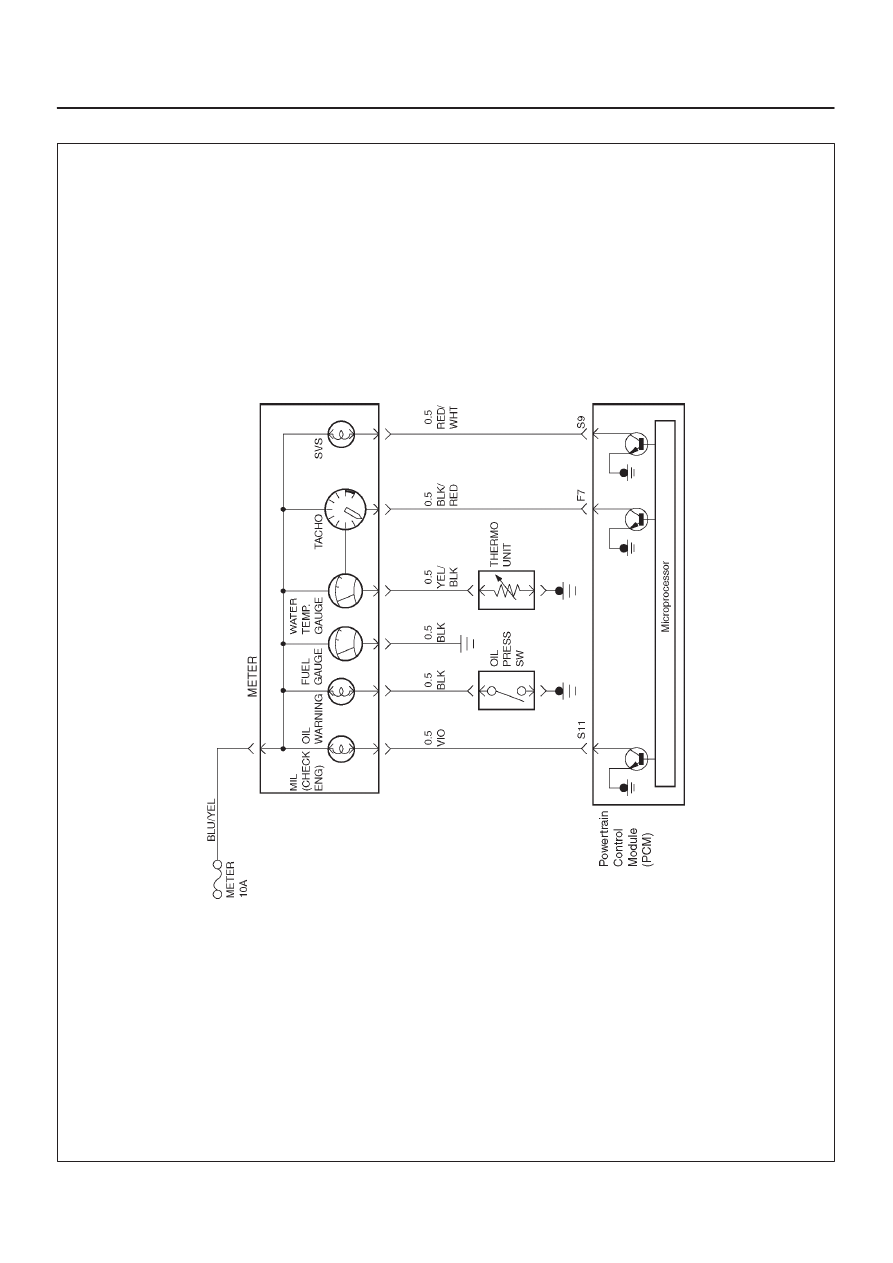

PCM Wiring Diagram (7 of 7)

D06R200110
