6E–6

6VE1 3.5 ENGINE DRIVEABILITY AND EMISSIONS

Specifications

Tightening Specifications

Application

N·m

Lb Ft.

Lb In.

EGR Bolt

25

18

—

Engine Coolant Temperature Sensor

30

22

—

Fuel Pressure Regulator Attaching Screw

3

—

26

Fuel Rail Bolts

25

18

—

Fuel Tank Undercover Retaining Bolts

36

27

—

Heated Oxygen Sensor

55

40

—

Lower Intake Manifold to Engine Block Bolts

25

18

—

Lower Intake Manifold to Engine Block Nuts

25

18

—

Spark Plugs

18

13

—

Throttle Body Mounting Bolts

10

—

87

Common Chamber to Lower Intake Manifold Bolts

25

18

—

VSS Retaining Bolt

16

12

—

6E–7

6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

Diagrams and Schematics

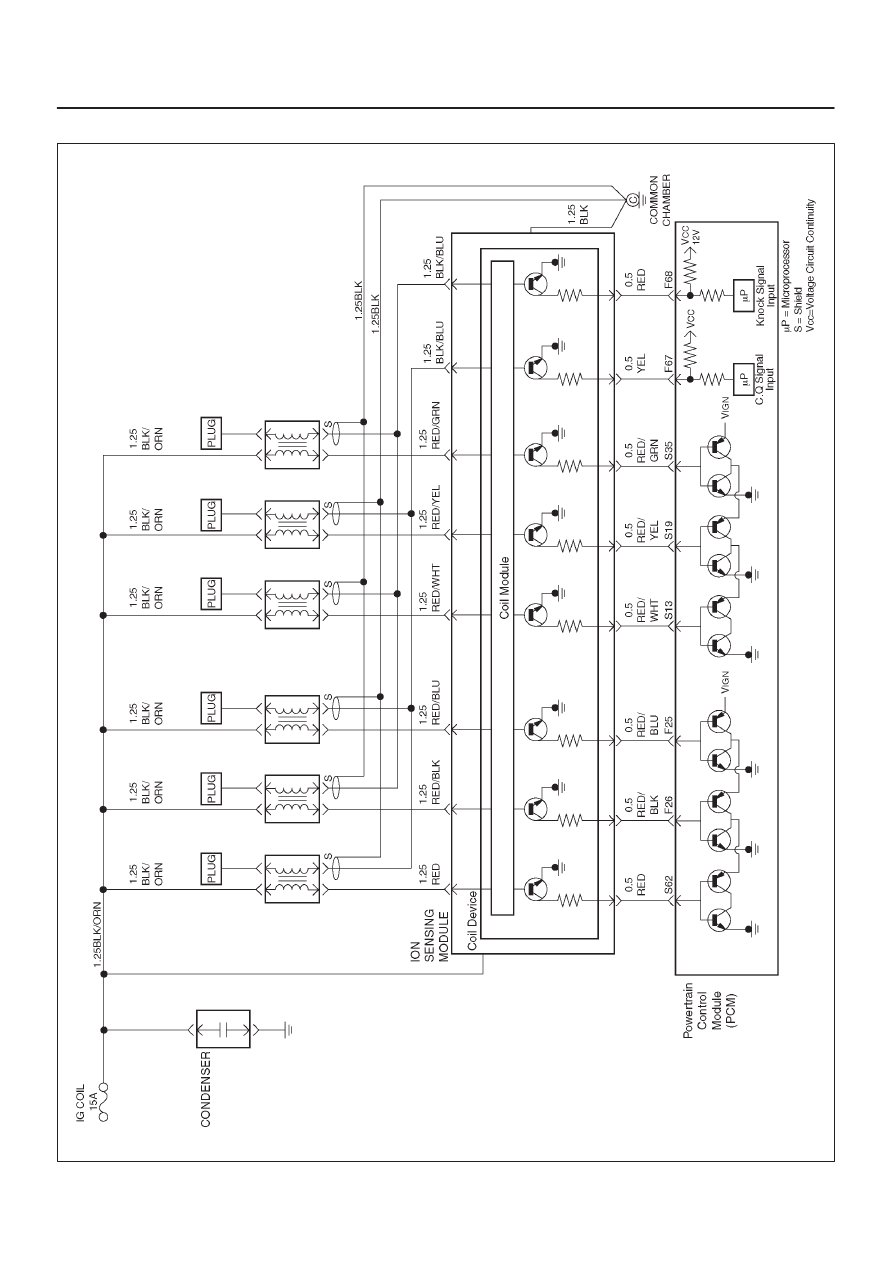

PCM Wiring Diagram (1 of 7)

D06R200099

6E–8

6VE1 3.5 ENGINE DRIVEABILITY AND EMISSIONS

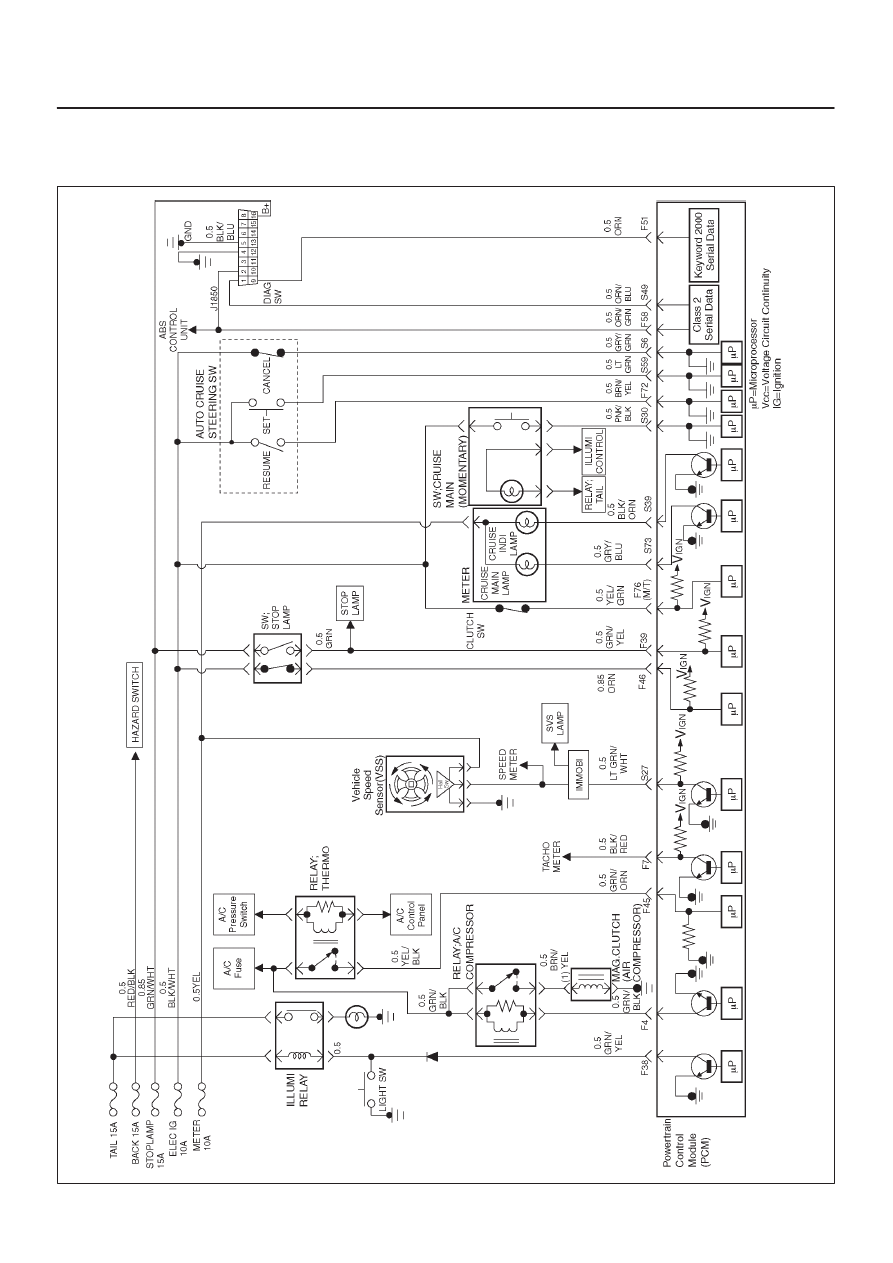

PCM Wiring Diagram (2 of 7)

D06R200100

6E–9

6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

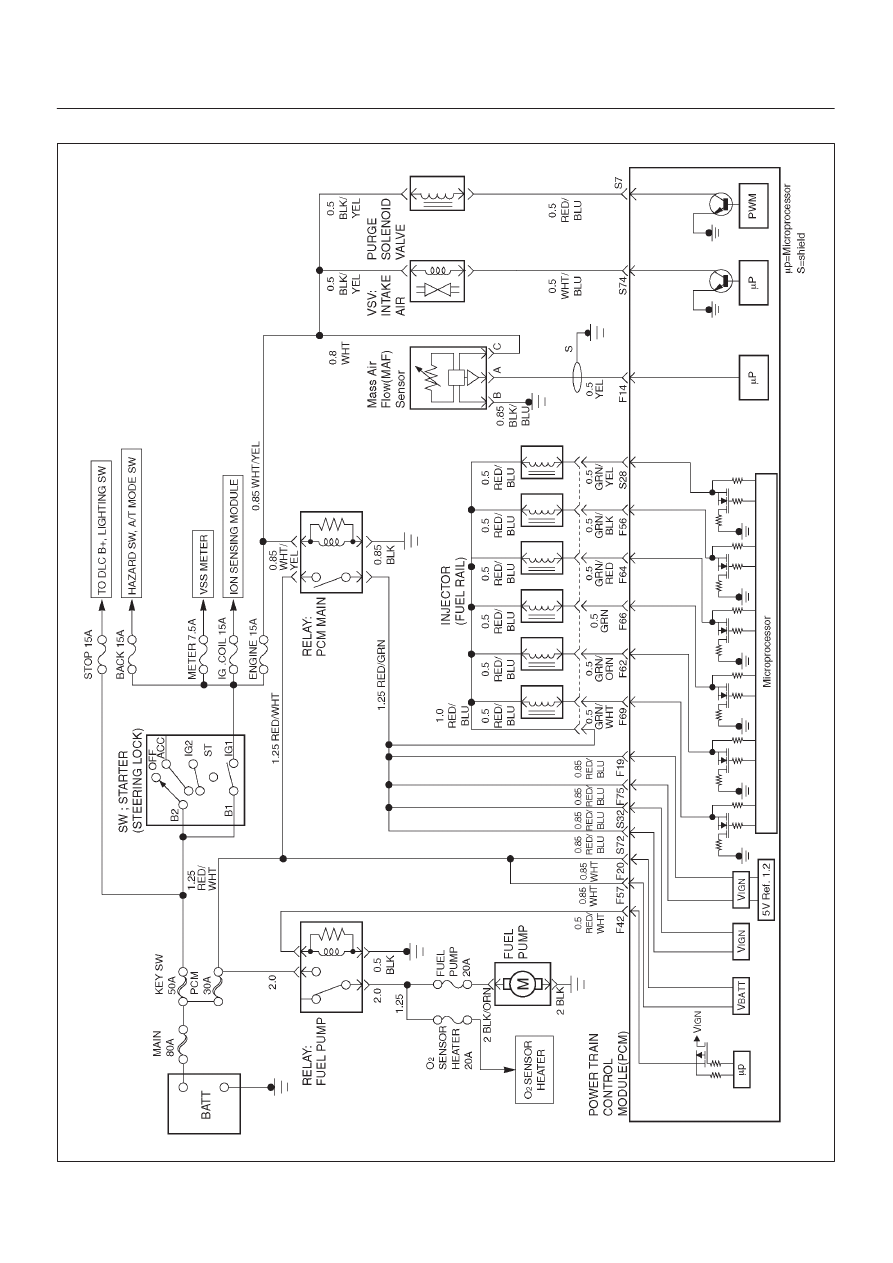

PCM Wiring Diagram (3 of 7)

D06R200081
