5C – 64 POWER ASSISTED BRAKE SYSTEM

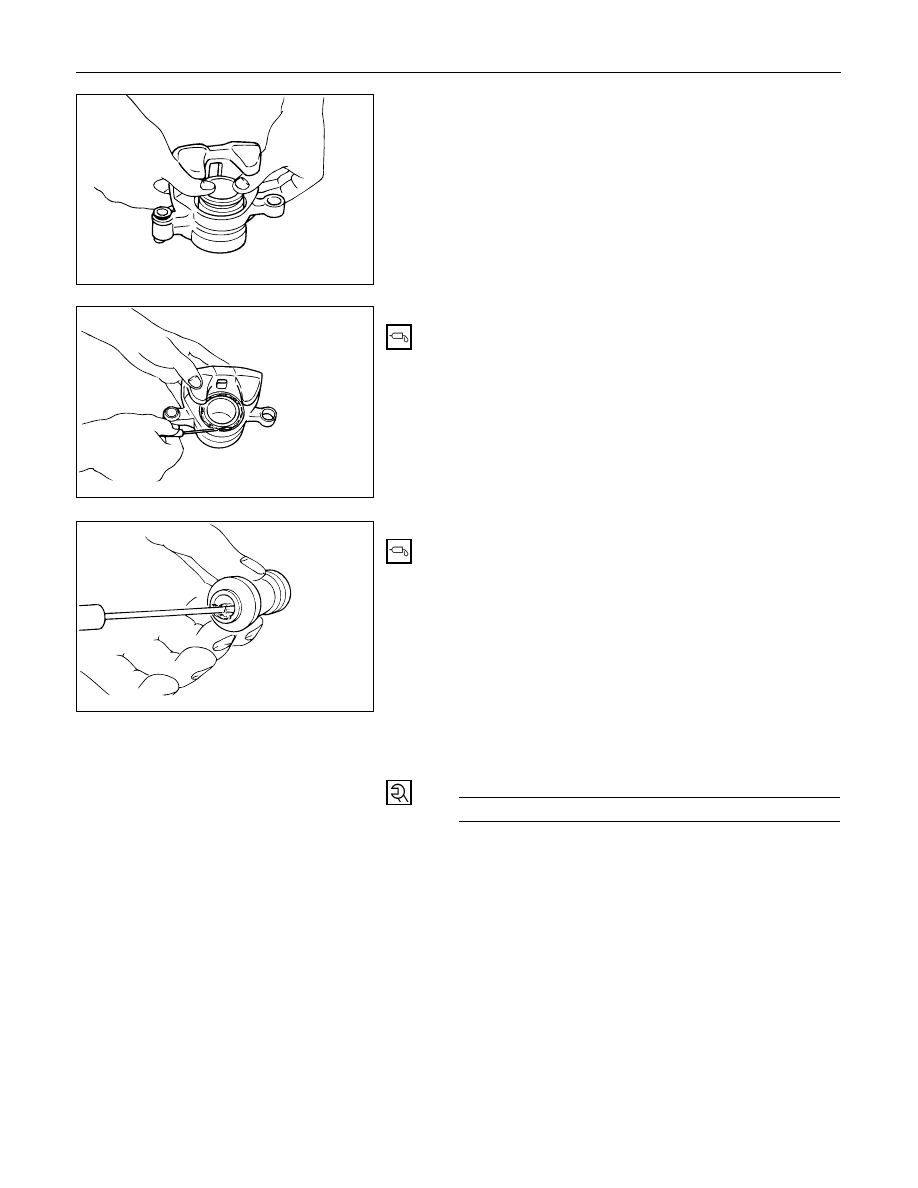

6. Dust Boot; Piston
•
When inserting the piston into the cylinder, use
finger pressure only. Do not use a mallet or other
impact tools, since damage to the cylinder wall or
piston seal can result.
4. Dust Boot Ring
•
Apply special grease (Approx. 1 g) to the piston
and attach the dust boot to the piston and caliper.
Insert the dust boot ring into the dust boot.
3. Dust Boot
•
Install the dust boot on the support bracket after
applying special grease (Approx 1 g) onto the
dust boot inner surface. Also apply special grease
onto the lock bolt and guide bolt setting hole of
the support bracket.
2. Lock Bolt
1. Guide Bolt
Guide Bolt Torque
N·m (kg·m / lb·ft)
44 (4.5 / 32)
