9J1–49
RESTRAINT CONTROL SYSTEM
DTC 33 Passenger Pretensioner Loop Short To Voltage

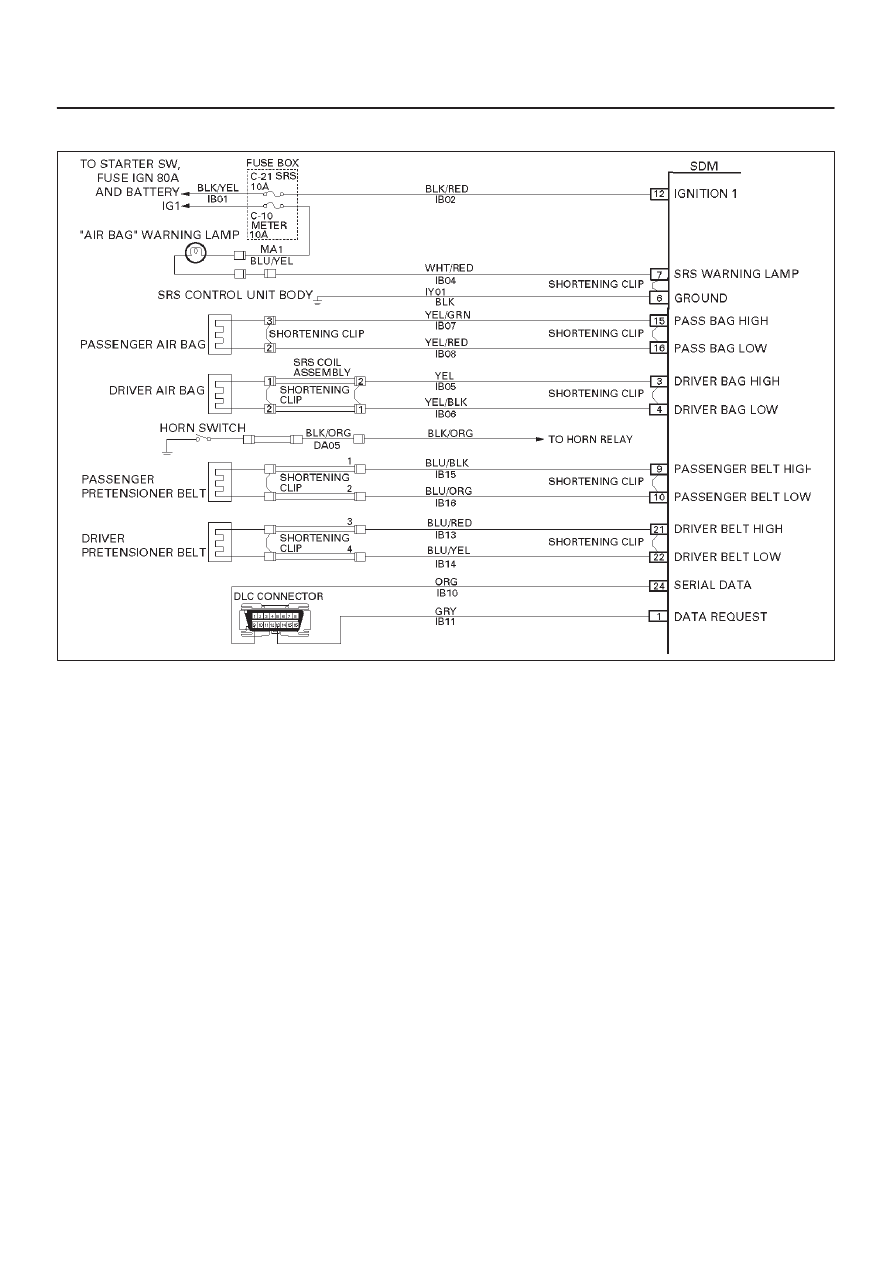

D09RW014
Circuit Description:
When the ignition switch is turned “ON”, the SDM will
perform tests to diagnose critical malfunctions within
itself. Upon passing these tests, “Ignition 1”, and
pretensioner loop voltages are measured to ensure they
are within their respective normal voltage ranges.
The SDM monitors the voltages at “Driver Belt Low”
terminal “10” and “Passenger Belt Low” terminal “22” to
detect short to B+ in the pretensioner assembly circuits.
DTC Will Set When:
“Ignition 1” is within the normal operating voltage range.
Once these conditions are met and the voltage at
“Passenger pretensioner Low” is above a specified value,
DTC 33 will set. This test is run once each ignition cycle
and “Continuous Monitoring”.
Action Taken:
SDM turns “ON” the “AIR BAG” warning lamp and sets
DTC 33.
DTC Will Clear When:
The malfunction is no longer occurring and the ignition is
turned “OFF”.
DTC Chart Test Description:
Number(s) below refer to step number(s) on the
diagnostic chart:
2. This test determines whether the malfunction is in
the SDM.
3. This test isolates the malfunction to one side of the
passenger pretensioner assembly yellow 2–pin
connector at the base of the passenger seat.
4. This test determines whether the malfunction is in
IB15–BLU/BLK.
5. This test determines whether the malfunction is in
IB16–BLU/ORG.
Diagnostic Aids:
An intermittent condition is likely to be caused by a short
to B+ in the passenger pretensioner assembly circuit.
Inspect IB15–BLU/BLK and IB16–BLU/ORG carefully for
cutting or chafing. If the wiring pigtail of the passenger
pretensioner assembly is damaged, the component must
be replaced. A careful inspection of IB15–BLU/BLK and
IB16–BLU/ORG, including the passenger pretensioner
assembly pigtail is essential to ensure that the
replacement SDM will not be damaged.
