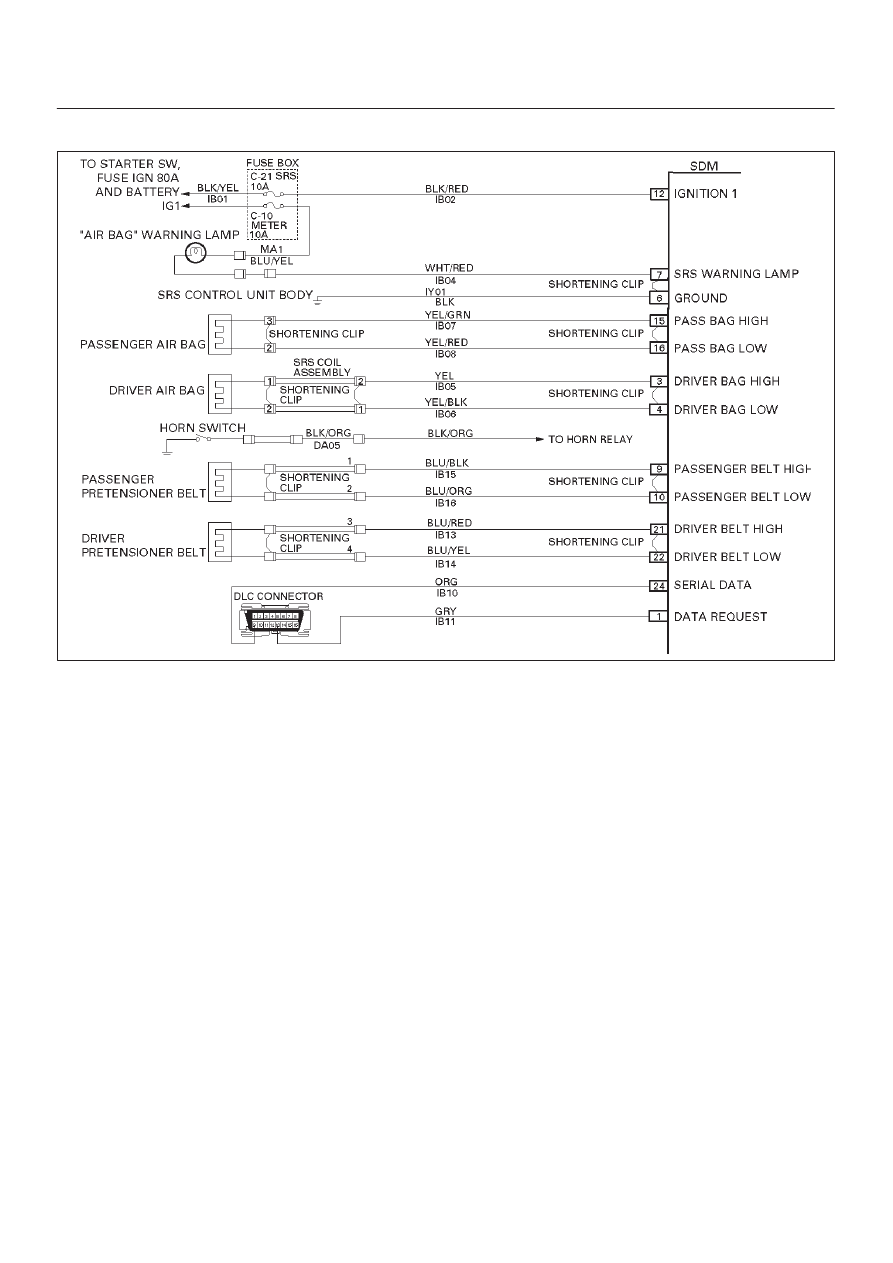

9J1–25 RESTRAINT CONTROL SYSTEM DTC 21 Driver Deployment Loop Resistance High (Cont’d) Step No Yes Action 7 1. Ignition switch “OFF.” assembly harness connector. 3. Connect SRS driver / passenger load tool 5–8840–2421–0 on the top of steering column. 4. Reconnect SRS coil assembly harness connector as the base of steering column. 5. Ignition switch “ON.” Is DTC 21 current? Ignition switch “OFF” Replace SRS coil assembly Go to Step 8 Ignition switch “OFF” Replace driver air bag assembly Go to Step 8 8 1. Reconnect all components ensure all component are properly mounted. 2. Clear diagnostic trouble codes. Was this step finished? Repeat the “SRS Diagnostic System Check” Go to Step 8 |
