EXTERIOR/INTERIOR TRIM

8J–5

7. Remove the center console assembly(2).

D

Remove two fixing screws on the front side.
Open the rear cover, remove two nuts, then the
center console assembly.

D

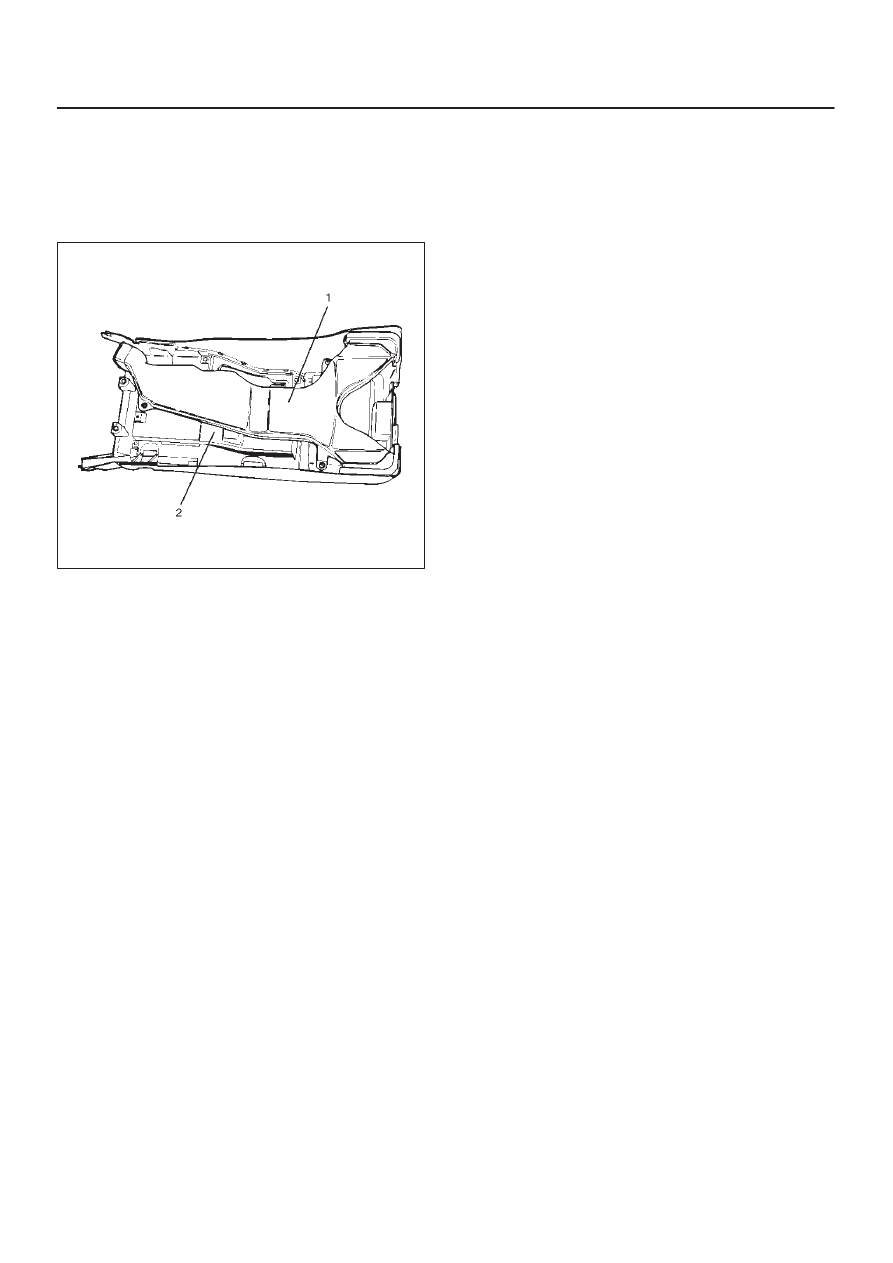

Remove the rear heater duct(1) from the center
console.

745RS005

Installation

To install, follow the removal steps in the reverse order.

8J–6

EXTERIOR/INTERIOR TRIM

Front Door Trim Panel

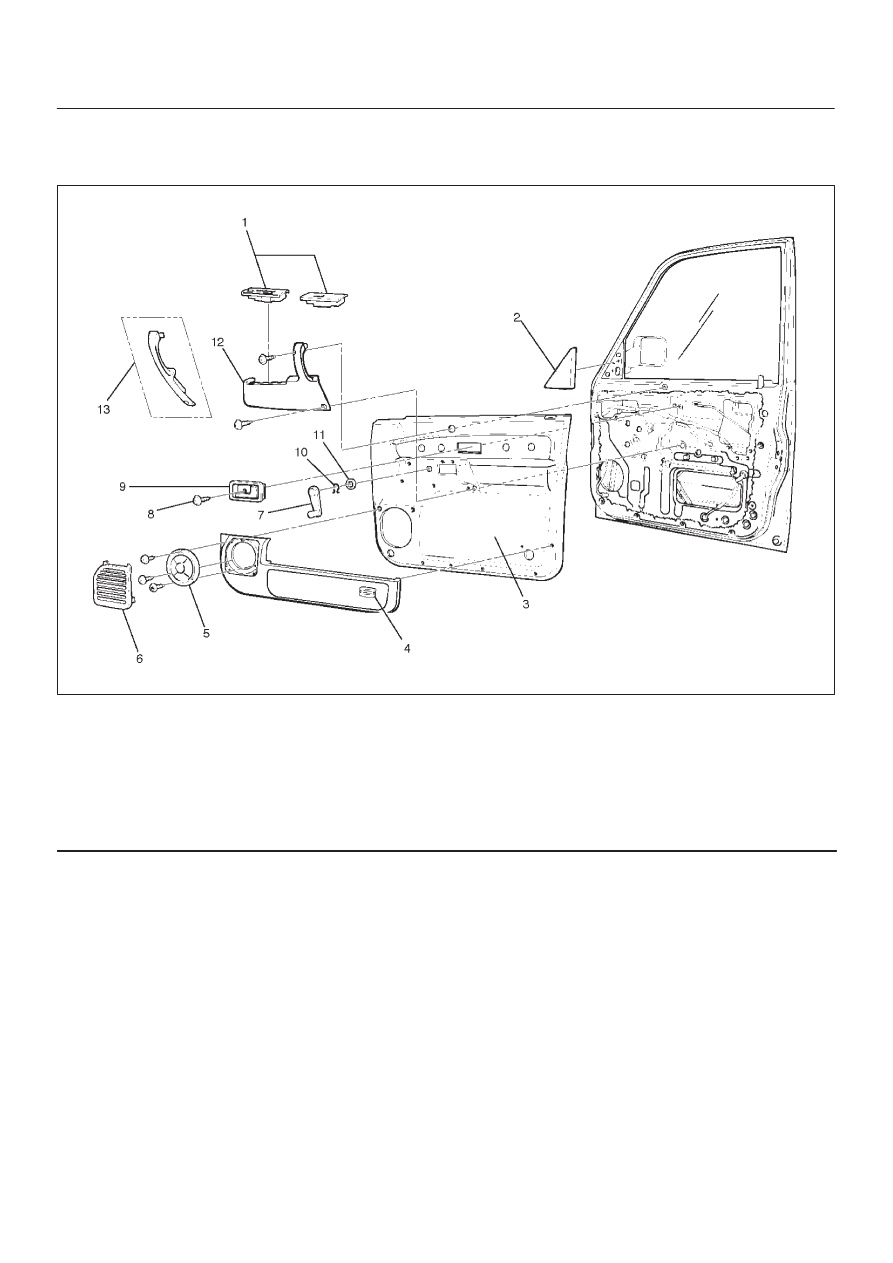

Front Door Trim Panel and Associated Parts

635RW011

Legend

(1) Power Window Switch
(2) Door Mirror Cover
(3) Door Trim Panel
(4) Courtesy Light
(5) Front Speaker
(6) Speaker Cover

(7) Regulator Handle
(8) Inside Handle Fixing Screw
(9) Inside Handle

(10) Hook

(11) Washer

(12) Inside Pull Handle
(13) Inside Pull Handle (W/O Power Window)

Removal

1. Disconnect the battery ground cable.

EXTERIOR/INTERIOR TRIM

8J–7

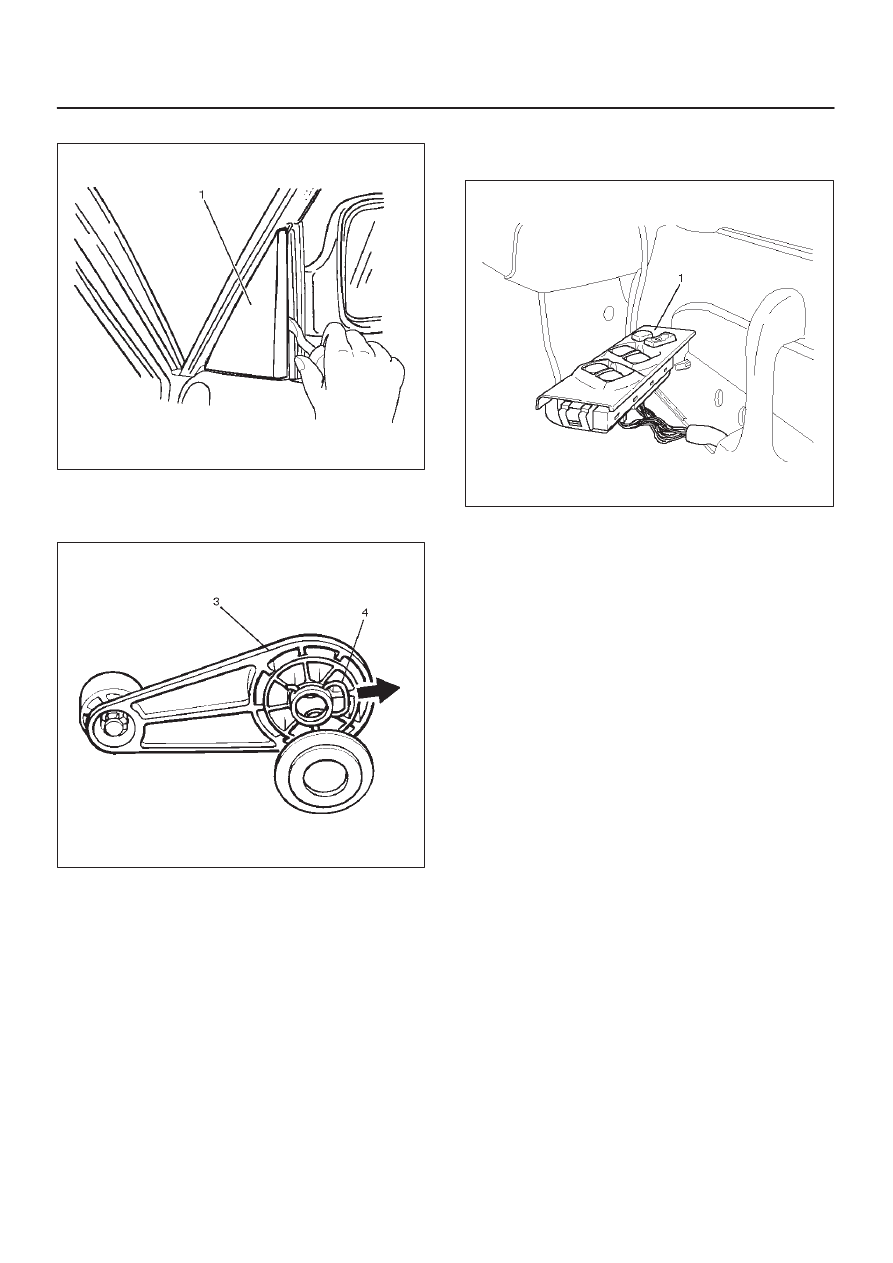

2. Remove the door mirror cover (1).

720RW011

3. Remove the regulator handle(3).

D

Pull the hook(4) out and remove the regulator
handle.

631RW001

4. Remove the power window switch(1).

D

Pry the power window switch out and disconnect
the switch connector.

825RW174

5. Remove the speaker cover.
6. Remove the front speaker.

D

Remove the front speaker fixing screws in order to
disconnect the speaker connector.

7. Remove the inside handle fixing screw.

D

Remove the screw that fixes the inside handle(7),
slide the inside handle to the position illustrated,
and leave it there for the moment.

CAUTION: Take care not to impose excessive force
on the inside handle link(6), lest this link is
elongated, which could make it impossible to
operate the door with the inside handle.

8J–8

EXTERIOR/INTERIOR TRIM

632RW001

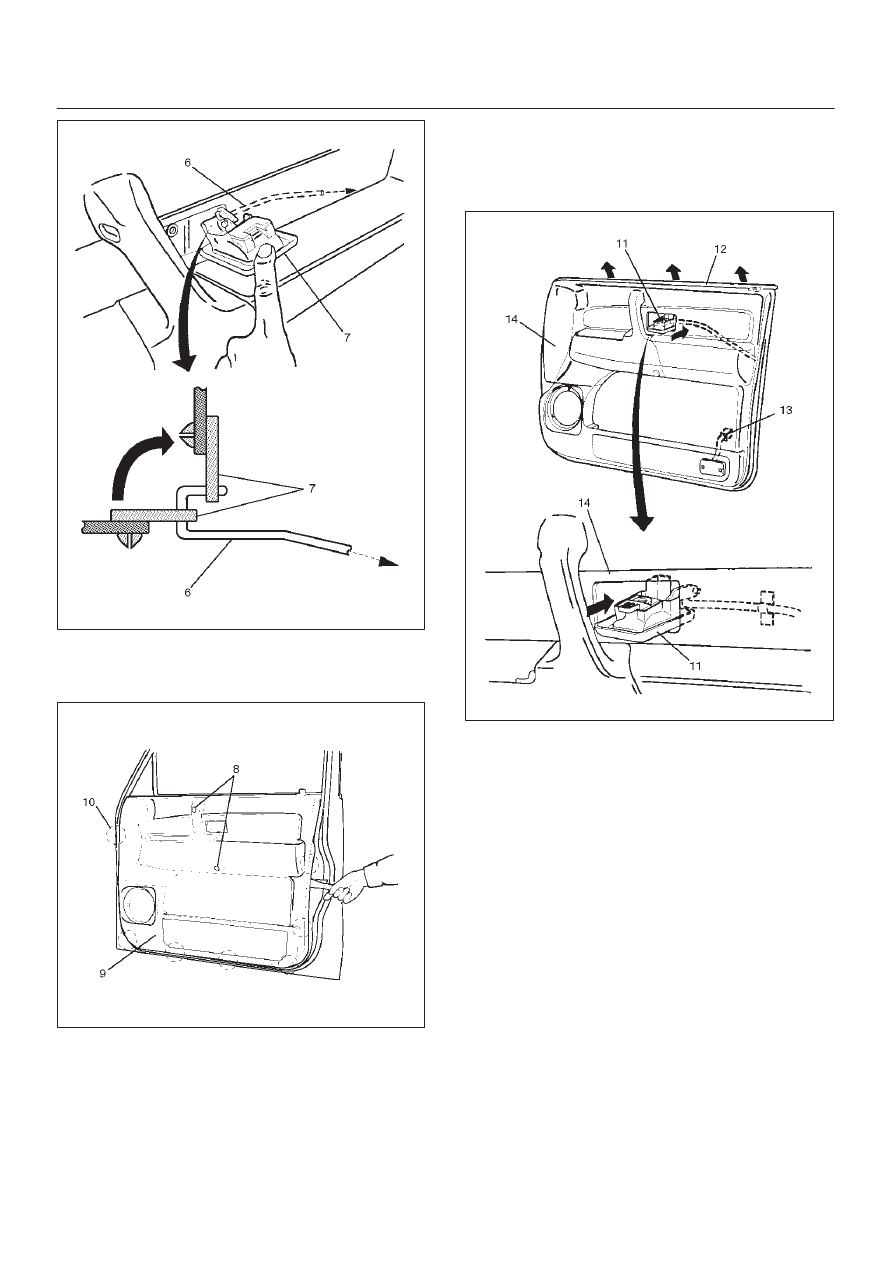

8. Remove the door trim panel(9).

D

Remove two fixing screws(8) in order to take off
seven clips(10) from the door panel.

635RS007

D

Disconnect the courtesy light connector(13) to lift
the door trim panel(14) and unlock the engagement
of the waist seal(12) section.  Then, pass the inside
handle(11) through the mounting hole of the trim
panel, and detach the trim panel.

632RS015

9. Remove the inside handle.
