8H–14 SECURITY AND LOCKS

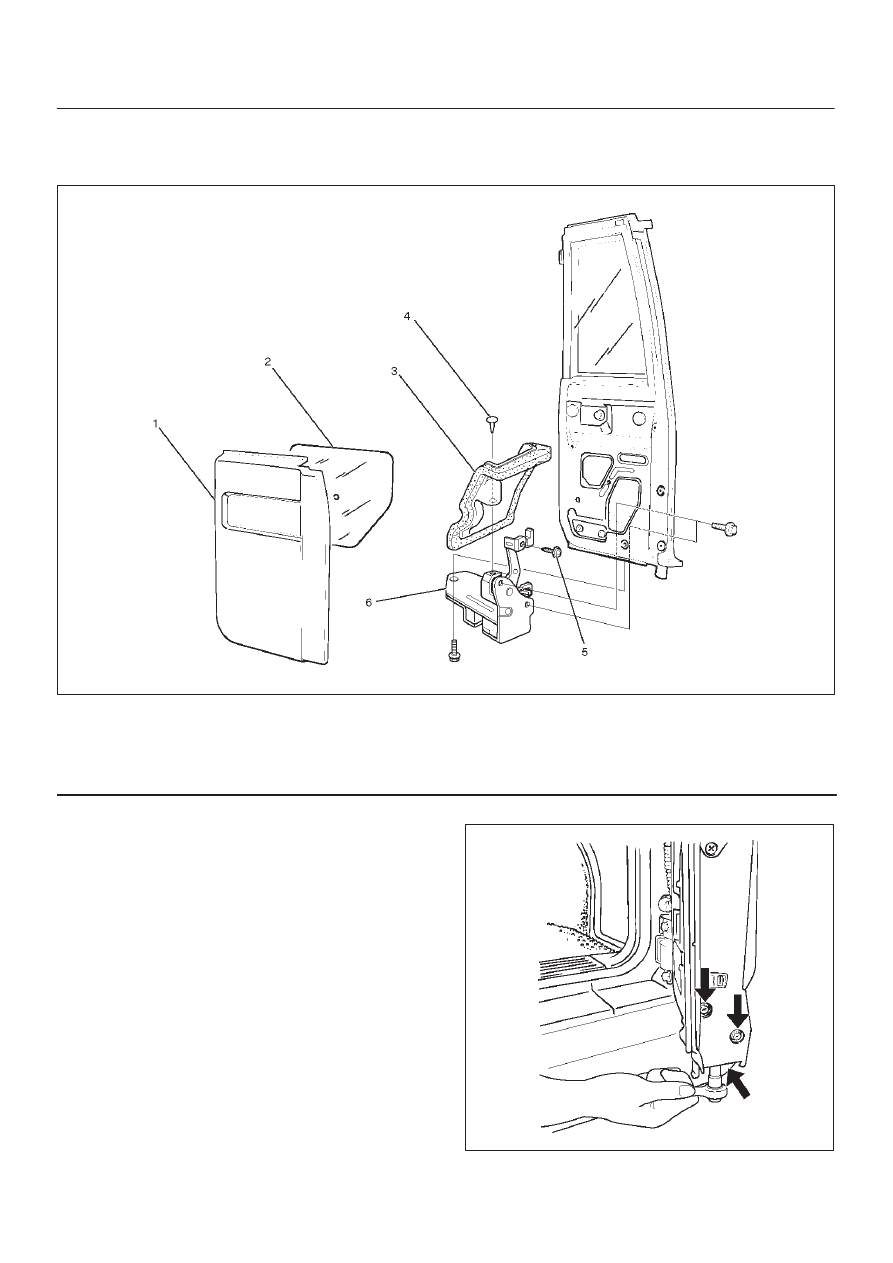

Tailgate Lock Assembly (RH)

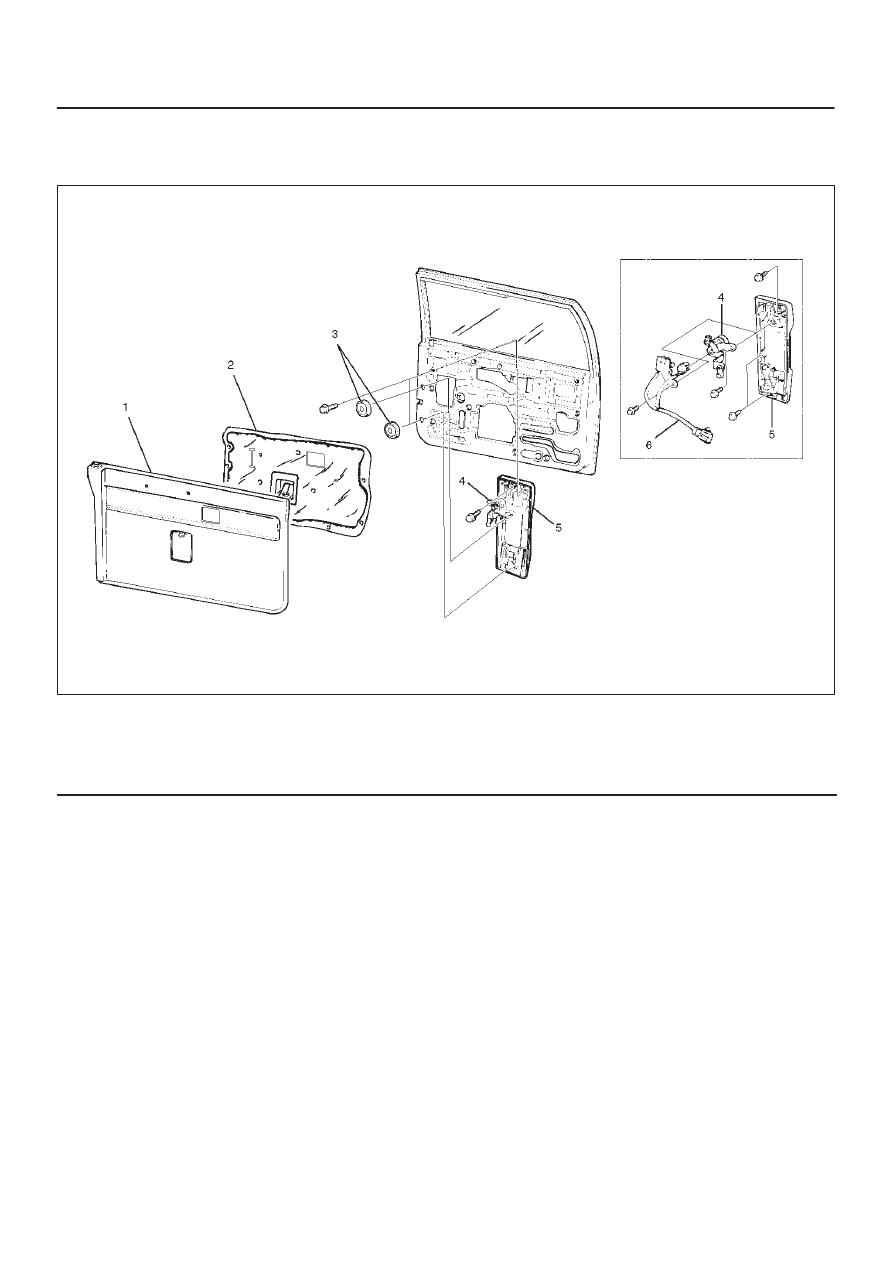

Tailgate Lock Assembly (RH) and Associated Parts

684RW006

Legend

(1) Tailgate Trim Panel (RH)
(2) Waterproof Sheet
(3) Tailgate Lock Seal

(4) Clip
(5) Screw
(6) Tailgate Lock Assembly (RH)

Removal

1. Disconnect the battery ground cable.
2. Remove the tailgate trim panel (RH).

D

Refer to the Tailgate Trim Panel (RH) in
Exterior/Interior Trim section.

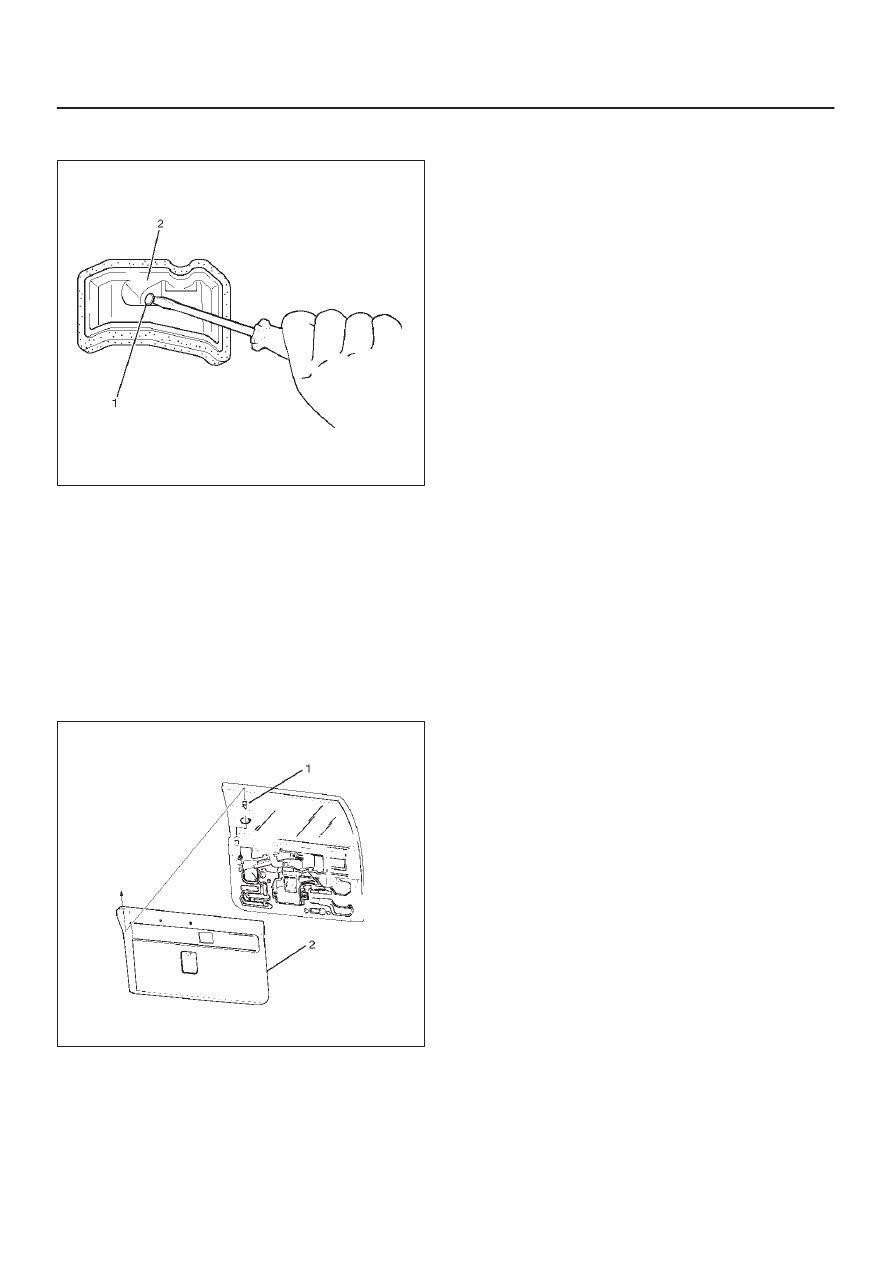

3. Peel the waterproof sheet off the tailgate panel

carefully and then remove the waterproof sheet.

4. Remove three fixing bolts and then remove the

tailgate lock assembly (RH).

683RW009

SECURITY AND LOCKS

8H–15

5. Remove the tailgate lock seal fixing clip(1) and then

remove the tailgate lock seal(2).

683RW008

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Apply chassis grease to the lock assembly and striker

moving surface.

2. Tighten the tailgate lock assembly fixing bolts to the

specified torque.

Torque: 11 N·m (1.1kg·m/95 lb in)

3. Check that the tailgate lock operates correctly after

installing it.

Tailgate Inside Lock Knob

Removal

1. Disconnect the battery ground cable.
2. Remove the tailgate trim panel (LH)(2).

D

Refer to the Tailgate Trim Panel (LH) in
Exterior/Interior Trim section.

3. Take care of cushion to turn the lock knob

counterclockwise and then remove the tailgate inside
lock knob(1).

683RW014

Installation

To install, follow the removal steps in the reverse order.

8H–16 SECURITY AND LOCKS

Tailgate Inside Handle

Parts Location

683RW013

Legend

(1) Tailgate Inside Handle

Removal and Installation

D

Refer to the Tailgate Trim Panel (LH) in
Exterior/Interior Trim section.

SECURITY AND LOCKS

8H–17

Tailgate Outside Handle and/or Tailgate Lock Cylinder

Tailgate Outside Handle and/or Tailgate Lock Cylinder and Associated Parts

684RW007

Legend

(1) Tailgate Trim Panel (LH)
(2) Waterproof Sheet
(3) Grommet

(4) Tailgate Lock Cylinder
(5) Tailgate Outside Handle
(6) Key Switch (W/Anti–Theft)

Removal

1. Disconnect the battery ground cable.
2. Remove the tailgate trim panel.
3. Remove the waterproof sheet.

D

Refer to the Tailgate Lock Assembly (LH) in this
section.

4. Remove the grommet.
