8F–44

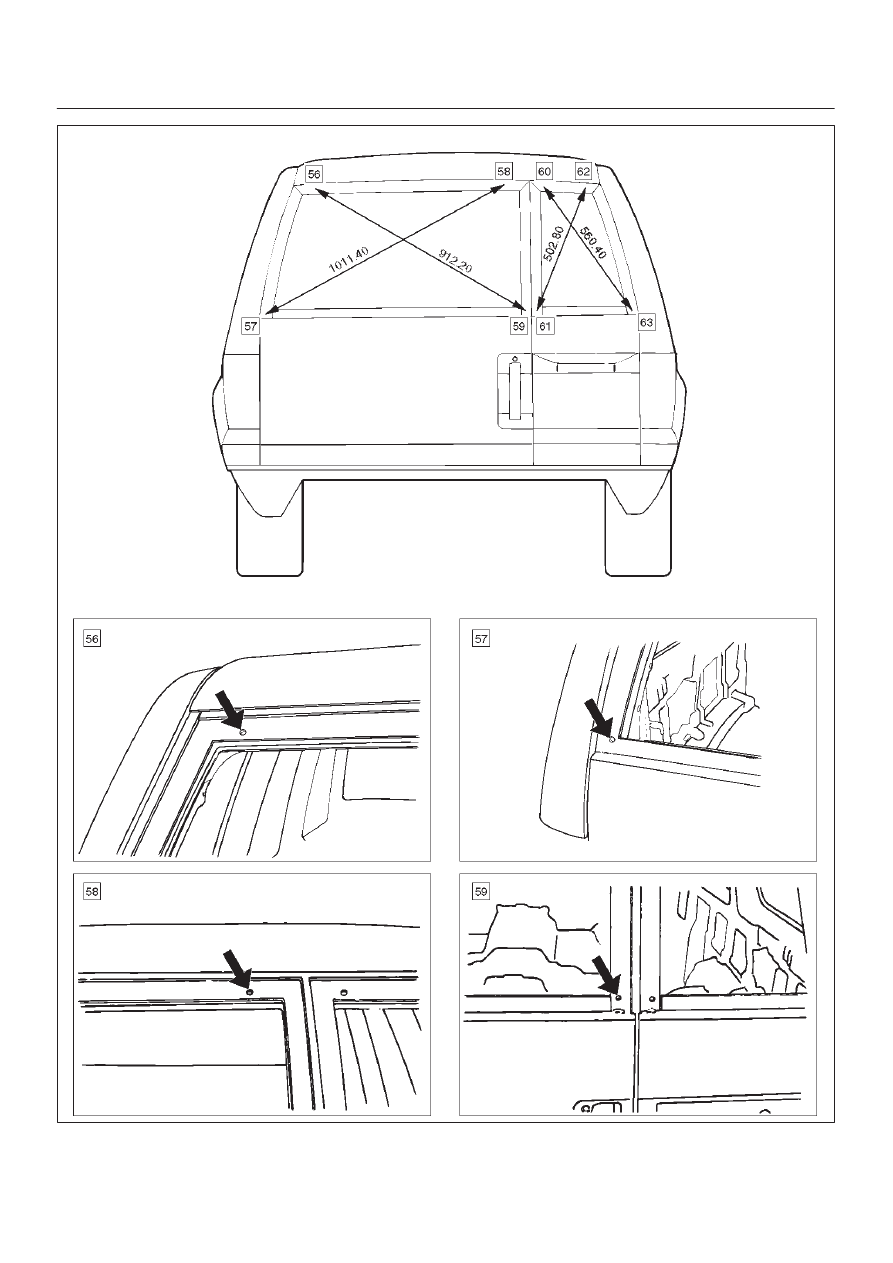

BODY STRUCTURE

A10RW029

8F–45

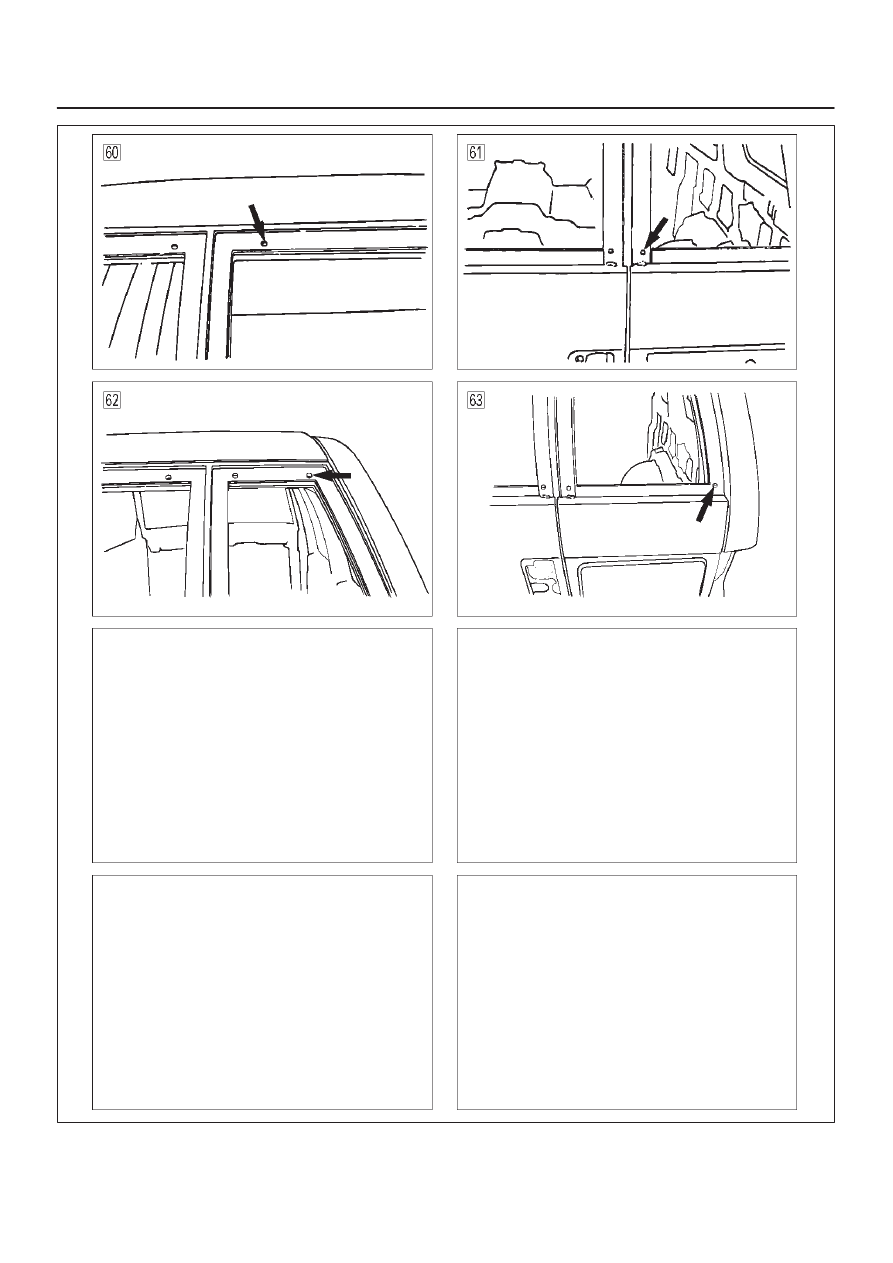

BODY STRUCTURE

A10RW013

8F–46

BODY STRUCTURE

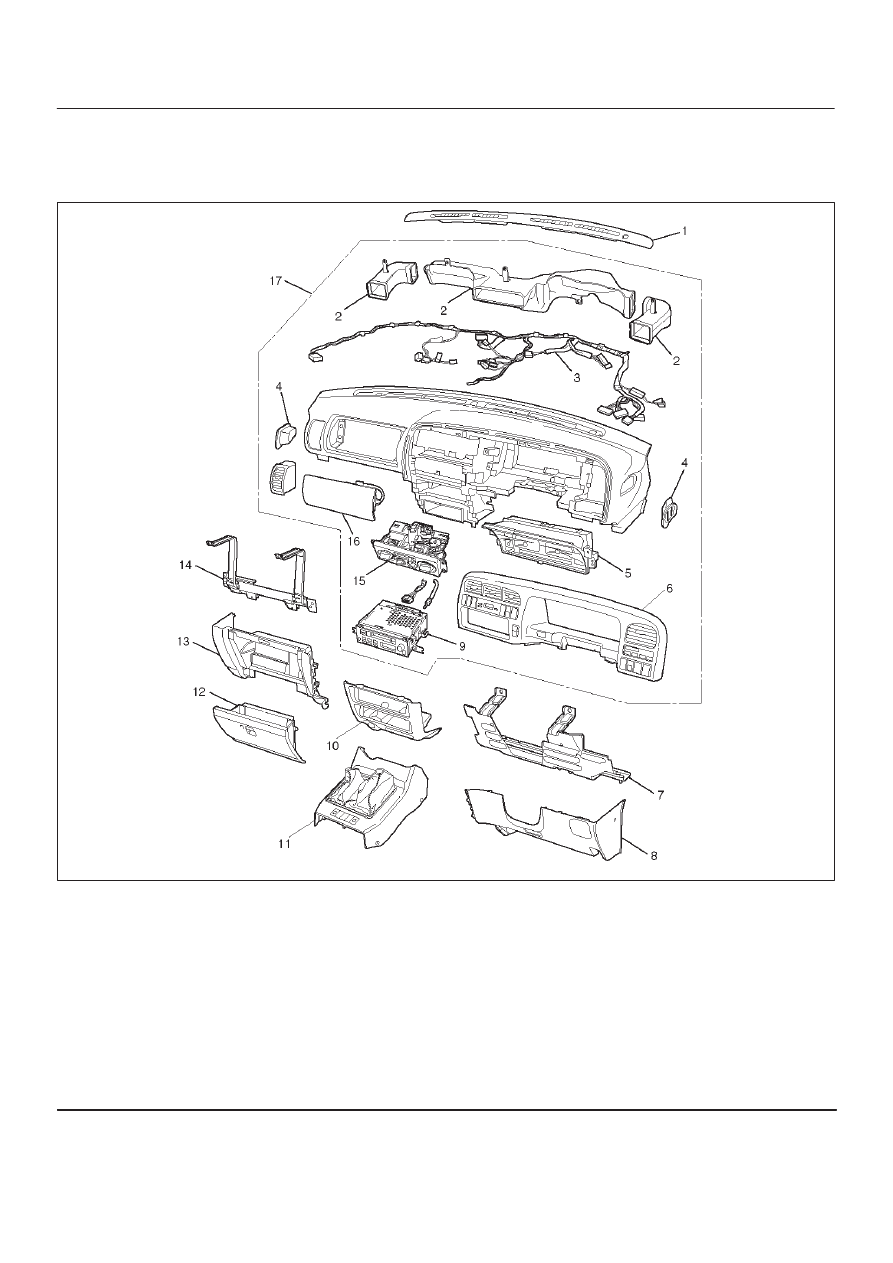

Instrument Panel Assembly

Parts Location

This illustration is based on RHD and W/SRS.

740RY00028

Legend

(1) Front Defroster Grille
(2) Vent Duct Assembly
(3) Instrument Harness Assembly
(4) Side Defroster Grille
(5) Meter Assembly
(6) Instrument Panel Cluster Assembly
(7) Driver Knee Bolster Assembly (W/SRS)
(8) Instrument Panel Driver Lower Cover

Assembly

(9) Radio Assembly

(10) Lower Cluster Assembly

(11) Front Console Assembly

(12) Glove Box
(13) Instrument Panel Passenger Lower Cover

Assembly

(14) Passenger Knee Bolster Reinforcement

Assembly

(15) Control Lever Assembly
(16) Passenger Inflator Module (W/SRS)
(17) Instrument Panel Assembly

8F–47

BODY STRUCTURE

Removal

CAUTION: For precautions on installation or
removal of SRS—air bag system, refer to
Supplemental Restraint System (SRS) — AIR BAG in
Restraint section.

1. Disconnect the battery ground cable.
2. Remove front console assembly.

D

Remove the 4 fixing screws and disconnect the
switch connectors.

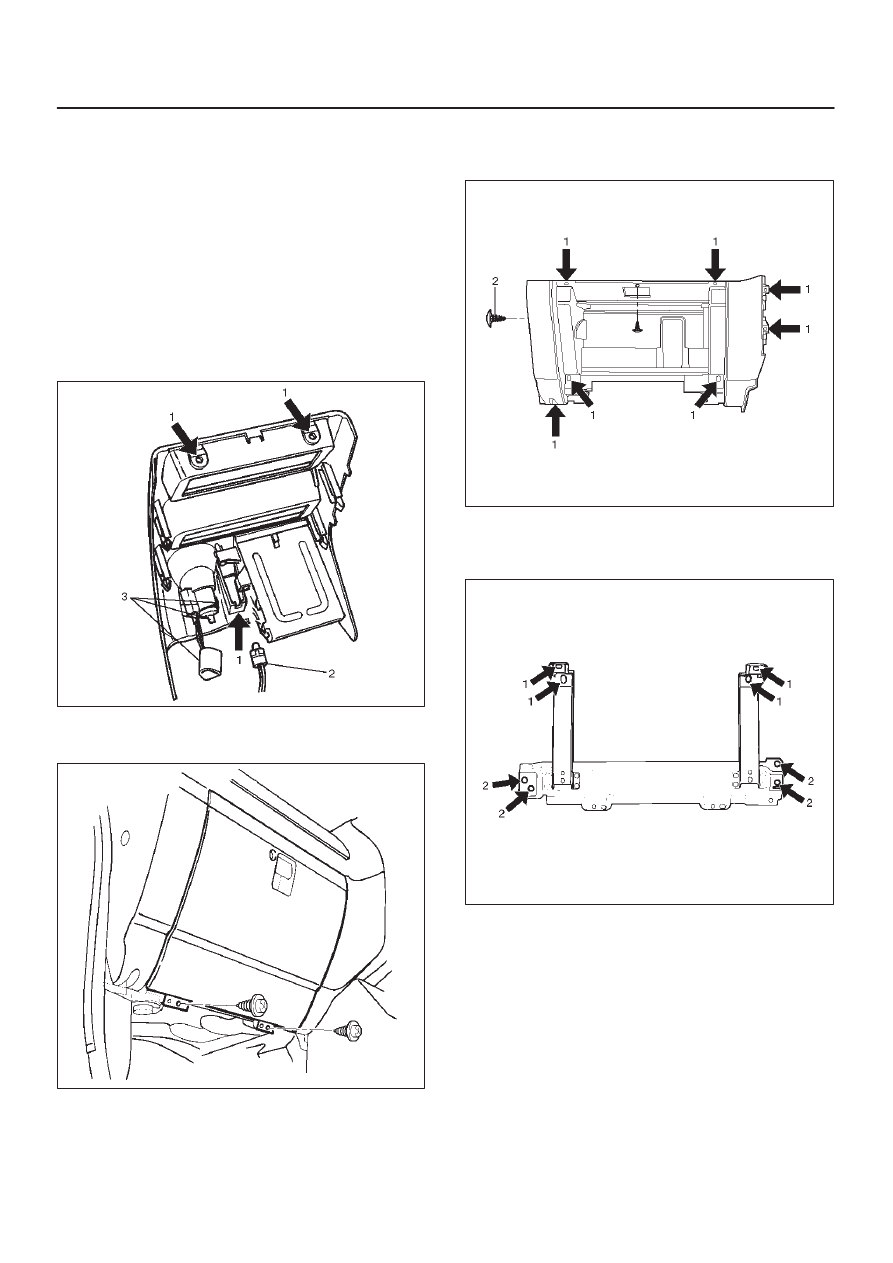

3. Remove lower cluster assembly.

D

Remove the 3 fixing screws (1) in order to
disconnect the cigarette lighter (3) and the
illumination (2) connectors.

740RS014

4. Remove glove box.

D

Remove the 2 fixing screws.

740RW104

5. Remove instrument panel passenger lower cover

assembly.

D

Remove the 7 fixing screws (1) and 1 clip (2).

740RW103

6. Remove passenger knee bolster reinforcement

assembly.

D

Remove the 4 fixing bolts (2) and 4 nuts (1).

740RS011
