MANUAL TRANSMISSION

7B–17

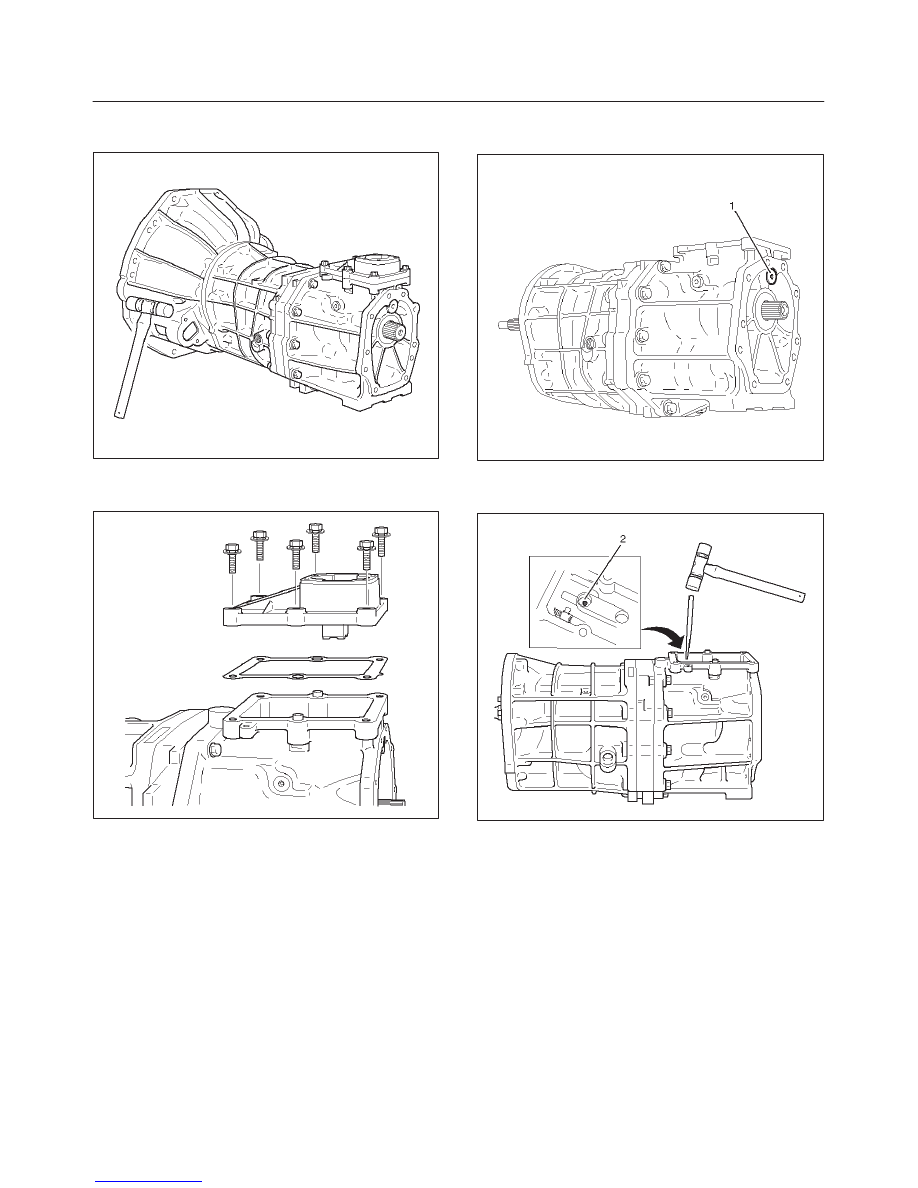

2. Using a plastic hammer, carefully tap the clutch

housing.

220RW008

5. Remove gear control box and gasket.

1. Remove the 6 bolts, gear control box and gasket.

230RW001

6. Remove transfer adapter.

1. Using a hexagon wrench, remove the plug (1).

220RW010

2. Using a pin punch and hammer, drive out the

slotted spring pin (2).

230RW002

7B–18 MANUAL TRANSMISSION

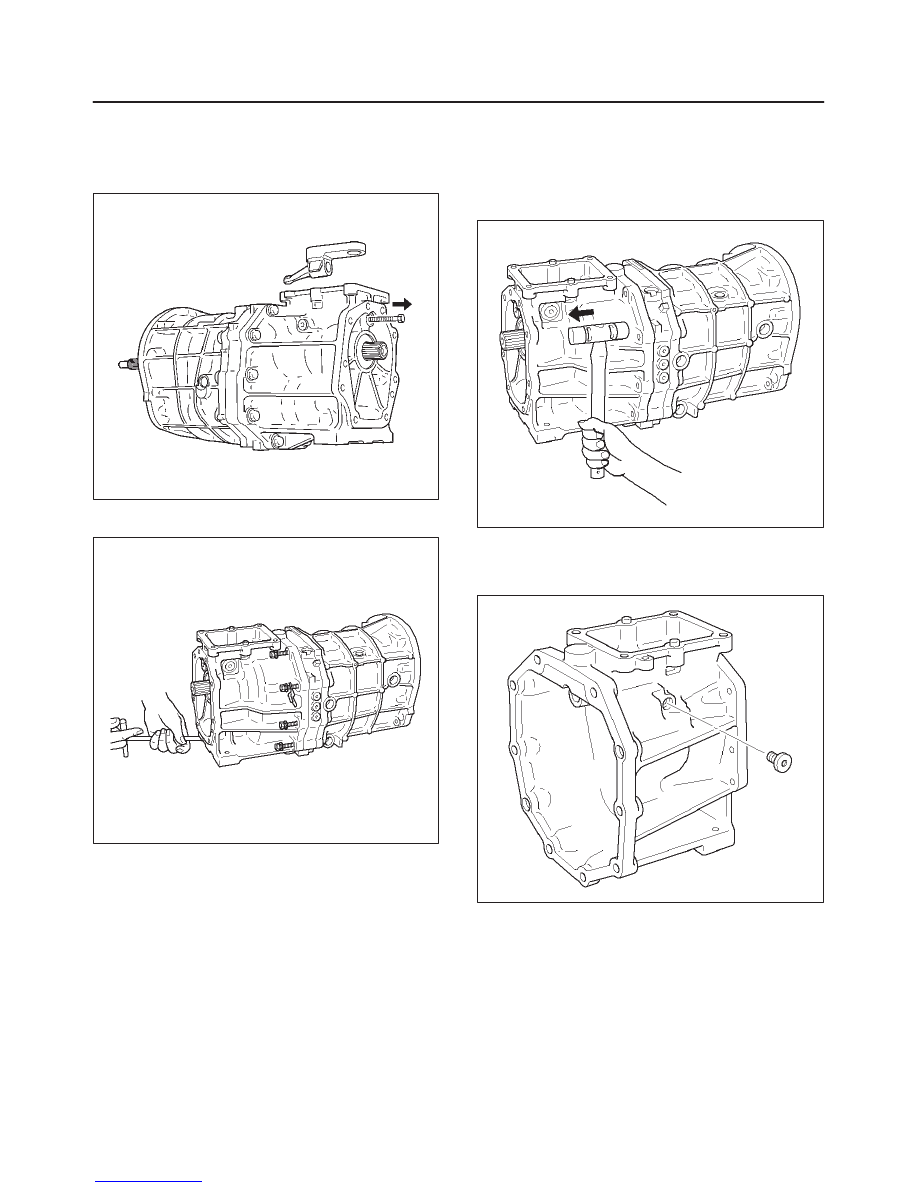

3. Using the M8

×

 1.25 bolt, remove the gear control

rod and the shift lever housing.

NOTE: Turn the M8 bolt a few times, before remove the
gear control rod.

220RW098

4. Remove the 10 bolts and clamp.

220RW016

5. Using a plastic hammer, tap the transfer adapter.

NOTE:

D

Be careful not to lose the pin.

D

Cover the mainshaft splines with adhesive tape.
This will prevent damage to the oil seal lip.

220RW015

7. Disassemble the transfer adapter assembly.

1. Using a torx socket wrench(T40), remove the

plug.

220RW013

MANUAL TRANSMISSION

7B–19

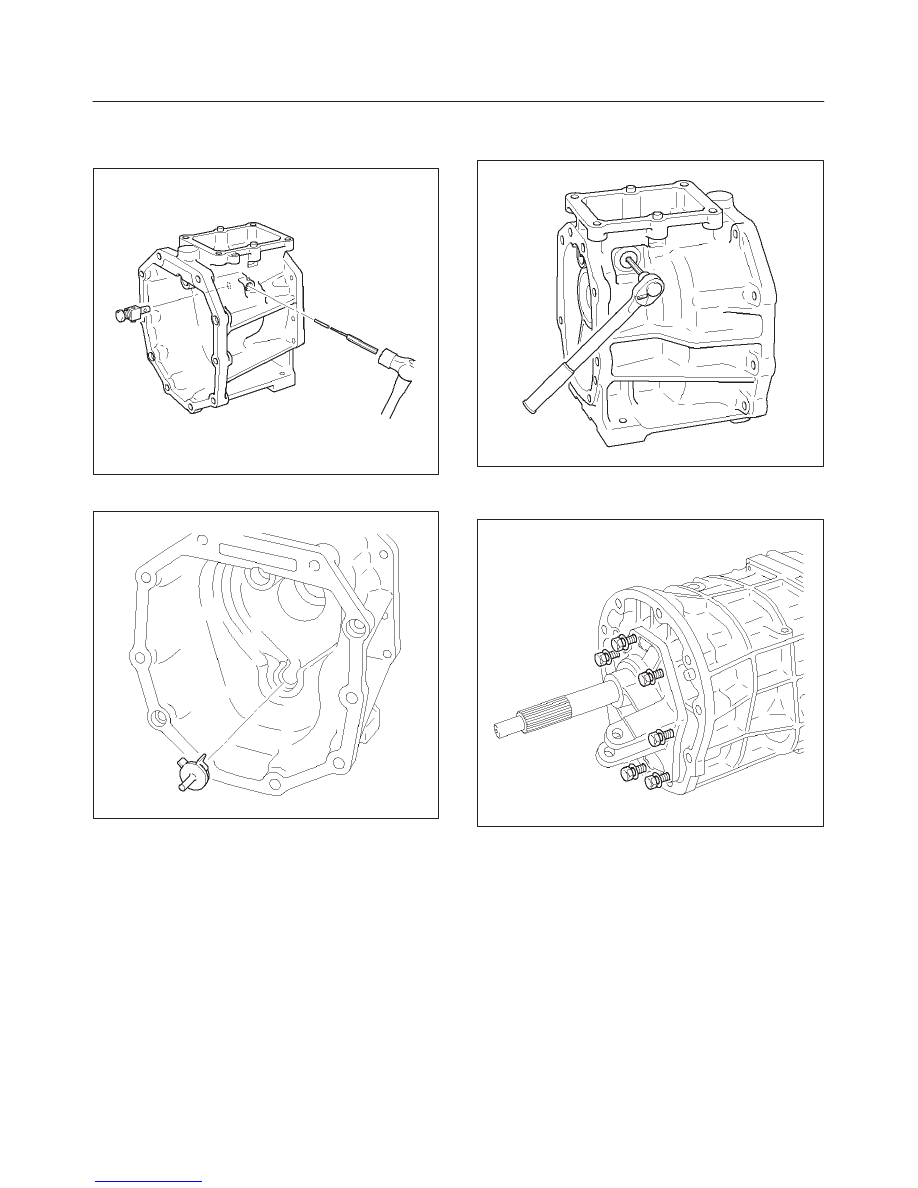

2. Using a pin punch and hammer, drive out the

slotted spring pin.  Remove the reverse restrict
pin.

220RW012

3. Remove the oil receiver pipe.

220RW011

4. Remove the oil seal.

5. Using socket hexagon wrench, remove the plug.

220RW014

8. Remove the front cover.

1. Remove the 8 bolts.

220RW018

7B–20 MANUAL TRANSMISSION

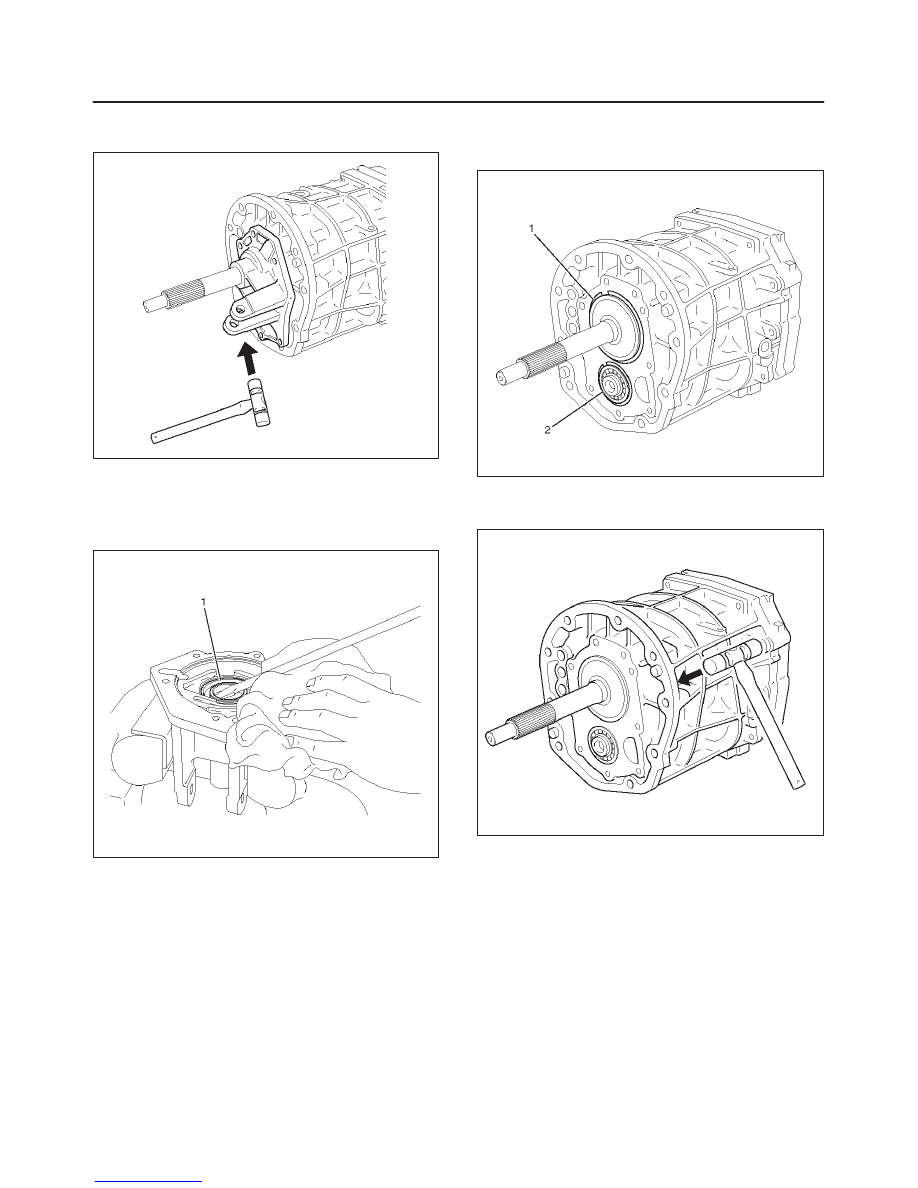

2. Using a plastic hammer, carefully tap the front

cover.

220RW017

9. Remove the front cover oil seal.

1. Mount the front cover through the aluminum plate

in a vise.

2. Using screwdriver, remove oil seal (1).

220RW019

10. Remove the transmission case.

1. Using a snap ring expander, remove the 2 snap

rings (1)(2).

226RW004

2. Using a plastic hammer, carefully tap the

transmission case.

220RW020
