7. Remove nut.
8. Remove lower ball joint.
9. Remove bolt.

Inspection and Repair

Make necessary parts replacement if wear, damage,
corrosion or any other abnormal conditions are found
through inspection.

D

Inspect the lower end boot for damage or grease leak.

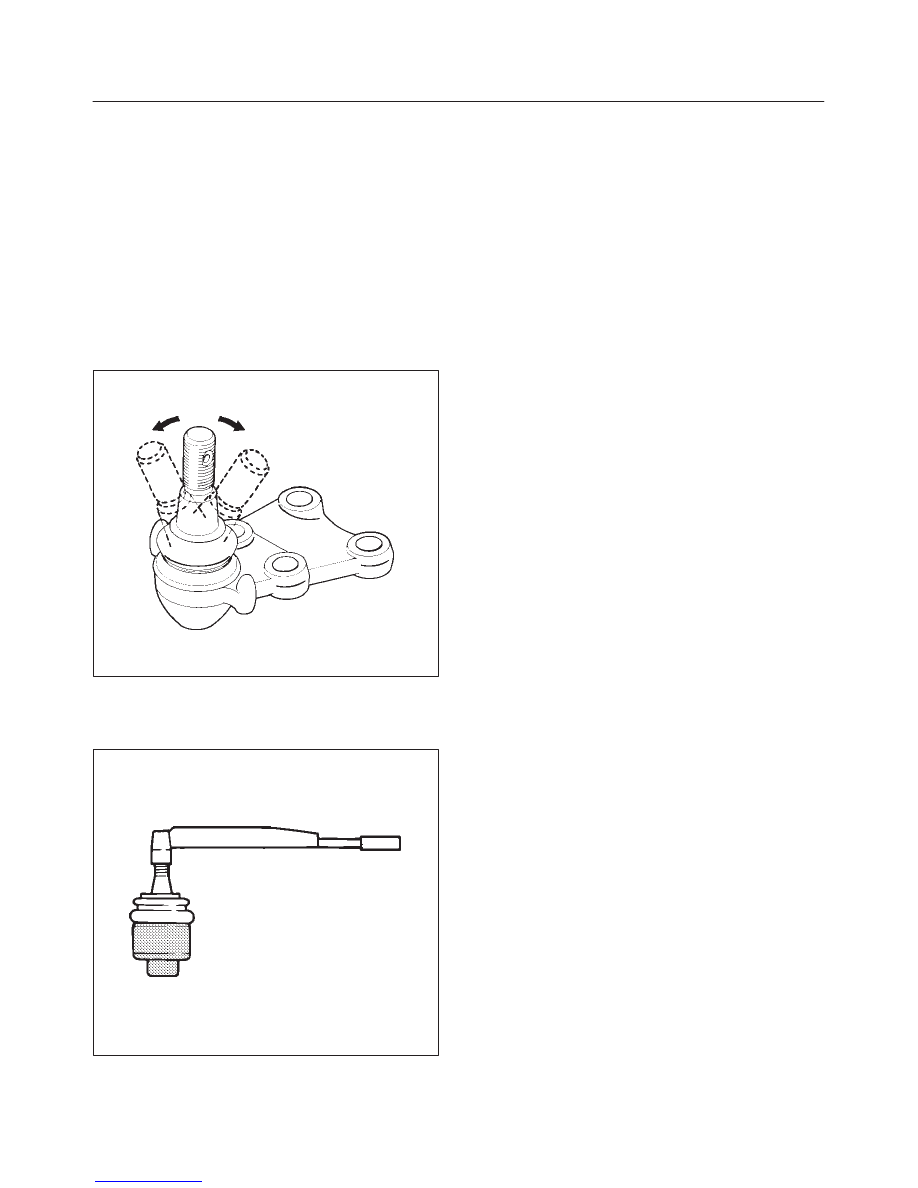

Move the ball joint as shown in the figure to confirm its
normal movement .

D

Inspect screw/taper area of ball for damage.

D

If any defects are found by the above inspections,
replace the ball joint assembly with new one.

450RS026

D

After moving the ball joint 4 or 5 times, attach nut the
measure the preload.

Starting torque: 0.5–6.4 N·m (0.4–4.7 lb ft)

450RS024

D

If the above limits specified are exceeded, replace the
ball joint assembly.

Installation

1. Install bolt.
2. Install lower ball joint.
3. Install nut and tighten it to the specified torque.

Torque: 103 N·m  (76 lb ft)

4. Install nut, then tighten it to the specified torque with

just enough additional torque to align cotter pin holes.
Install new cotter pin.

Torque: 147 N·m (108 lb ft)

3C 26

FRONT SUSPENSION

Main Data and Specifications

General Specifications

Front suspension

Type

Independent wishbone arms, torsion bar spring

with stabilizer bar.

Torsion bar spring

Length

1217 mm (47.9 in)

Diameter

26.6 mm (1.05 in)

Front shock absorber

Type

Hydraulic, double acting, telescopic

Piston diameter

30.0 mm (1.18 in)

Stroke

130.0 mm (5.12 in)

Compressed length

390.0 mm (15.35 in)

Extended length

260.0 mm (10.24 in)

Stabilizer bar

Diameter

26.0 mm (1.02 in)

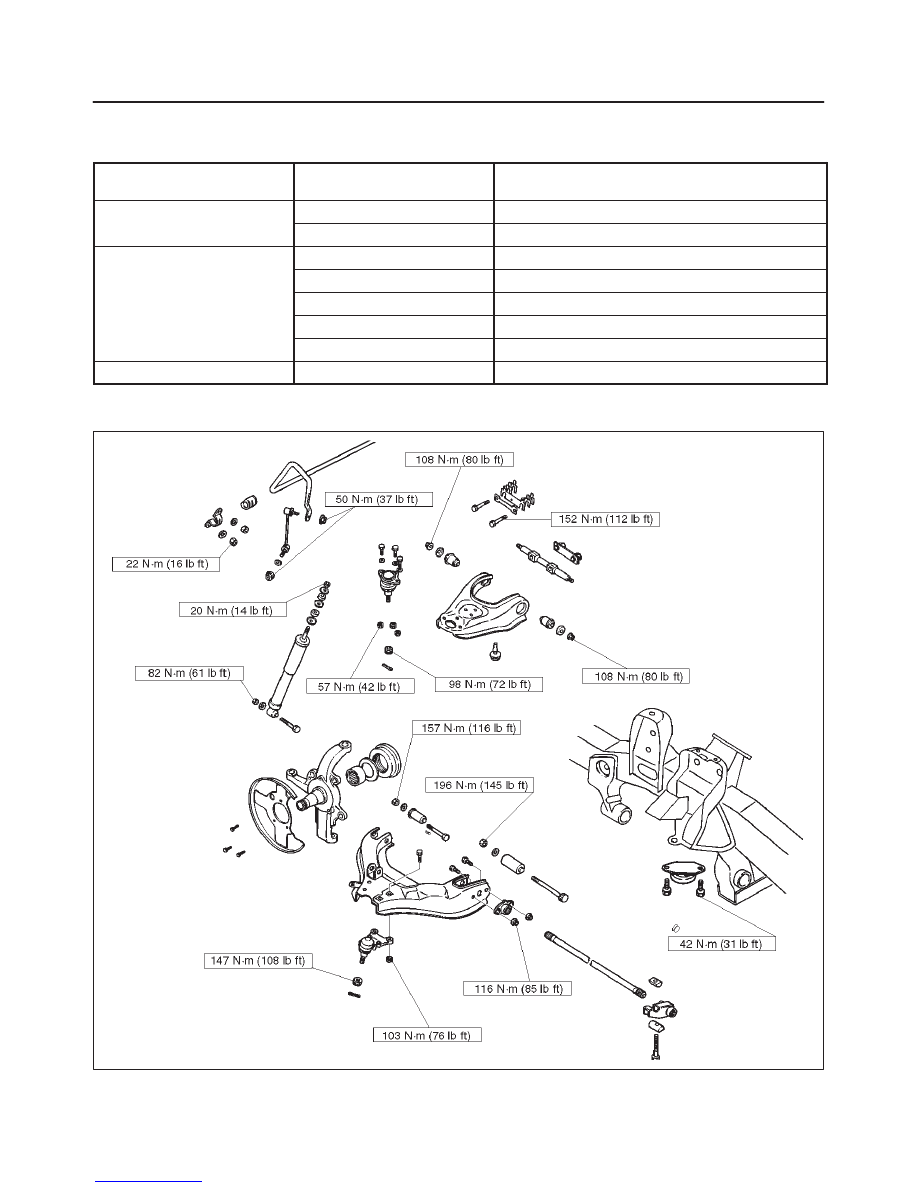

Torque Specifications

E03RS005

3C 27

FRONT SUSPENSION

Special Tools

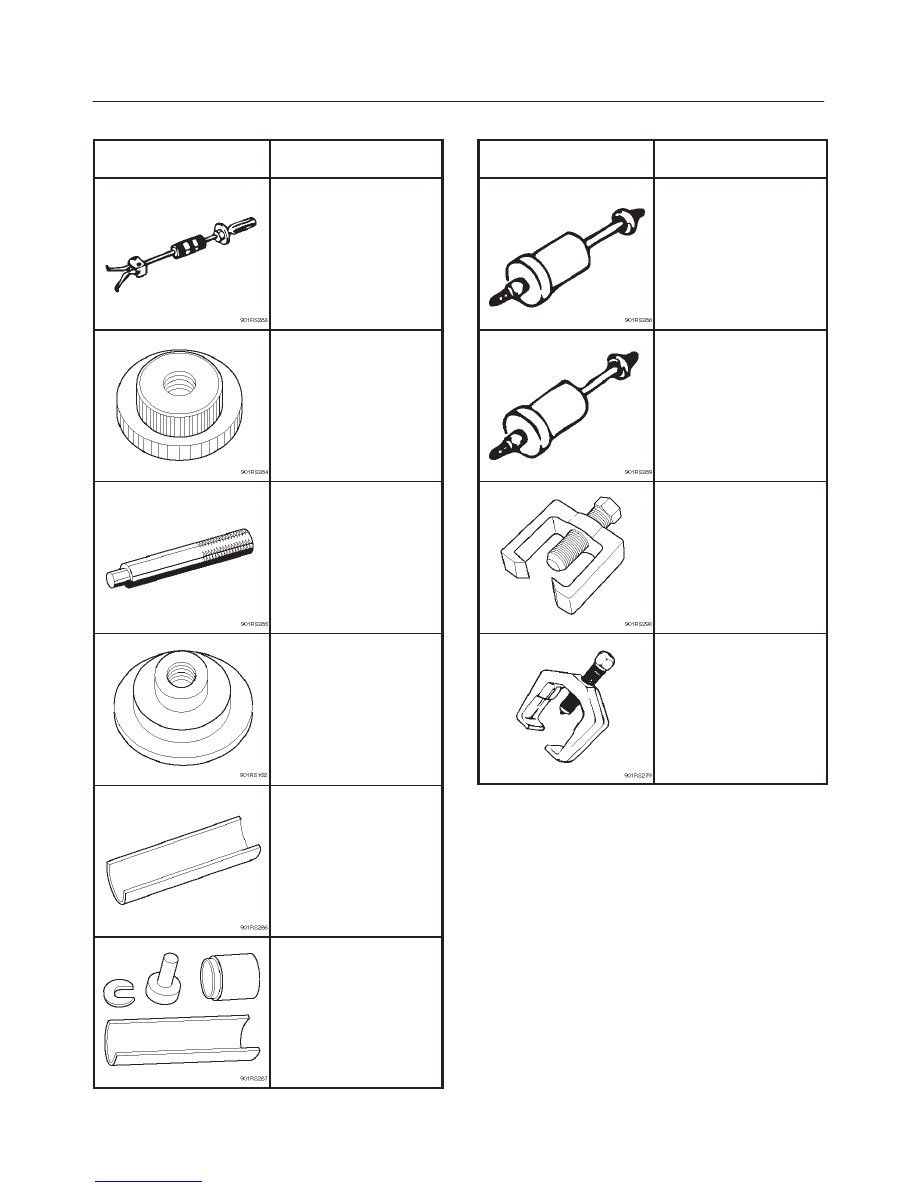

ILLUSTRATION

TOOL NO.

TOOL NAME

J–23907

Remover; Needle

bearing

J–36838

Installer; Needle bearing

J–8092

Grip

J–41468

Installer; Oil seal

J–39376

Installer; Upper arm

bushing

J–29755

Remover and Installer

Upper arm bushing

ILLUSTRATION

TOOL NO.

TOOL NAME

J–36833

Remover and Installer

kit;

Lower arm front bushing

J–36834

Remover and Installer

kit;

Lower arm rear bushing

J–36831

Tie rod end remover

J–29107

Lower end remover

3D–1

REAR SUSPENSION

TROOPER

SUSPENSION

REAR SUSPENSION

CONTENTS

Service Precaution

3D–1

. . . . . . . . . . . . . . . . . . . . . .

General Description

3D–2

. . . . . . . . . . . . . . . . . . . . .

Coil Spring

3D–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Coil Spring and Associated Parts

3D–3

. . . . . . . .

Removal

3D–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

3D–4

. . . . . . . . . . . . . . . . . .

Installation

3D–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Shock Absorber

3D–5

. . . . . . . . . . . . . . . . . . . . . . . . .

Shock Absorber and Associated Parts

3D–5

. . . .

Removal

3D–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

3D–5

. . . . . . . . . . . . . . . . . .

Installation

3D–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Trailing Link

3D–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Trailing Link and Associated Parts

3D–6

. . . . . . .

Removal

3D–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

3D–6

. . . . . . . . . . . . . . . . . .

Installation

3D–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Center Link

3D–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Center Link and Associated Parts

3D–8

. . . . . . . .

Removal

3D–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

3D–8

. . . . . . . . . . . . . . . . . .

Installation

3D–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Lateral Rod

3D–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Lateral Rod and Associated Parts

3D–10

. . . . . . .

Removal

3D–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

3D–10

. . . . . . . . . . . . . . . . . .

Installation

3D–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Stabilizer Bar

3D–12

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Stabilizer Bar and Associated Parts

3D–12

. . . . . .

Removal

3D–12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

3D–12

. . . . . . . . . . . . . . . . . .

Installation

3D–13

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Main Data and Specifications

3D–14

. . . . . . . . . . . . .

Special Tools

3D–16

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Service Precaution
