HEATING, VENTILATION AND AIR CONDITIONING (HVAC) 1A–25

10. Remove side defroster nozzle.

11. Remove center defroster nozzle.

Installation

To install, follow the removal steps in the reverse order,
noting the following point:

1. Connect each duct and nozzle securely leaving no

clearance between them and making no improper
matching.

Center and / or Drive Side Vent

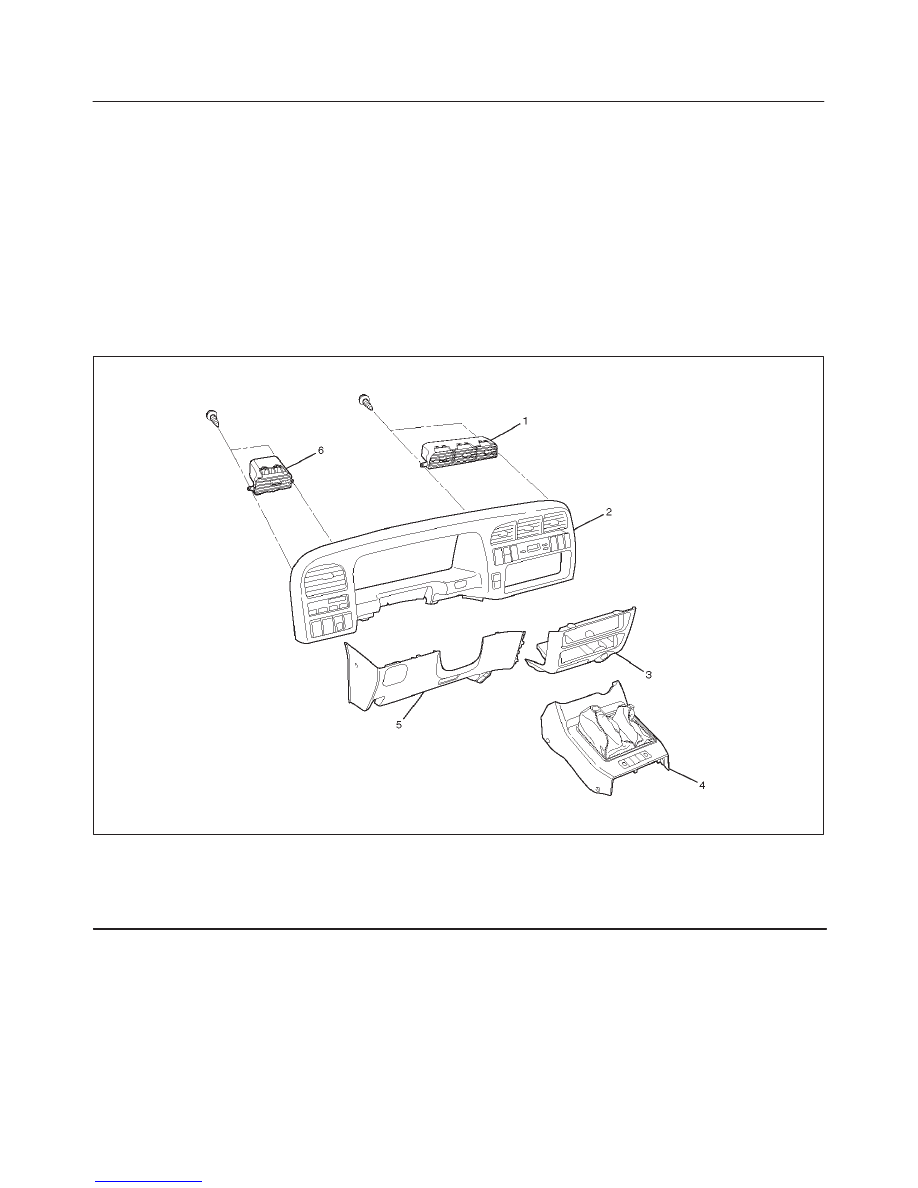

Center Vent, Drive Side Vent and Associated Parts

740RS003

Legend

(1) Center Vent
(2) Meter Cluster Assembly
(3) Lower Cluster Assembly

(4) Front Console Assembly
(5) Instrument Panel Driver Lower Cover

Assembly

(6) Side Vent

Removal

1. Disconnect the battery ground cable.
2. Remove front console assembly.
3. Remove lower cluster assembly.
4. Remove instrument panel driver lower cover

assembly.

5. Remove meter cluster assembly.

D

Refer to Instrument Panel Assembly in Body and
Accessories section.

6. Remove screws and the center vent from center

cluster while prying up the center vent catch portions.

7. Remove screws and the side vent from the center

cluster while prying up the  vent catch portions.

Installation

To install, follow the removal steps in the reverse order.

1A–26 HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

Control Lever Assembly and / or Control Cable

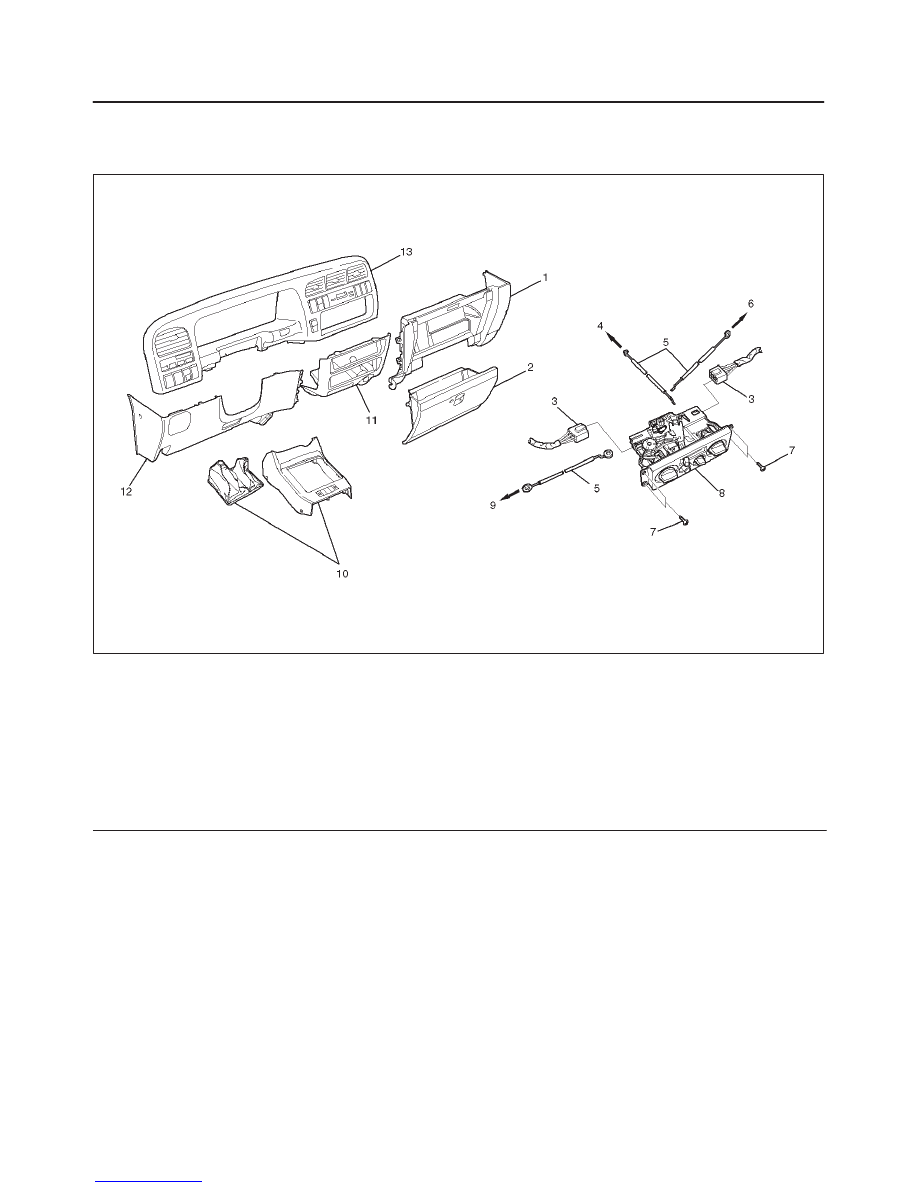

Control Lever Assembly, Control Cable and Associated Parts

865RS011

Legend

(1) Instrument Panel Passenger Lower Cover

Assembly

(2) Glove Box
(3) Fan Switch and Air Conditioning Switch

Connector

(4) Temp Control Link Connection
(5) Control Cable
(6) Blower Assembly Connection

(7) Attaching Screws
(8) Control Lever Assembly
(9) Mode Control Link Connection

(10) Front Console Assembly

(11) Lower Cluster Assembly

(12) Instrument Panel Driver Lower Cover

Assembly

(13) Meter Cluster Assembly

Removal

1. Disconnect the battery ground cable.
2. Remove front console assembly.
3. Remove lower cluster assembly.
4. Remove glove box.

5. Remove instrument panel passenger lower cover

assembly.

6. Remove instrument panel driver lower cover

assembly.

7. Remove meter cluster assembly.

D

Refer to Instrument Panel Assembly in Body and
Accessories section.

HEATING, VENTILATION AND AIR CONDITIONING (HVAC) 1A–27

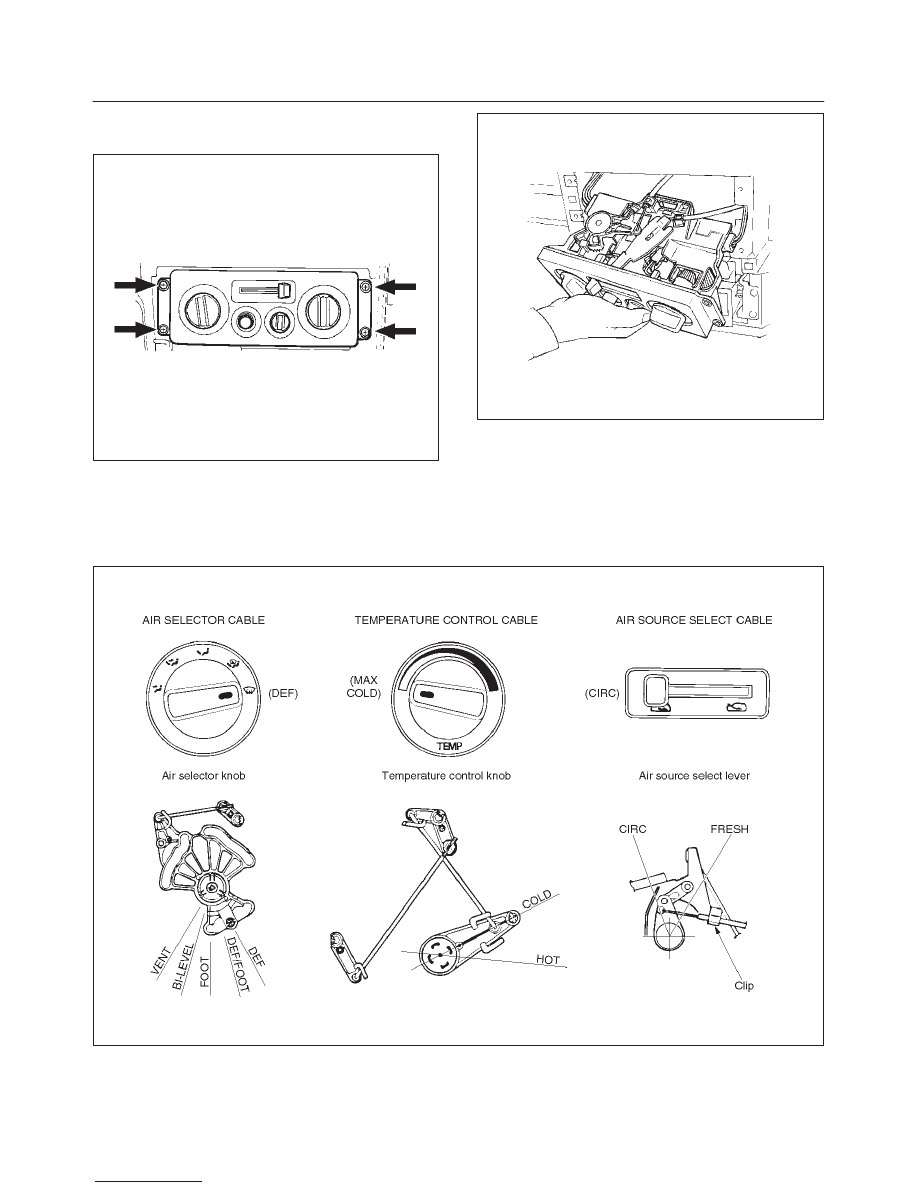

8. Remove attaching screws.

D

Remove the four attaching screws.

865RS010

9. Pull the control lever assembly out and disconnect the

fan switch and air conditioning switch connectors.

865RS009

10. Remove control lever assembly.

11. Remove control cable.

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Adjust the control cable.

865RY00013

1A–28 HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

D

Air source control cable.

1. Slide the control lever to the left (“CIRC”

position).

2. Connect the control cable at the “CIRC” position

of the link unit of the blower assembly and
secure it with the clip.

D

Temperature control cable.

1. Turn the control knob to the left (“MAX COLD”

position).

2. Connect the control cable at the “COLD”

position of the temperature control link of the
heater unit and secure it with the clip.

D

Air select control cable

1. Turn the control knob to the right (“DEFROST”

position).

2. Connect the control cable at the “DEFROST”

position of the mode control link of the heater
unit and secure it with the clip.

2. Check the control cable operation.

Control Panel Illumination Bulb

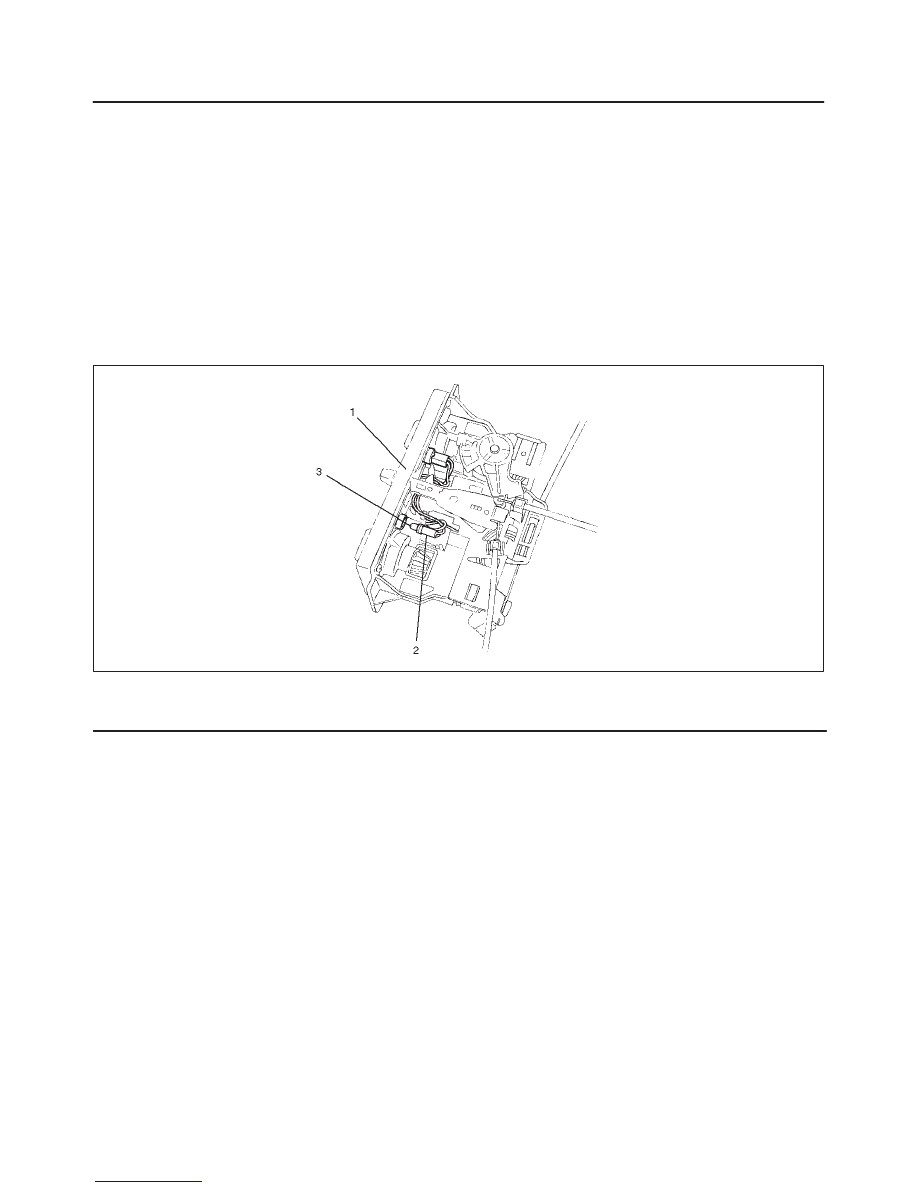

Control Panel Illumination Bulb and Associated Parts

865RS007

Legend

(1) Control Lever Assembly

(2) Bulb Socket
(3) Illumination Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove control lever assembly.

D

Refer to Control Lever Assembly in this section.

3. Pull out the bulb socket from the panel by turning it

counterclockwise.

4. Pull the illumination bulb from the socket.

Installation

To install, follow the removal steps in the reverse order.
