HEATING, VENTILATION AND AIR CONDITIONING (HVAC) 1A–17

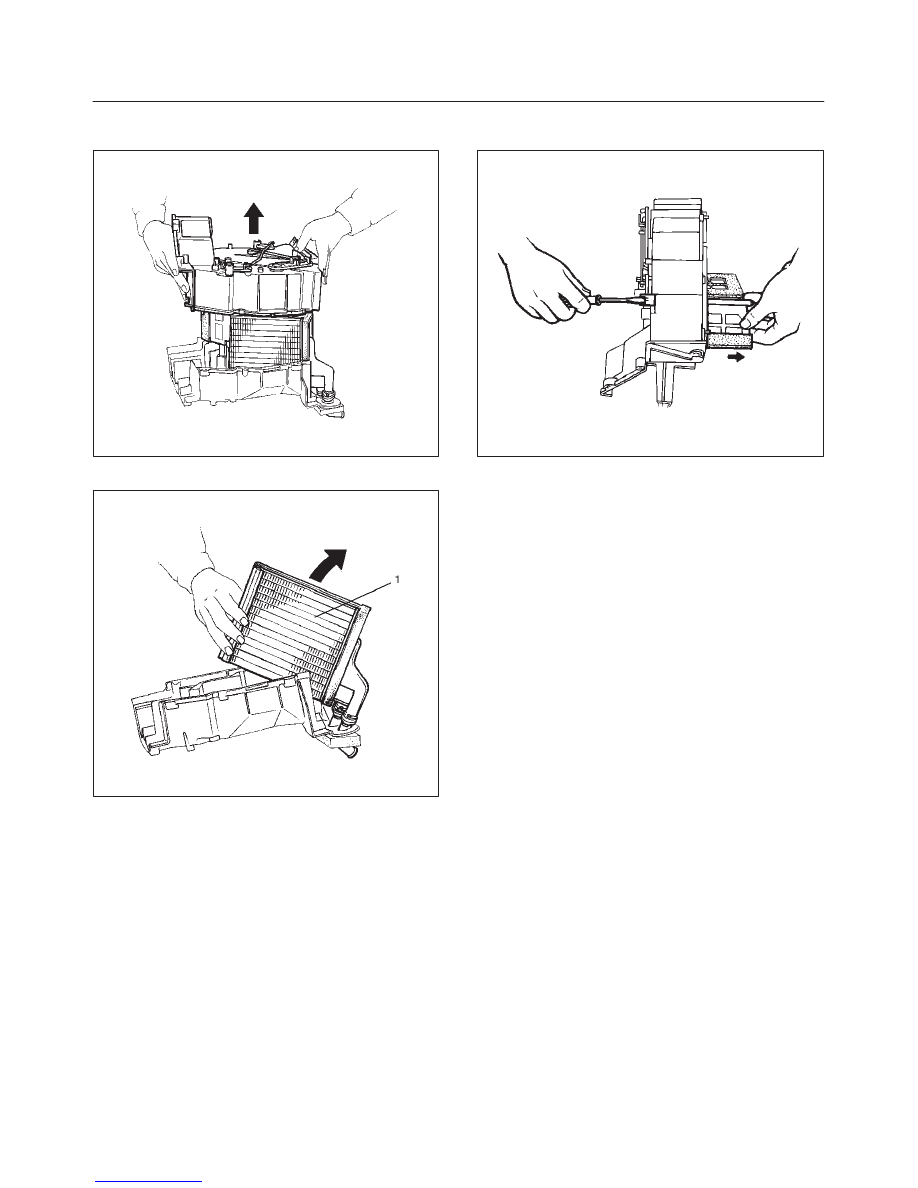

7. Remove case (Temperature control). Separate two

halves of core case.

860RS002

8. Remove heater core (1).

860RS003

9. Pull out the mode door while raising up the catch of

the door lever.

860RS004

Inspection

Check for foreign matter in the heater core, stains or core
fin damage.

Installation

To install, follow the removal steps in the reverse order,
noting the following point:

1. Check that each mode door operates properly.

1A–18 HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

Heater Mode Control Link Unit

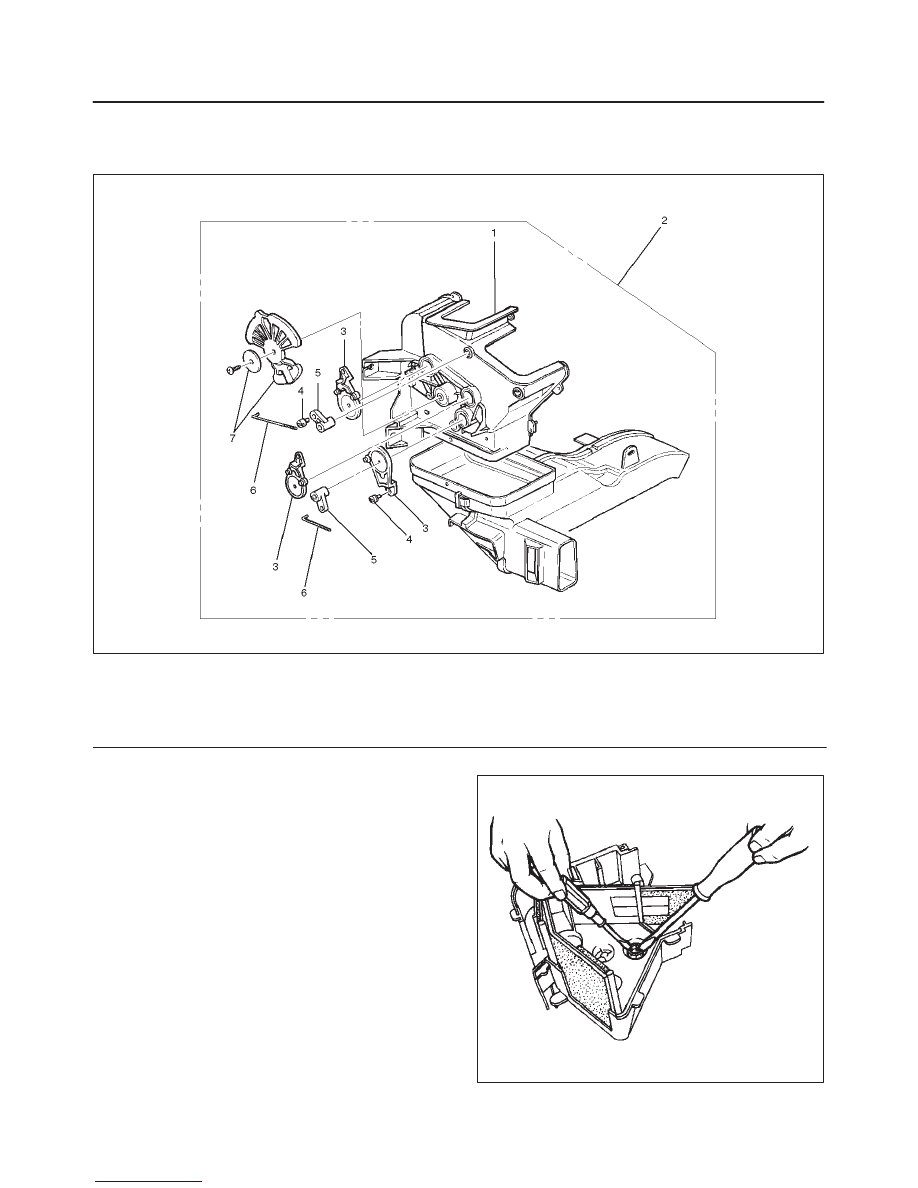

Disassembled View

860RS005

Legend

(1) Case (Mode Control)
(2) Heater Unit
(3) Mode Sub-lever

(4) Clip
(5) Door Lever
(6) Rod
(7) Washer and Mode Main Lever

Removal

1. Disconnect the battery ground cable.
2. Drain engine coolant.
3. Discharge and recover refrigerant (with air

conditioning).

D

Refer to Refrigerant Recovery in this section.

4. Remove heater unit.

D

Refer to Heater Unit in this section.

5. Remove the case (Mode control) from heater unit.
6. Remove washer and the mode main lever.
7. Remove rod.
8. Press the tab of the sub-lever inward, and take out the

sub-lever.

9. Pull out the door lever while raising up the catch of the

door lever.

860RS006

10. Remove clip.

HEATING, VENTILATION AND AIR CONDITIONING (HVAC) 1A–19

Installation

To install, follow the remove steps in the reverse order,
noting the following points:

1. Apply grease to the mode sub-lever and to the

abrasive surface of the heater unit.

2. After installing the link unit, check to see if the link unit

operates correctly.

Heater Temperature Control Link Unit

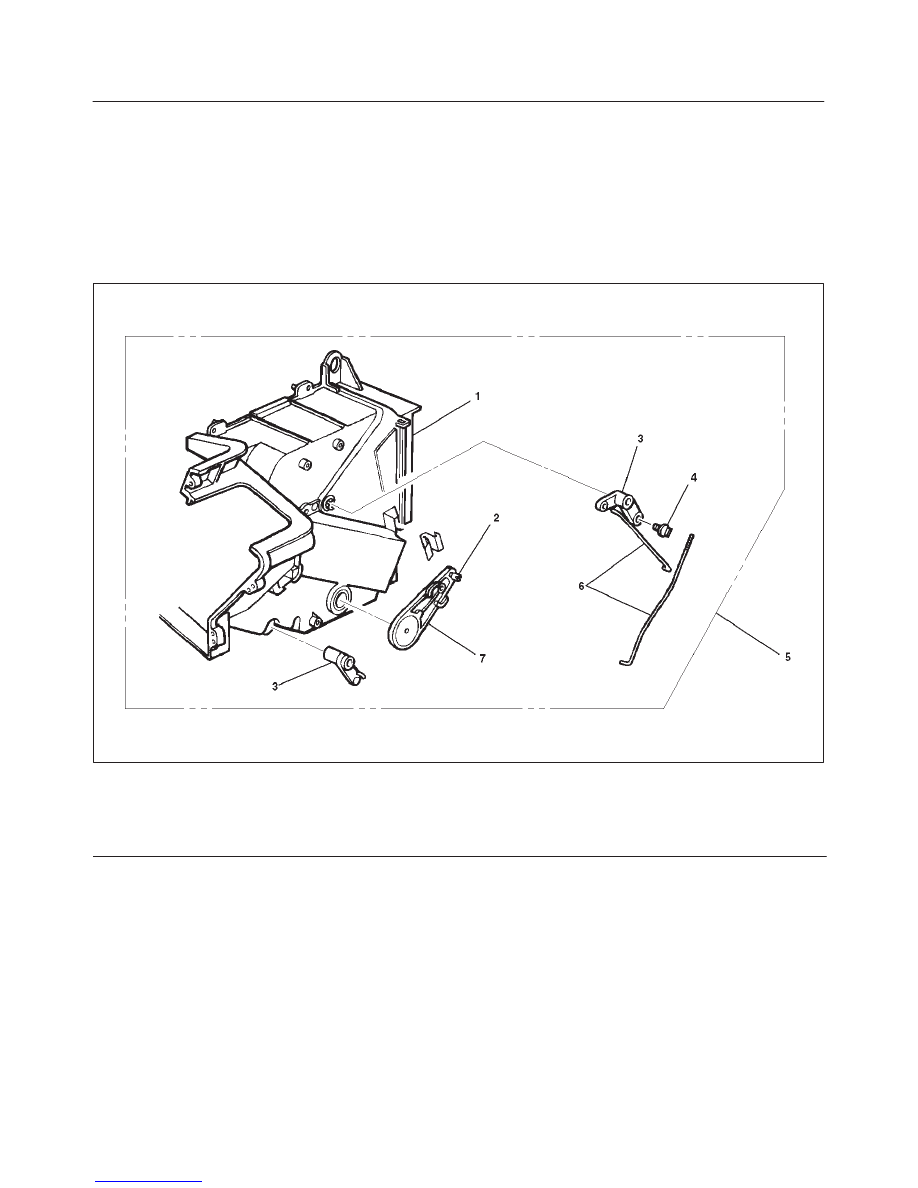

Disassembled View

860RS007

Legend

(1) Case (Temperature control)
(2) Clip
(3) Door Lever

(4) Clip
(5) Heater Unit
(6) Rod
(7) Sub-lever

Removal

1. Disconnect the battery ground cable.
2. Drain engine coolant.
3. Discharge and recover refrigerant (with air

conditioning).

D

Refer to Refrigerant Recovery in this section.

4. Remove heater unit.

D

Refer to Heater Unit in this section.

5. Remove the case (Temperature control) from the

heater unit.

6. Remove rod.
7. Remove sub-lever.

8. Pull out the door lever while raising up the catch of the

door lever.

9. Remove clip.

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Apply grease to the sub-lever and to the abrasive

surface of the heater unit.

2. After installing the link unit, check to see if the link unit

operates correctly.

1A–20 HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

Blower Assembly

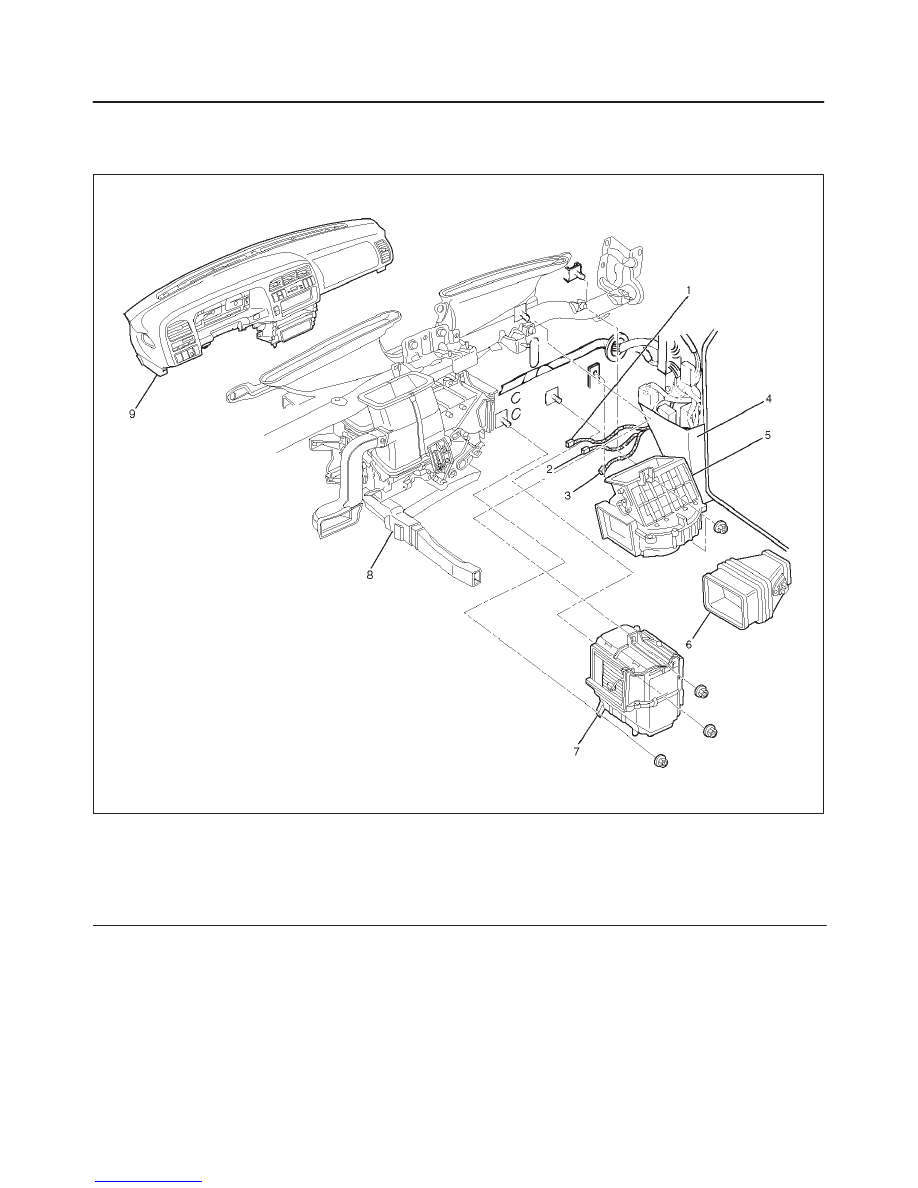

Blower Assembly and Associated Parts

873RY00003

Legend

(1) Electro Thermo Connector
(2) Blower Motor Connector
(3) Resistor Connector
(4) Dash Side Trim Panel (RH)

(5) Blower Assembly
(6) Duct
(7) Evaporator Assembly (A/C only)
(8) Heater Unit
(9) Instrument Panel Assembly

Removal

1. Disconnect the battery ground cable.
2. Discharge and recover refrigerant (with air

conditioning).

D

Refer to Refrigerant Recovery in this section.

3. Remove instrument panel assembly.

D

Refer to Instrument Panel Assembly in Body and
Accessories section.

4. Disconnect resistor connector.
5. Remove duct.
6. Remove evaporator assembly (A/C only).

D

Refer to Evaporator Assembly in this section.

7. Remove dash side trim panel (RH).
8. Disconnect blower motor connector.
9. Remove blower assembly.
