TRANSMISSION CONTROL SYSTEM (4L30–E)
7A1–19
OBD II Diagnostic Management System

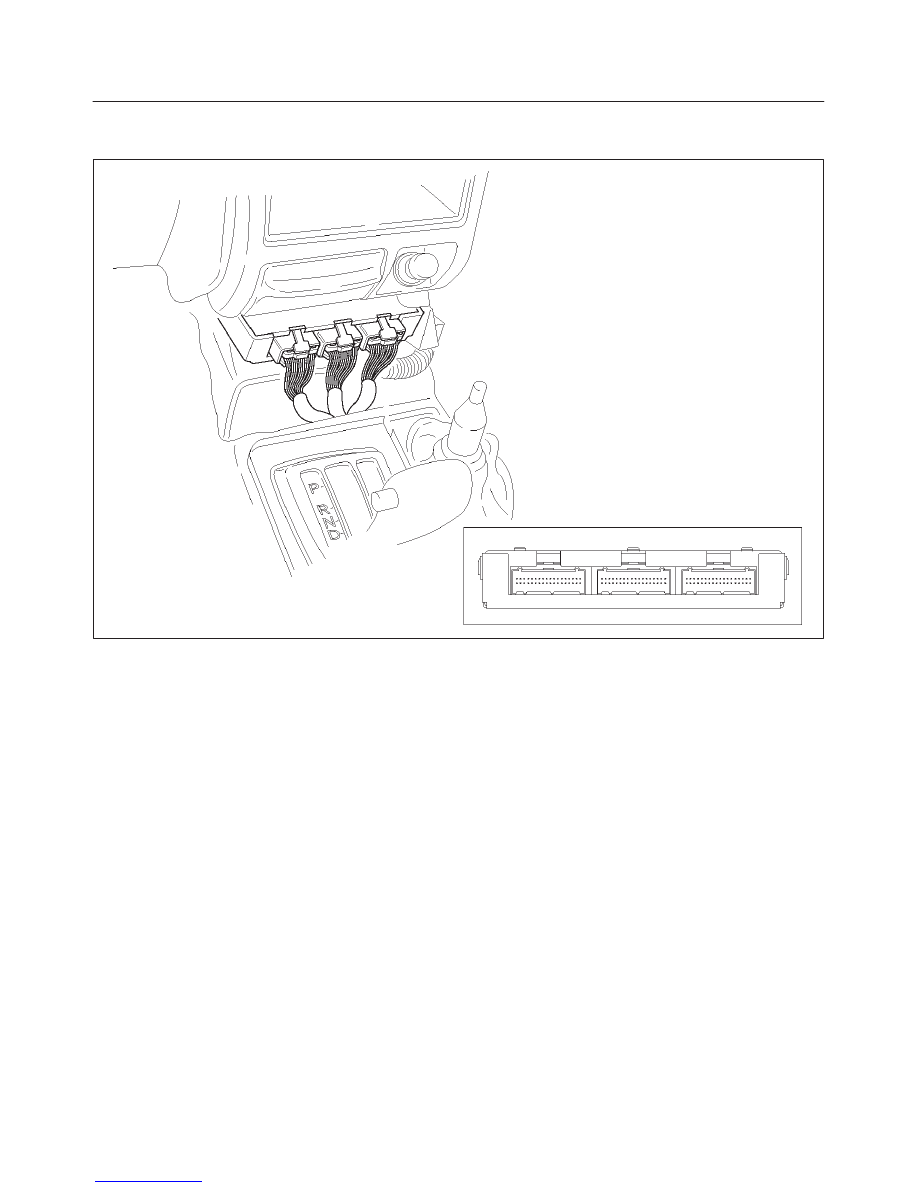

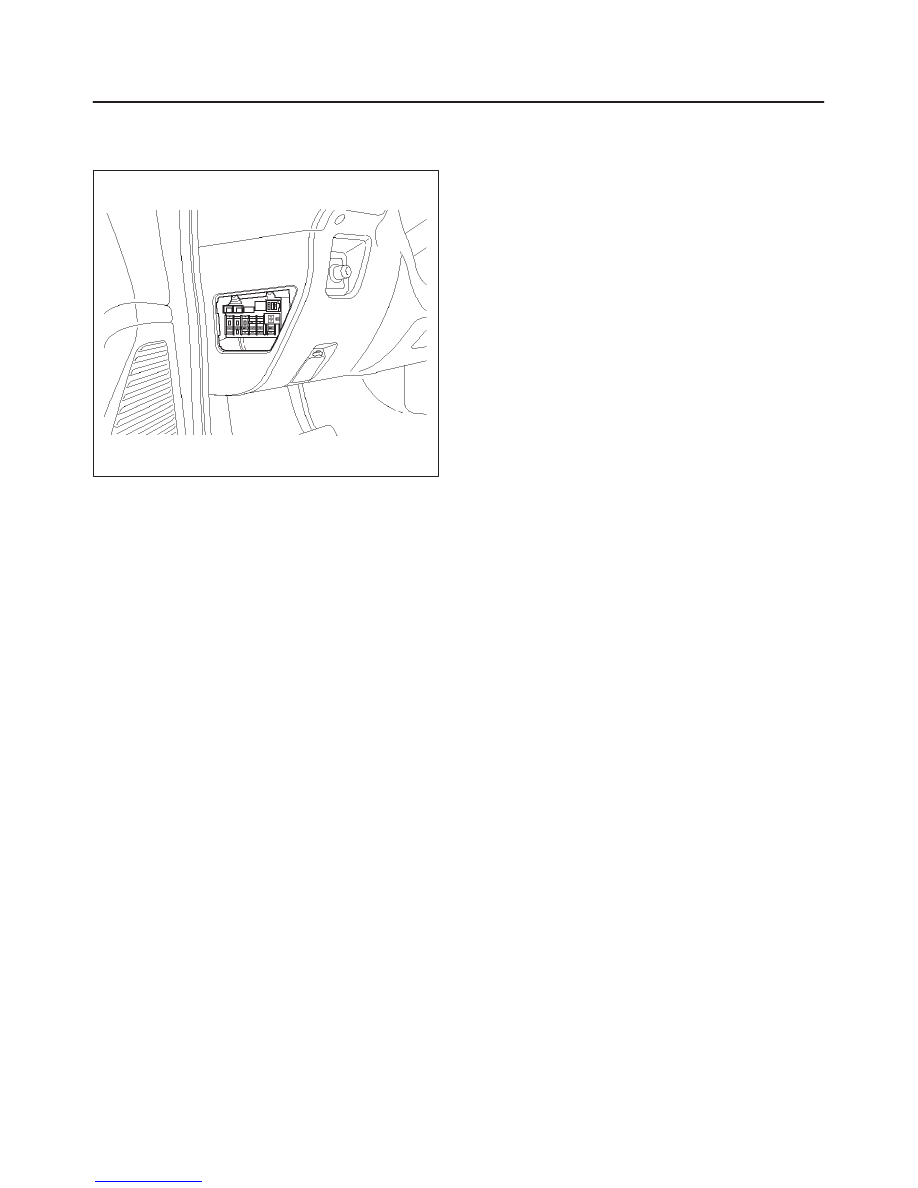

Powertrain Control Module (PCM) Location
828RW004
Class 2 Serial Data Bus
OBD II technology requires a much more sophisticated
PCM than does OBD I technology. The OBD II PCM
diagnostic management system not only monitors
systems and components that can impact emissions, but
they also run active tests on these systems and
components. The decision making functions of OBD II
PCM have also greatly increased. To accommodate this
expansion in diagnostic complexity, Isuzu engineers have
designed the Class 2 serial data bus, which meets SAE
J1850 recommended practice for serial data.
“Serial Data” refers to information which is transferred in a
linear fashion – over a single line, one bit at a time. A “Data
Bus” is an electronic pathway through which serial data
travels.

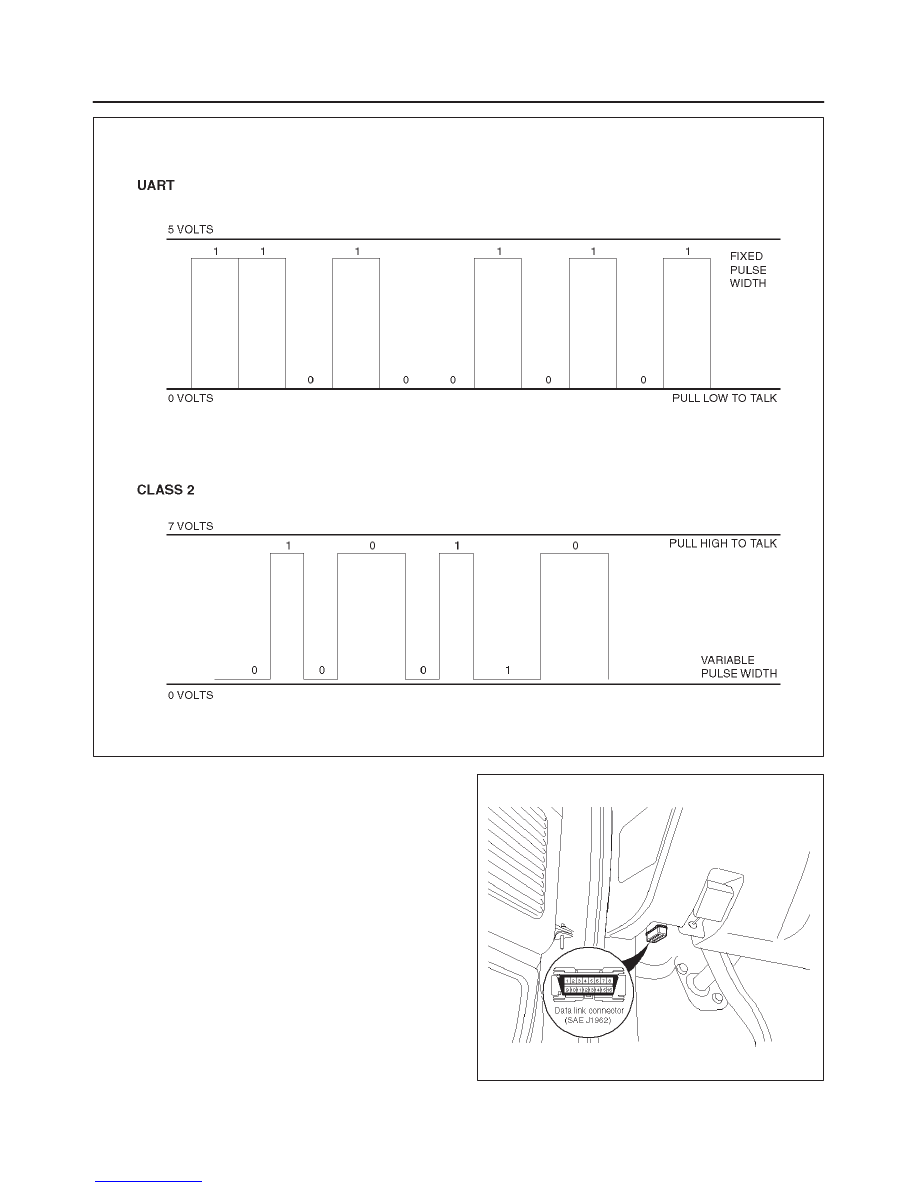

RODEO previously used a 5 volt data bus called UART,
which is an acronym for “Universal Asynchronous
Receive and Transmit”. When neither the vehicle’s
control module nor the diagnostic tool, such as a
TECH–2, are “talking,” the voltage level of the bus at rest
is 5 volts. The two computers talk to each other at a rate of
8,192 bits per second, by toggling or switching the voltage
on the data bus from 5 volts to ground.
Class 2 data, which is used on OBD II vehicles, is quite
different. Data is transferred at a rate of 10.4 kilobits per
second, and the voltage is toggled between zero and 7
volts.
