Engine Mechanical – V6

Page 6A1–111



Page 6A1–111

MY06 Update

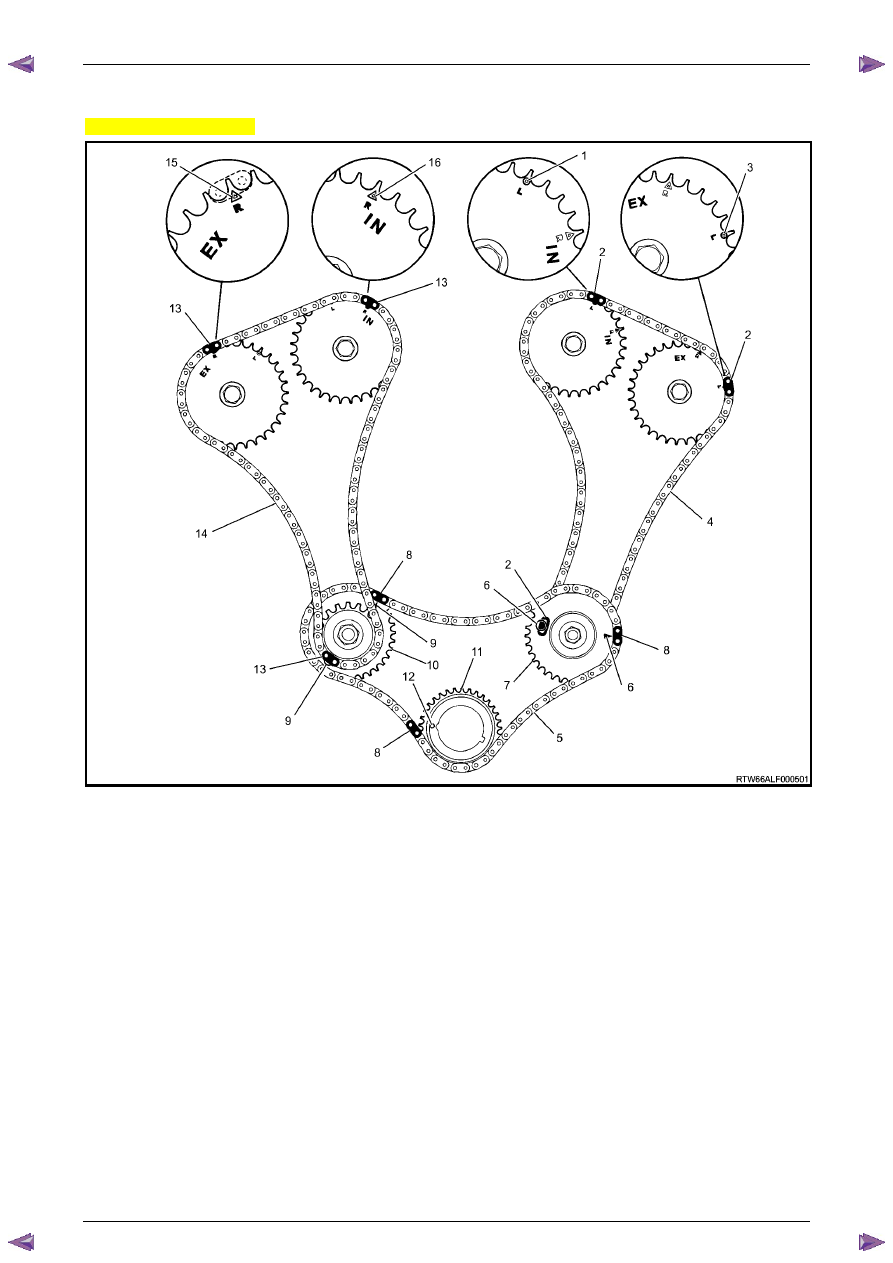

Figure 6A1 – 100

Legend

1

Intake Camshaft Sprocket Timing Mark – Left-hand

2

Secondary Timing Chain Bright Plated Link – Left-hand
Intake

3

Exhaust Camshaft Sprocket Timing Mark – Left-hand

4

Secondary Timing Chain Bright Plated Link – Left-hand
Exhaust

5

Secondary Timing Chain – Left-hand

6

Primary Timing Chain Bright Plated Link – Left-hand

7

Camshaft Intermediate Sprocket Timing Mark – Left-hand

8

Camshaft Intermediate Sprocket – Left-hand

9

Secondary Timing Chain Bright Plated Link – Left-hand

10

Camshaft Intermediate Sprocket Timing Mark – Left-hand

11

Primary Timing Chain

12

Primary Timing Chain Bright Plated Link – Crankshaft
Sprocket

13

Crankshaft Sprocket Timing Mark

14 Crankshaft

Sprocket

15

Camshaft Intermediate Sprocket – Right-hand

16

Primary Timing Chain Bright Plated Link

17

Camshaft Intermediate Sprocket Timing Mark – Right-hand

Engine Mechanical – V6

Page 6A1–112



Page 6A1–112

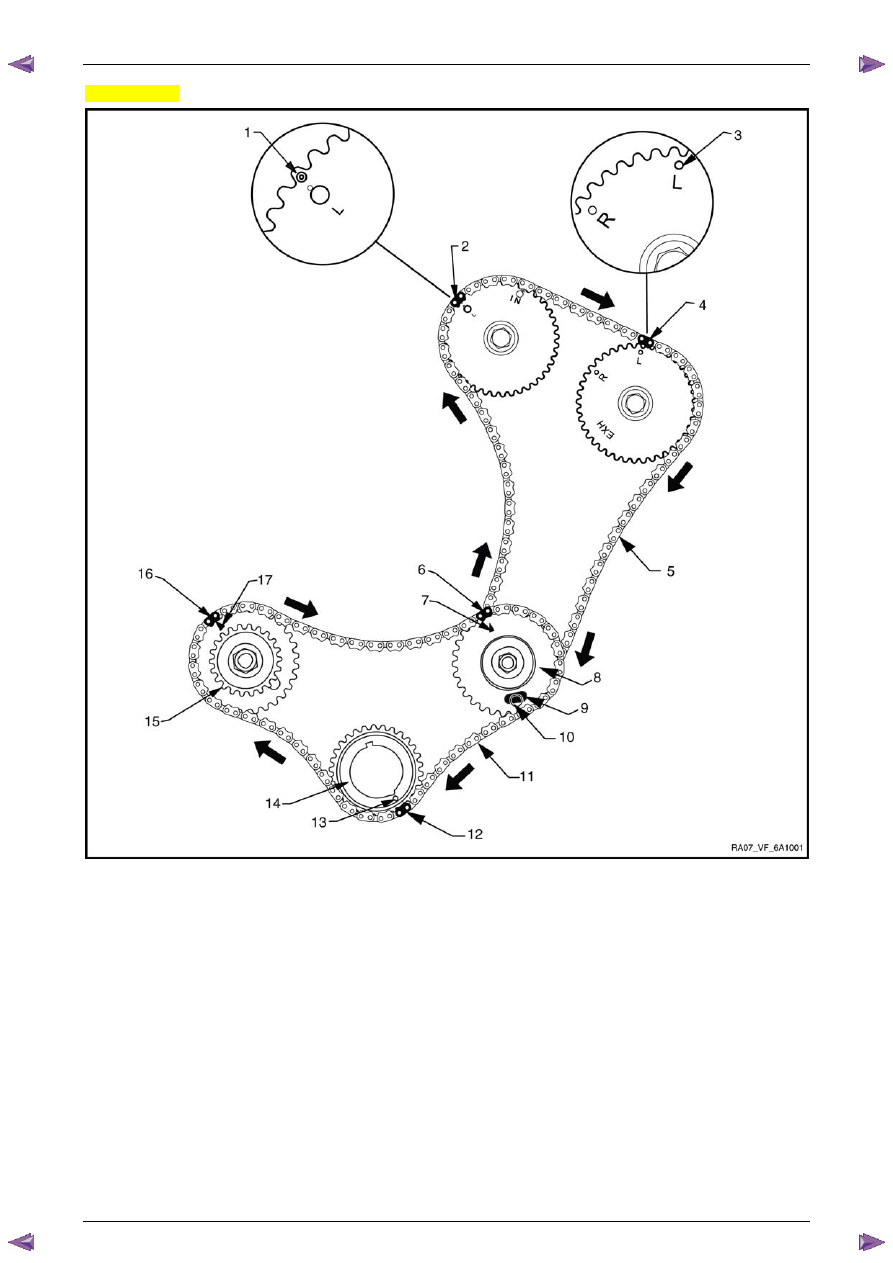

Right-hand Secondary Timing Chain Installation

Excluding MY06 Update



Figure 6A1 – 101

Legend

1

Intake Camshaft Sprocket Timing Mark – Left-hand

2

Secondary Timing Chain Bright Plated Link – Left-hand

3

Exhaust Camshaft Sprocket Timing Mark – Left-hand

4

Secondary Timing Chain – Left-hand

5

Primary Timing Chain

6

Camshaft Intermediate Sprocket Timing Mark – Left-hand

7

Primary Camshaft Intermediate Sprocket – Left-hand

8

Primary Timing Chain Bright Plated Link

9

Camshaft Intermediate Sprocket Timing Mark – Left-hand

10

Camshaft Intermediate Sprocket – Right-hand



11

Crankshaft Sprocket

12

Crankshaft Sprocket Timing Mark

13

Secondary Timing Chain Bright Plated Link – Right-hand

14

Secondary Timing Chain – Right-hand

15

Exhaust Camshaft Sprocket Timing Mark - Right-side

16

Inlet Camshaft Sprocket Timing Mark - Right-side

Engine Mechanical – V6

Page 6A1–113



Page 6A1–113

MY06 Update

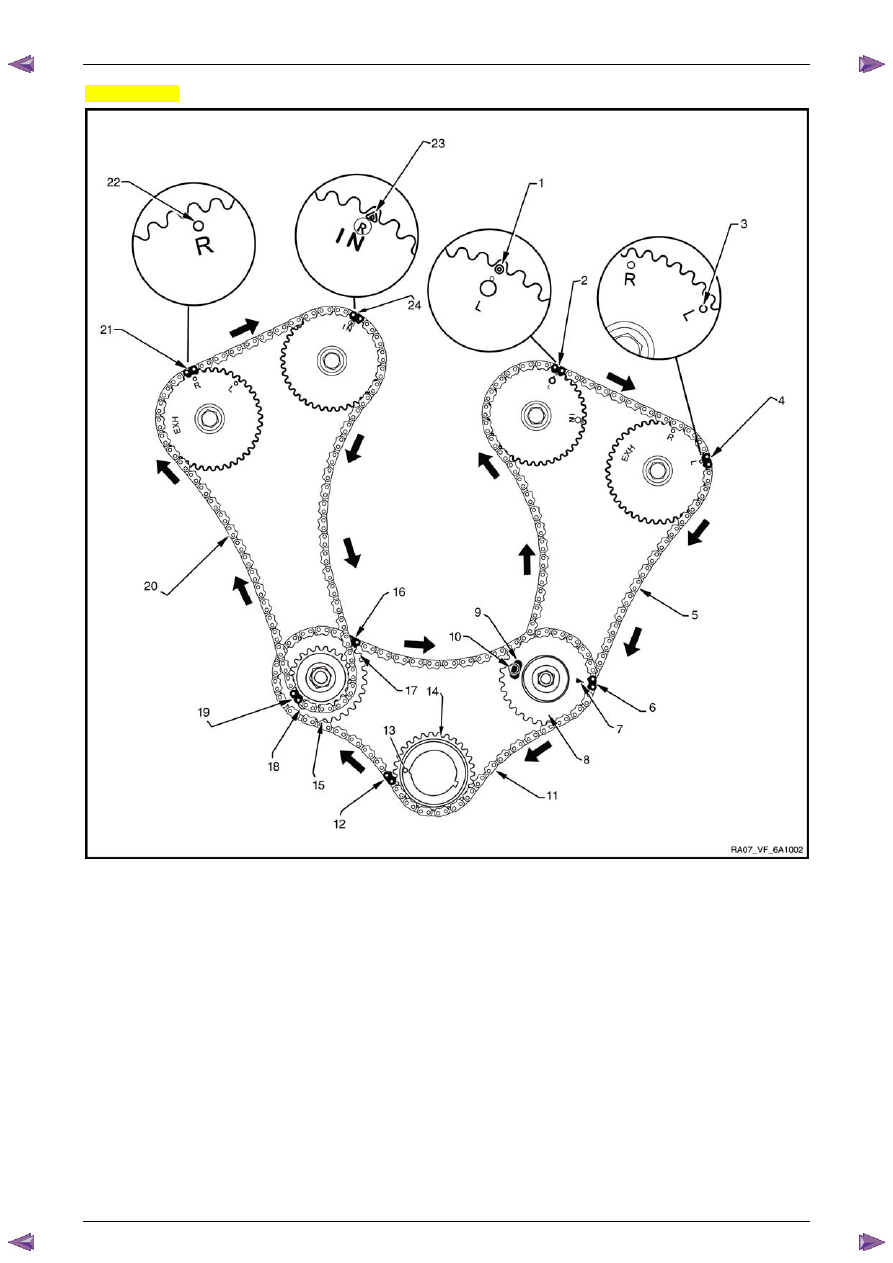

Figure 6A1 – 102

Legend

1

Intake Camshaft Sprocket Timing Mark – Left-hand

2

Secondary Timing Chain Bright Plated Link – Left-hand
Intake

3

Exhaust Camshaft Sprocket Timing Mark – Left-hand

4

Secondary Timing Chain Bright Plated Link – Left-hand
Exhaust

5

Secondary Timing Chain – Left-hand

6

Primary Timing Chain Bright Plated Link – Left-hand

7

Camshaft Intermediate Sprocket Timing Mark – Left-hand

8

Camshaft Intermediate Sprocket – Left-hand

9

Secondary Timing Chain Bright Plated Link – Left-hand
Intermediate Camshaft

10

Camshaft Intermediate Sprocket Timing Mark – Left-hand

11

Primary Timing Chain

12

Primary Timing Chain Bright Plated Link – Crankshaft
Sprocket

13

Crankshaft Sprocket Timing Mark

14 Crankshaft

Sprocket

15

Camshaft Intermediate Sprocket – Right-hand

16

Primary Timing Chain Bright Plated Link - Right-hand

17

Camshaft Intermediate Sprocket Timing Mark – Right-hand

18

Window for Secondary Timing Chain – Right-hand

19

Secondary Timing Chain Bright Plated Link – Right-hand
Intermediate Camshaft

20

Secondary Timing Chain – Righ-hand

21

Secondary Timing Chain Bright Plated Link – Right-hand
Exhaust

22

Exhaust Camshaft Sprocket Timing Mark – Right-hand

23

Intake Camshaft Sprocket Timing Mark – Right-hand

24

Secondary Timing Chain Bright Plated Link – Right-hand
Intake

Engine Mechanical – V6

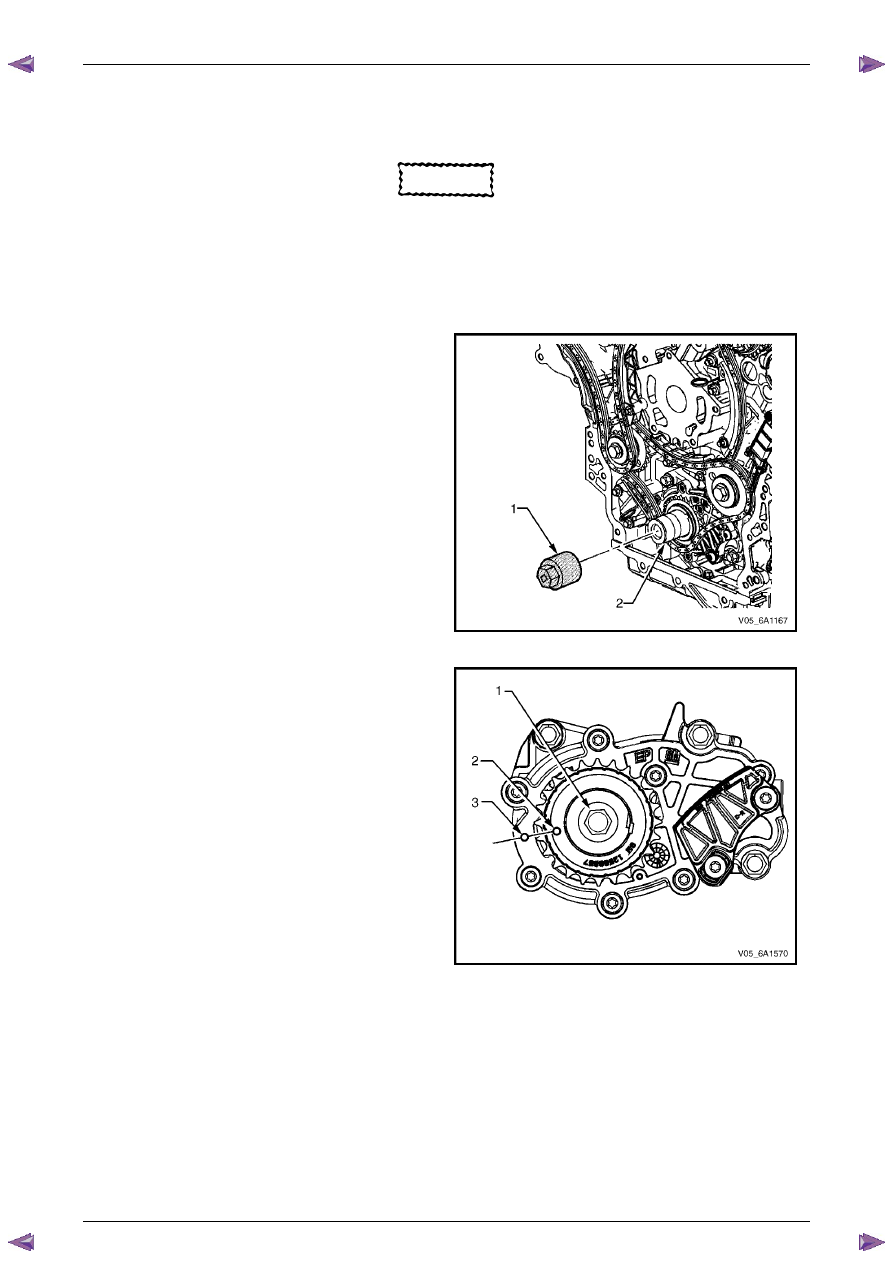

Page 6A1–114



Page 6A1–114

Remove

Right-hand Secondary Timing Chain

CAUTION



After removing the upper intake manifold, and
spark plugs, plug any openings to prevent dirt
and other contaminants from entering.

1

Remove the engine front cover assembly, refer to

3.15  Front Cover Assembly

.

2

Remove the spark plugs to aid crankshaft/engine rotation, refer to

Section 6C1-3 Engine Management – V6 –

Service Operations

.

3

Install Tool No. EN46111 (1) onto the crankshaft (2).



Figure 6A1 – 103

4

Using Tool No. EN46111 (1), rotate the crankshaft in
a clockwise direction until the crankshaft sprocket
timing mark (2) is aligned with the indexing mark (3)
on the oil pump housing.

N O T E

Graphic shows 'Early Type' crankshaft sprocket,
'Late Type' similar.





Figure 6A1 – 104
