Engine Mechanical – V6

Page 6A1–15



Page 6A1–15

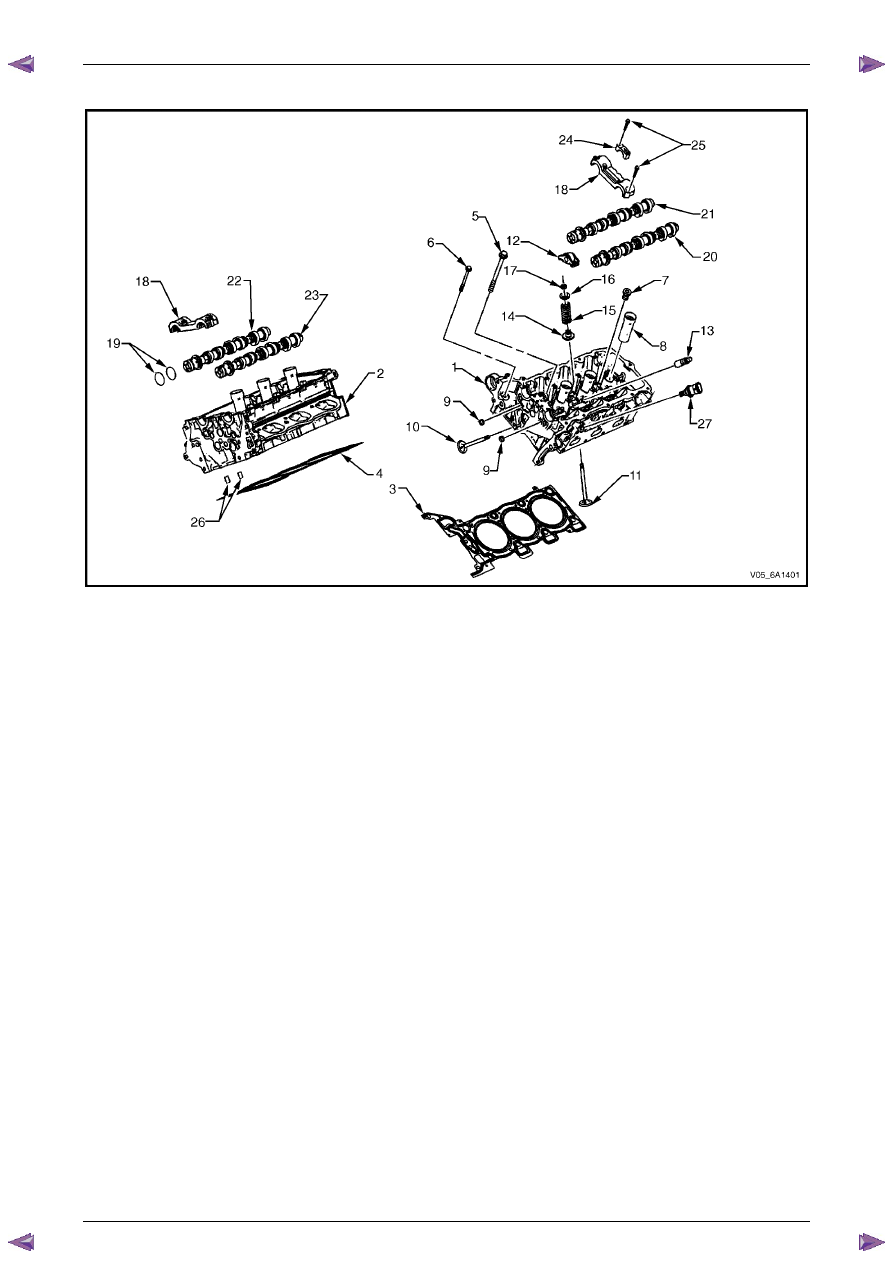

Cylinder Head Assembly



Figure 6A1 – 7

Legend

1

Cylinder Head, Left-hand

2

Cylinder Head, Right-hand

3

Cylinder Head Gasket, Left-hand

4

Cylinder Head Gasket, Right-hand

5

Cylinder Head Bolt

6

Cylinder Head Front Bolt

7

Cylinder Head Coolant Hole Threaded Plug

8

Spark Plug Sleeve

9

Cylinder Head Oil Gallery Expansion Plug

10 Exhaust

Valve

11 Intake

Valve

12

Valve Rocker Arm Assembly

13

Hydraulic Valve Lash Adjuster Assembly

14

Valve Stem Oil Seal

15 Valve

Spring

16

Valve Spring Cap

17

Valve Stem Key

18

Cylinder Head Camshaft Front Thrust Bearing Cap

19

Camshaft Oil Seal Ring

20 Exhaust

Camshaft

21

Intake Camshaft, Left-hand (bank 2)

22

Intake Camshaft, Right-hand (bank 1)

23

Exhaust Camshaft, Right-hand (bank 1)

24

Cylinder Head Camshaft Cap – Intermediate

25

Cylinder Head Camshaft Cap Bolt

26

Cylinder Head Oil Galley Check Valve

27

Engine Coolant Temperature Sensor

Engine Mechanical – V6

Page 6A1–16



Page 6A1–16

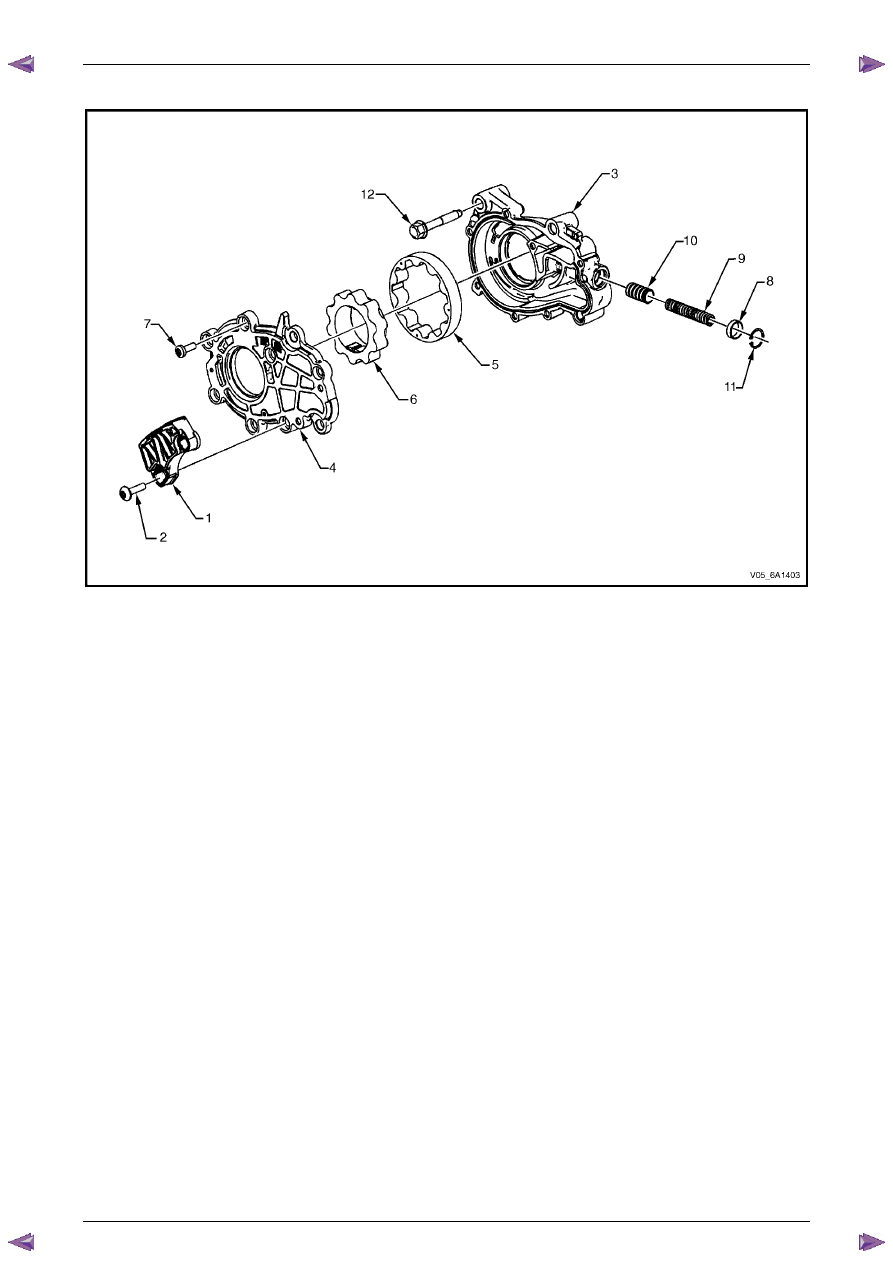

Oil Pump



Figure 6A1 – 8

Legend

1

Lower Primary Timing Chain Guide

2

Lower Primary Timing Chain Guide Bolt

3

Oil Pump Housing

4

Oil Pump Cover

5

Oil Pump Gerotor Outer Ring

6

Oil Pump Gerotor Inner Ring

7

Oil Pump Cover Bolt

8

Oil Pressure Relief Valve Bore Plug

9

Oil Pressure Relief Valve Spring

10

Oil Pressure Relief Valve

11

Oil Pressure Relief Valve Bore Plug Retainer Clip

12

Oil Pump Bolt

N O T E

Oil pump components are not serviced
individually.

Engine Mechanical – V6

Page 6A1–17



Page 6A1–17

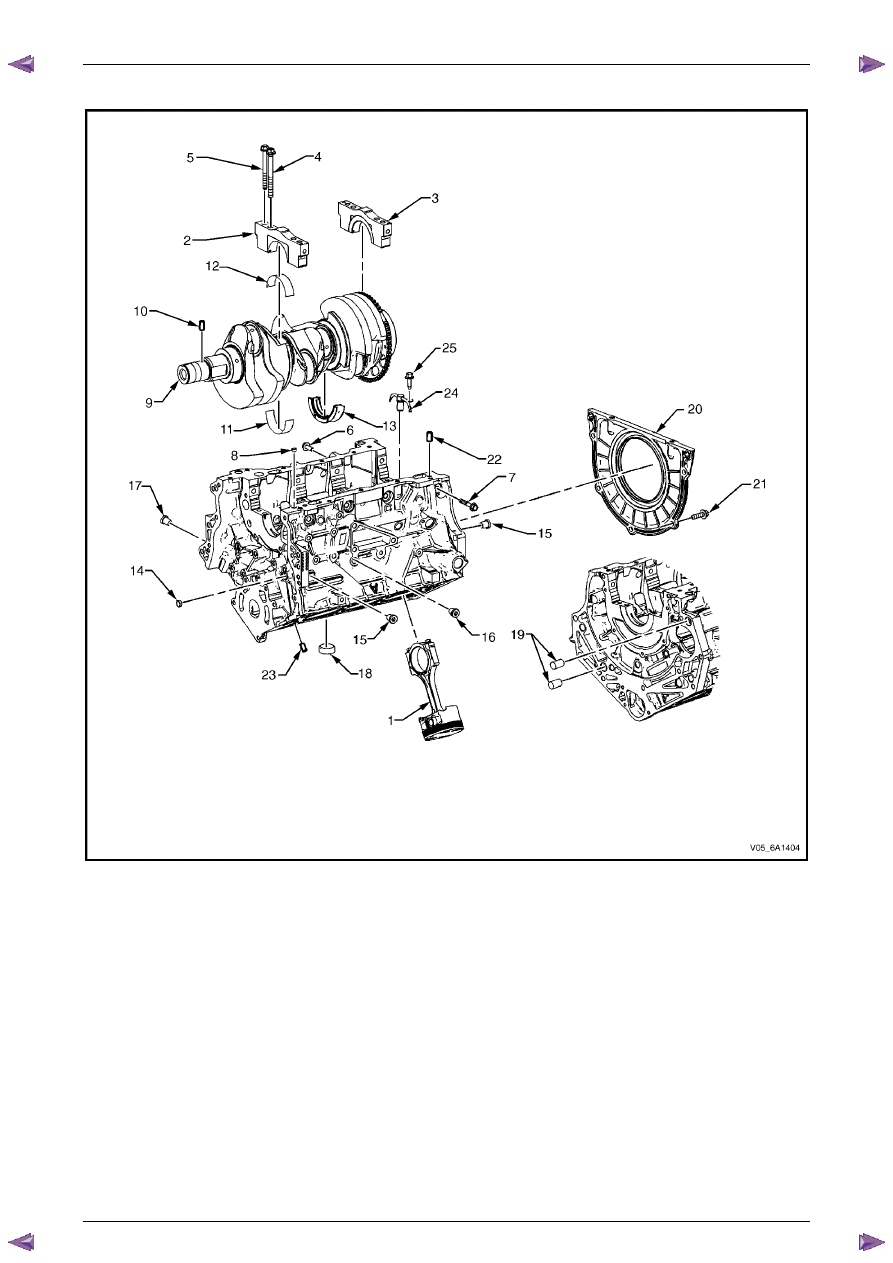

Engine Block Assembly



Figure 6A1 – 9

Legend

1

Piston and Connecting Rod Assembly

2

Crankshaft Bearing Cap

3

Crankshaft Bearing Thrust Cap

4

Crankshaft Bearing Cap Inboard Bolt

5

Crankshaft Bearing Cap Outboard Bolt

6

Crankshaft Bearing Cap Side Bolt, Short

7

Crankshaft Bearing Cap Side Bolt, Long

8

Engine Block Oil Gallery Expansion Plug, 10 mm

9 Crankshaft

10

Crankshaft Sprocket Locating Pin

11

Crankshaft Upper Bearing

12

Crankshaft Lower Bearing

13

Crankshaft Upper Thrust Bearing #3

14

Engine Block Oil Gallery Expansion Plug, 14 mm

15

Engine Block Oil Gallery Threaded Plug, 14 mm

16

Engine Block Coolant Drain Threaded Plug, 14 mm

17

Engine Block Oil Gallery Threaded Plug, 20 mm

18

Engine Block Core Coolant Expansion Plug, 34.3 mm

19

Transaxle Locating Pin

20

Crankshaft Rear Oil Seal Housing Assembly

21

Crankshaft Rear Oil Seal Housing Assembly Bolt

22

Oil Pan Locating Pin

23

Cylinder Head Locating Pin

24

Piston Oil Nozzle

25

Piston Oil Nozzle Bolt

Engine Mechanical – V6

Page 6A1–18



Page 6A1–18

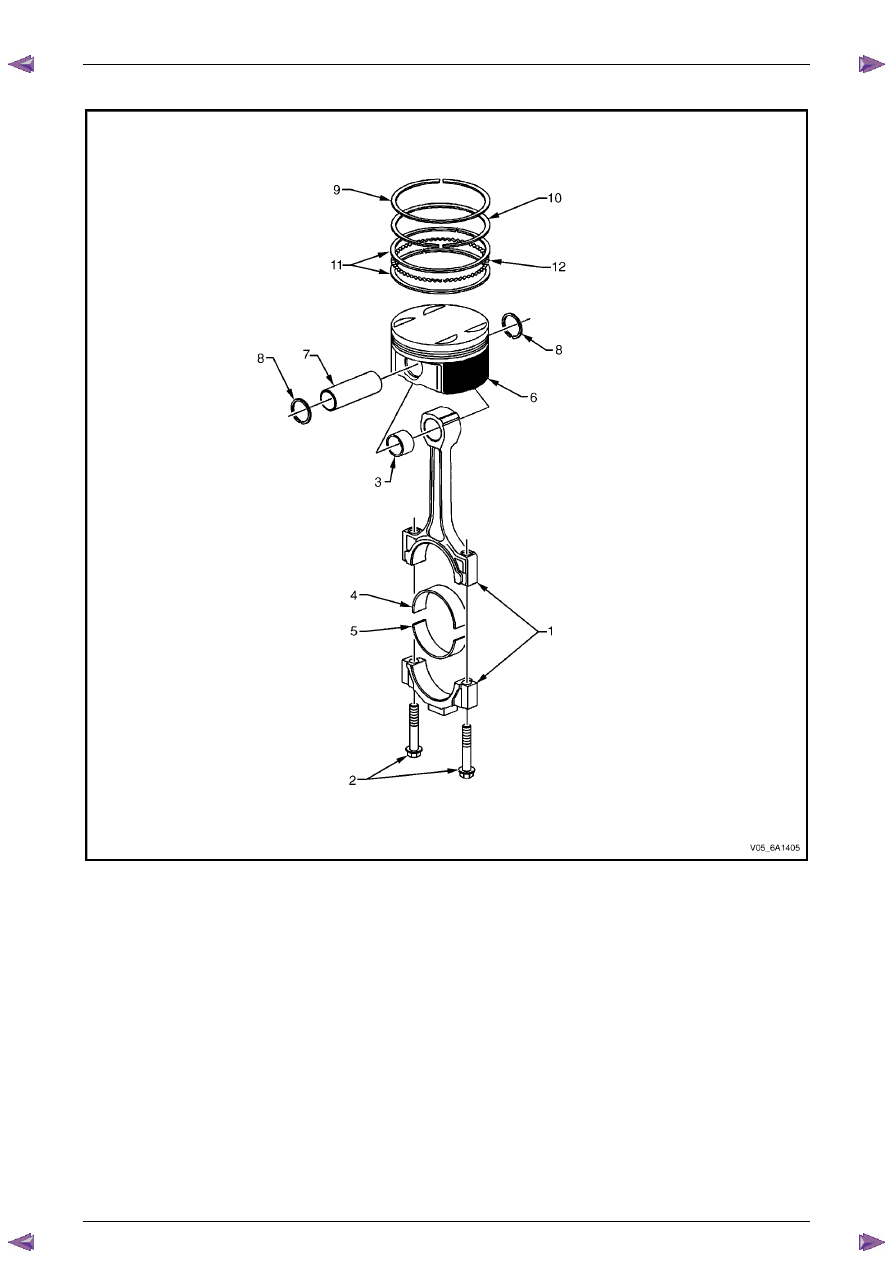

Pistons, Rings, Bearing and Connecting Rod



Figure 6A1 – 10

Legend

1 Connecting

Rod

2

Connecting Rod Bolt

3

Connecting Rod Bush

4

Upper Connecting Rod Bearing

5

Lower Connecting Rod Bearing

6 Piston

7 Piston

Pin

8

Piston Pin Retainer

9

Piston Upper Compression Ring

10

Piston Lower Compression Ring

11

Piston Oil Control Rail Ring

12

Piston Oil Control Ring Spacer
