Isuzu KB P190. Manual - part 697

Engine Mechanical – V6

Page 6A1–11



Page 6A1–11

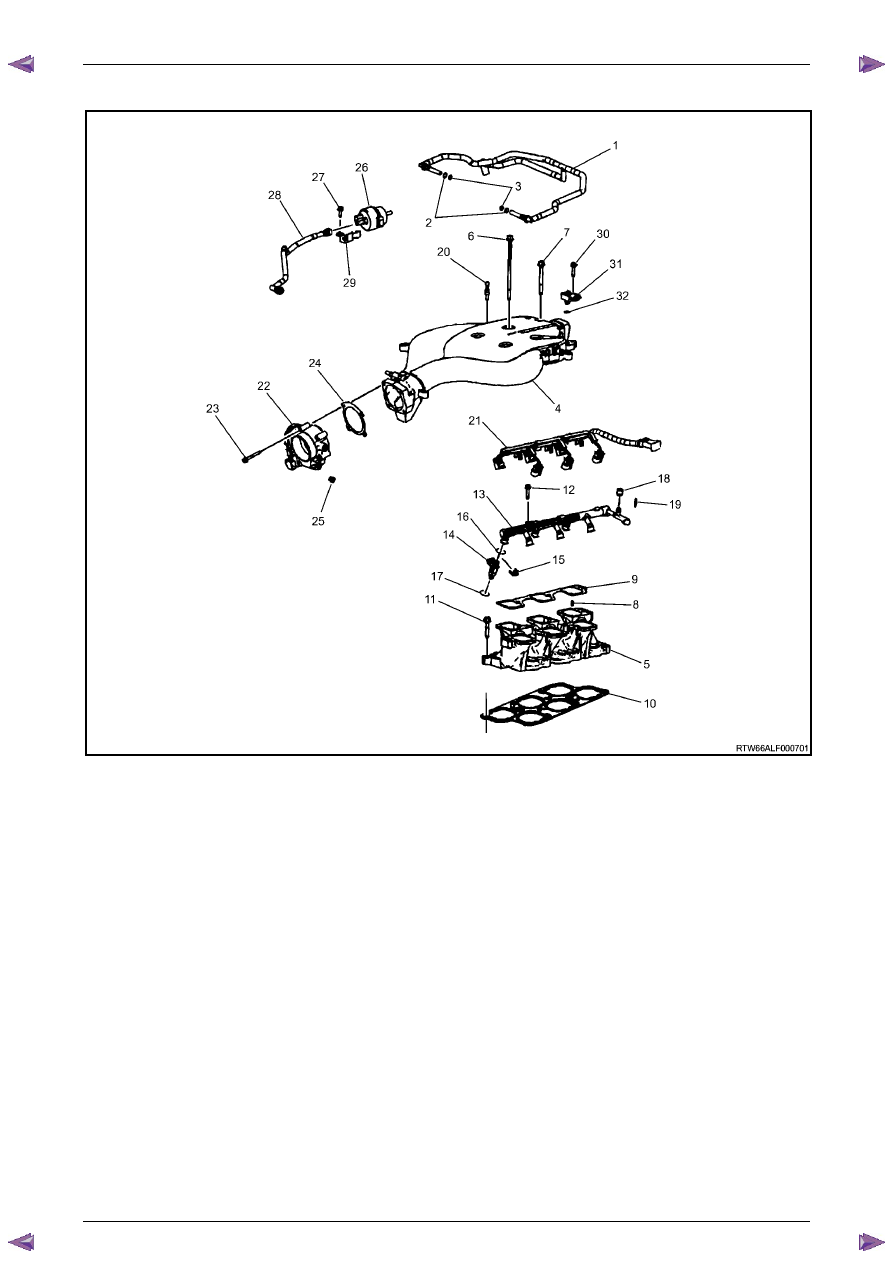

Intake Manifold Assembly



Figure 6A1 – 3

Legend

1 PCV

Hose

2

PCV Hose O-Ring Outer (larger)

3

PCV Hose O-Ring Inner (smaller)

4

Upper Intake Manifold

5

Lower Intake Manifold

6

Upper Intake Manifold Bolt – Long

7

Upper Intake Manifold Bolt – Short

8

Lower Intake Manifold to Upper Intake Manifold Guide Pin

9

Upper Intake Manifold to Lower Intake Manifold Gasket

10

Lower Intake Manifold to Cylinder Head Gasket

11

Lower Intake Manifold Bolt

12

Fuel Rail Bolt

13 Fuel

Rail

14 Fuel

Injector

15

Fuel Injector Retainer

16

Fuel Injector Upper O-ring

17

Fuel Injector Lower O-ring

18

Fuel Pressure Service Valve Cap

19

Fuel Pressure Service Valve

20 Ball

Stud

21

Fuel Injector Wiring Harness

22 Throttle

Body

23

Throttle Body Bolt

24

Throttle Body Gasket

25

Throttle Body Engine Wiring Harness Clip

26

EVAP Purge Solenoid

27

EVAP Purge Solenoid Bolt

28

EVAP Purge Solenoid Tube

29

EVAP Purge Solenoid Bracket

30

BARO Sensor Bolt

31 BARO

Sensor

32

BARO Sensor O-Ring

Engine Mechanical – V6

Page 6A1–12



Page 6A1–12

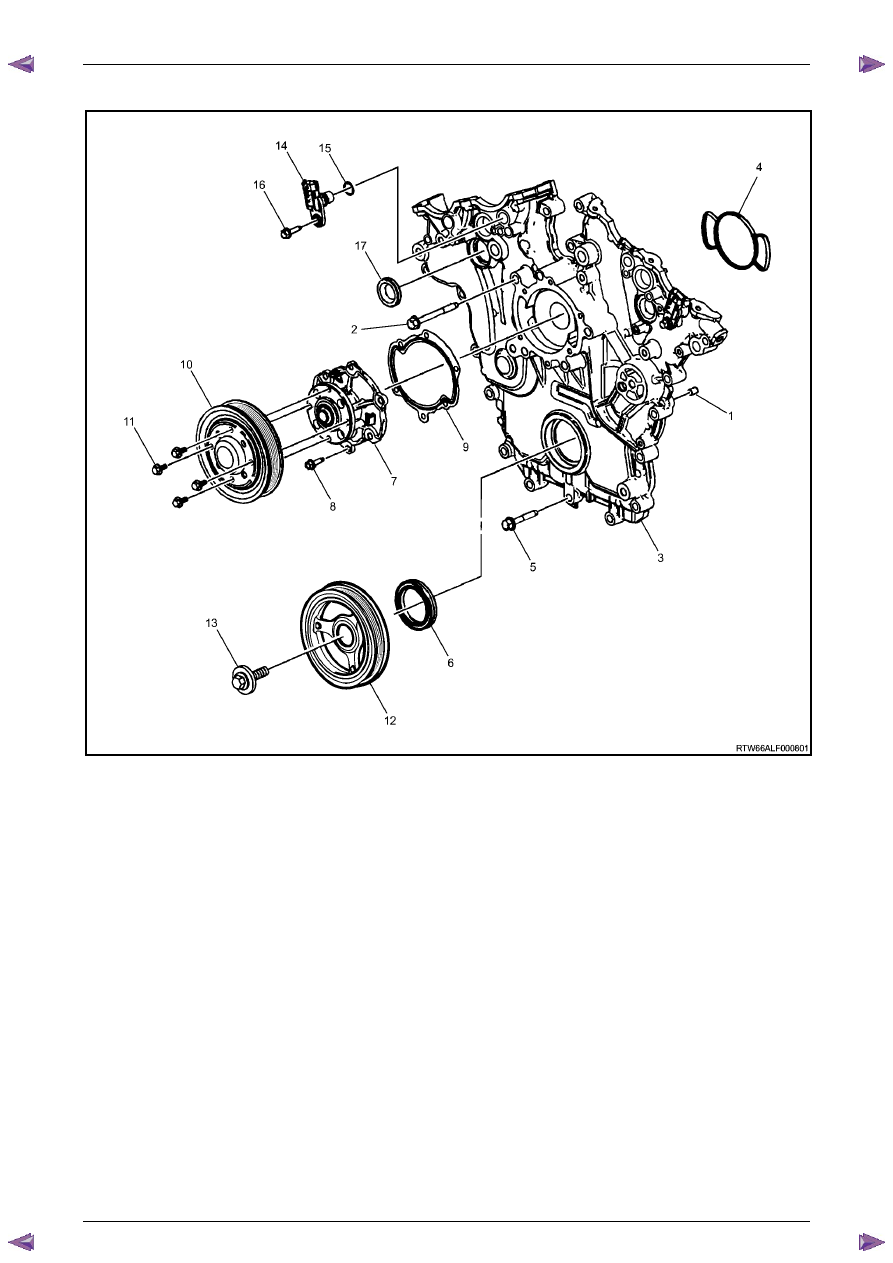

Engine Front Cover



Figure 6A1 – 4

Legend

1

Engine Front Cover Locating Pin

2

Engine Front Cover Bolt, M10

3

Engine Front Cover

4

Engine Front Cover Gasket

5

Engine Front Cover Bolt, M8

6

Engine Front Cover Seal

7

Coolant Pump Assembly

8

Coolant Pump Bolt

9

Coolant Pump Gasket

10

Coolant Pump Pulley

11

Coolant Pump Pulley Bolt

12 Crankshaft

Balancer

13

Crankshaft Balancer Bolt

14

Camshaft Position Sensor

15

Camshaft Position Sensor O-ring

16

Camshaft Position Sensor Bolt

17

Camshaft Position Actuator Solenoid Valve Seal



Engine Mechanical – V6

Page 6A1–13



Page 6A1–13

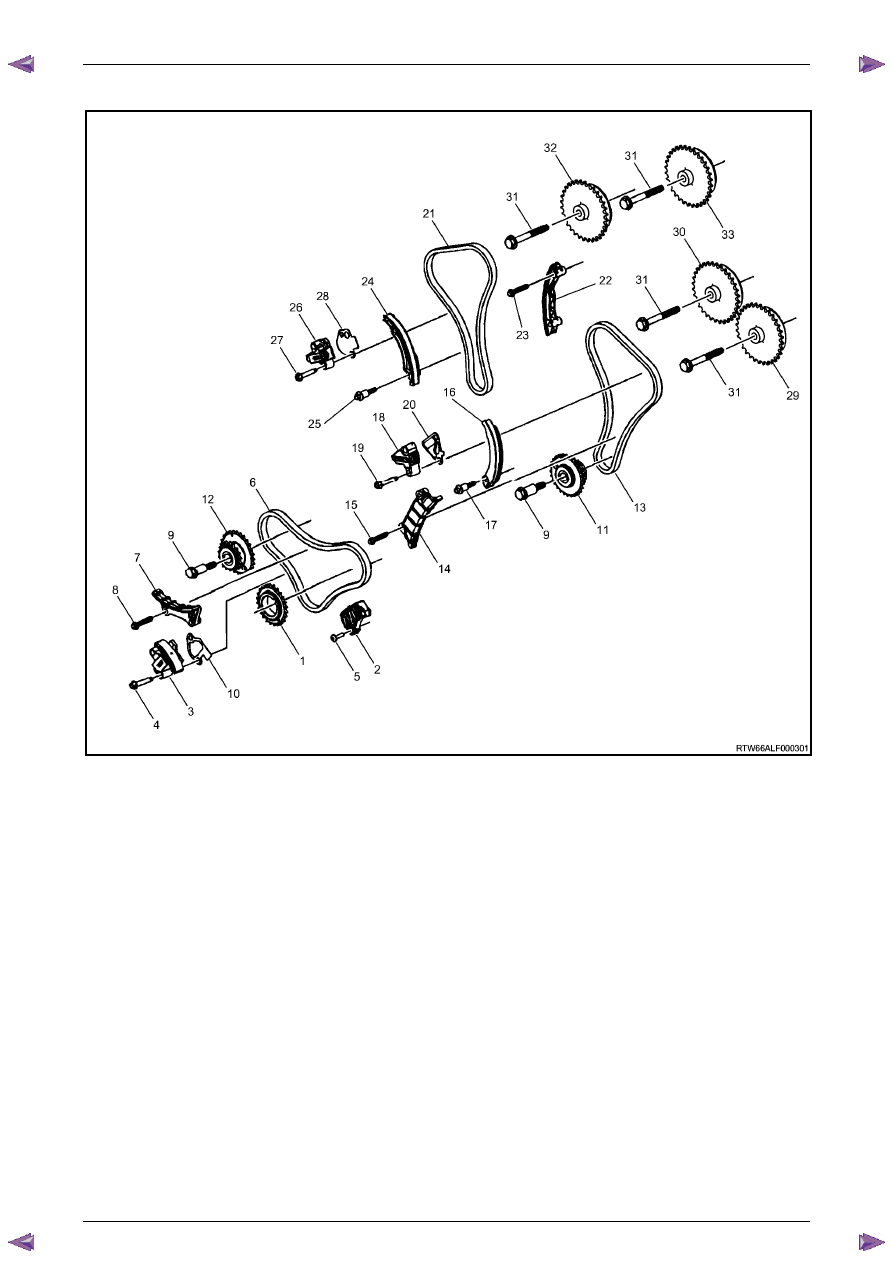

Camshaft Timing Components



Figure 6A1 – 5

Legend

1 Crankshaft

Sprocket

2

Lower Primary Timing Chain Guide

3

Primary Timing Chain Tensioner

4

Primary Timing Chain Tensioner Bolt

5

Lower Primary Timing Chain Guide Bolt

6

Primary Timing Chain

7

Upper Primary Timing Chain Guide

8

Upper Primary Timing Chain Guide Bolt

9

Camshaft Intermediate Sprocket Bolt

10

Primary Timing Chain Tensioner Gasket

11

Camshaft Intermediate Sprocket, Left-hand

12

Camshaft Intermediate Sprocket, Right-hand



13

Secondary Timing Chain, Left-hand

14

Secondary Timing Chain Guide, Left-hand

15

Secondary Timing Chain Guide Bolt, Left-hand

16

Secondary Timing Chain Shoe, Left-hand

17

Secondary Timing Chain Shoe Bolt, Left-hand

18

Secondary Timing Chain Tensioner, Left-hand

19

Secondary Timing Chain Tensioner Bolt, Left-hand

20

Secondary Timing Chain Tensioner Gasket, Left-hand

21

Secondary Timing Chain, Right-hand

22

Secondary Timing Chain Guide, Right-hand

23

Secondary Timing Chain Guide Bolt, Right-hand

24

Secondary Timing Chain Shoe, Right-hand

25

Secondary Timing Chain Shoe Bolt, Right-hand

26

Secondary Timing Chain Tensioner, Right-hand

27

Secondary Timing Chain Tensioner Bolt, Right-hand

28

Secondary Timing Chain Tensioner Gasket, Right-hand

29

Exhaust Camshaft Sprocket, Left-hand

30

Intake Camshaft Sprocket, Left-hand

31

Camshaft Sprocket Bolt

32

Exhaust Camshaft Sprocket, Right-hand

33

Intake Camshaft Sprocket, Right-hand

Engine Mechanical – V6

Page 6A1–14



Page 6A1–14

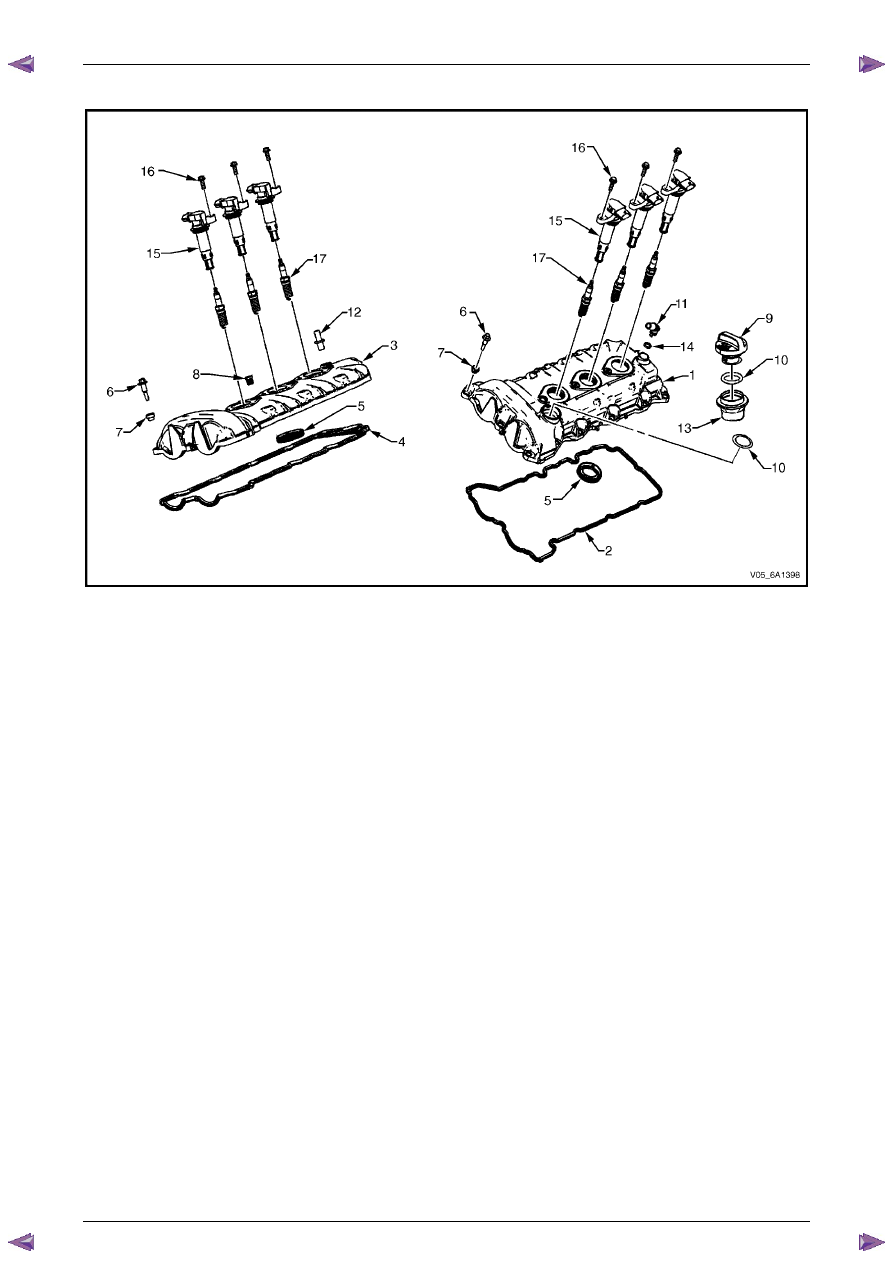

Camshaft Cover Assembly



Figure 6A1 – 6

Legend

1

Camshaft Cover, Left-hand

2

Camshaft Cover Gasket, Left-hand

3

Camshaft Cover, Right-hand

4

Camshaft Cover Gasket, Right-hand

5

Camshaft Cover Spark Plug Port Seal

6

Camshaft Cover Bolt

7

Camshaft Cover Bolt Insulator

8

Ignition Coil Bolt Thread Insert

9

Oil Fill Cap

10

Oil Fill O-Ring

11

Camshaft Cover PCV Fitting, Left-hand

12

Camshaft Cover PCV Fitting Orifice, Right-hand

13

Oil Fill Tube

14

Camshaft Cover PCV Fitting O-Ring, Left-hand

15 Ignition

Coil

16

Ignition Coil Bolt

17 Spark

Plug
