Engine Mechanical – V6

Page 6A1–17

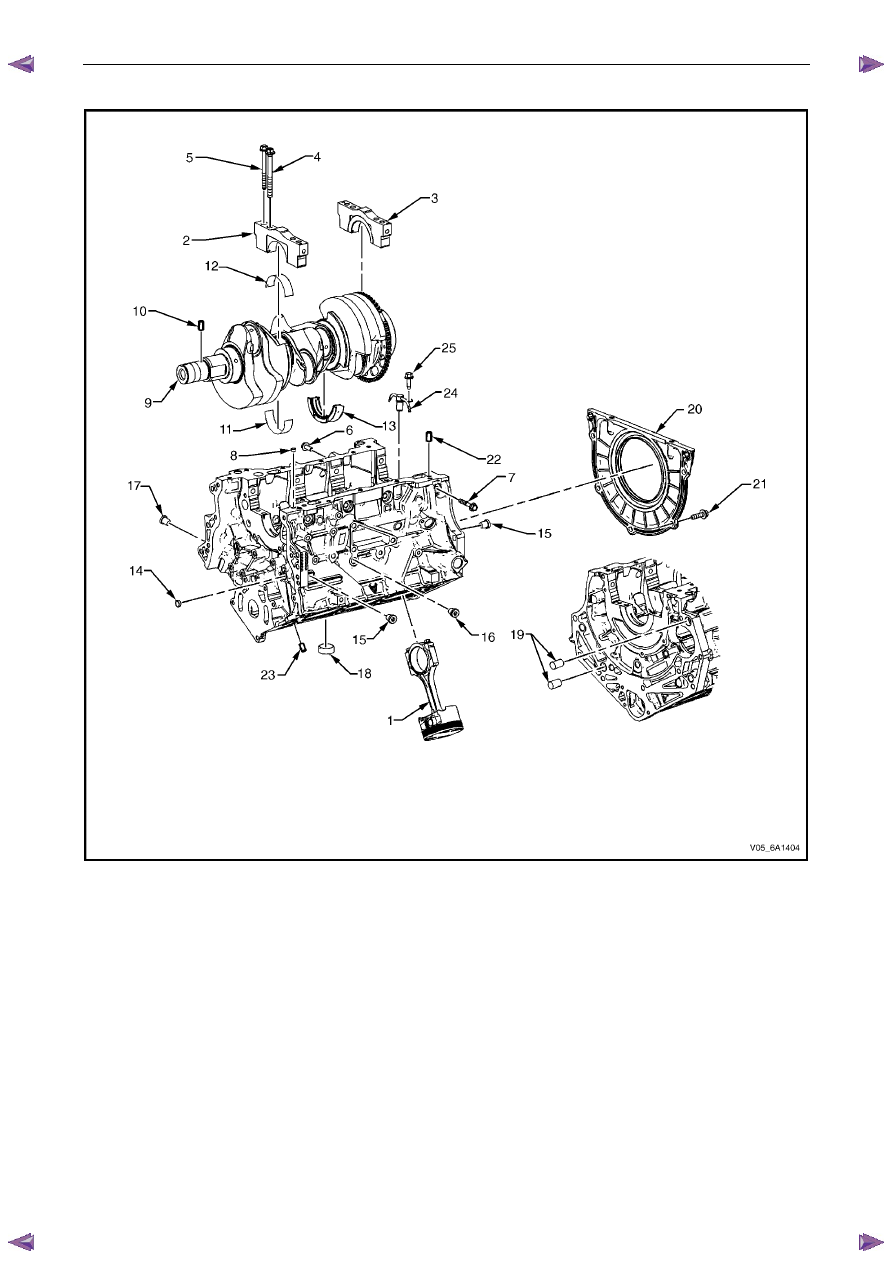

Engine Block Assembly



Figure 6A1 – 9

Legend

1

Piston and Connecting Rod Assembly

2

Crankshaft Bearing Cap

3

Crankshaft Bearing Thrust Cap

4

Crankshaft Bearing Cap Inboard Bolt

5

Crankshaft Bearing Cap Outboard Bolt

6

Crankshaft Bearing Cap Side Bolt, Short

7

Crankshaft Bearing Cap Side Bolt, Long

8

Engine Block Oil Gallery Expansion Plug, 10 mm

9 Crankshaft

10

Crankshaft Sprocket Locating Pin

11

Crankshaft Upper Bearing

12

Crankshaft Lower Bearing

13

Crankshaft Upper Thrust Bearing #3

14

Engine Block Oil Gallery Expansion Plug, 14 mm

15

Engine Block Oil Gallery Threaded Plug, 14 mm

16

Engine Block Coolant Drain Threaded Plug, 14 mm

17

Engine Block Oil Gallery Threaded Plug, 20 mm

18

Engine Block Core Coolant Expansion Plug, 34.3 mm

19

Transaxle Locating Pin

20

Crankshaft Rear Oil Seal Housing Assembly

21

Crankshaft Rear Oil Seal Housing Assembly Bolt

22

Oil Pan Locating Pin

23

Cylinder Head Locating Pin

24

Piston Oil Nozzle

25

Piston Oil Nozzle Bolt

Engine Mechanical – V6

Page 6A1–18

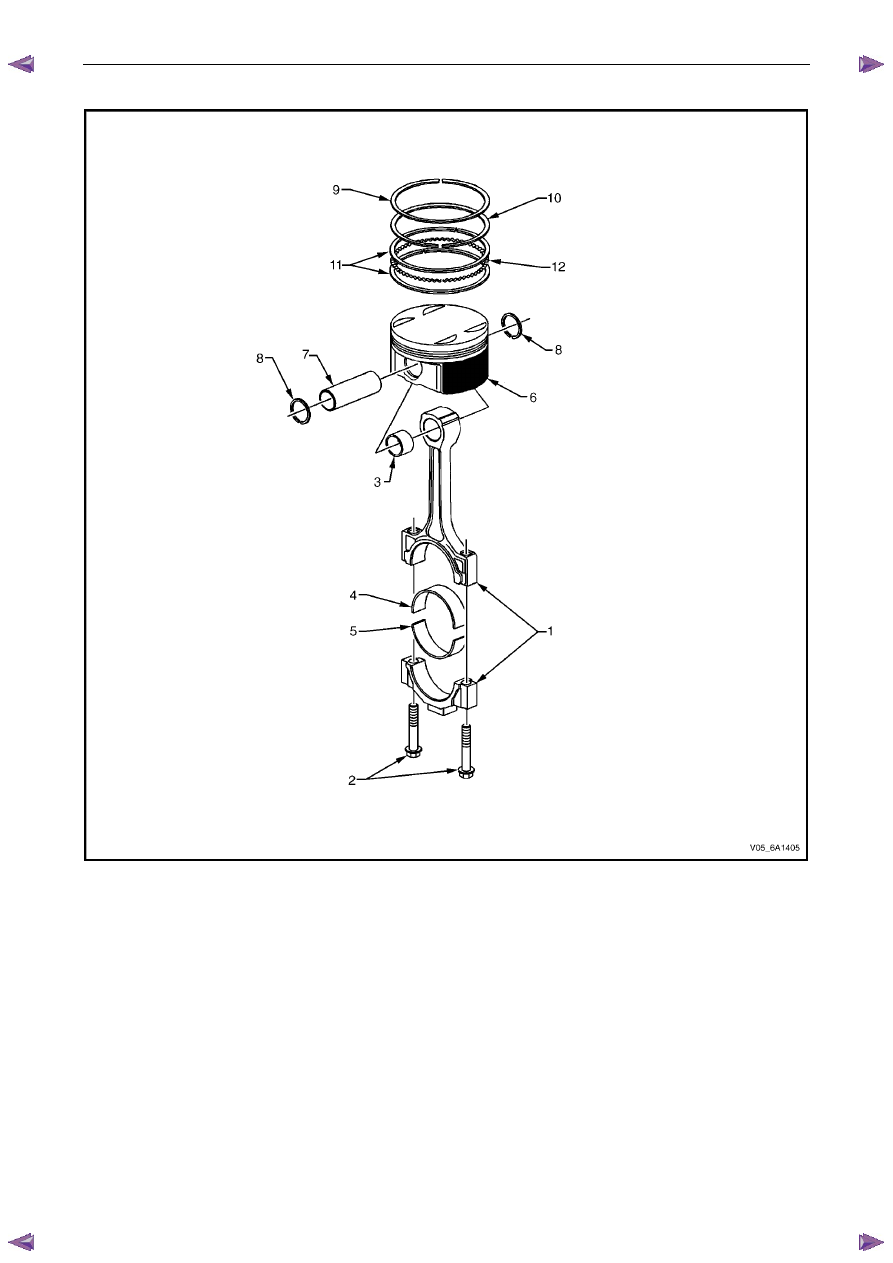

Pistons, Rings, Bearing and Connecting Rod



Figure 6A1 – 10

Legend

1 Connecting

Rod

2

Connecting Rod Bolt

3

Connecting Rod Bush

4

Upper Connecting Rod Bearing

5

Lower Connecting Rod Bearing

6 Piston

7 Piston

Pin

8

Piston Pin Retainer

9

Piston Upper Compression Ring

10

Piston Lower Compression Ring

11

Piston Oil Control Rail Ring

12

Piston Oil Control Ring Spacer

Engine Mechanical – V6

Page 6A1–19

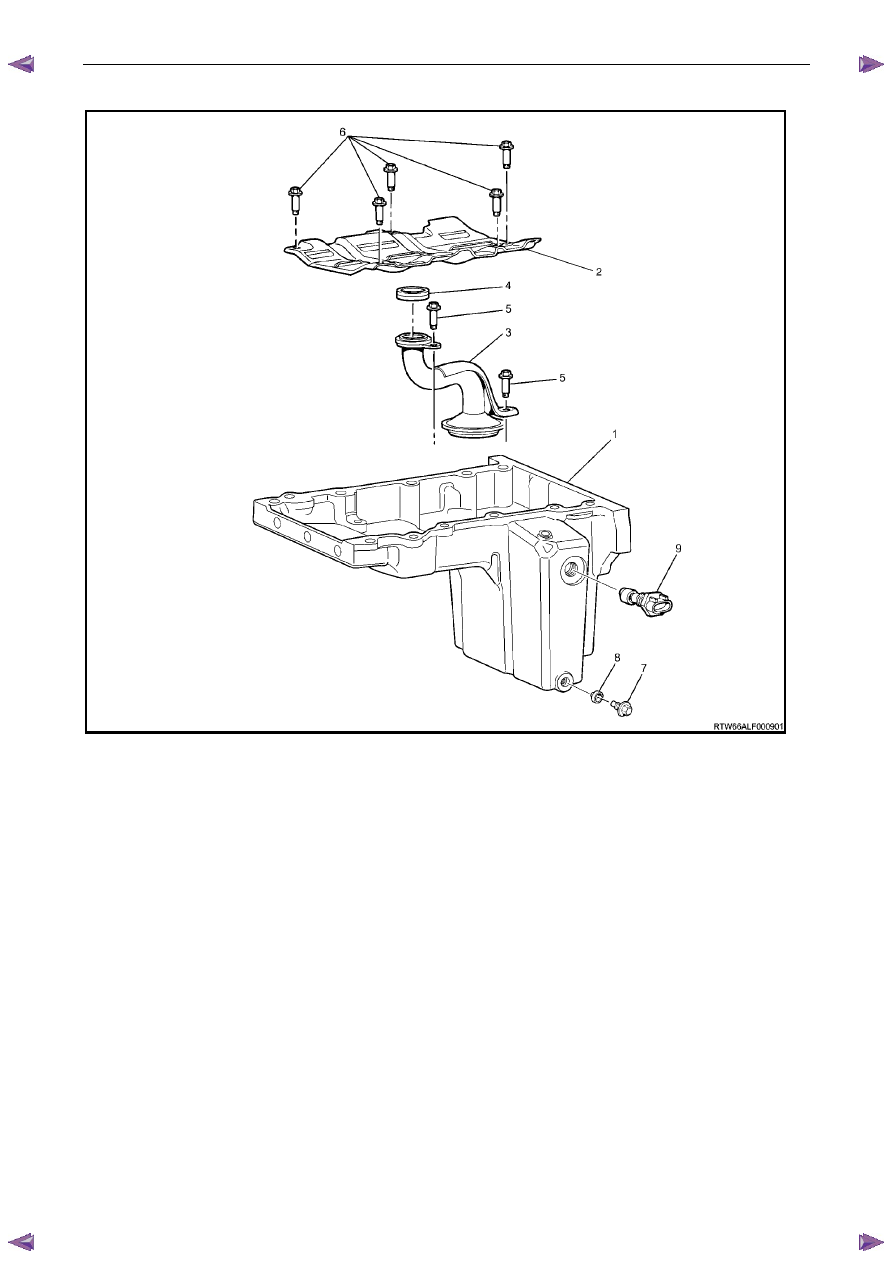

Oil Pan Assembly



Figure 6A1 – 11

Legend

1 Oil

Pan

2

Crankshaft Oil Deflector

3

Oil Pump Suction Pipe

4

Oil Pump Suction Pipe Gasket

5

Oil Pump Suction Pipe Bolt

6

Crankshaft Oil Deflector Bolt

7

Oil Pan Drain Plug

8

Oil Pan Drain Plug Sleeve

9

Engine Oil Level Sensor

Engine Mechanical – V6

Page 6A1–20

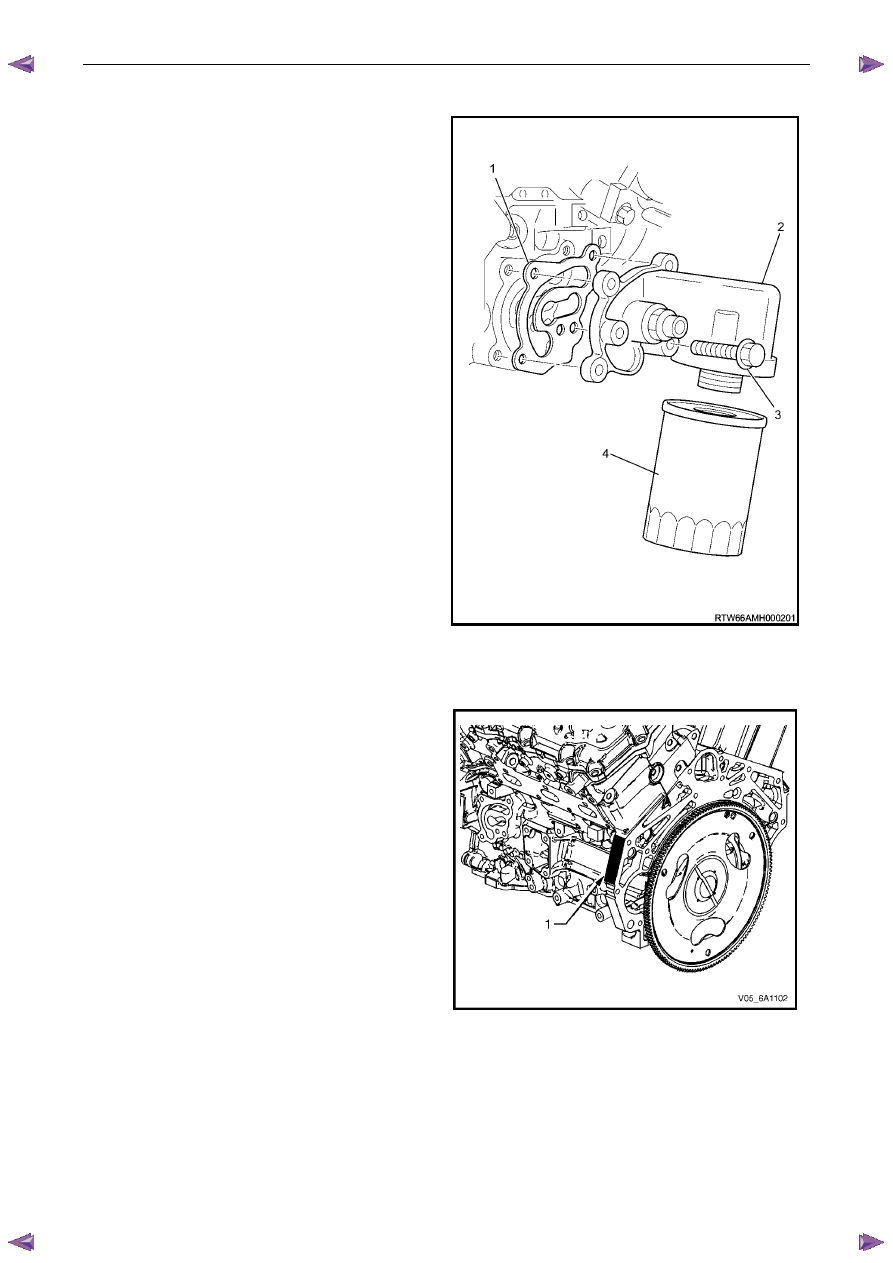

Oil Filter Assembly

Legend

1

Oil Filter Gasket

2

Oil Filter Adapter

3

Oil Filter Adapter Bolt

4

Oil Filter Element

Figure 6A1 – 12

1.3

Engine Serial Number

The engine serial number is located on the machined pad
(1) at the left-hand rear of the cylinder block.

The following is a breakdown of the engine serial number,
using an example of 10H7E H051230001:
•

10 = Component ID (i.e. 10 = Assembly)

•

H7E = Engine Broadcast Code

•

H = Assembly Plant Code

•

05 = Build Year

•

123 = Julian Date

•

0001 = Four Digit Daily Sequence Number

Figure 6A1 – 13
