Isuzu KB P190. Manual - part 623

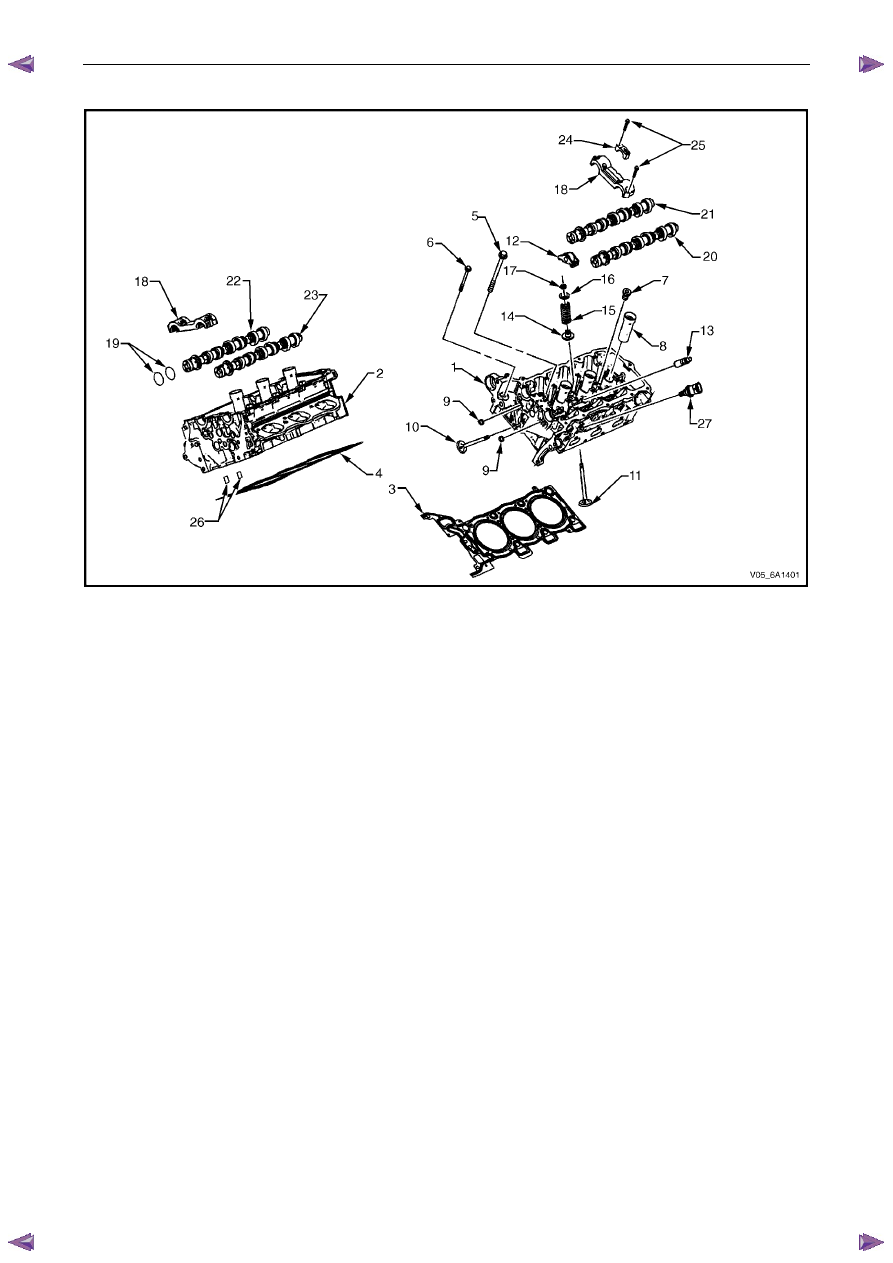

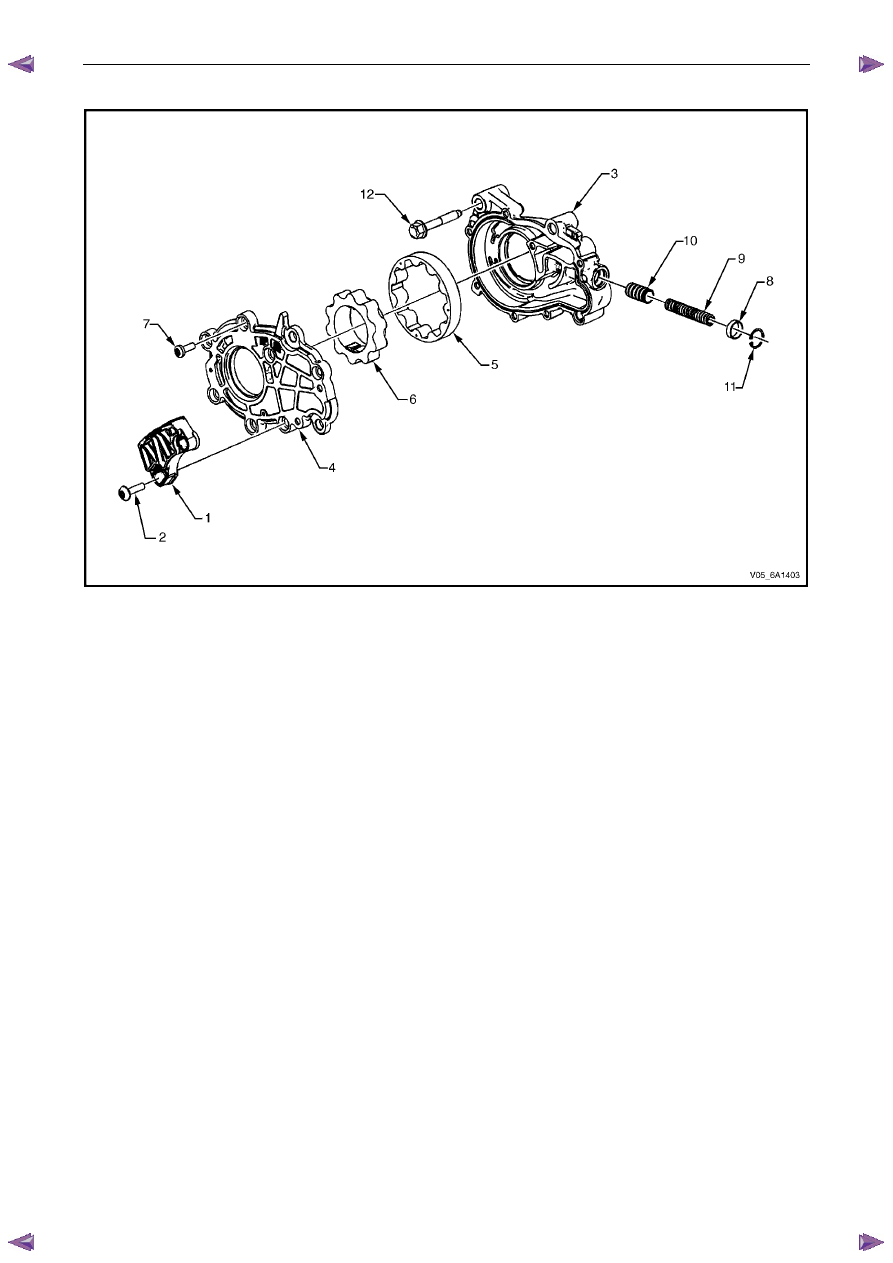

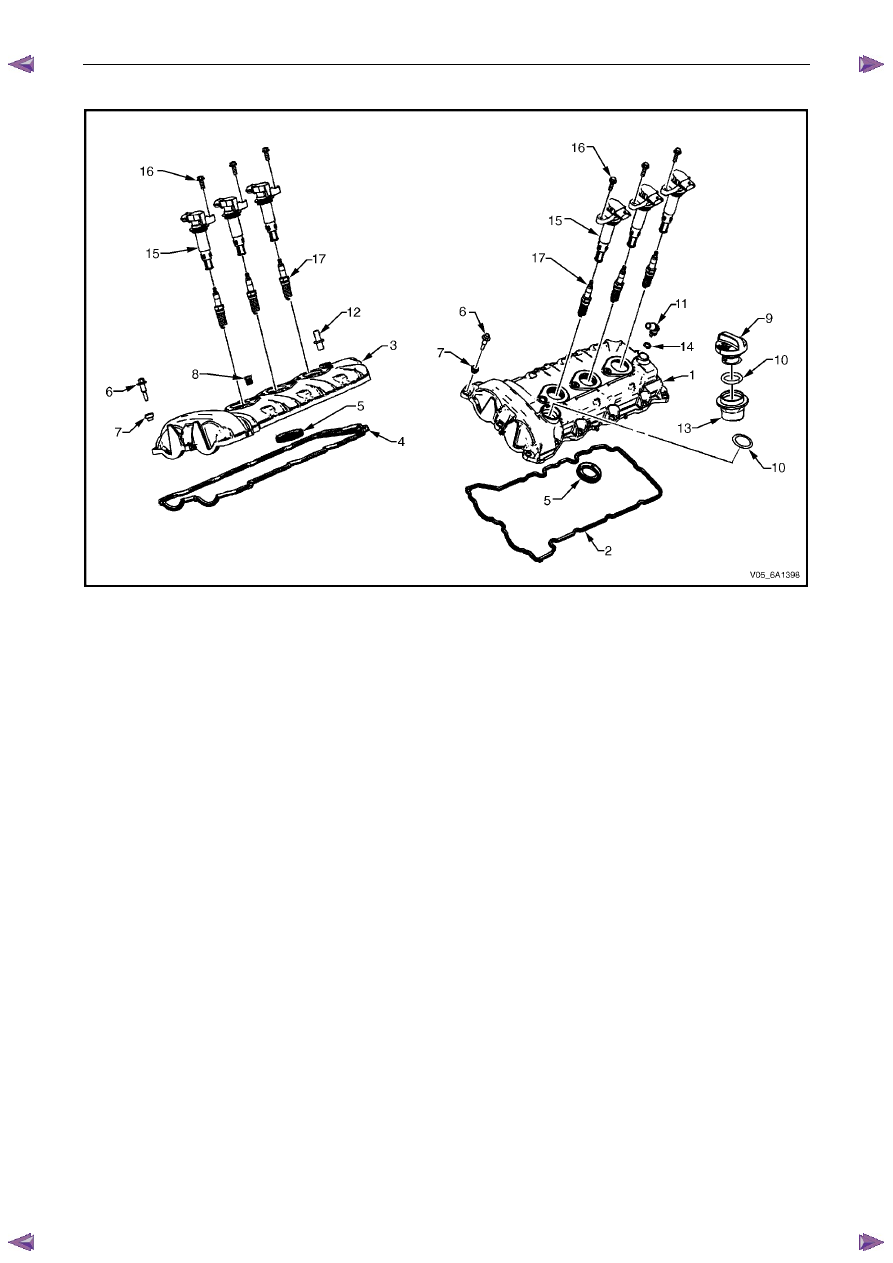

Engine Mechanical – V6
Page 6A1–13
Camshaft Timing Components

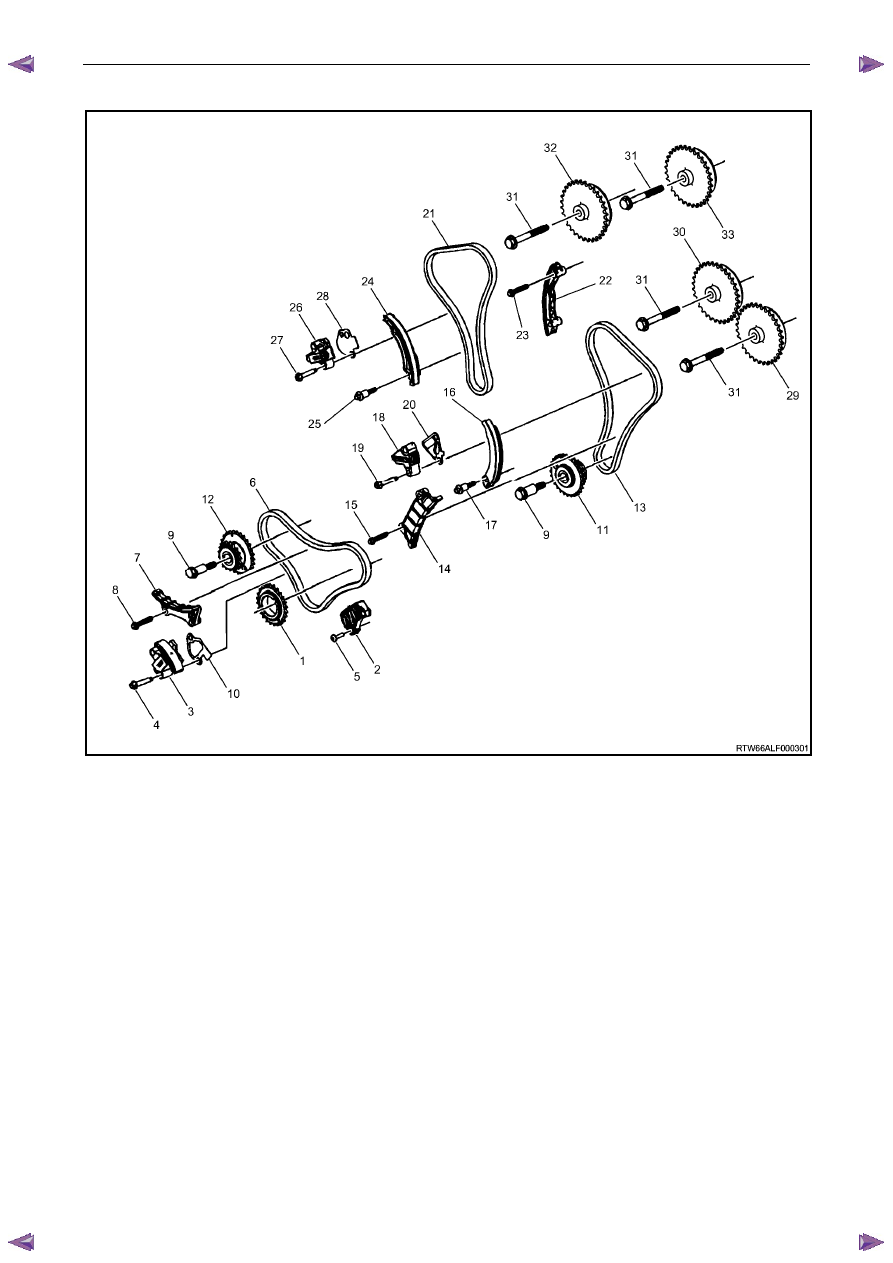

Figure 6A1 – 5
Legend
1 Crankshaft
Sprocket
2
Lower Primary Timing Chain Guide
3
Primary Timing Chain Tensioner
4
Primary Timing Chain Tensioner Bolt
5
Lower Primary Timing Chain Guide Bolt
6
Primary Timing Chain
7
Upper Primary Timing Chain Guide
8
Upper Primary Timing Chain Guide Bolt
9
Camshaft Intermediate Driveshaft Sprocket Bolt
10
Primary Timing Chain Tensioner Gasket
11
Camshaft Intermediate Driveshaft Sprocket, Left-hand
12
Camshaft Intermediate Driveshaft Sprocket, Right-hand
13
Secondary Timing Chain, Left-hand
14
Secondary Timing Chain Guide, Left-hand
15
Secondary Timing Chain Guide Bolt, Left-hand
16
Secondary Timing Chain Shoe, Left-hand
17
Secondary Timing Chain Shoe Bolt, Left-hand
18
Secondary Timing Chain Tensioner, Left-hand
19
Secondary Timing Chain Tensioner Bolt, Left-hand
20
Secondary Timing Chain Tensioner Gasket, Left-hand
21
Secondary Timing Chain, Right-hand
22
Secondary Timing Chain Guide, Right-hand
23
Secondary Timing Chain Guide Bolt, Right-hand
24
Secondary Timing Chain Shoe, Right-hand
25
Secondary Timing Chain Shoe Bolt, Right-hand
26
Secondary Timing Chain Tensioner, Right-hand
27
Secondary Timing Chain Tensioner Bolt, Right-hand
28
Secondary Timing Chain Tensioner Gasket, Right-hand
29
Exhaust Camshaft Sprocket, Left-hand
30
Intake Camshaft Sprocket, Left-hand
31
Camshaft Sprocket Bolt
32
Exhaust Camshaft Sprocket, Right-hand
33
Intake Camshaft Sprocket, Right-hand
