8B-4 CRUISE CONTROL SYSTEM

Brake Switch

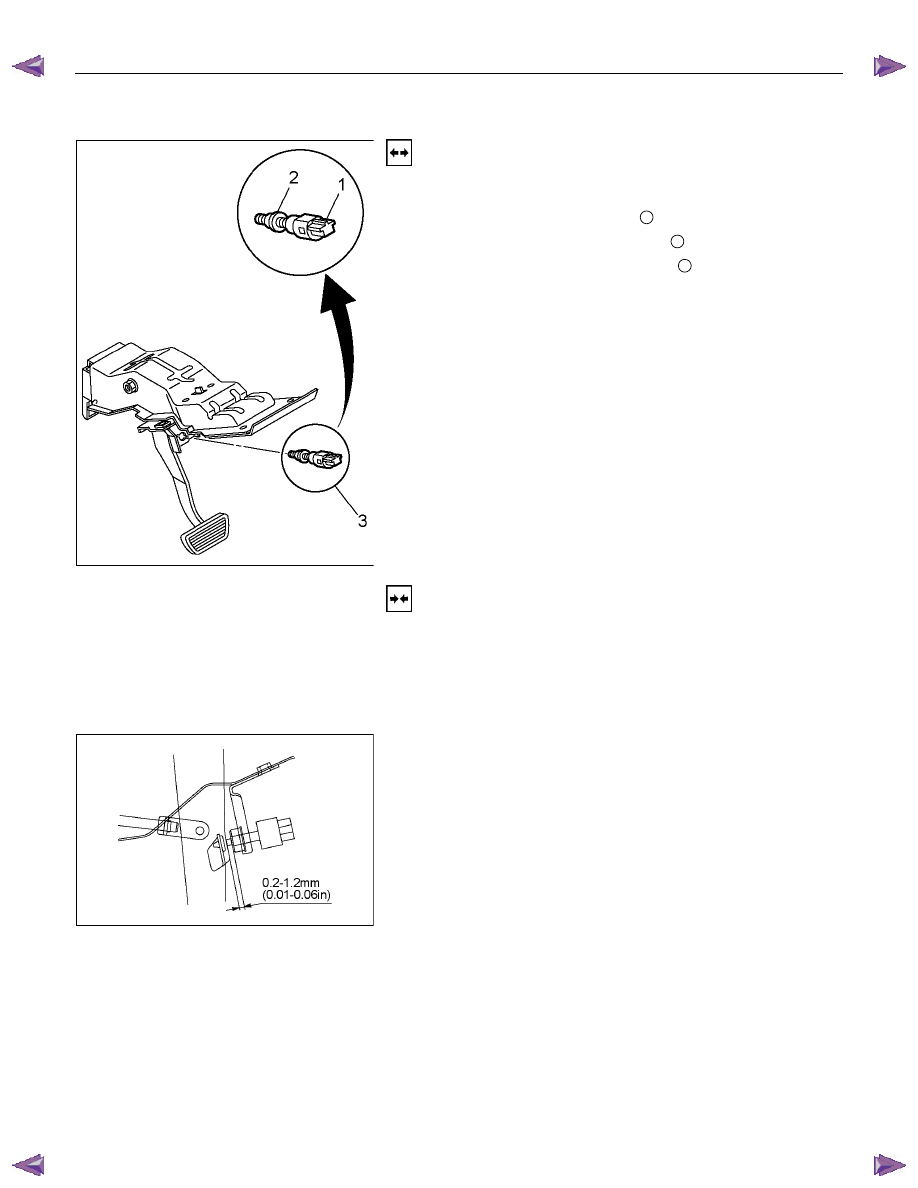

RTW3A0MH000101

Removal

1. Disconnect the battery ground cable.

2. Remove the brake switch.

• Disconnect the connector

• Loosen lock nuts of the switch

• Remove the switch by turning it

Installation

To install, follow the removal procedure in reverse order, noting
the following points.

1. Check to see if the brake pedal has been returned by the

return spring to the specified position.

2. Turn the switch clock-wise until the tip of the threaded

portion of the brake switch contacts the pedal arm.

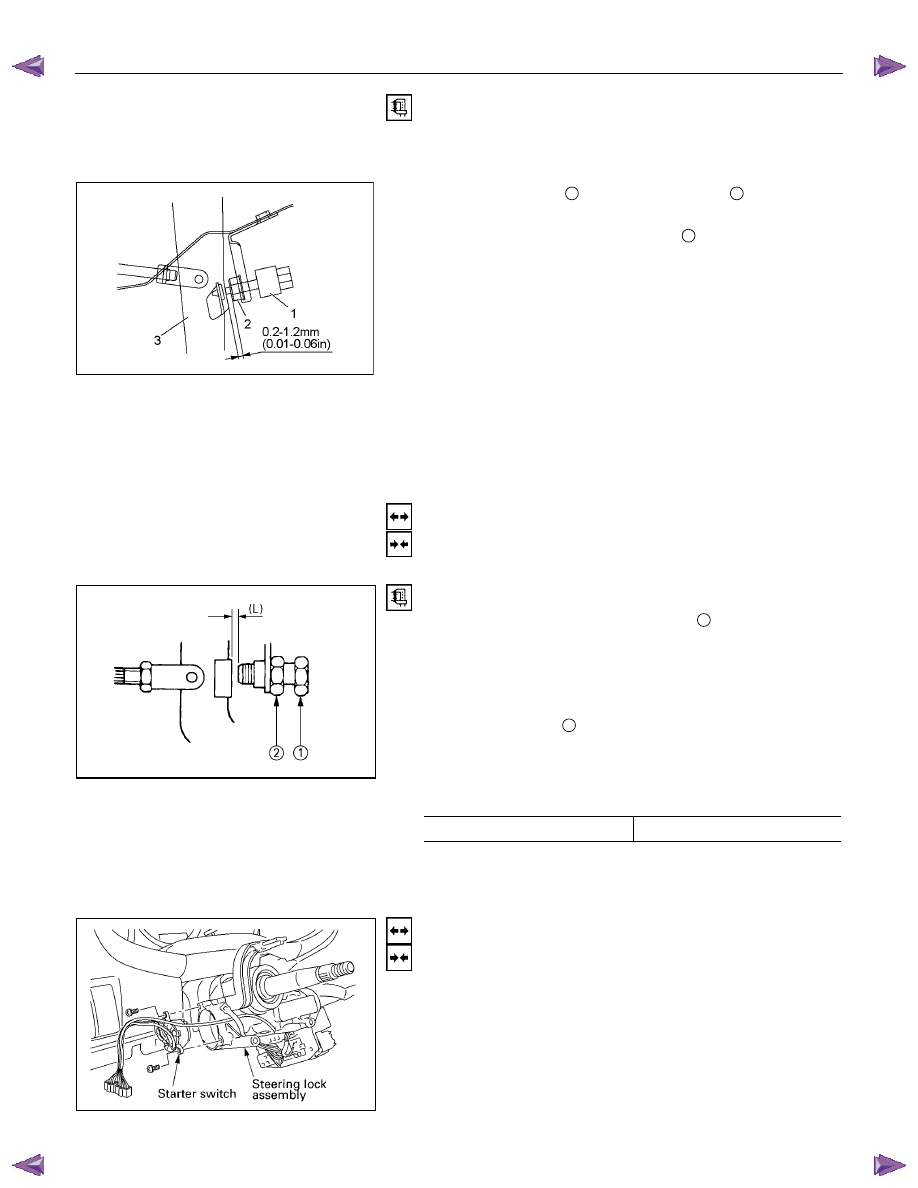

RTW780SH003201

3. Turn the switch counter-clock-wise until the space between

the tip of the threaded portion and the pedal arm is 0.2 to

1.2 mm (0.01-0.06 in) as shown in the figure.

CRUISE CONTROL SYSTEM 8B-5

Adjustment

1. Check to be sure that the brake pedal has been completely

returned by the return spring.

2. Disconnect the switch connector.

RTW780SH003301

3. Release the lock

by turning the switch

counter-clock-

wise.

4. After doing so, pull the pedal arm

to you a little so that

the pedal arm is not pushed in.

5. Making the pedal arm not movable with one hand, push in

the whole switch with the other hand until the plunger of the

switch is pushed in and the switch itself hits the rubber of

the pedal arm.

In the condition, turn the switch clock-wise until "click"

sound is made and lock it.

By doing this, the switch is adjusted at 0.2 to 1.2mm (0.01-

0.06 in) clearance.

Clutch Switch

Removal and Installation

Refer to the Clutch Control removal and installation procedure
in Clutch section.

Adjustment

1. Turn the clutch switch or stopper bolt

until the switch bolt

or stopper bolt just touches the clutch pedal arm.

2. Adjust clutch switch or stopper bolt by backing it out half a

turn, and measure the clearance (L) between the clutch

pedal arm and the clutch switch bolt end or stopper bolt.

3. Lock the lock nut

4. Connect the clutch switch connector.

Clutch switch and clutch pedal clearance

mm (in)

Clearance 0.5-1.5

(0.020-0.059)

Starter Switch

431R300001

Removal and Installation

Refer to the Starter Switch removal and installation procedure
of Start and Charging in Body and Chassis section.

8B-6 CRUISE CONTROL SYSTEM

Cruise Control Main Switch

Removal

1. Disconnect the battery ground cable.

RTW78ASH001801

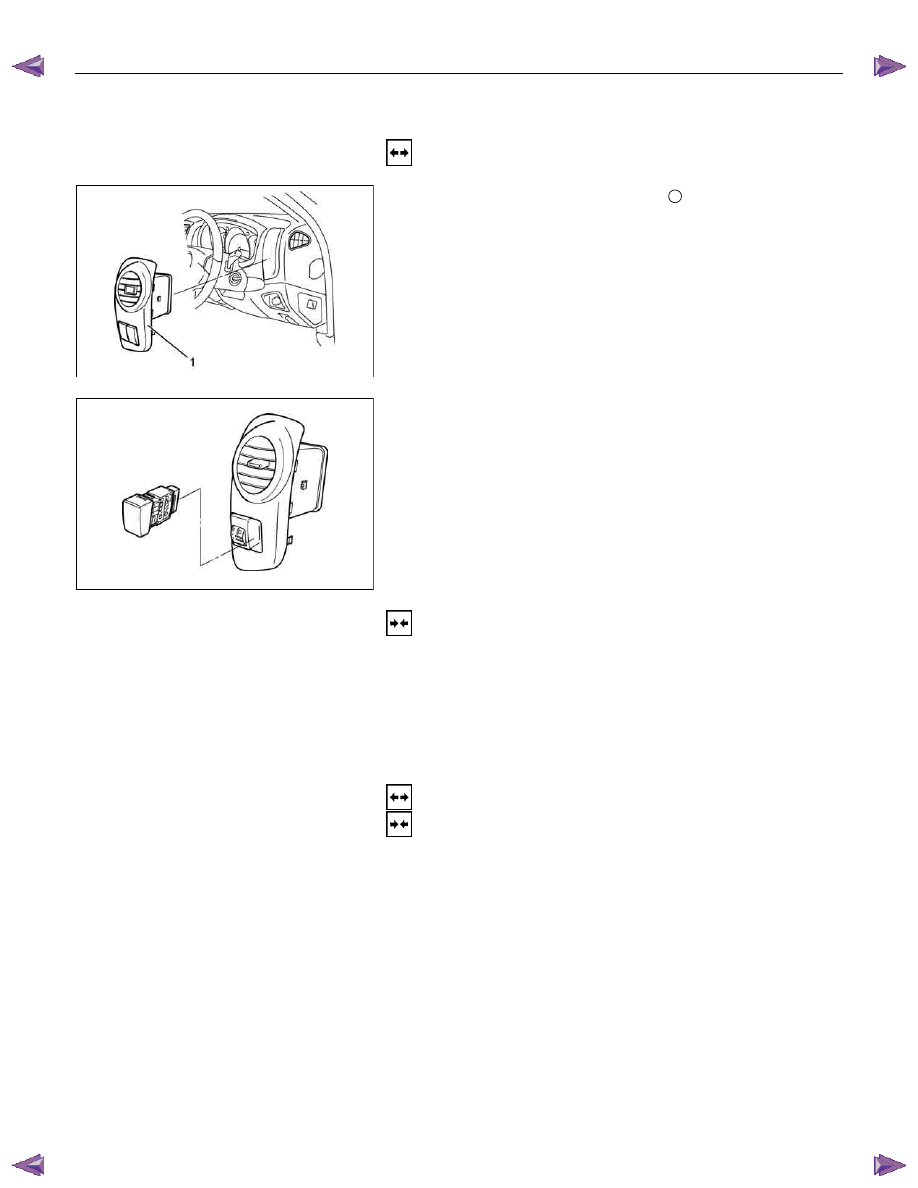

2. Remove the side ventilation grille

RTW78ASH002301

3. Disconnect the switch connector and push the lock from the

backside of the side ventilation grille to remove the cruise

control main switch.

Installation

To install, follow the removal procedure in reverse order, noting
the following point.

1. Push in the switch with your fingers until it locks securely.

Cruise Control Switch (Combination Switch)

Removal and Installation

Refer to the Lighting Switch (Combination Switch) removal and
installation procedure of Lighting in Body and Chassis section.
