10-18  CAB

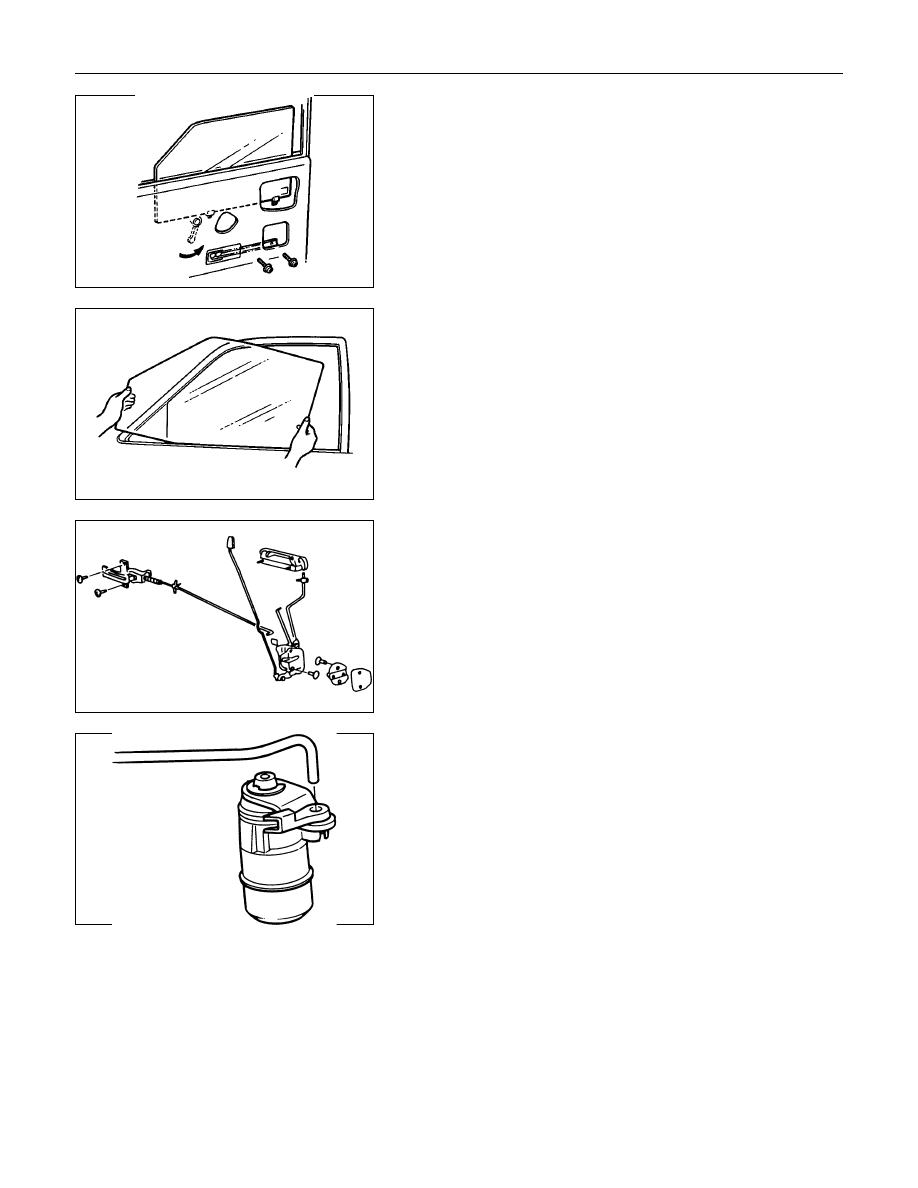

17.Window Glass

•

Remove 2 screws through the access hole and pull out

the window glass upward.

18.Window Regulator/Power Window Motor

•

Disconnect the power window motor connector.

19.Glass Run

•

Pull it out of the door piller of the channel. (front/rear)

20.Glass Run Rear Channel

•

Remove 2 screws.

21.Inside Lever

22.Door Lock Assembly/Door Lock Actuator

•

Disconnect the linkage with the outside handle, the

inside lever and the lock cylinder.

23.Glass Run Front Channel

24.Door Lock Cylinder

•

Remove the door lock cylinder by applying finger

pressure from inside while depressing the retaining clip.

25.Outside Handle

CAB  10-19



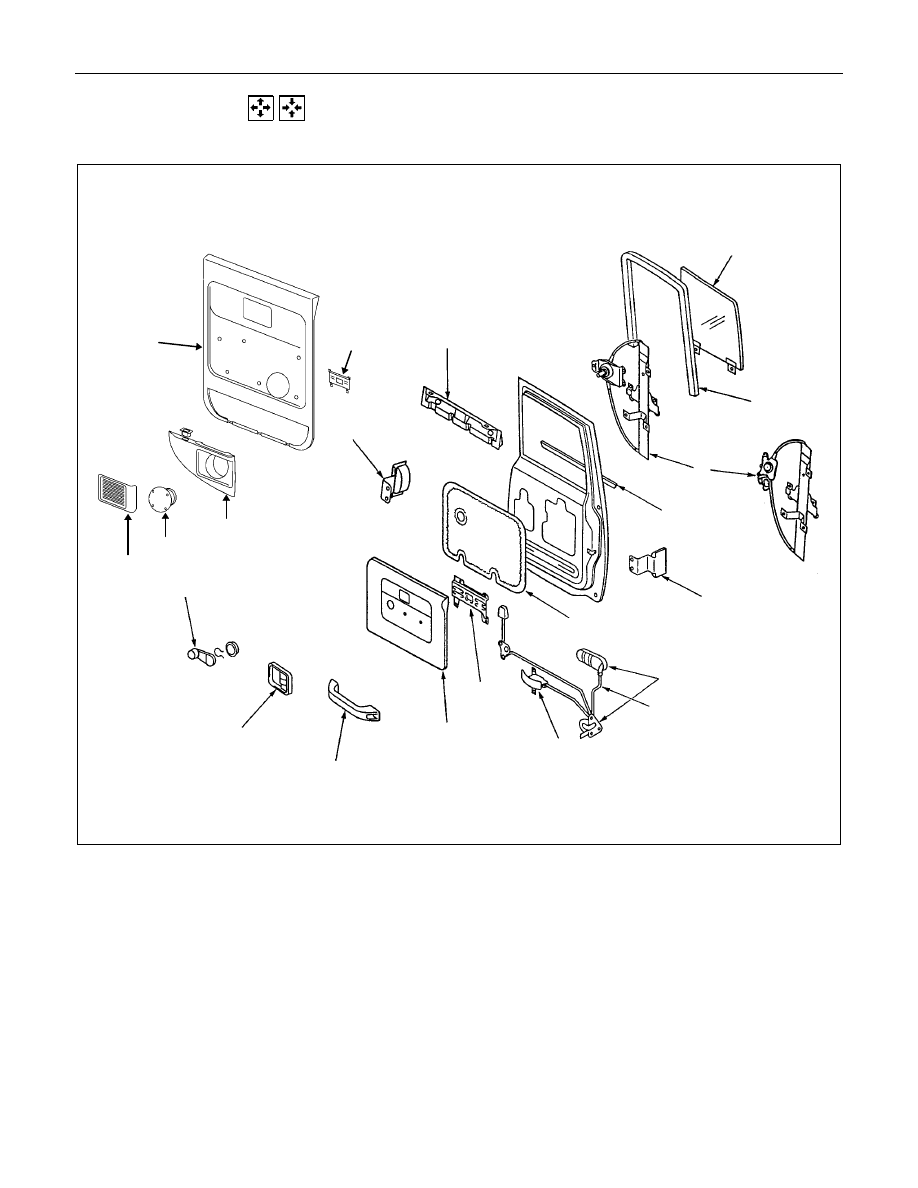

  DISASSEMBLY AND REASSEMBLY

(Rear Door)

3

2

9

10

18

12

19

13

17

16

15

14

6

5

4

1

6

11

7

6

8

Disassembly Steps

▲

1.Power window switch/Window regurator

handle

2. Speaker grill
3. Speaker

▲

4. Bezel
5. Inside pull handole

▲

6. Door trim pad
7. Arm rest sm
8.  Bracket
9. Water proof sheet

  10. Glass guide

11. Upper cover

▲

12. Window regurator/Power window motor

▲

13. Window glass
14. Bracket

15. Inside lever
16. Outside handle

▲

17. Door lock cylinder
18. Outer waste seal
19. Glass run

Reassembly Steps

To reassemble, follow the disassembly steps
in the reverse order.

10-20  CAB

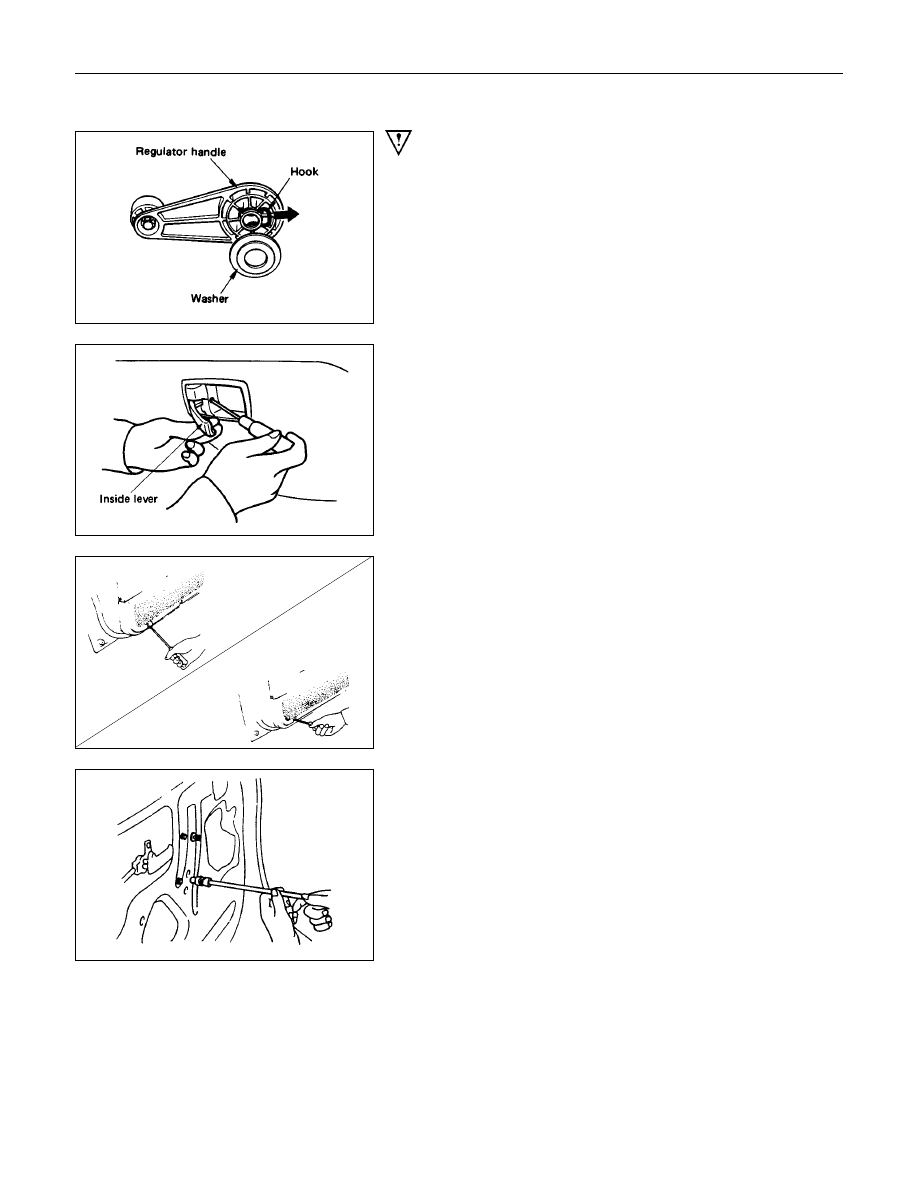

Important Operations

1. Window Regulator Handle

•

To remove the regulator handle, remove the clip at the

root of the handle by using wire.

4. Bezel

•

Remove the screw while pulling the inside lever toward

you.

6. Door Trim Pad

•

Remove the cover bottom of the trim pad (4 pcs), then

remove the screws.

12.Window Regulator

•

Remove the 4 screws holding the regulator.

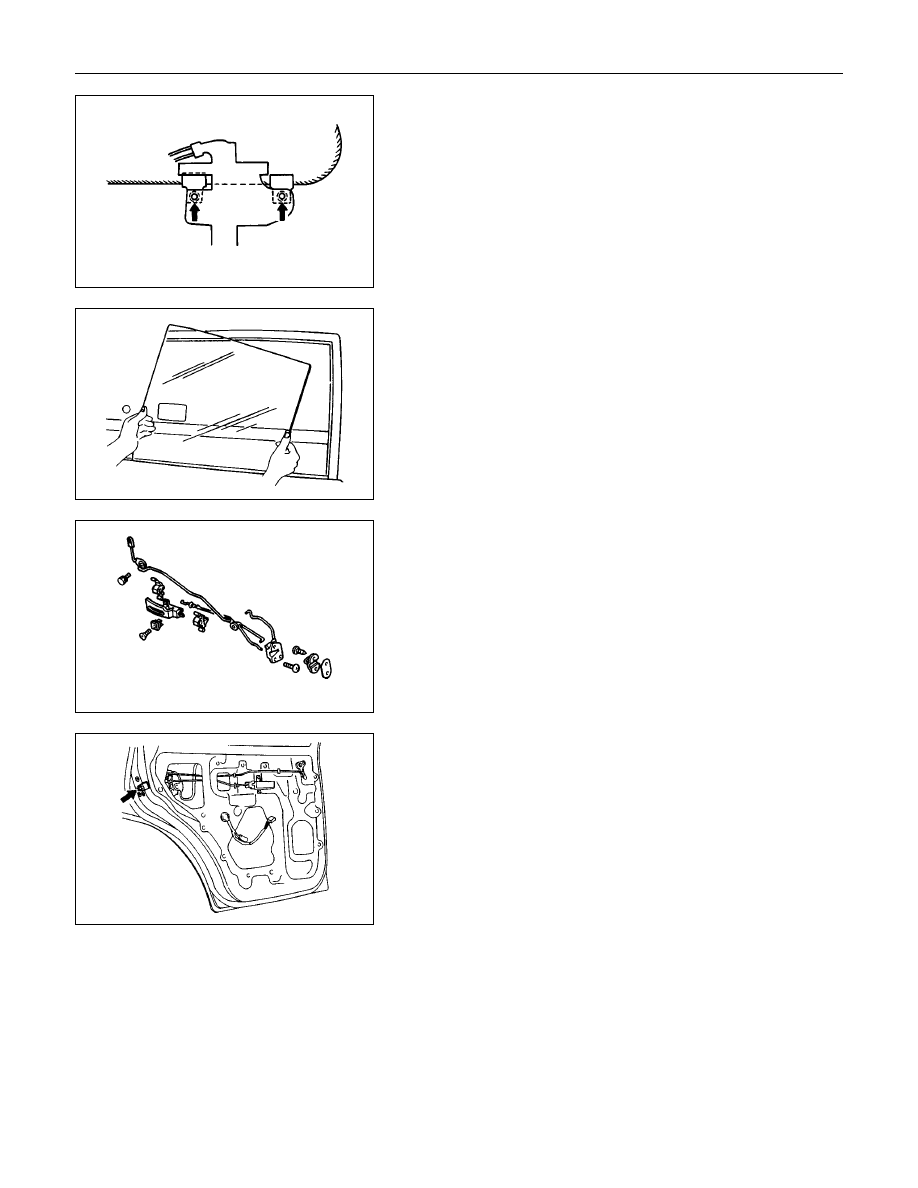

CAB  10-21

13.Window Glass

•

First, align the height of regulator to the access hole.

Remove 2 screws attaching bottom channel and

regulator, then remove the glass.

•

Remove the window glass by tilting it as necessary.

17.Door Lock Assembly

•

Disconnect the linkage from the door outside handle,

inside lever and lock cylinder.

Remove the 2 bolts holding the outside handle from

inner side.

•

Remove the 3 bolts holding the door lock assembly.
