10-14  CAB

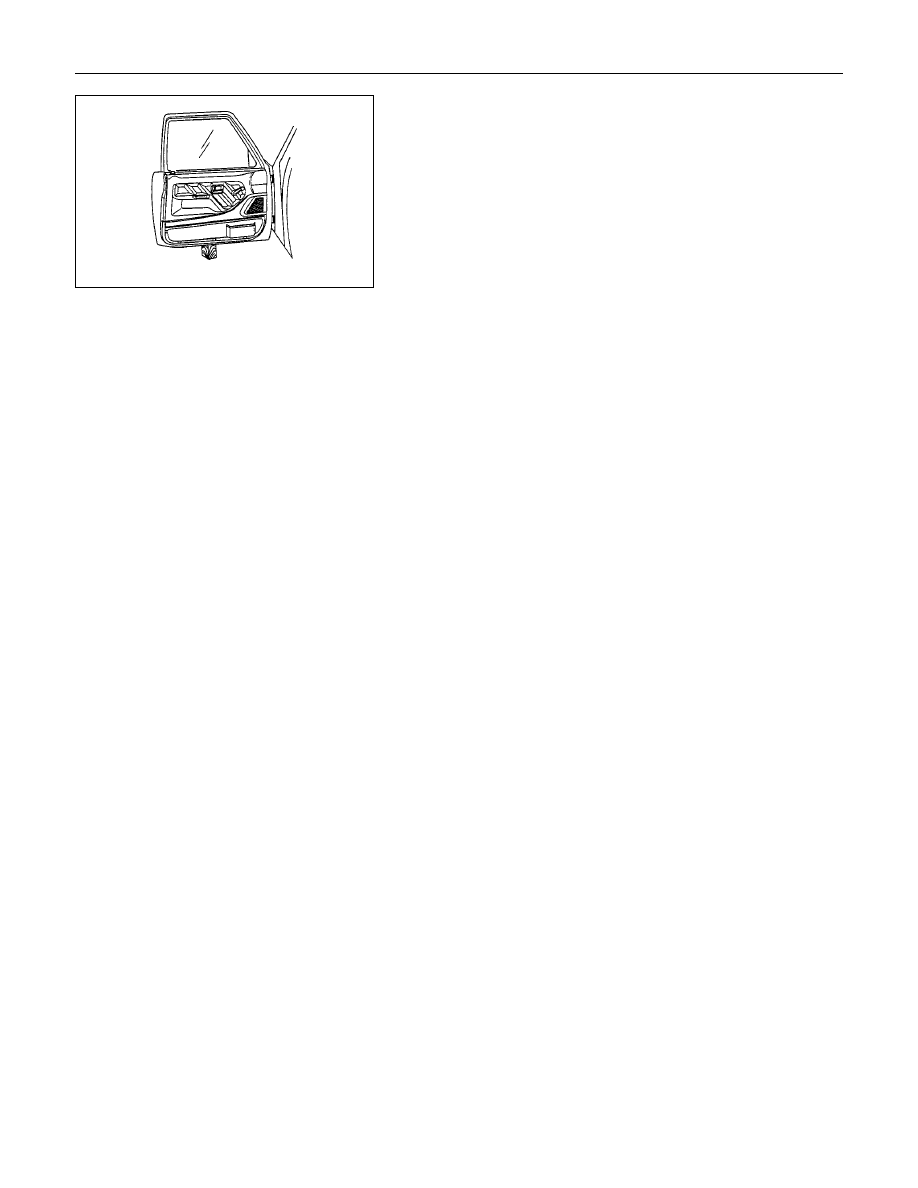

3. Lower Hinge
Position a wood block under the door for protection and
support the door assembly with hands at removal or
installation.

CAB  10-15

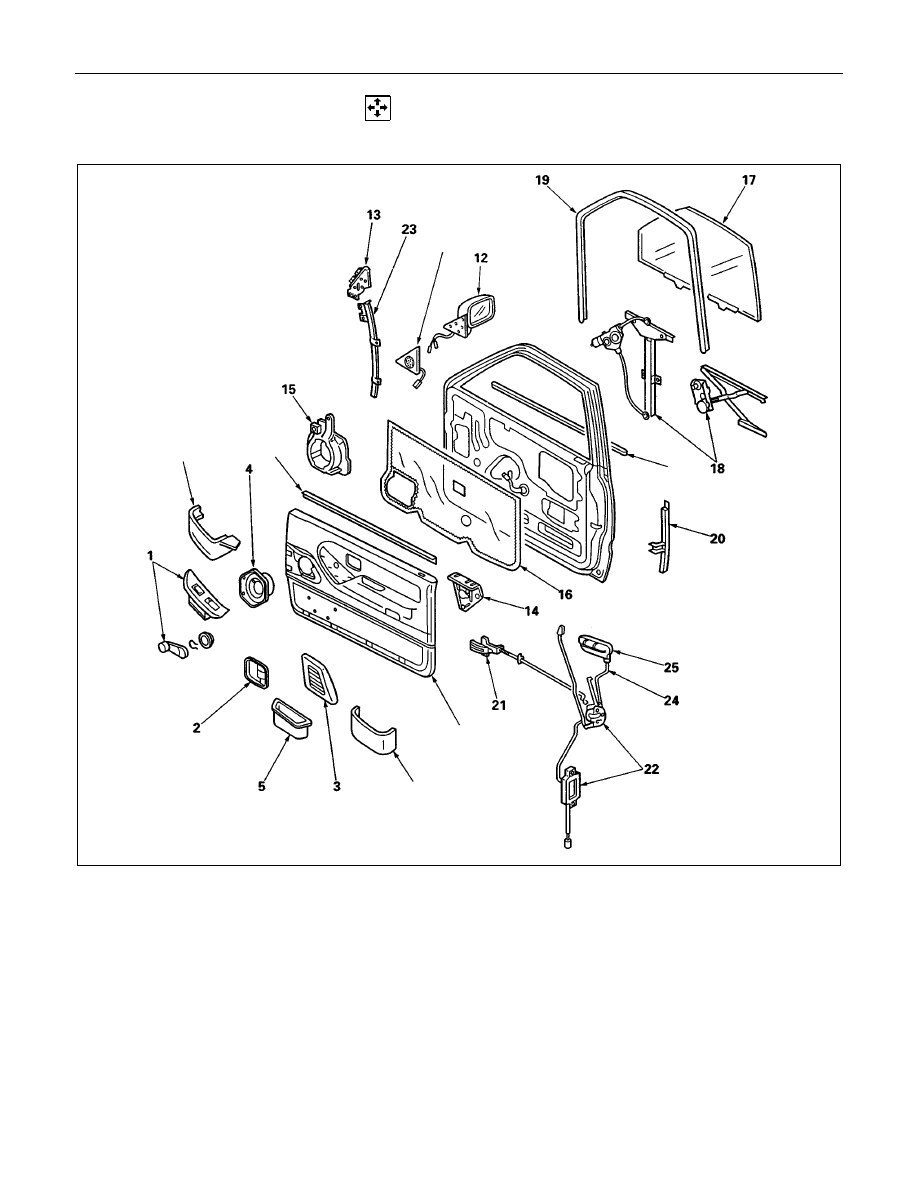

  DISASSEMBLY

(Front Door)

8

7

9

10

11

6

Disassembly Steps

▲

1. Power window switch/Windows regulator

handle

▲

2. Bezel

▲

3. Speaker grill

▲

4. Speaker assembly

▲

5. Door pull case

▲

6. Door mirror cover/Tweeter

▲

7. Door trim pad

▲

8. Door pocket

▲

9. Power window box

▲

10. Inner waste seal

▲

11. Outer waste seal

▲

12. Door mirror assembly

▲

13. Door mirror bracket

▲

14. Bracket

▲

15. Speaker box

▲

16. Water-proof sheet

▲

17. Window glass

▲

18. Window regulator/Power window motor

▲

19. Glass run

▲

20. Glass run rear channel

▲

21. Inside lever

▲

22. Door lock assembly/Door lock actuator

▲

23. Glass run front channel

▲

24. Door lock cylinder

▲

25. Outside handle

10-16  CAB

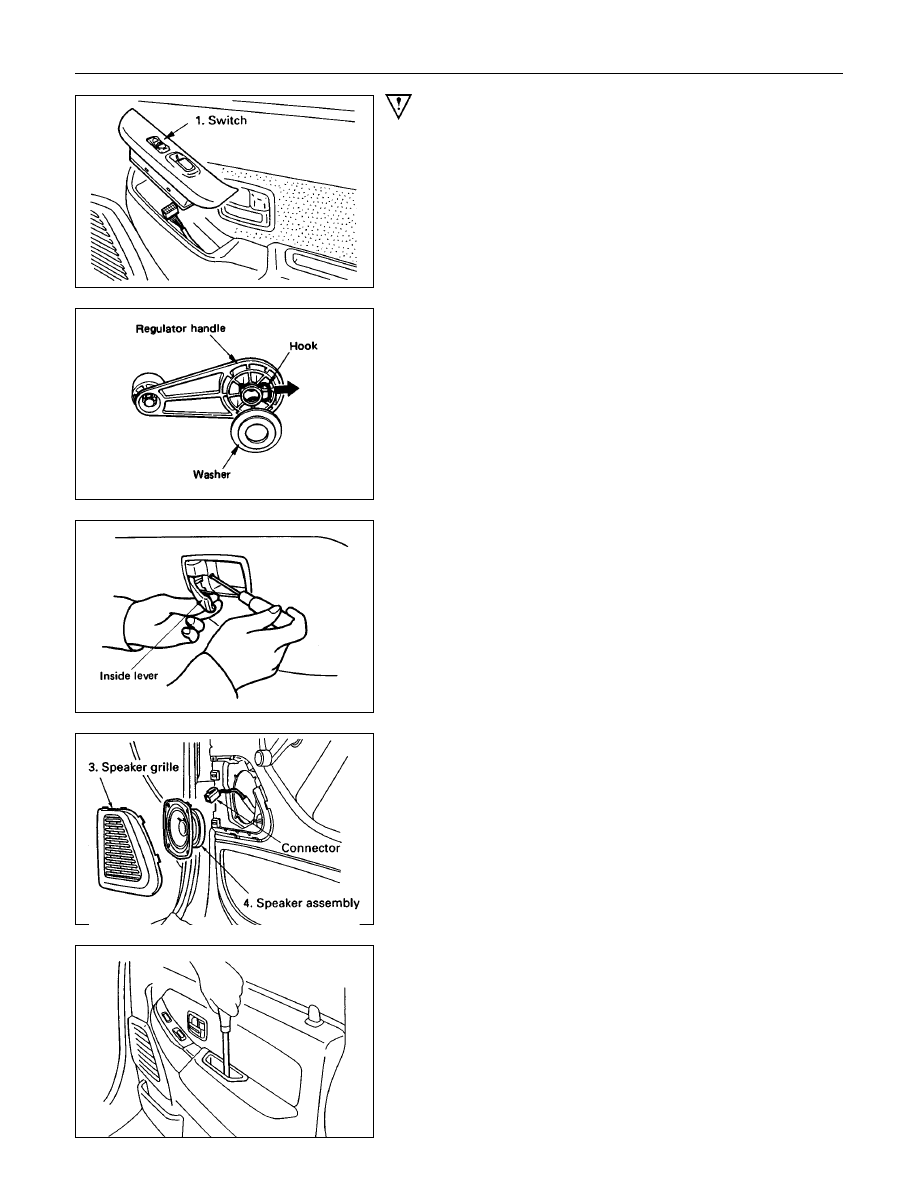

Important Operations

1. Power Window Switch/Window Regulator Handle

•

Prise out the power window switch and remove the

connectors.

•

To remove the regulator handle, remove the clip at the

root of the handle by using wire.

2. Bezel

•

Remove the screw while pulling the inside lever toward

you.

3. Speaker Grill

•

Pull out the clips.

4. Speaker Assembly

•

Remove 4 screws and disconnect the speaker harness

connector.

5. Door Pull Case

•

Remove the screw at the bottom of the case.

CAB  10-17

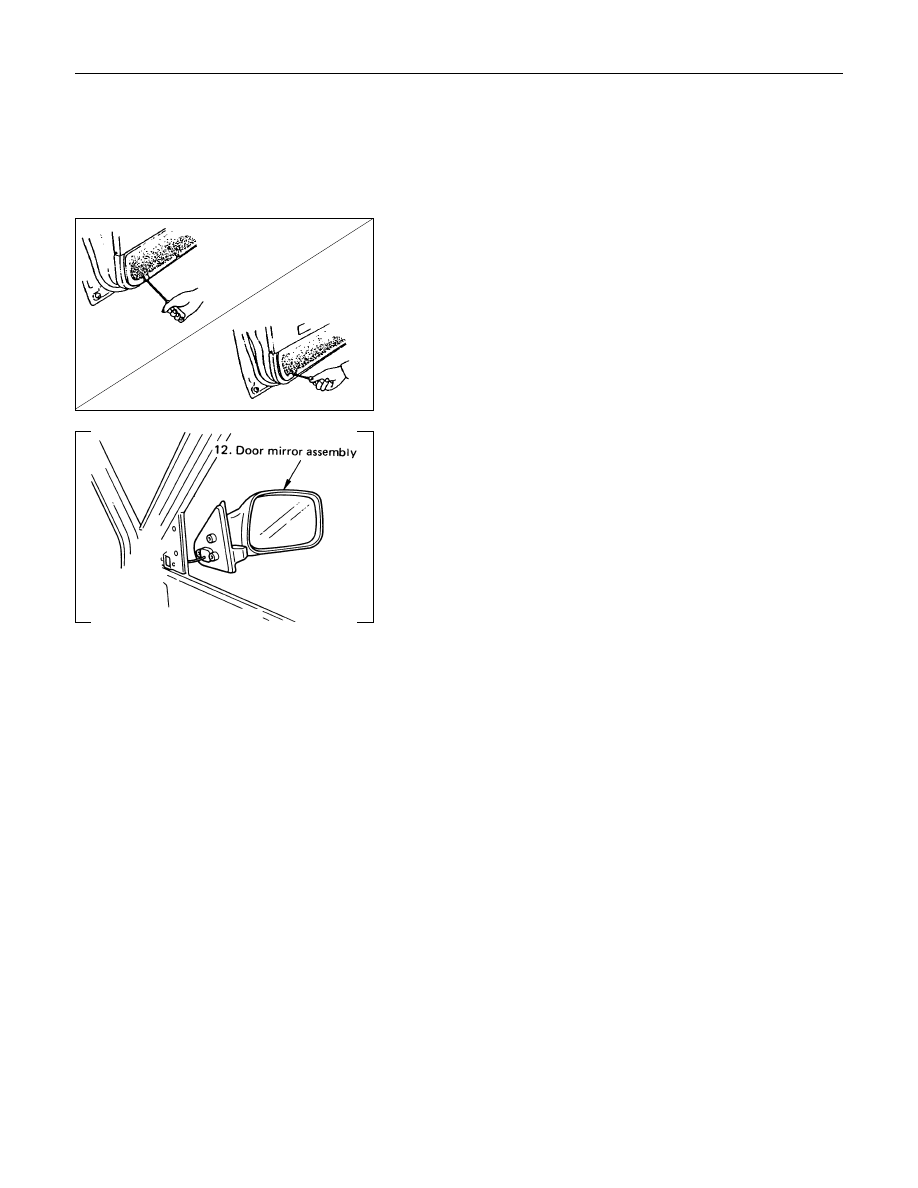

6. Door Mirror Cover/Tweeter

•

Pull out the upper clip, and then take out the catch at the

lower section.

•

If so equipped the tweeter, disconnect the speaker

harness connector.

7. Door Trim Pad

•

Remove the cover bottom of the trim pad (4 pcs), then

remove the screws.

8. Door Pocket

9. Power Window Box

10.Inner Waste Seal

11.Outer Waste Seal

12.Door Mirror Assembly

•

Remove 3 fixing bolts and then remove the connector.

13.Door Mirror Bracket

•

Remove 2 bolts at the lower section, and then remove 2

screws in the weather strip.

14.Bracket

15.Speaker Box

•

Remove 3 fixing bolts.

16.Water Proof Sheet

•

Take care not to damage the sheet when peeling it off.
