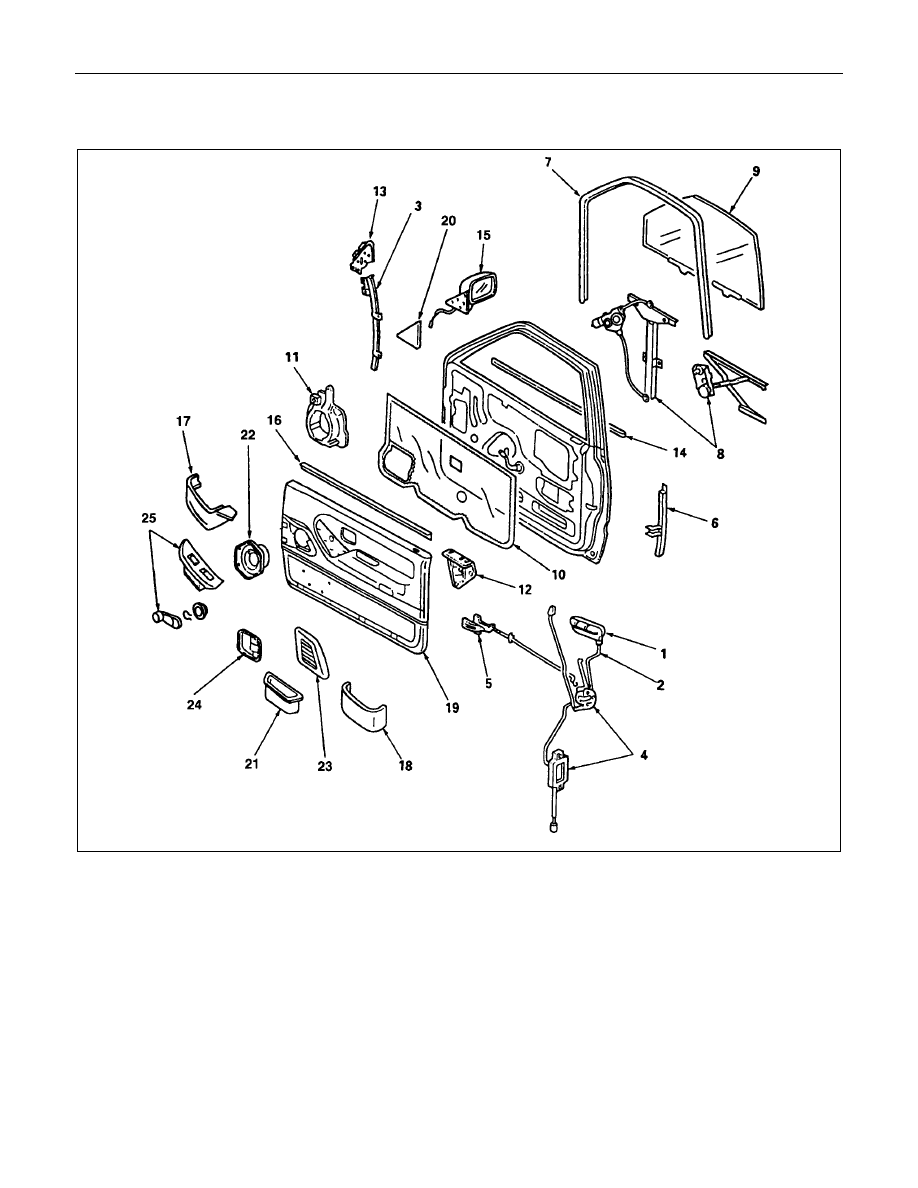

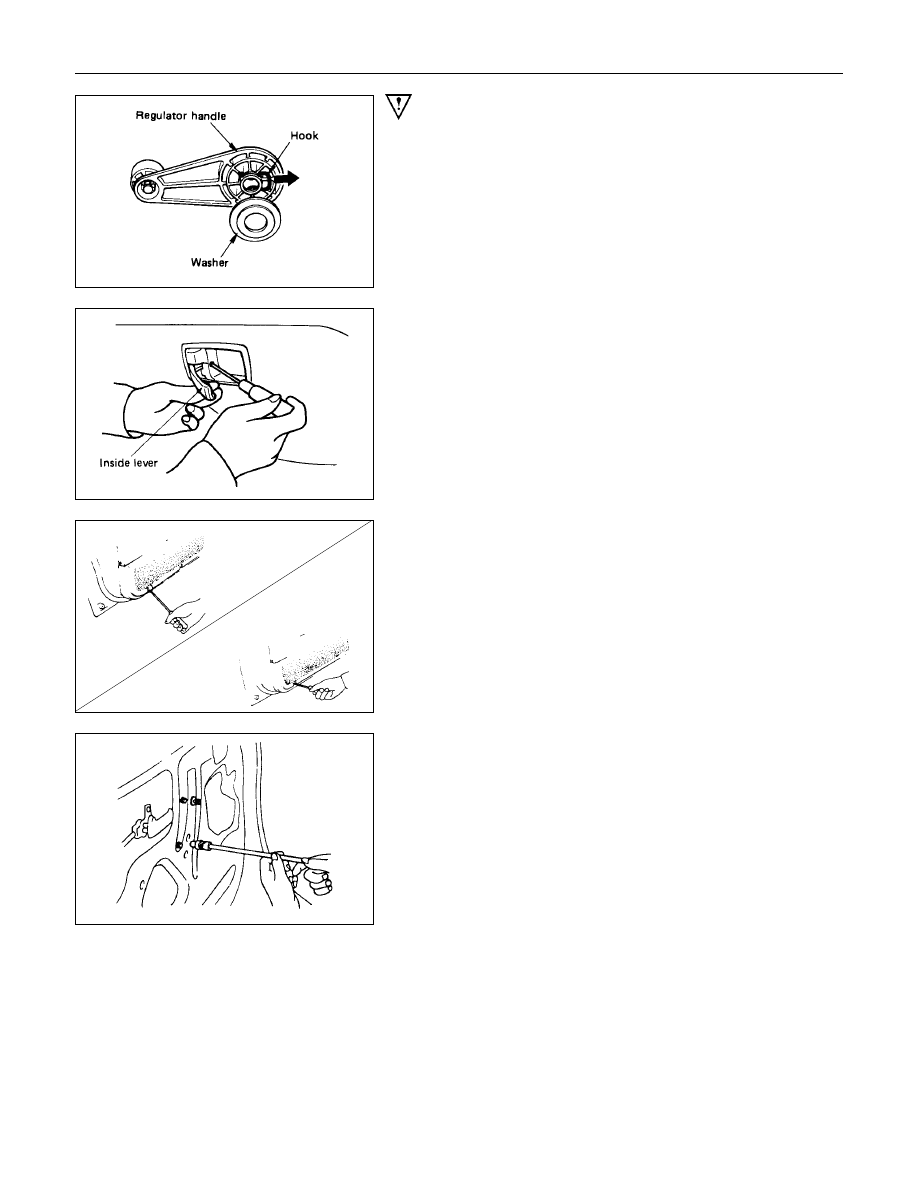

10-20 CAB Important Operations 1. Window Regulator Handle • To remove the regulator handle, remove the clip at the root of the handle by using wire. 2. Bezel • Remove the screw while pulling the inside lever toward you. 4. Door Trim Pad • Remove the cover bottom of the trim pad (4 pcs), then remove the screws. 9. Window Regulator • Remove the 4 screws holding the regulator. |
