10-16  CAB

Important Operations

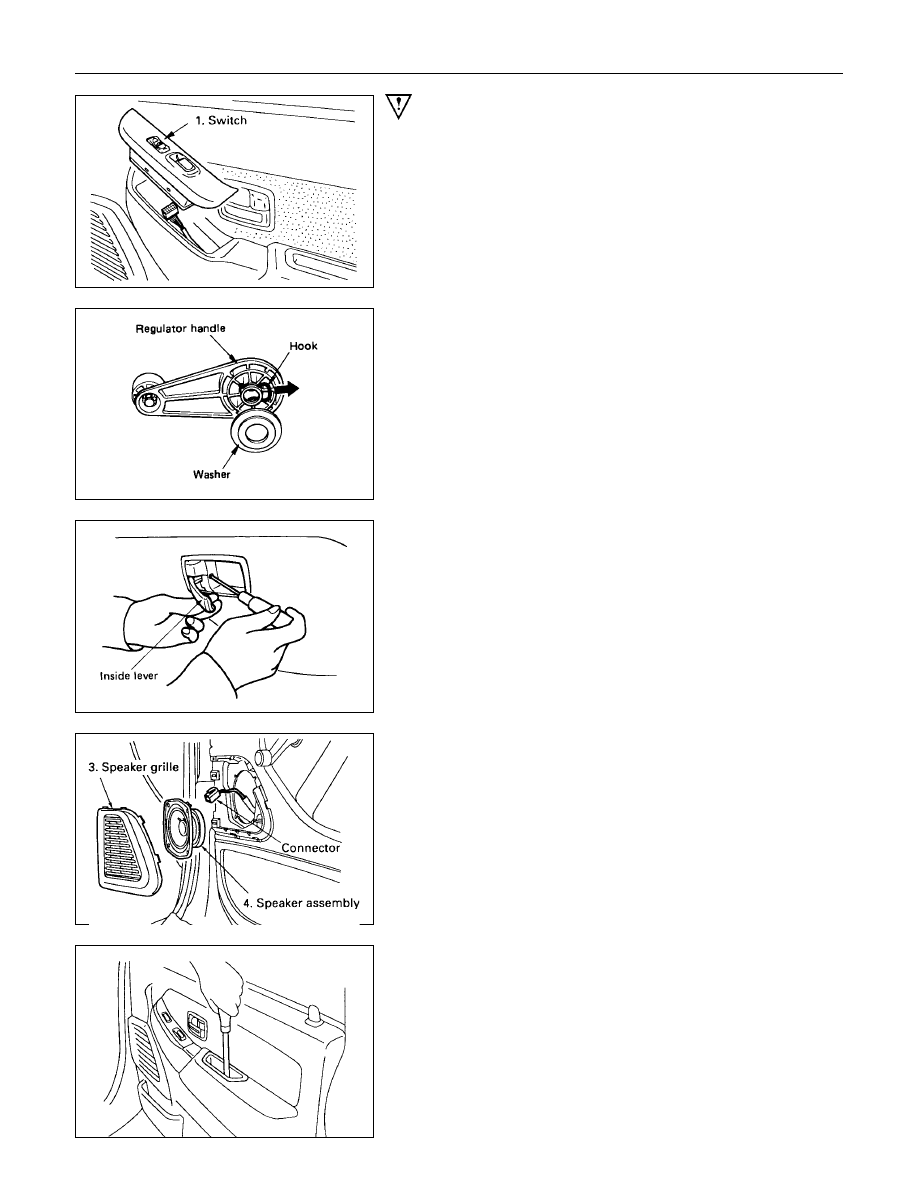

1. Power Window Switch/Window Regulator Handle

•

Prise out the power window switch and remove the

connectors.

•

To remove the regulator handle, remove the clip at the

root of the handle by using wire.

2. Bezel

•

Remove the screw while pulling the inside lever toward

you.

3. Speaker Grill

•

Pull out the clips.

4. Speaker Assembly

•

Remove 4 screws and disconnect the speaker harness

connector.

5. Door Pull Case

•

Remove the screw at the bottom of the case.

CAB  10-17

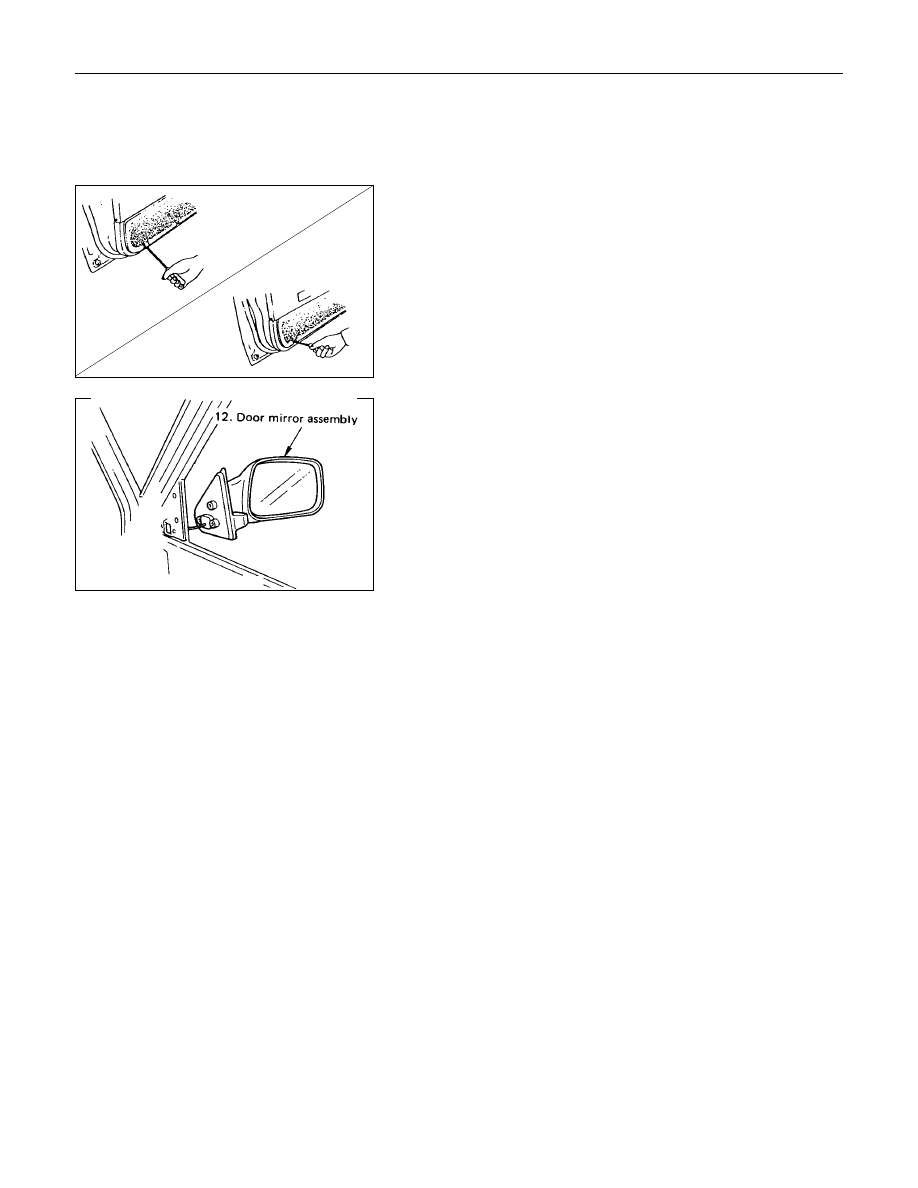

6. Door Mirror Cover

•

Pull out the upper clip, and then take out the catch at the

lower section.

7. Door Trim Pad

•

Remove the cover bottom of the trim pad (4 pcs), then

remove the screws.

8. Door Pocket

9. Power Window Box

10.Inner Waste Seal

11.Door Mirror Assembly

•

Remove 3 fixing bolts and then remove the connector.

12.Outer Waste Seal

13.Door Mirror Bracket

•

Remove 2 bolts at the lower section, and then remove 2

screws in the weather strip.

14.Bracket

15.Speaker Box

•

Remove 3 fixing bolts.

16.Water Proof Sheet

•

Take care not to damage the sheet when peeling it off.

10-18  CAB

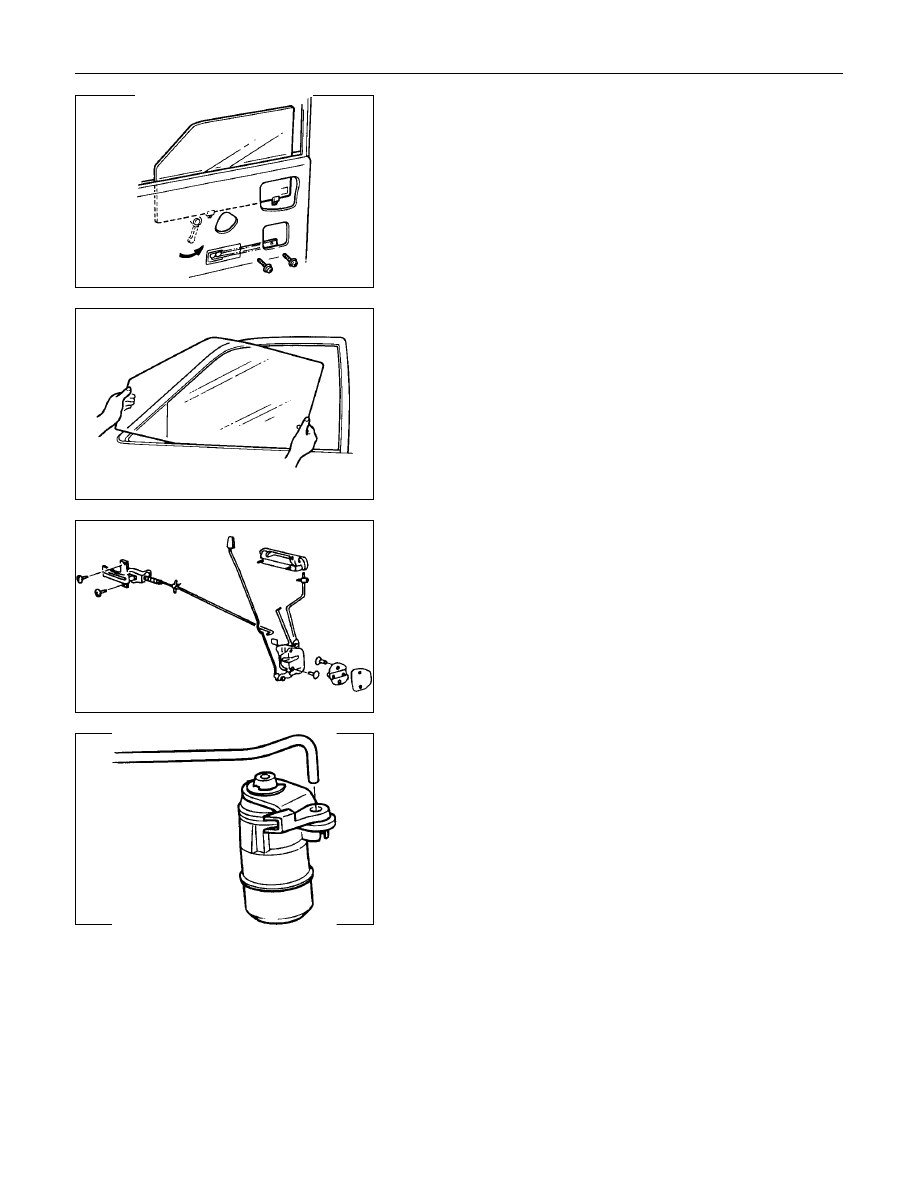

17.Window Glass

•

Remove 2 screws through the access hole and pull out

the window glass upward.

18.Window Regulator/Power Window Motor

•

Disconnect the power window motor connector.

19.Glass Run

•

Pull it out of the door piller of the channel. (front/rear)

20.Glass Run Rear Channel

•

Remove 2 screws.

21.Inside Lever

22.Door Lock Assembly/Door Lock Actuator

•

Disconnect the linkage with the outside handle, the

inside lever and the lock cylinder.

23.Glass Run Front Channel

24.Door Lock Cylinder

•

Remove the door lock cylinder by applying finger

pressure from inside while depressing the retaining clip.

25.Outside Handle

CAB  10-19

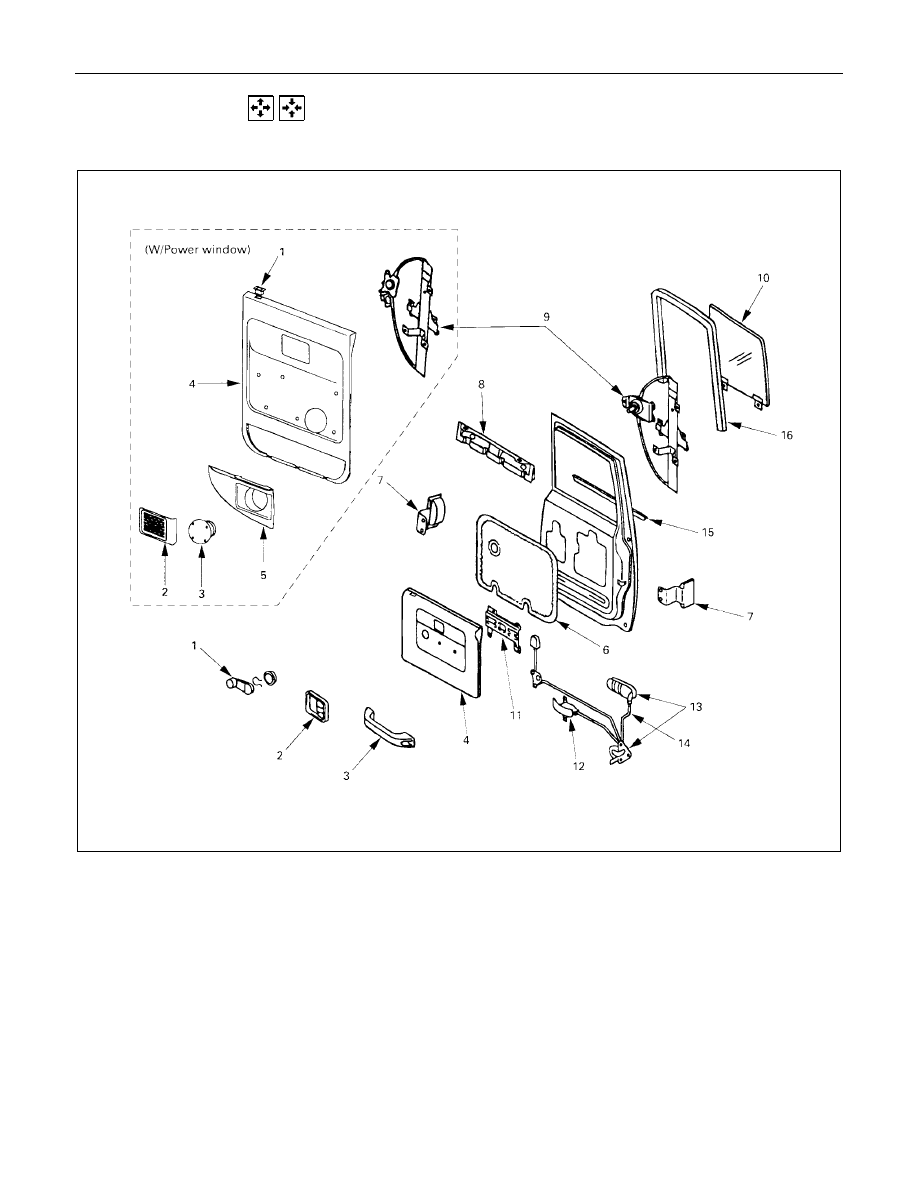

  DISASSEMBLY AND REASSEMBLY

(Rear Door)

Disassembly Steps

V

1. Power window switch/Window regurator

handle

V

2. Bezel/Speaker grill
3. Inside pull handole/Speaker

V

4. Door trim pad
5. Arm rest (W/Power window only)
6. Water proof sheet
7. Glass guide
8. Upper cover

V

9. Window regurator/Power window motor

V

10. Window glass
11. Bracket

12. Inside lever
13. Outside handle

V

14. Door lock cylinder
15. Outer waste seal
16. Glass run

Reassembly Steps

To reassemble, follow the disassembly steps
in the reverse order.
