LITHIUM-ION (Li-ion) BATTERY
AIR VENT

CAUTION

. Do not place objects over or into the

air vent. The Li-ion battery may
overheat and be damaged.

. Do not allow any liquid to get on or in

the air vent. It may cause a short
circuit and damage the Li-ion bat-
tery.

. Clean the air vent regularly to pre-

vent the Li-ion battery from over-

heating.

Regularly clean the air vent

with a dry

cloth to prevent the vent from being blocked.

AIR FRESHENERS

Most air fresheners use a solvent that could
affect the vehicle interior. If you use an air
freshener, take the following precautions:
. Hanging-type air fresheners can cause

permanent discoloration when they con-
tact vehicle interior surfaces. Place the
air freshener in a location that allows it
to hang free and not contact an interior
surface.

. Liquid-type air fresheners typically clip

on the vents. These products can cause
immediate damage and discoloration
when spilled on interior surfaces.

Carefully read and follow the manufac-
turer’s instructions before using air fresh-
eners.

MOONROOF SUNSHADE

The moonroof sunshade is made from a
suede material.
Clean the sunshade material as follows:

CAUTION

To help prevent damaging the sunshade
while cleaning:
. Do not rub the material with a cloth.

Doing so can damage the surface of
the material or can use a stain to
spread.

. Never use benzine, thinner or any

similar chemical to clean the suede.
This may discolor the sunshade and
damage the surface.

. Clean water based stains by patting

the surface with a clean soft cloth
dampened in warm water. Press a
clean dry cloth onto the surface to
remove as much dampness as possi-
ble and then let air dry.

. Clean oil based stains by patting the

surface with a clean soft cloth dam-
pened in warm water. Press a clean
dry cloth onto the surface to remove
as much dampness as possible and
then let air dry.

Appearance and care

7-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

7-6

Appearance and care

FLOOR MATS

WARNING

To avoid potential pedal interference
that may result in a collision, injury or
death:
. NEVER place a floor mat on top of

another floor mat in the driver front
position or install them upside down
or backwards.

. It is recommended that you use only

genuine INFINITI floor mats specifi-
cally designed for use in your vehicle
model and model year. See your
INFINITI retailer for more informa-
tion.

. Properly position the mats in the

floorwell using the floor mat posi-
tioning hook. See “Floor mat installa-
tion” (P.7-6).

. Make sure the floor mat does not

interfere with pedal operation.

. Periodically check the floor mats to

make sure they are properly installed.

. After cleaning the vehicle interior,

check the floor mats to make sure
they are properly installed.

The use of genuine INFINITI floor mats can
extend the life of your vehicle carpet and
make it easier to clean the interior. Mats
should be maintained with regular cleaning
and replaced if they become excessively
worn.

SAI0050

Floor mat installation

Your vehicle is equipped with floor mat
positioning hook(s). The number and shape
of the floor mat positioning hook(s) for each
seating position varies depending on the
vehicle.
When installing genuine INFINITI floor mats,
follow the installation instructions provided
with the floor mat and the following:
1. Position the floor mat in the floorwell so

that the mat grommet holes are aligned
with the hook(s).

2. Secure the grommet holes into the hook

(s) and ensure that the floor mat is
properly positioned.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3. Make sure the floor mat does not

interfere with pedal operation. With the
ignition in the OFF position and the shift
lever in the P (Park) position, fully apply
and release all pedals. The floor mat
must not interfere with pedal operation
or prevent the pedal from returning to its
normal position. It is recommended you
see an INFINITI retailer for details about
installing the floor mats in your vehicle.

SAI0051

Positioning hooks

The illustration shows the location of the
floor mat positioning hooks.

SEAT BELTS

The seat belts can be cleaned by wiping
them with a sponge dampened in a mild soap
solution. Allow the belts to dry completely
before using them.
See “Seat belts” (P.1-9).

WARNING

Do not allow wet seat belts to roll up in
the retractor. NEVER use bleach, dye, or
chemical solvents to clean the seat belts,

since these materials may severely
weaken the seat belt webbing.

Appearance and care

7-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

7-8

Appearance and care

MOST COMMON FACTORS
CONTRIBUTING TO VEHICLE
CORROSION

. The accumulation of moisture-retaining

dirt and debris in body panel sections,
cavities, and other areas.

. Damage to paint and other protective

coatings caused by gravel and stone
chips or minor traffic accidents.

ENVIRONMENTAL FACTORS IN-
FLUENCE THE RATE OF COR-
ROSION

Moisture

Accumulation of sand, dirt and water on the
vehicle body underside can accelerate corro-
sion. Wet floor coverings will not dry
completely inside the vehicle, and should be
removed for drying to avoid floor panel
corrosion.

Relative humidity

Corrosion will be accelerated in areas of high
relative humidity, especially those areas
where the temperatures stay above freezing
where atmospheric pollution exists, or where
road salt is used.

Temperature

A temperature increase will accelerate the
rate of corrosion to those parts which are
not well ventilated.

Air pollution

Industrial pollution, the presence of salt in
the air in coastal areas, or heavy road salt
use will accelerate the corrosion process.
Road salt will also accelerate the disintegra-
tion of paint surfaces.

TO PROTECT YOUR VEHICLE
FROM CORROSION

. Wash and wax your vehicle often to keep

the vehicle clean.

. Always check for minor damage to the

paint and repair it as soon as possible.

. Keep drain holes at the bottom of the

doors open to avoid water accumulation.

. Check the underbody for accumulation of

sand, dirt or salt. If present, wash with
water as soon as possible.

CAUTION

. NEVER remove dirt, sand or other

debris from the passenger compart-
ment by washing it out with a hose.
Remove dirt with a vacuum cleaner.

. Never allow water or other liquids to

come in contact with electronic com-
ponents inside the vehicle as this may
damage them.

Chemicals used for road surface deicing are
extremely corrosive. They accelerate corro-
sion and deterioration of underbody compo-
nents such as the exhaust system, fuel and
brake lines, brake cables, floor pan and
fenders.
In winter, the underbody must be cleaned
periodically.
For additional protection against rust and
corrosion, which may be required in some
areas, it is recommended you consult an
INFINITI retailer.

CORROSION PROTECTION

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8-2

Do-it-yourself

When performing any inspection or main-
tenance work on your vehicle, always take
care to prevent serious accidental injury to
yourself or damage to the vehicle. The
following are general precautions which
should be closely observed.

WARNING

. This vehicle has high voltage DC and

AC systems as well as a 12-volt
system. DC and AC high voltage is
very dangerous and can cause severe
burns and electric shock that may
result in serious injury or death.

. Never touch, disassemble, remove or

replace the high voltage parts, har-
nesses and their connectors. High
voltage cables are orange. Touching,
disassembling, removing or replacing
those parts and harnesses can cause
severe burns or electric shock that
may result in serious injury or death.

. Never try to remove the service plug

located in the trunk room. The service
plug is used only when the vehicle is
serviced by trained technicians wear-
ing personal protection equipment
and is part of the high voltage
system. Touching the service plug
can cause severe burns or electric

shock that may result in serious injury
or death.

. The INFINITI Direct Response Hy-

brid

System uses high voltage up to

408 volts. The system can be hot
while and after starting. Be careful of
both the high voltage and the high
temperature. Obey the caution labels
attached to the vehicle.

. Park the vehicle on a level surface,

apply the parking brake securely and
block the wheels to prevent the
vehicle from moving. Move the shift
lever to P (Park).

. Be sure the ignition switch is in the

OFF or LOCK position when per-
forming any parts replacement or
repairs.

. The engine can start at any time

without warning when the hybrid
system is in the READY to drive
mode. If you must work with the
Hybrid System in the READY to drive
mode, keep your hands, clothing, hair
and tools away from fans, belts and
any other parts that can move.

. It is advisable to secure or remove

any loose clothing and remove any
jewelry, such as rings, watches, etc.
before working on your vehicle.

. Always wear eye protection when-

ever you work on your vehicle.

. Your vehicle is equipped with an

automatic engine cooling fan. It may
come on at any time without warn-
ing, even if the ignition key is in the
OFF position and the engine is not
running. To avoid injury, always dis-
connect the negative battery cable
before working near the fan.

. If you must run the engine in an

enclosed space such as a garage, be
sure there is proper ventilation for
exhaust gases to escape.

. Never get under the vehicle while it is

supported only by a jack. If it is
necessary to work under the vehicle,
support it with safety stands.

. Keep smoking materials, flame and

sparks away from the fuel tank and
battery.

CAUTION

. Do not work under the hood while the

engine is hot. Turn the hybrid system
off and wait until it cools down.

. Avoid direct contact with used en-

gine oil and coolant. Improperly dis-

MAINTENANCE PRECAUTIONS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

posed engine oil, coolant, and/or
other vehicle fluids can damage the
environment. Always conform to lo-
cal regulations for disposal of vehicle
fluid.

. Never leave the engine or the trans-

mission related component harness
connector disconnected while the
ignition switch is in the ON position.

. Never connect or disconnect the

battery or any transistorized compo-
nent while the ignition switch is in the
ON position.

This “8. Do-it-yourself” section gives in-
structions regarding only those items which
are relatively easy for an owner to perform.
A genuine INFINITI Service Manual is also
available. (See “Owner’s Manual/Service
Manual order information” (P.10-20).)
You should be aware that incomplete or
improper servicing may result in operating
difficulties or excessive emissions, and could
affect your warranty coverage. If in doubt
about any servicing, it is recommended you
have it done by an INFINITI retailer.

JVM0063X

VQ35HR ENGINE

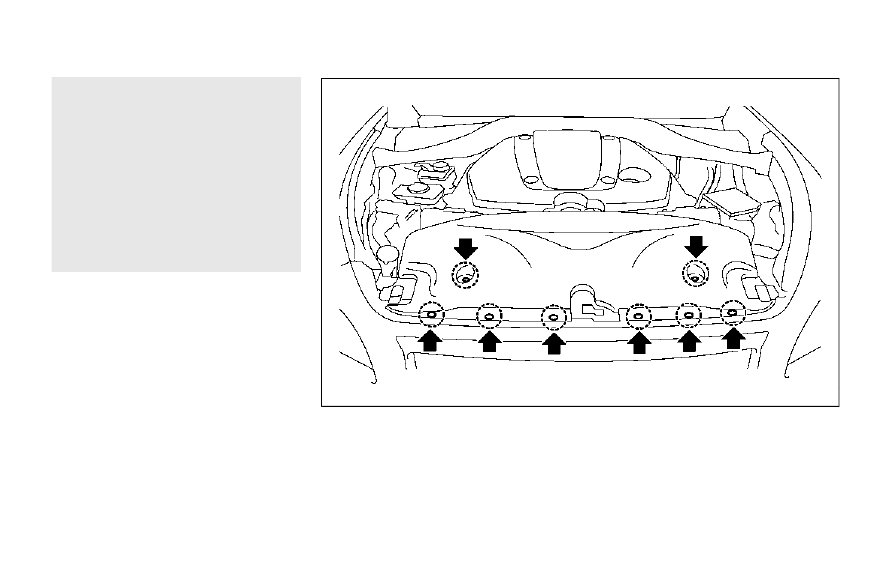

To remove the engine compartment cover,
unhook the clips located as illustrated.

Do-it-yourself

8-3

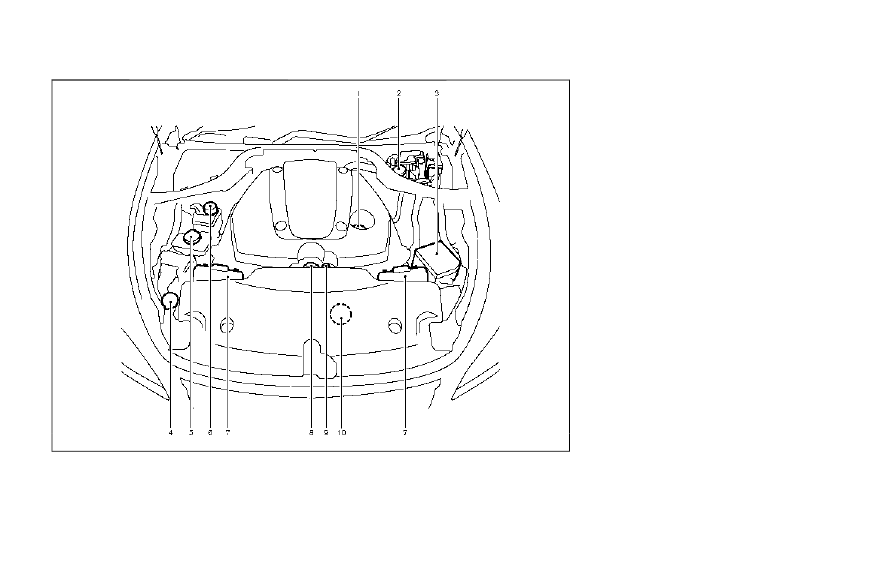

ENGINE COMPARTMENT CHECK
LOCATIONS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8-4

Do-it-yourself

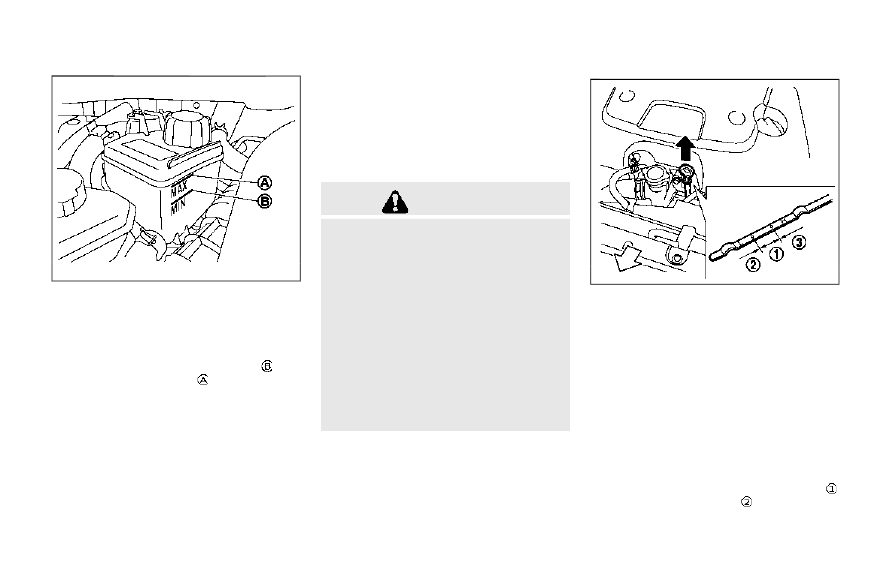

JVM0034X

Engine oil filler cap

Brake fluid reservoir

Fuse/fusible link holder

Window washer fluid reservoir

Power steering fluid reservoir

Inverter coolant reservoir

Air cleaner

Radiator filler cap

Engine oil dipstick

10. Engine coolant reservoir

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The engine cooling system is filled at the
factory with a pre-diluted mixture of 50%
Genuine NISSAN Long Life Antifreeze/
Coolant (blue) and 50% water to provide
year-round anti-freeze and coolant protec-
tion. The anti-freeze solution contains rust
and corrosion inhibitors. Additional engine
cooling system additives are not necessary.

WARNING

. Never remove the radiator or coolant

reservoir cap when the engine is hot.
Wait until the engine and radiator
cool down. Serious burns could be
caused by high pressure fluid escap-
ing from the radiator. See precau-
tions in “If your vehicle overheats”
(P.6-12).

. The radiator is equipped with a

pressure type radiator cap. To pre-
vent engine damage, use only a
genuine NISSAN radiator cap.

CAUTION

. Never use any cooling system addi-

tives such as radiator sealer. Addi-
tives may clog the cooling system and
cause damage to the engine, trans-

mission and/or cooling system.

. When adding or replacing coolant, be

sure to use only Genuine NISSAN
Long Life Antifreeze/Coolant (blue)
or equivalent. Genuine NISSAN Long
Life Antifreeze/Coolant (blue) is pre-
diluted to provide antifreeze protec-
tion to −34°F (−37°C). If additional
freeze protection is needed due to
weather where you operate your
vehicle, add Genuine NISSAN Long
Life Antifreeze/Coolant (blue) con-
centrate following the directions on
the container. If an equivalent cool-
ant other than Genuine NISSAN Long
Life Antifreeze/Coolant (blue) is
used, follow the coolant manufac-
ture’s instructions to maintain mini-
mum antifreeze protection to −34°F
(−37°C). The use of other types of
coolant solutions other than Genuine
NISSAN Long Life Antifreeze/Cool-
ant (blue) or equivalent may damage
the engine cooling system.

. The life expectancy of the factory-fill

coolant is 105,000 miles (168,000
km) or 7 years. Mixing any other type
of coolant other than Genuine
NISSAN Long Life Antifreeze/Cool-
ant (blue) , including Genuine NISSAN
L o n g L i f e A n t i f r e e z e / C o o l a n t
(green), or the use of nondistilled

water will reduce the life expectancy
of the factory-fill coolant. Refer to
the “9. Maintenance and schedules”
section of this manual for more de-
tails.

Do-it-yourself

8-5

ENGINE COOLING SYSTEM

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8-6

Do-it-yourself

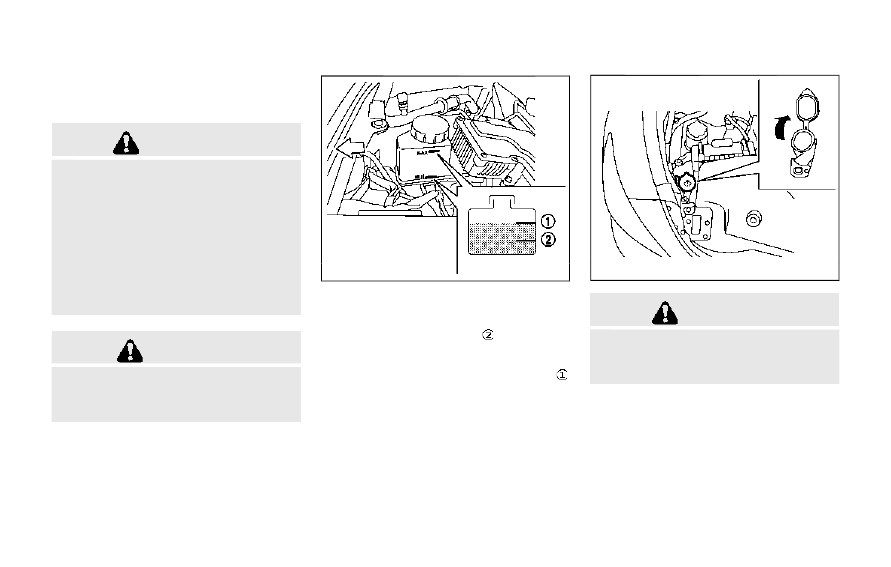

SDI2043

CHECKING ENGINE COOLANT
LEVEL

Check the coolant level in the reservoir
when the engine is cold. If the coolant level
is below MIN

, open the reservoir tank cap

and add coolant up to the MAX

level. If the

reservoir tank is empty, check the coolant
level in the radiator when the engine is cold.
If there is insufficient coolant in the radiator,
fill the radiator with coolant up to the filler
opening and also add it to the reservoir tank
up to the MAX level

Tighten the cap securely after adding engine
coolant.

If the cooling system requires coolant fre-
quently, have it checked. It is recommended
you visit an INFINITI retailer for this
service.

CHANGING ENGINE COOLANT

It is recommended that major cooling system
repairs be performed by an INFINITI retailer.
The service procedures can be found in the
appropriate INFINITI Service Manual.
Improper servicing can result in reduced
heater performance and engine overheat-
ing.

WARNING

. To avoid the danger of being scalded,

never change the coolant when the
engine is hot.

. Never remove the radiator cap when

the engine is hot. Serious burns could
be caused by high pressure fluid
escaping from the radiator.

. Avoid direct skin contact with used

coolant. If skin contact is made, wash
thoroughly with soap or hand cleaner
as soon as possible.

. Keep coolant out of reach of children

and pets.

Engine coolant must be disposed of prop-
erly. Check your local regulations.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The inverter cooling system is filled at the
factory with a pre-diluted mixture of 50%
Genuine NISSAN Long Life Antifreeze/
Coolant (blue) and 50% water to provide
year-round anti-freeze and coolant protec-
tion. The antifreeze solution contains rust
and corrosion inhibitors. Additional inverter
cooling system additives are not necessary.

WARNING

. Never remove the coolant reservoir

cap when the engine and inverter are
hot. Wait until the engine and in-
verter cool down. Serious burns could
be caused by high pressure fluid
escaping from the radiator.

. The inverter reservoir is equipped

with a pressure type cap. To prevent
engine and inverter damage, use only
a genuine NISSAN inverter reservoir
cap.

CAUTION

. When adding or replacing coolant, be

sure to use only Genuine NISSAN
Long Life Antifreeze/Coolant (blue)
or equivalent. Genuine NISSAN Long
Life Antifreeze/Coolant (blue) is pre-

diluted to provide antifreeze protec-
tion to −34°F(−37°C). If additional
freeze protection is needed due to
weather where you operate your
vehicle, add Genuine NISSAN Long
Life Antifreeze/Coolant (blue) con-
centrate following the directions on
the container. If an equivalent cool-
ant other than Genuine NISSAN Long
Life Antifreeze/Coolant (blue) is
used, follow the coolant manufatur-
urer’s instructions to maintain mini-
mum antifreeze protection to −34°F
(−37°C). The use of other types of
coolant solutions other than Genuine
NISSAN Long Life Antifreeze/Cool-
ant (blue) or equivalent may damage
the inverter cooling system.

. The life expectancy of the factory-fill

coolant is 125,000 miles (200,000
km) or 15 years. Mixing any other
type of coolant other than Genuine
NISSAN Long Life Antifreeze/Cool-
ant (blue), including Genuine NISSAN
L o n g L i f e A n t i f r e e z e / C o o l a n t
(green), or the use of non-distilled
water will reduce the life expectancy
of the factory-fill coolant. Refer to
the “9. Maintenance and schedules”
section of this manual for more de-
tails.

. Never use any additives in the cool-

ant such as radiator sealer in the
cooling system. This may cause da-
mage to electrical equipment such as
the motor and inverter, and also to
engine and transmission.

Do-it-yourself

8-7

INVERTER COOLING SYSTEM

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8-8

Do-it-yourself

JVM0038X

CHECKING INVERTER COOLANT
LEVEL

Check the coolant level in the reservoir when
the engine and inverter are cold. If the
coolant level is below the MIN level

, add

coolant to the MAX level

If the inverter cooling system frequently
requires coolant, have it checked. It is
recommended you visit an INFINITI retailer
for this service.

CHANGING INVERTER COOLANT

An INFINITI ratailer can change the inverter
coolant. The service procedure can be found
in the INFINITI Service Manual.
Improper servicing can result in inverter
overheating.

WARNING

. To avoid the danger of being scalded,

never change the coolant when the
inverter is hot.

. Never remove the cap when the

inverter is hot. Serious burns could
be caused by high pressure fluid
escaping from the inverter coolant
reservoir.

. Avoid direct skin contact with used

coolant. If skin contact is made, wash
thoroughly with soap or hand cleaner
as soon as possible.

. Keep coolant out of the reach of

children and pets.

Inverter coolant must be disposed of prop-
erly. Check your local regulations.

SDI2045

VQ35HR engine

CHECKING ENGINE OIL LEVEL

1. Park the vehicle on a level surface and

apply the parking brake.

2. Run the engine until it reaches operating

temperature.

3. Turn off the engine. Wait more than 15

minutes for the oil to drain back into the
oil pan.

4. Remove the dipstick and wipe it clean.

Reinsert it all the way.

5. Remove the dipstick again and check the

oil level. It should be within the range

If the oil level is below

, remove the oil

filler cap and pour recommended oil

ENGINE OIL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

through the opening. Do not overfill

6. Recheck oil level with the dipstick.
It is normal to add some oil between oil
maintenance intervals or during the break-
in period, depending on the severity of
operating conditions.

CAUTION

Oil level should be checked regularly.
Operating the engine with an insuffi-
cient amount of oil can damage the
engine, and such damage is not covered
by warranty.

CHANGING ENGINE OIL AND
FILTER

Vehicle set-up

1. Park the vehicle on a level surface and

apply the parking brake.

2. Run the engine until it reaches operating

temperature.

3. Turn the engine off and wait more than

15 minutes.

4. Raise and support the vehicle using a

suitable floor jack and safety jack stands.

Place the safety jack stands under the

vehicle jack-up points.

A suitable adapter should be attached

to the jack stand saddle.

5. Remove the plastic engine undercover.

Remove the small plastic clip at the

center point of the undercover.

Then remove the other bolts that hold

the undercover in place.

CAUTION

Make sure the correct lifting and sup-
port points are used to avoid vehicle
damage.

SDI2335

VQ35HR engine

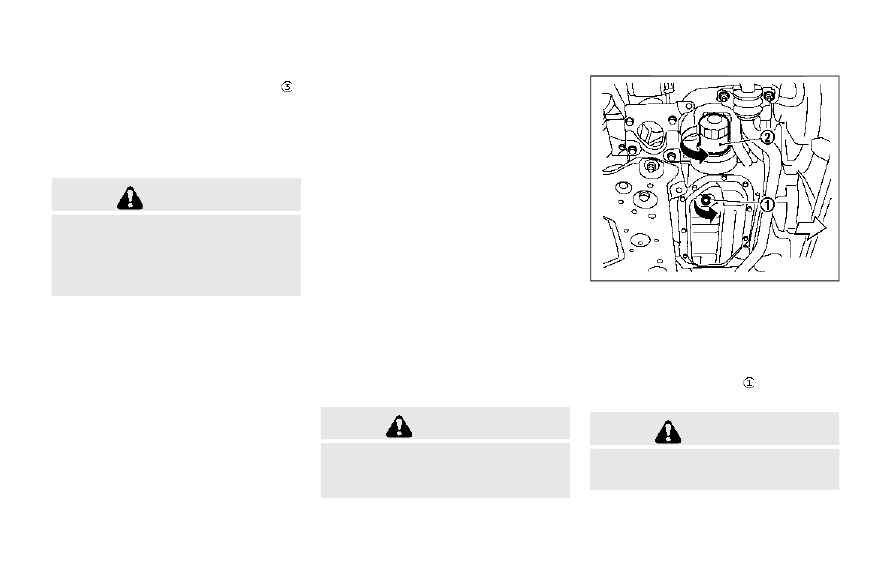

Engine oil and filter

1. Place a large drain pan under the drain

plug.

2. Remove the oil filler cap.
3. Remove the drain plug

with a wrench

and completely drain the oil.

CAUTION

Be careful not to burn yourself, as the
engine oil is hot.

Do-it-yourself

8-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8-10

Do-it-yourself

Waste oil must be disposed of prop-

erly.

Check your local regulations.

4. (Perform steps 4 to 7 only when the

engine oil filter change is needed.)
Loosen the oil filter

with an oil filter

wrench. Remove the oil filter by turning it
by hand.

5. Wipe the engine oil filter mounting sur-

face with a clean rag.

CAUTION

Be sure to remove any old rubber gasket
remaining on the mounting surface of
the engine. Failure to do so could lead to
engine damage.

6. Coat the gasket on the new filter with

clean engine oil.

7. Screw in the oil filter clockwise until a

slight resistance is felt, then tighten
additionally more than 2/3 turn.
Oil filter tightening torque:

11 to 15 ft-lb
(14.7 to 20.5 N·m)

8. Clean and re-install the drain plug with a

new washer. Securely tighten the drain
plug with a wrench.

Drain plug tightening torque:

22 to 29 ft-lb
(29 to 39 N·m)

Do not use excessive force.

9. Refill engine with recommended oil and

install the oil filler cap securely.

CAUTION

The dipstick must be inserted in place to
prevent oil spillage from the dipstick
hole while filling the engine with oil.

See “Capacities and recommended
fluids/lubricants” (P.10-2) for drain and
refill capacity. The drain and refill capa-
city depends on the oil temperature and
drain time. Use these specifications for
reference only. Always use the dipstick
to determine the proper amount of oil in
the engine.

10. Start the engine and check for leakage

around the drain plug and the oil filter.
Correct as required.

11. Turn the engine off and wait more than

15 minutes. Check the oil level with the
dipstick. Add engine oil if necessary.

After the operation

1. Install the engine undercover into posi-

tion as the following steps.
a. Pull the center of the small plastic clip

out.

b. Hold the engine undercover into posi-

tion.

c. Insert the clip through the undercover

into the hole in the frame, then push
the center of the clip in to lock the clip
in place.

d. Install the other bolts that hold the

undercover in place. Be careful not to
strip the bolts or over-tighten them.

2. Lower the vehicle carefully to the

ground.

3. Dispose of waste oil and filter properly.

WARNING

. Prolonged and repeated contact with

used engine oil may cause skin cancer.

. Try to avoid direct skin contact with

used oil. If skin contact is made, wash
thoroughly with soap or hand cleaner
as soon as possible.

. Keep used engine oil out of reach of

children.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When checking or replacement is required,
we recommend an INFINITI retailer for
servicing.

CAUTION

. It is recommended that you use only

Genuine NISSAN Matic S ATF. Do
not mix with other fluids.

. Using automatic transmission fluid

(ATF) other than Genuine NISSAN
Matic S ATF may cause deterioration
in driveability and automatic trans-
mission durability, and may damage
the automatic transmission. Damage
caused by use of fluids other than as
recommended is not covered by the
INFINITI new vehicle limited war-
ranty.

JVM0054X

Check the fluid level in the reservoir.
The fluid level should be checked using the
HOT range ( : HOT MAX.,

: HOT MIN.) at

fluid temperatures of 122 to 176°F (50 to
80°C) or using the COLD range ( : COLD
MAX.,

: COLD MIN.) at fluid temperatures

of 32 to 86°F (0 to 30°C).
If the fluid is below the MIN line, add
Genuine NISSAN E-PSF. Remove the cap
and fill through the opening.

CAUTION

. Do not overfill.

. Recommended fluid is Genuine

NISSAN E-PSF or equivalent.

Do-it-yourself

8-11

AUTOMATIC TRANSMISSION
FLUID (ATF)

POWER STEERING FLUID

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8-12

Do-it-yourself

For further brake fluid information, see
“Capacities and recommended fluids/lubri-
cants” (P.10-2).

WARNING

. Use only new fluid from a sealed

container. Old, inferior or contami-
nated fluid may damage the brake
system. The use of improper fluids
can damage the brake system and
affect the vehicle’s stopping ability.

. Clean the filler cap before removing.
. Brake fluid is poisonous and should

be stored carefully in marked con-
tainers out of the reach of children.

CAUTION

Do not spill the fluid on painted surfaces.
This will damage the paint. If fluid is
spilled, wash the surface with water.

JVM0053X

BRAKE FLUID

Check the fluid level in the reservoir. If the
fluid is below the MIN line

or the brake

warning light comes on, add Genuine
NISSAN Super Heavy Duty Brake Fluid or
equivalent DOT 3 fluid up to the MAX line

If fluid must be added frequently, the system
should be checked. It is recommended you
visit an INFINITI retailer for this service.

SDI2544

WARNING

Antifreeze is poisonous and should be
stored carefully in marked containers
out of the reach of children.

Fill the window washer fluid reservoir per-
iodically. Add window washer fluid when the
low window washer fluid warning appears
on the vehicle information display.
To fill the window washer fluid reservoir, lift
the cap off the reservoir tank and pour the
window washer fluid into the tank opening.
Add a washer solvent to the washer for

BRAKE FLUID

WINDOW WASHER FLUID

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Infiniti Q70 Hybrid (2018 year). Manual - part 28
