Model: 2017MY INFINITI QX70(S51) OM17E00S51U0 ]

JVP0230X

SEAT SYNCHRONIZATION FUNCTION

The seat synchronization function automa-
tically adjusts the positions of the steering
wheel and outside mirrors when the seat is
adjusted using the power seat switches.
However, the steering wheel and outside
mirrors will not move if the seat is adjusted
over the maximum thresholds. The system
considers that the steering wheel and
outside mirror adjustments are not neces-
sary because the seat may not be adjusted
for the driving position. Note that the
function is set to disabled as the factory
default setting.

The seat synchronization function operates
under the following conditions:

The ignition switch is in the ON posi-

tion.

The shift lever is in the P (Park) position.

If the outside mirrors or the steering wheel
reaches its maximum adjustment, the
function is automatically disabled. Restart
the function by selecting a previously
stored seat memory position using the
memory switches (1 or 2). An Intelligent
Key that was previously linked to the
stored seat memory can also be used to
restart the function.
If a seat position was not previously stored
in the seat memory, restart the function by
adjusting the steering wheel and outside
mirrors manually for your best driving
position and then drive the vehicle above
4 MPH (7 km/h).

Cancel or activate seat synchroni-

zation function

The shift lever must be in the P (Park)
position with the ignition switch in the ACC
position.
The seat synchronization function can be
activated or canceled by pushing and
holding the SET switch for more than 10

seconds while the ignition switch is in the
ACC position.
The indicator lights on the memory
switches (1 and 2) will blink once when
the function is canceled, and the indicator
lights will blink twice when the function is
activated. Note that the indicator lights
may illuminate after 5 seconds while
holding the SET switch. This indicates
readiness for linking the Intelligent Key to
a stored memory position. Keep the SET
switch pushed for more than 10 seconds to
turn on or off the seat synchronization
function.

MEMORY STORAGE

Two positions for the driver’s seat, steering
column and outside mirrors can be stored
in the automatic drive positioner memory.
Follow these procedures to use the mem-
ory system.
1. Move the shift lever to the P (Park)

position.

2. Adjust the driver’s seat, steering col-

umn and outside mirrors to the desired
positions by manually operating each
adjusting switch. For additional infor-
mation, see “Seat belts” (P.1-12) and
“Tilt/telescopic steering” (P.3-27) and

Pre-driving checks and adjustments

3-33

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(188,1)

Model: 2017MY INFINITI QX70(S51) OM17E00S51U0 ]

3-34

Pre-driving checks and adjustments

“Outside mirrors” (P.3-30).

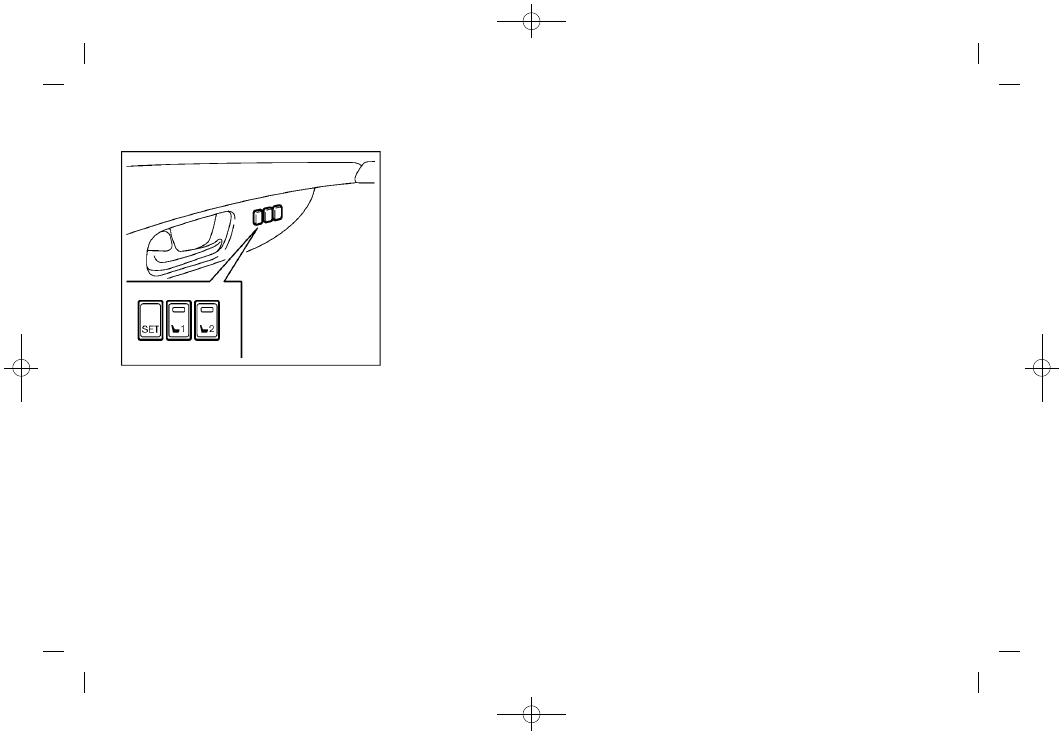

3. Push the SET switch and, within 5

seconds, push the memory switch (1
or 2) fully for at least 1 second.
The indicator light for the pushed
memory switch will stay on for approxi-
mately 5 seconds after pushing the
switch.
When the memory is stored in the
memory switch (1 or 2), a buzzer will
sound.
If memory is stored in the same
memory switch, the previous memory
will be deleted.

Linking Intelligent Key to a stored

memory position

The Intelligent Key can be linked to a
stored memory position with the following
procedure.
1. Follow the steps for storing a memory

position.

2. While the indicator light for the memory

switch being set is illuminated for 5
seconds, push the

button on the

Intelligent Key. If the indicator light
blinks, the Intelligent Key is linked to
that memory setting.

Push the ignition switch to the OFF posi-
tion, and then push the

button on the

Intelligent Key. The driver’s seat, steering
wheel and outside mirrors will move to the
memorized position or to the exit position
when the entry/exit function is set to
active.

Confirming memory storage

Push the ignition switch to the ON

position and push the SET switch. If
the main memory has not been stored,
the indicator light will come on for
approximately 0.5 second. When the
memory has stored in position, the
indicator light will stay on for approxi-
mately 5 seconds.

If the battery cable is disconnected, or if

the fuse opens, the memory will be
canceled. In this case, reset the desired
position using the previous procedure.

If optional Intelligent Keys are added to

your vehicle, the memory storage pro-
cedure to switch 1 or 2 and linking
Intelligent Key procedure to a stored
memory position should be performed
again for each Intelligent Key. For
additional Intelligent Key information,
see “Keys” (P.3-2).

Selecting the memorized position

1. Move the shift lever to the P (Park)

position.

2. Use one of the following methods to

move the driver’s seat, the outside
mirrors and the steering wheel.

Push the memory switch (1 or 2) fully
for at least 1 second.

Within 45 seconds of opening the
driver’s door, push the memory
switch (1 or 2) fully for at least 1
second.

The driver’s seat, steering column and
outside mirrors will move to the mem-
orized position or to the exit position
when the entry/exit function is set to
active with the indicator light flashing,
and then the light will stay on for
approximately 5 seconds.

SYSTEM OPERATION

The automatic drive positioner system will
not work or will stop operating under the
following conditions:

When the vehicle speed is above 4 MPH

(7 km/h).

When the adjusting switch for the

driver’s seat and steering column is

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(189,1)

Model: 2017MY INFINITI QX70(S51) OM17E00S51U0 ]

turned on while the automatic drive
positioner is operating.

When the memory switch 1 or 2 is not

pushed for at least 1 second.

When the seat, steering column and

outside mirrors have already been
moved to the memorized position.

When no position is stored in the

memory switch.

When the engine is started while mov-

ing the automatic drive positioner.

When the AT shift lever is moved from

the P (Park) position to any other
position. (However, it will not be
canceled if the switch is pushed while
the seat and steering column are
returning to the previous positions
(entry/exit function).)

When the driver’s door remains open for

more than 45 seconds and the ignition
switch is not in the ON position.

The seat synchronization function is

automatically disabled if the outside
mirrors or steering wheel reaches its
maximum adjustment.

The seat synchronization function will

not operate if the seat is adjusted over
one of the following maximum thresh-
olds:

— Seat sliding: 3.0 in (76 mm)
— Seatback reclining: 9.1 degrees
— Seat lifter (rear side): 0.8 in (20 mm)

Pre-driving checks and adjustments

3-35

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(193,1)

Model: 2017MY INFINITI QX70(S51) OM17E00S51U0 ]

WARNING

Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.

Do not use this system if you notice any
abnormality, such as a frozen screen or
lack of sound. Continued use of the
system may result in accident, fire or
electric shock.

In case you notice any foreign object in
the system hardware, spill liquid on it, or
notice smoke or smell coming from it,
stop using the system immediately. It is
recommended you visit an INFINITI re-
tailer for servicing. Ignoring such condi-
tions may lead to accidents, fire, or
electric shock.

Park the vehicle in a safe location and
apply the parking brake to view the
images on the front center display
screen.

Do not attempt to operate the system in
extreme temperature conditions [below
−48F (−208C) and above 1588F (708C)].
Operating this system under these condi-
tions may result in system malfunctions.

SAA1836

Models with navigation system

“CAMERA” Around View

Monitor dis-

play button (P.4-31)

2, 6, 7, 10, 11.

For navigation system control buttons
(Refer to the separate Navigation
System Owner’s Manual.)

INFINITI controller (P.4-5)

“STATUS” status display button
(P.4-9)

“

OFF” brightness control and

display ON/OFF button (P.4-9)

“AM·FM·SAT” band selector button
(P.4-58)

“DISC·AUX” selector button (P.4-58)

12. “INFO” vehicle and navigation infor-

mation button (P.4-9)

13. “SETTING” button (P.4-15)

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-3

SAFETY NOTE

CENTER MULTI-FUNCTION CONTROL PANEL

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(194,1)

Model: 2017MY INFINITI QX70(S51) OM17E00S51U0 ]

4-4

Monitor, heater, air conditioner, audio, phone and voice recognition systems

SAA1524

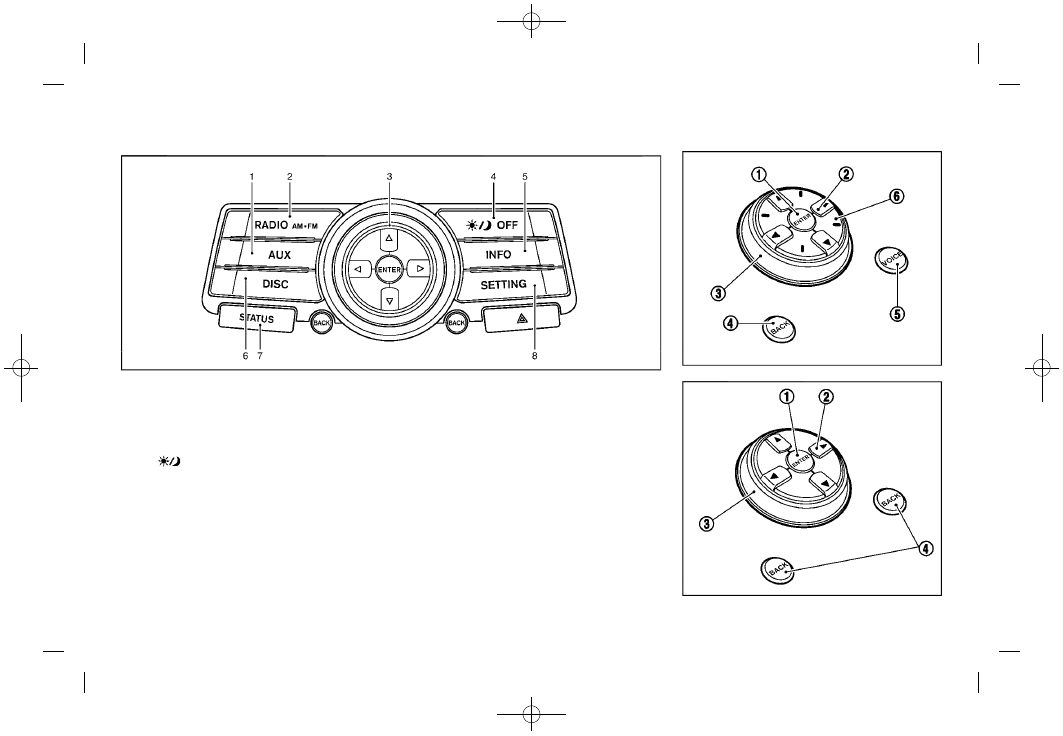

Models without navigation system

“AUX” button (P.4-58)

“RADIO AM·FM” band selector button
(P.4-58)

INFINITI controller (P.4-5)

“

OFF” brightness control and

display ON/OFF button (P.4-9)

“INFO” vehicle information button
(P.4-9)

“DISC” selector button (P.4-58)

“STATUS” status display button
(P.4-9)

“SETTING” button (P.4-15)

When you use this system, make sure the
engine is running.

If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will use up all the battery power,
and the engine will not start.

SAA1541

Models with navigation system

SAA1508

Models without navigation system

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(195,1)

Model: 2017MY INFINITI QX70(S51) OM17E00S51U0 ]

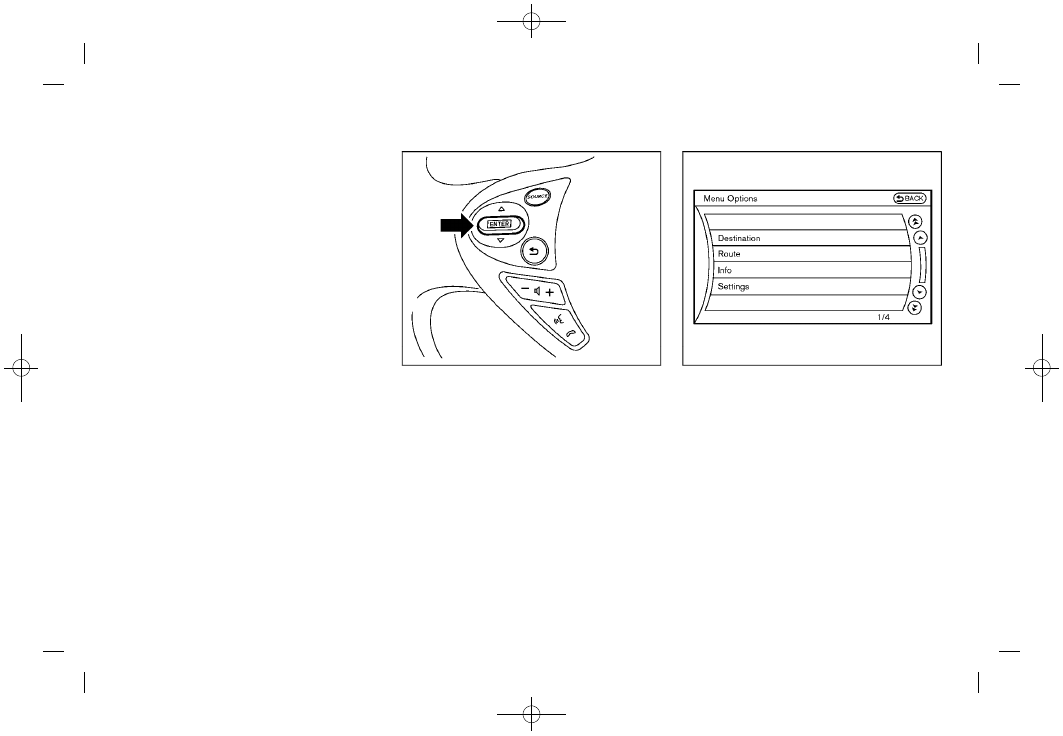

HOW TO USE INFINITI CONTROLLER

Choose an item on the display using the
main directional buttons

(or additional

directional buttons

models with navi-

gation system) or center dial

, and push

the ENTER button

for operation.

If you push the BACK button

before the

setup is completed, the setup will be
canceled and/or the display will return to
the previous screen. This button can also
be used to delete characters that have
been input.
After the setup is completed, push the
BACK button

and return to the previous

screen.
For the VOICE button

functions, refer to

the separate Navigation System Owner’s
Manual.

HOW TO USE TOUCH SCREEN

(models with navigation system)

CAUTION

The glass screen on the liquid crystal
display may break if it is hit with a hard
or sharp object. If the glass screen
breaks, do not touch it. Doing so could

result in an injury.

To clean the display, use a soft, dry
cloth. If additional cleaning is necessary,
use a small amount of neutral detergent
with a soft cloth. Never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.

Do not splash any liquid such as water or
car fragrance on the display. Contact
with liquid will cause the system to
malfunction.

To ensure safe driving, some functions
cannot be operated while driving.
The on-screen functions that are not
available while driving will be “grayed
out” or muted.
Park the vehicle in a safe location and then
operate the navigation system.

WARNING

ALWAYS give your full attention to
driving.

Avoid using vehicle features that could

distract you. If distracted, you could lose
control of your vehicle and cause an
accident.

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-5

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(196,1)

Model: 2017MY INFINITI QX70(S51) OM17E00S51U0 ]

4-6

Monitor, heater, air conditioner, audio, phone and voice recognition systems

SAA2473

Example

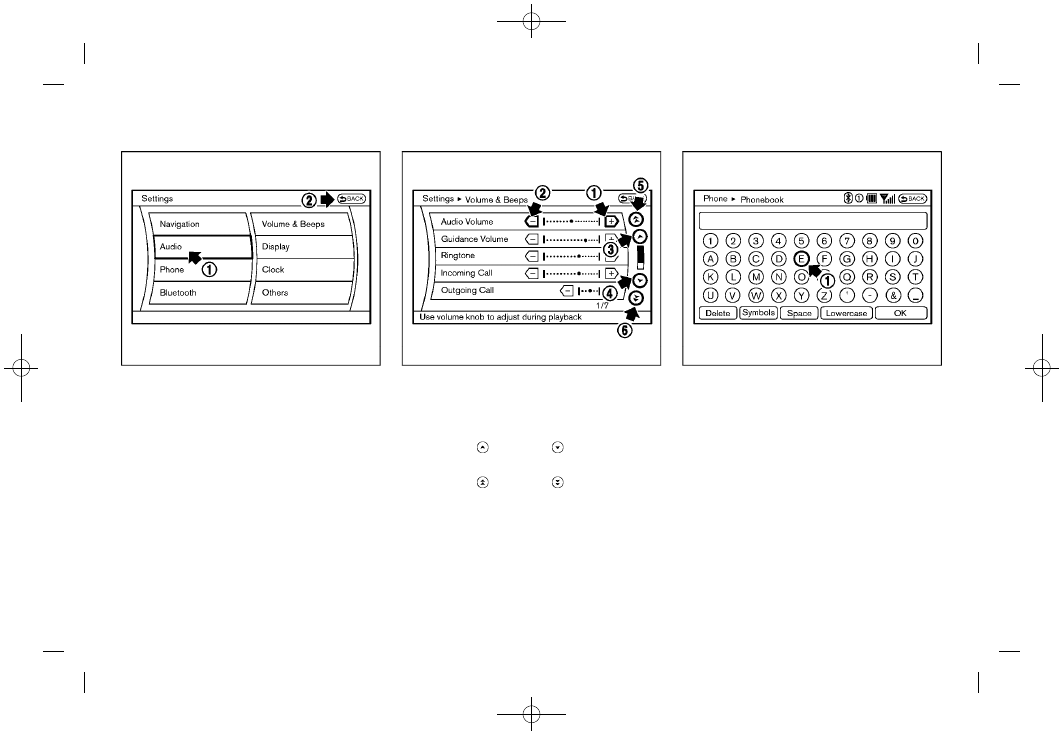

Touch screen operation

With this system, the same operations as
those for the INFINITI controller are possi-
ble using the touch screen operation.
Selecting the item:
Touch an item to select it. To select the
“Audio” settings, touch the “Audio” area

on the screen.

Touch the BACK

button to return to the

previous screen.

SAA2474

Example

Adjusting an item:
Touch the +

or −

button to adjust the

settings.
Touch the

button to

move to the previous or next item.
Touch the

button to

move to the previous or next page.

SAA2475

Example

Inputting characters:
Touch the letter or number

There are some options available when
inputting characters.

Uppercase:

Shows uppercase characters.

Lowercase:

Shows lowercase characters.

Symbols:

Shows symbols such as the question
mark (?).

Space:

Inserts a space.

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(197,1)

Model: 2017MY INFINITI QX70(S51) OM17E00S51U0 ]

Delete:

Deletes the last character that has been
input with one touch. Push and hold the
button to delete all of the characters.

OK:

Completes character inputs.

Touch screen maintenance

If you clean the display screen, use a dry,
soft cloth. If additional cleaning is neces-
sary, use a small amount of neutral
detergent with a soft cloth. Never spray
the screen with water or detergent. Dam-
pen the cloth first, and then wipe the
screen.

SAA2143

MENU OPTIONS (models with navi-

gation system)

The start menu can be displayed using the
menu control switch on the steering-wheel-
mounted controls.
1. While the MAP or STATUS screen is

displayed, push and hold the menu
control switch until the “Menu Options”
screen appears.

2. Highlight the preferred item by tilting

the menu control switch up or down,
and then push the menu control switch
to select it.

SAA2476

Available items

Destination/Route:
These items are for the navigation system.
See the separate Navigation System Own-
er’s Manual for details.
Info:
Displays the information screen. It is the
same screen that appears when you push
the INFO button.
Settings:
Displays the settings screen. It is the same
screen that appears when you push the
SETTING button.

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-7

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(198,1)

Model: 2017MY INFINITI QX70(S51) OM17E00S51U0 ]

4-8

Monitor, heater, air conditioner, audio, phone and voice recognition systems

SAA2477

Models with navigation system

JVH0179M

Models without navigation system

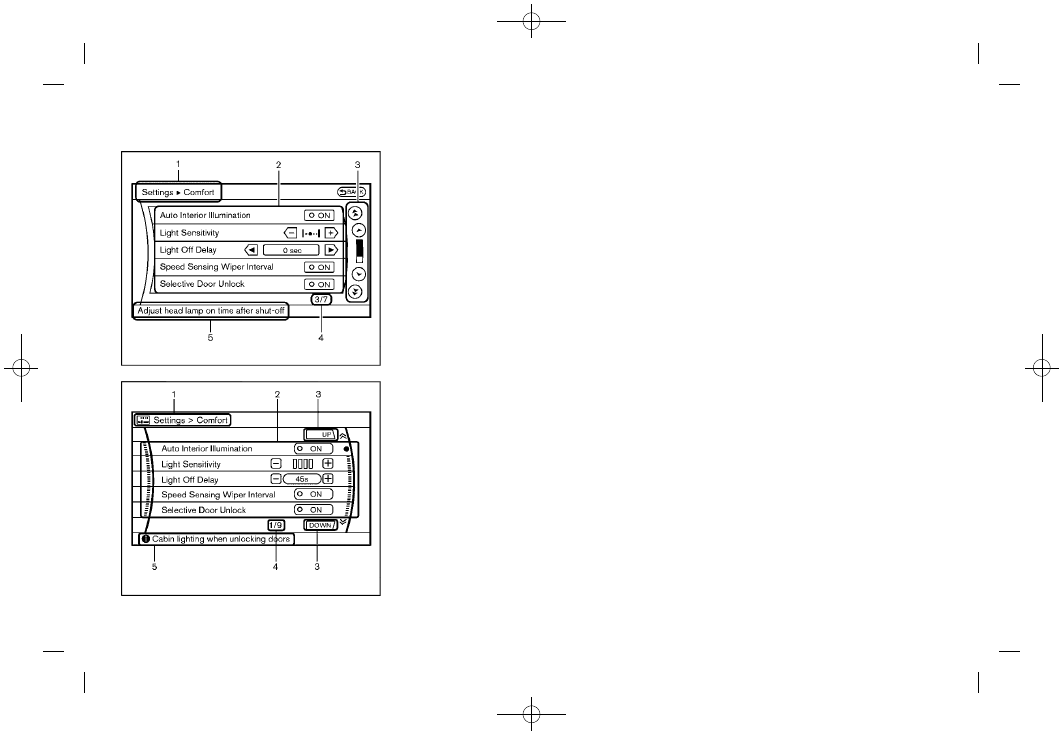

HOW TO SELECT MENUS ON THE

SCREEN

Vehicle functions are viewed on the display
screen in menus. To select each key item,
highlight the preferred item using the
INFINITI controller and push the ENTER
button.
Whenever a menu selection is made or
menu item is highlighted, different areas
on the screen provide you with important
information. See the following for details.
1. Header:

Shows the path used to get to the
current screen.

2. Menu Selections:

Shows the options to choose within
that menu screen.

3. UP/DOWN Movement indicator:

Shows that the INFINITI controller may
be used to move UP/DOWN on the
screen and select more options.

4. Menu Items Counter:

Shows the total number of items listed
across all pages for the current menu.

5. Footer/Information Line:

Provides more information (if available)

about the menu selection currently
highlighted.

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(199,1)

Model: 2017MY INFINITI QX70(S51) OM17E00S51U0 ]

HOW TO USE STATUS BUTTON

You can check information related to the
audio, climate control system, fuel con-
sumption and navigation system (if so
equipped) by pressing the STATUS button
repeatedly.

HOW TO USE BRIGHTNESS CON-

TROL AND DISPLAY ON/OFF BUTTON

Push the “

OFF” button to switch the

display brightness to the daytime mode or
the nighttime mode, and to adjust the
display brightness using the INFINITI con-
troller while the indicator is displayed at
the bottom of the screen.
Push and hold the “

OFF” button for

more than 2 seconds to turn the display
off. Push the button again to turn the
display on.
Models with navigation system
The display brightness can also be ad-
justed using the brightness UP button (+)
or brightness DOWN button (−).

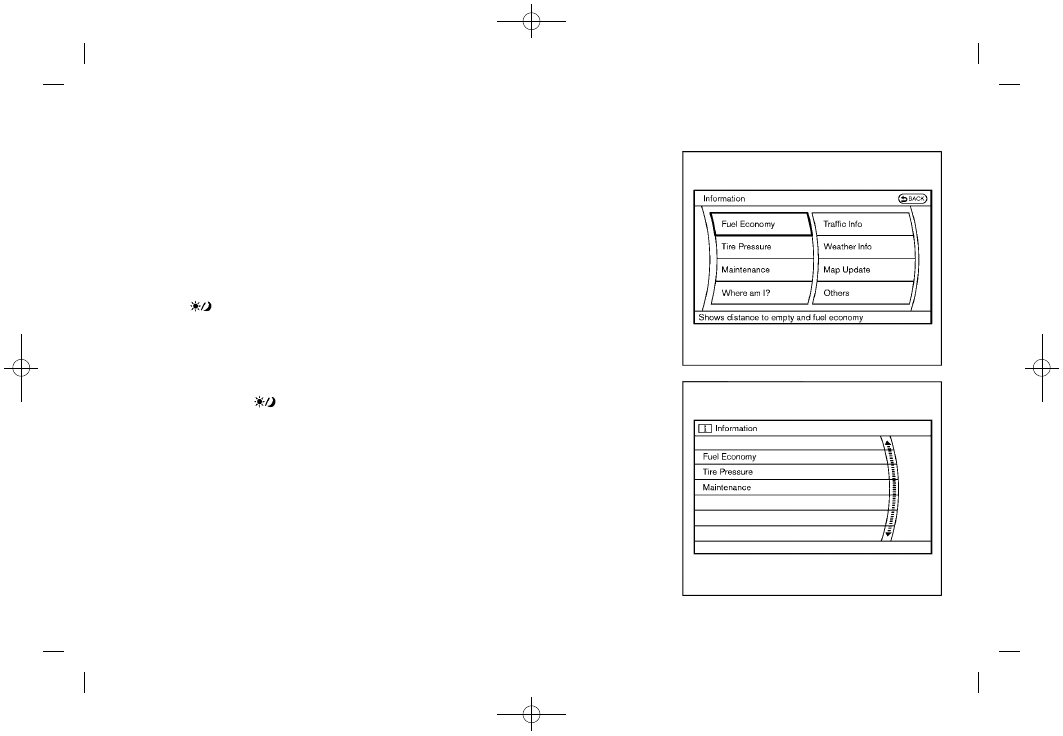

HOW TO USE INFO BUTTON

The display screen shows vehicle and
navigation (if so equipped) information
for your convenience.
The information shown on the screen
should be a guide to determine the
condition of the vehicle. See the following
for details.

SAA3144

Models with navigation system

SAA2145

Models without navigation system

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-9

VEHICLE INFORMATION AND SETTINGS

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(200,1)

Model: 2017MY INFINITI QX70(S51) OM17E00S51U0 ]

4-10

Monitor, heater, air conditioner, audio, phone and voice recognition systems

1. Push the INFO button on the control

panel.

2. Select an item from the INFO menu.
3. After viewing or adjusting the informa-

tion on the following screens, push the
BACK button to return to the INFO
menu.

See the separate Navigation System Own-
er’s Manual for the following items:
.

Where am I?

Traffic Info

Weather Info

Map Update

SAA2479

SAA2480

Models with navigation system

JVH0180M

JVH0181M

Models without navigation system

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(201,1)

Model: 2017MY INFINITI QX70(S51) OM17E00S51U0 ]

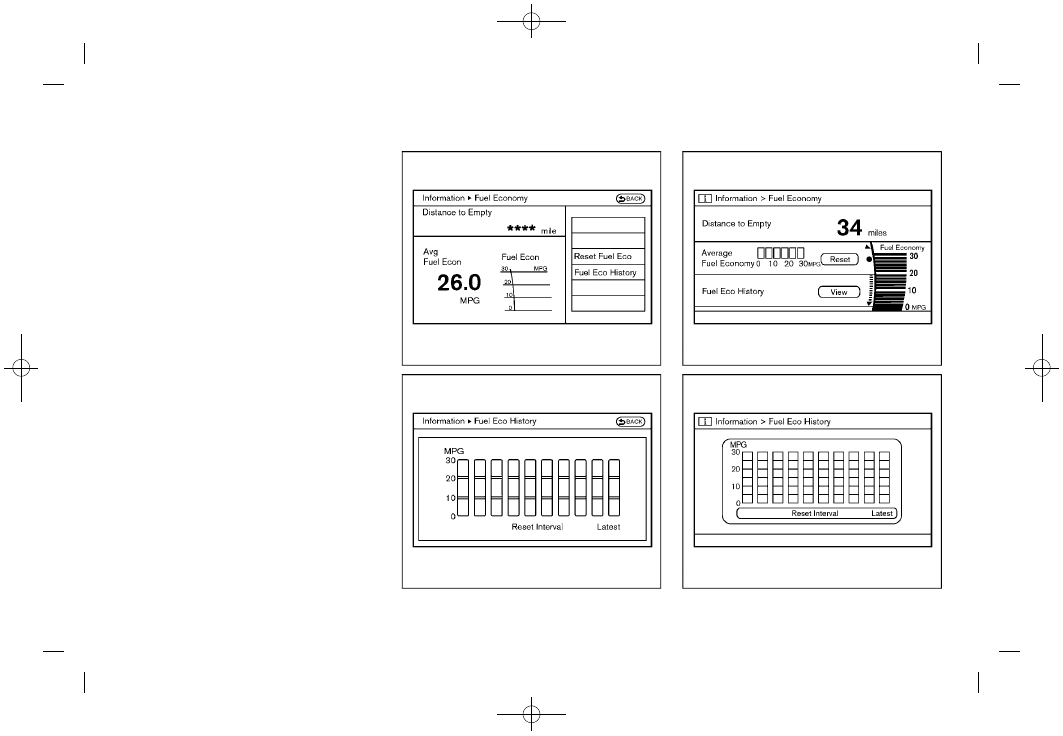

Fuel Economy information

The approximate distance to empty, aver-
age fuel economy and current fuel econo-
my will be displayed for reference.
To reset the average fuel economy (Avg
Fuel Econ), select the “Reset Fuel Eco” or
“Reset” key.
If the “Fuel Eco History” or “View” key is
selected, the average fuel consumption
history will be displayed in graph form
along with the average for the previous
Reset-to-Reset period.
The unit can be converted between “US”
and “Metric”. (See “How to use SETTING
button” (P.4-15).)
The fuel economy information may differ
from the information displayed on the
vehicle information display. This is due to
the timing difference in updating the
information and does not indicate a mal-
function.

JVH0248X

Models with navigation system

JVH0249X

Models without navigation system

Tire Pressure information

WARNING

Since the spare tire is not equipped with
the TPMS, when a spare tire is mounted
or a wheel is replaced, tire pressure will
not be indicated, the TPMS will not
function and the low tire pressure warn-
ing light will flash for approximately 1
minute. The light will remain on after 1
minute. Contact your INFINITI retailer as
soon as possible for tire replacement
and/or system resetting.

Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.

The tire pressure will be displayed for
reference.
The pressure indication “*** kPa” or “***
psi” on the screen means that the pressure
is being measured. After a few driving
trips, the pressure for each tire will be
displayed.
The unit can be converted in the LANGUAGE
& UNITS settings display. (See “How to use
SETTING button” (P.4-15) for details.)

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-11

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(202,1)

Model: 2017MY INFINITI QX70(S51) OM17E00S51U0 ]

4-12

Monitor, heater, air conditioner, audio, phone and voice recognition systems

To change the measurement units, select
the “Select Units” key (models with navi-
gation system) with the INFINITI controller
and push the ENTER button.
In case of low tire pressure, LOW PRES-
SURE information will be displayed on the
screen. Check the pressure of all tires.
Tire pressure rises and falls depending on
the heat caused by the vehicle’s traveling
condition and the temperature.
After tire rotation is performed, tire pres-
sure will not be displayed in the actual tire
position. Drive the vehicle at over 25 MPH
(40 km/h) for approximately 10 minutes to
reset the display.
For more details about the Tire Pressure
Monitoring System (TPMS), see “Tire Pres-
sure Monitoring System (TPMS)” (P.5-4).

SAA2481

SAA2482

Models with navigation system

JVH0183M

JVH0184M

Models without navigation system

Condition:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2017 Infiniti QX70/FX (2017 year). Manual - part 12
