WARNING

. Do not disassemble or modify this

system. If you do, it may result in
accidents, fire, or electric shock.

. Do not use this system if you notice any

abnormality, such as a frozen screen or
lack of sound. Continued use of the
system may result in accident, fire or
electric shock.

. In case you notice any foreign object in

the system hardware, spill liquid on it,
or notice smoke or smell coming from it,
stop using the system immediately and
contact your nearest INFINITI retailer.
Ignoring such conditions may lead to
accidents, fire, or electric shock.

. Park the vehicle in a safe location and

apply the parking brake to view the
images on the front center display
screen.

Do not attempt to operate the system in
extreme temperature conditions [below
−48F (−208C) and above 1588F (708C)].
Operating this system under these condi-
tions may result in system malfunctions.

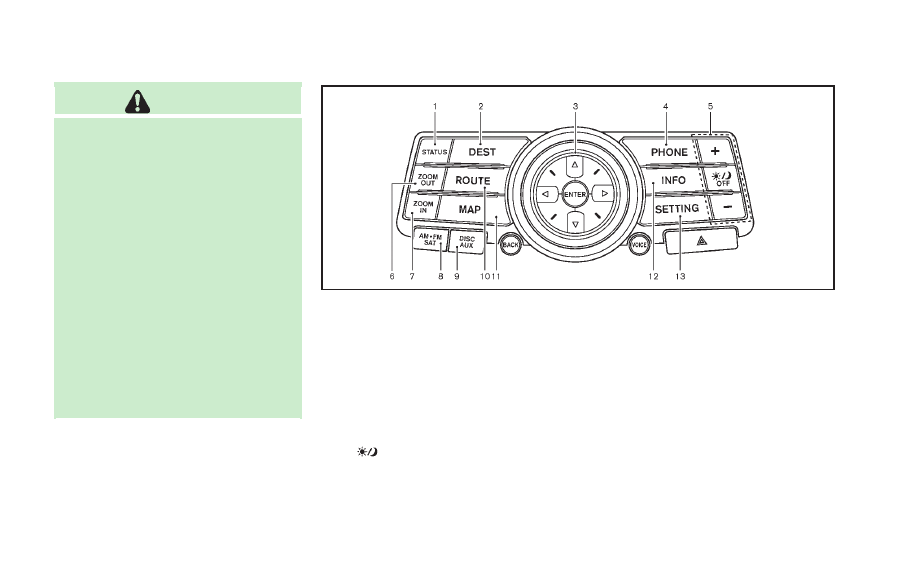

SAA1523

Models with navigation system

“STATUS” status display button
(P.4-9)

2, 6, 7, 10, 11.

For navigation system control buttons
(Refer to the separate Navigation
System Owner

’s Manual.)

INFINITI controller (P.4-5)

“PHONE” Bluetooth

Hands-Free

Phone System button (P.4-77)

“

OFF

” brightness control and

display ON/OFF button (P.4-9)

“AM·FM·SAT” band selector button
(P.4-39)

“DISC·AUX” selector button (P.4-39)

12.

“INFO” vehicle and navigation infor-
mation button (P.4-9)

13.

“SETTING” button (P.4-13)

Monitor, climate, audio, phone and voice recognition systems

4-3

SAFETY NOTE

CENTER MULTI-FUNCTION CONTROL PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-4

Monitor, climate, audio, phone and voice recognition systems

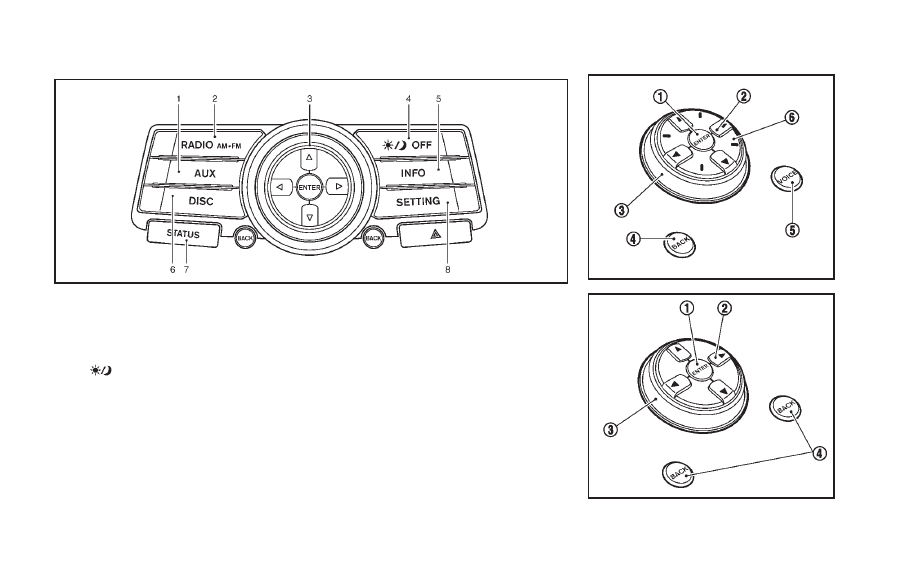

SAA1524

Models without navigation system

“AUX” button (P.4-39)

“RADIO AM·FM” band selector button
(P.4-39)

INFINITI controller (P.4-5)

“

OFF

” brightness control and

display ON/OFF button (P.4-9)

“INFO” vehicle information button
(P.4-9)

“DISC” selector button (P.4-39)

“STATUS” status display button
(P.4-9)

“SETTING” button (P.4-13)

When you use this system, make sure the
engine is running.

If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will use up all the battery power,
and the engine will not start.

SAA1541

Models with navigation system

SAA1508

Models without navigation system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

HOW TO USE INFINITI CONTROLLER

Choose an item on the display using the
main directional buttons

(or additional

directional buttons

with navigation

system) or center dial

, and push the

ENTER button

for operation.

If you push the

BACK button

before the

setup is completed, the setup will be
canceled and/or the display will return to
the previous screen. This button can also
be used to delete characters that have
been input.

After the setup is completed, push the
BACK button

and return to the previous

screen.

For the

VOICE button

functions, refer to

the separate Navigation System Owner

’s

Manual.

HOW TO USE TOUCH SCREEN
(models with navigation system)

CAUTION

. The glass screen on the liquid crystal

display may break if it is hit with a hard
or sharp object. If the glass screen
breaks, do not touch it. Doing so could

result in an injury.

. To clean the display, use a soft, dry

cloth. If additional cleaning is necessary,
use a small amount of neutral detergent
with a soft cloth. Never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.

. Do not splash any liquid such as water

or car fragrance on the display. Contact
with liquid will cause the system to
malfunction.

To ensure safe driving, some functions
cannot be operated while driving.

The on-screen functions that are not
available while driving will be

“grayed

out

” or muted.

Park the vehicle in a safe location and then
operate the navigation system.

WARNING

. ALWAYS give your full attention to

driving.

. Avoid using vehicle features that could

distract you. If distracted, you could lose
control of your vehicle and cause an
accident.

Touch screen operation

With this system, the same operations as
those for the INFINITI controller are possi-
ble using the touch screen operation.

Monitor, climate, audio, phone and voice recognition systems

4-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-6

Monitor, climate, audio, phone and voice recognition systems

SAA2473

Selecting the item:

Touch an item to select it. To select the
“Audio” settings, touch the “Audio” area

on the screen.

Touch the BACK

button to return to the

previous screen.

SAA2474

Adjusting an item:

Touch the

−

button to adjust

the settings.

Touch the

button to

move to the previous or next item.

Touch the

button to

move to the previous or next page.

SAA2475

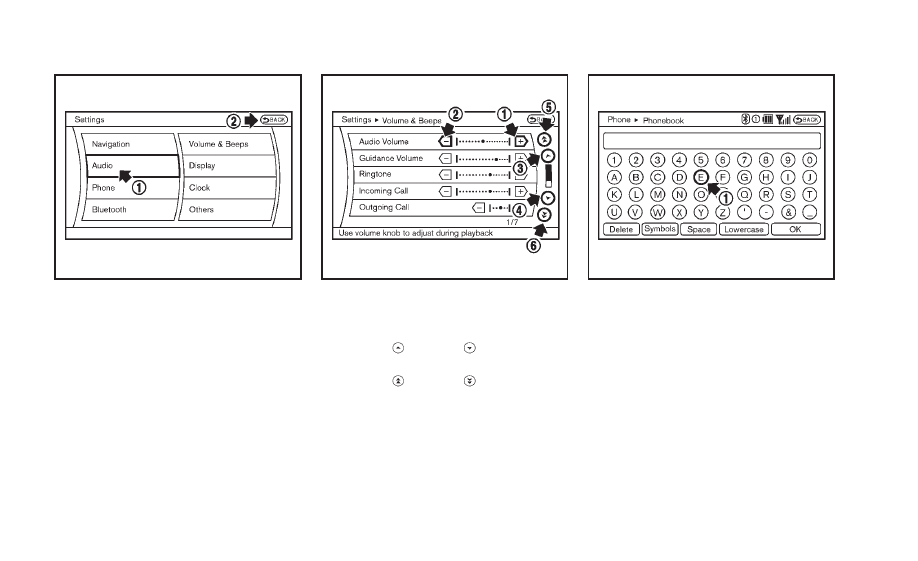

Inputting characters:

Touch the letter or number

There are some options available when
inputting characters.
. Uppercase:

Shows uppercase characters.

. Lowercase:

Shows lowercase characters.

. Symbols:

Shows symbols such as the question
mark (?).

. Space:

Inserts a space.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

. Delete:

Deletes the last character that has been
input with one touch. Push and hold
the button to delete all of the char-
acters.

. OK:

Completes character inputs.

Touch screen maintenance

If you clean the display screen, use a dry,
soft cloth. If additional cleaning is neces-
sary, use a small amount of neutral
detergent with a soft cloth. Never spray
the screen with water or detergent. Dam-
pen the cloth first, and then wipe the
screen.

SAA1525

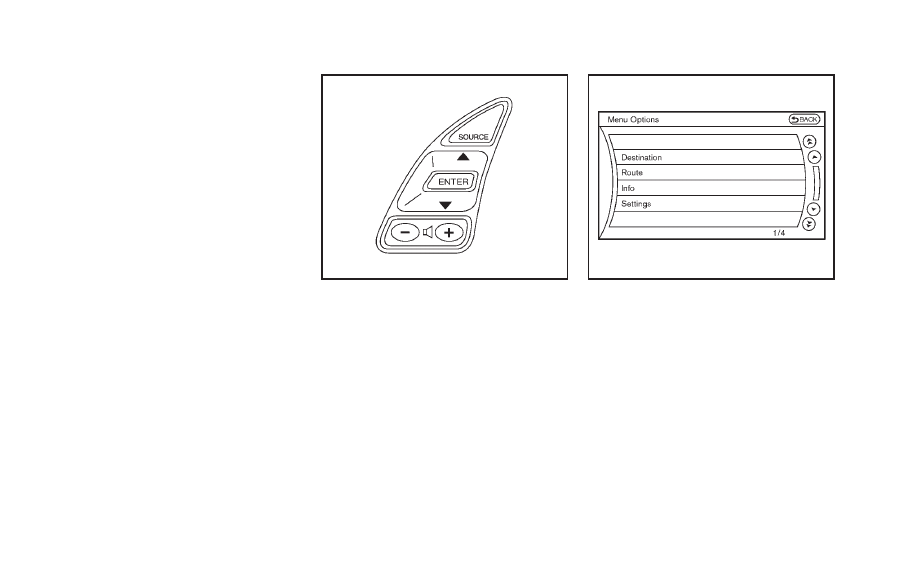

MENU OPTIONS (models with navi-
gation system)

The start menu can be displayed using the
menu control switch on the steering-wheel-
mounted controls.

1. While the MAP or STATUS screen is

displayed, push and hold the menu
control switch until the

“Menu Options”

screen appears.

2. Highlight the preferred item by tilting

the menu control switch up or down,
and then push the menu control switch
to select it.

SAA2476

Available items

Destination/Route:

These items are for the navigation system.
See the separate Navigation System Own-
er

’s Manual for details.

Info:

Displays the information screen. It is the
same screen that appears when you push
the INFO button.

Settings:

Displays the settings screen. It is the same
screen that appears when you push the
SETTING button.

Monitor, climate, audio, phone and voice recognition systems

4-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-8

Monitor, climate, audio, phone and voice recognition systems

SAA2477

With navigation system

JVH0179M

Without navigation system

HOW TO SELECT MENUS ON THE
SCREEN

Vehicle functions are viewed on the display
screen in menus. To select each key item,
highlight the preferred item using the
INFINITI controller and push the ENTER
button.

Whenever a menu selection is made or
menu item is highlighted, different areas
on the screen provide you with important
information. See the following for details.

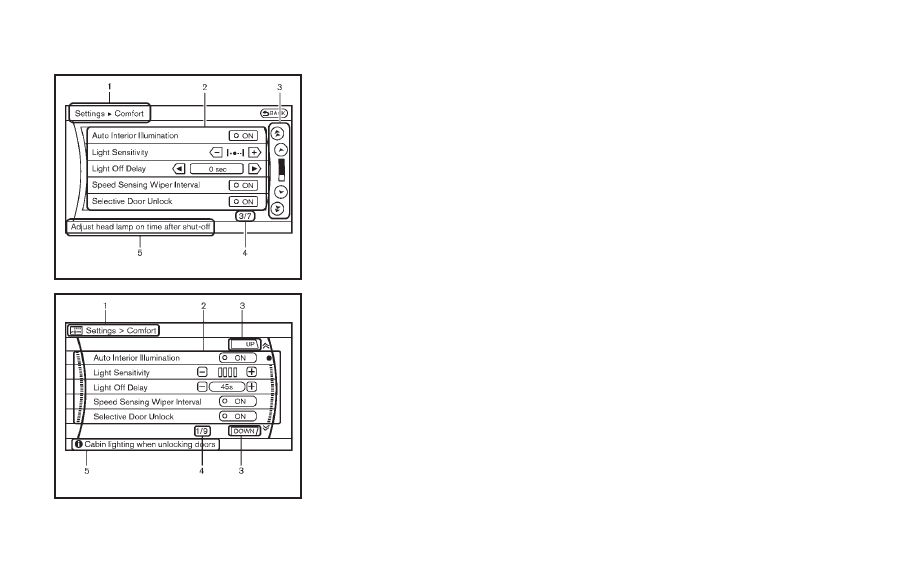

1. Header:

Shows the path used to get to the
current screen.

2. Menu Selections:

Shows the options to choose within
that menu screen.

3. UP/DOWN Movement indicator:

Shows that the INFINITI controller may
be used to move UP/DOWN on the
screen and select more options.

4. Menu Items Counter:

Shows the total number of items listed
across all pages for the current menu.

5. Footer/Information Line:

Provides more information (if available)

about the menu selection currently
highlighted.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

HOW TO USE STATUS BUTTON

You can check information related to the
audio, climate control system, fuel con-
sumption and navigation system (if so
equipped) by pressing the STATUS button
repeatedly.

HOW TO USE BRIGHTNESS CON-
TROL AND DISPLAY ON/OFF BUTTON

Push the

“

OFF

” button to switch the

display brightness to the daytime mode or
the nighttime mode, and to adjust the
display brightness using the INFINITI con-
troller while the indicator is displayed at
the bottom of the screen.

The display brightness can also be ad-
justed using the brightness UP button

(+)

or brightness DOWN button

(

−) (models

with navigation system).

Push and hold the

“

OFF

” button for

more than 2 seconds to turn the display
off. Push the button again to turn the
display on.

HOW TO USE INFO BUTTON

The display screen shows vehicle and
navigation (if so equipped) information
for your convenience.

The information shown on the screen
should be a guide to determine the
condition of the vehicle. See the following
for details.

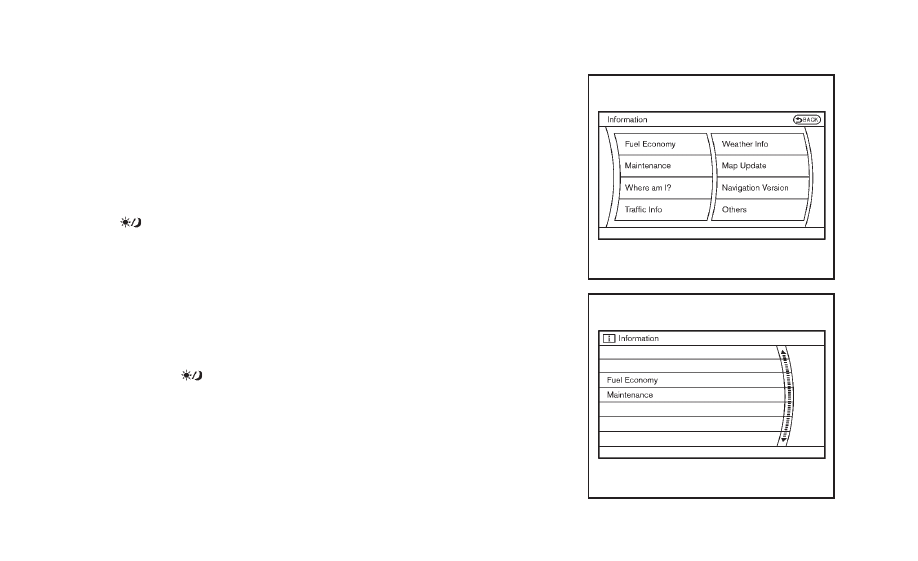

SAA2478

Models with navigation system

SAA1511

Models without navigation system

Monitor, climate, audio, phone and voice recognition systems

4-9

VEHICLE INFORMATION AND SETTINGS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-10

Monitor, climate, audio, phone and voice recognition systems

Vehicle information display

1. Push the INFO button on the control

panel.

2. Select an item from the INFO menu.

3. After viewing or adjusting the informa-

tion on the following screens, push the
BACK button to return to the INFO
menu.

See the separate Navigation System Own-
er

’s Manual for the following items:

. Where am I?
. Traffic Info
. Weather Info
. Map Update
. Navigation Version

SAA2479

SAA2480

Models with navigation system

JVH0180M

JVH0181M

Models without navigation system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

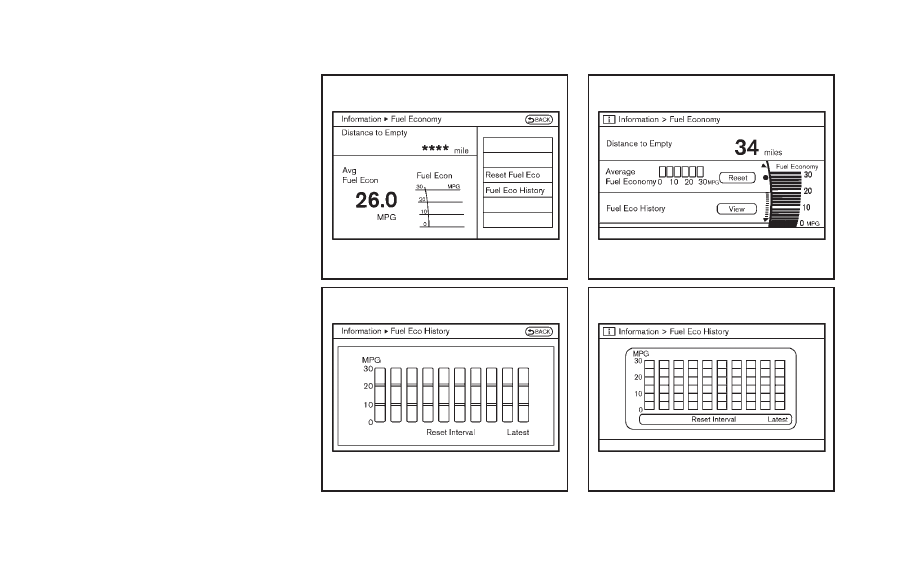

Fuel Economy information

The approximate distance to empty, aver-
age fuel economy and current fuel econo-
my will be displayed for reference.

To reset the average fuel economy (Avg
Fuel Econ), select the

“Reset Fuel Eco” or

“Reset” key.
If the

“Fuel Eco History” or “View” key is

selected, the average fuel consumption
history will be displayed in graph form
along with the average for the previous
Reset-to-Reset period.

The unit can be converted between

“US”

and

“Metric”. (See “How to use SETTING

button

” (P.4-13).)

The fuel economy information may differ
from the information displayed on the
vehicle information display. This is due to
the timing difference in updating the
information and does not indicate a mal-
function.

SAA2481

SAA2482

Models with navigation system

JVH0183M

JVH0184M

Models without navigation system

Monitor, climate, audio, phone and voice recognition systems

4-11

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-12

Monitor, climate, audio, phone and voice recognition systems

Maintenance information

The maintenance intervals can be dis-
played for the engine oil, oil filter, tire
and other reminders.

To set a maintenance interval, select a
preferred item from the list.

You can also set to display a message to
remind you that the maintenance needs to
be performed.

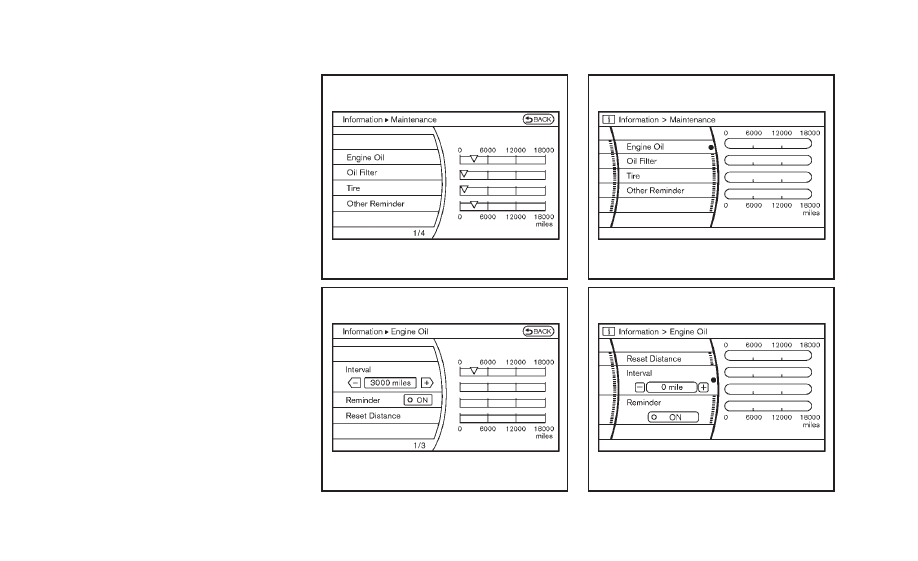

The following example shows how to set
the engine oil maintenance information.
Use the same steps to set the other
maintenance information.

1. Set the interval (mileage) of the main-

tenance schedule. To determine the
recommended maintenance interval,
refer to your

“INFINITI Service and

Maintenance Guide

”.

2. To display the reminder automatically

when the desired distance is reached,
select the

“Reminder” key.

3. Reset the driving distance to the new

maintenance schedule.

4. To return to the previous screen, push

the BACK button.

The unit can be converted between

“US”

and

“Metric”. (See “How to use SETTING

button

” (P.4-13).)

SAA3003

Example

The Reminder will be automatically dis-
played when the specified distance has
been driven and every time the ignition
switch is pushed to the ACC or ON position.
The reminder will not appear while driving.

Select the

“OK” key to hide the reminder

for the rest of the current drive.

To stop the reminder from appearing,
perform one of the following actions:
. Select the “Reset Distance”.
. Deactivate the “Reminder”.
. Increase the “Interval” distance to be

more than the current distance being
tracked.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAA2483

Others information (models with
navigation system)

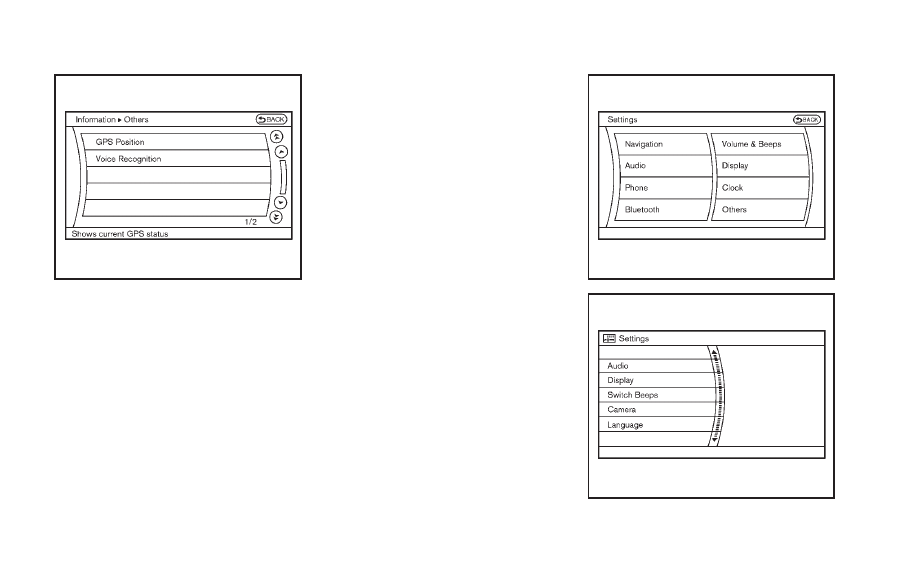

The Others information display will appear
when pushing the INFO button and select-
ing the

“Others” key.

GPS Position:

For the details of this item, see the
separate Navigation System Owner

’s Man-

ual.

Voice Recognition:

For the details of this item, see

“INFINITI

Voice Recognition system (models with
navigation system)

” (P.4-101).

HOW TO USE SETTING BUTTON

The display as illustrated will appear when
the SETTING button is pushed.

For navigation settings, refer to the sepa-
rate Navigation System Owner

’s Manual.

SAA2484

Models with navigation system

JVH0261M

Models without navigation system

Monitor, climate, audio, phone and voice recognition systems

4-13

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-14

Monitor, climate, audio, phone and voice recognition systems

SAA2975

Models with navigation system

JVH0251X

Models without navigation system

Audio settings

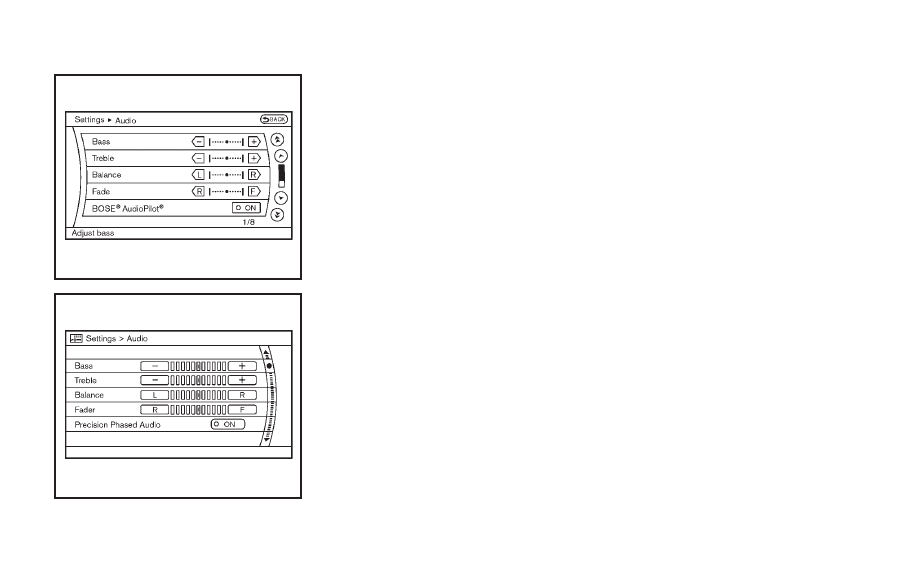

The display as illustrated will appear when
pushing the SETTING button and selecting
the

“Audio” key.

Bass/Treble/Balance/Fade:

To adjust the speaker tone quality and
sound balance, select the

“Bass”, “Treble”,

“Balance” or “Fade” key and adjust it with
the INFINITI controller.

These items can also be adjusted by
pushing and turning the AUDIO knob.

Precision Phased Audio (if so equipped):

When this item is turned to ON, super high
pitch sound and super low pitch sound are
emphasized and midrange sound is played
naturally.

Speed Sensitive Vol. (if so equipped):

The audio system

’s volume is increased

with the vehicle speed. Select the

“Speed

Sensitive Vol.

” and adjust the effect level

with the INFINITI controller. The Speed
Sensitive Volume function is turned off
when the level is set to OFF. Increasing the
value will cause the volume to increase
faster with vehicle speed.

BOSE

AudioPilot

(if so equipped):

BOSE

AudioPilot

adjusts the volume and

sound quality depending on the changes of
the vehicle speeds and the noise picked up
by the microphone. It compensates for
noise from different road surface condi-
tions and open windows.

Surround Vol. (if so equipped):

To adjust the surround sound volume,
select

“Surround Vol.” and adjust it with

the INFINITI controller.

DivX

Registration Code (models with

navigation system):

The registration code for a device that is
used to download DivX

files will be

displayed on the screen. If a disc is loaded
or a USB memory is connected to the audio
system, this function will not be activated.

Display Album Cover Art (models with
navigation system):

When this item is turned to ON, the album
cover image is displayed when playing
iPod

or MP3 music files through a CD,

DVD or USB memory. When the image is
not properly embedded in the file or
device, the image will not be displayed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Phone settings (models with navi-
gation system)

For details of the

“Phone” settings, see

“Bluetooth

Hands-Free Phone System

(models with navigation system)

” (P.4-77).

Bluetooth

settings (models with

navigation system)

For details of the

“Bluetooth

” settings,

see

“Bluetooth

Hands-Free Phone System

(models with navigation system)

” (P.4-77).

SAA2554

Volume and Beeps settings (models
with navigation system)

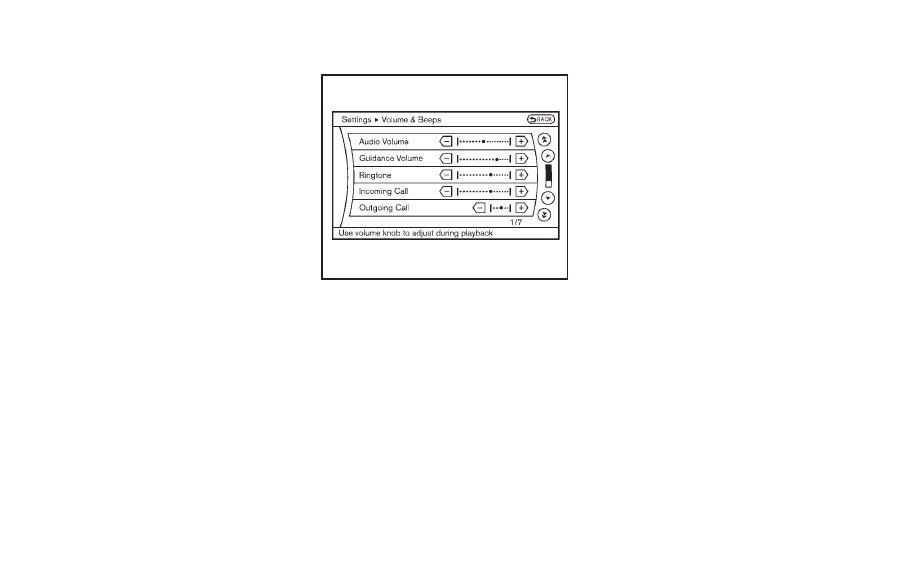

The display as illustrated will appear when
pushing the SETTING button, selecting the
“Volume & Beeps” key.
Audio Volume:

To increase or decrease the audio volume,
select the

“Audio Volume” and adjust it

with the INFINITI controller. You can also
adjust the audio volume by turning the
VOLUME control knob.

Guidance Volume:

To adjust the guidance voice volume select
the

“Guidance Volume” and adjust it with

the INFINITI controller.

You can also adjust the guidance voice
volume by turning the VOLUME control
knob while voice guidance is being an-
nounced.

Ringtone/Incoming Call/Outgoing Call:

For the details of these items, see

“Blue-

tooth

Hands-Free Phone System (models

with navigation system)

” (P.4-77).

Switch Beeps:

When this item is turned to ON, you will
hear a beep sound when you use a button.

Guidance Voice:

When this item is turned to ON, you will
hear voice guidance in the navigation
operation or in other operations.

NOTE:

When the voice guidance is being an-
nounced during audio playback, turning
the volume knob does not adjust the
music level; it adjusts the guidance
volume level. If voice guidance is not
being heard, please check the Guidance
Volume level.

Monitor, climate, audio, phone and voice recognition systems

4-15

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Infiniti Q60 Coupe (2014 year). Manual - part 11
