Safety

— Seats, seat belts and supplemental restraint system

SSS0099

SSS0100

WARNING

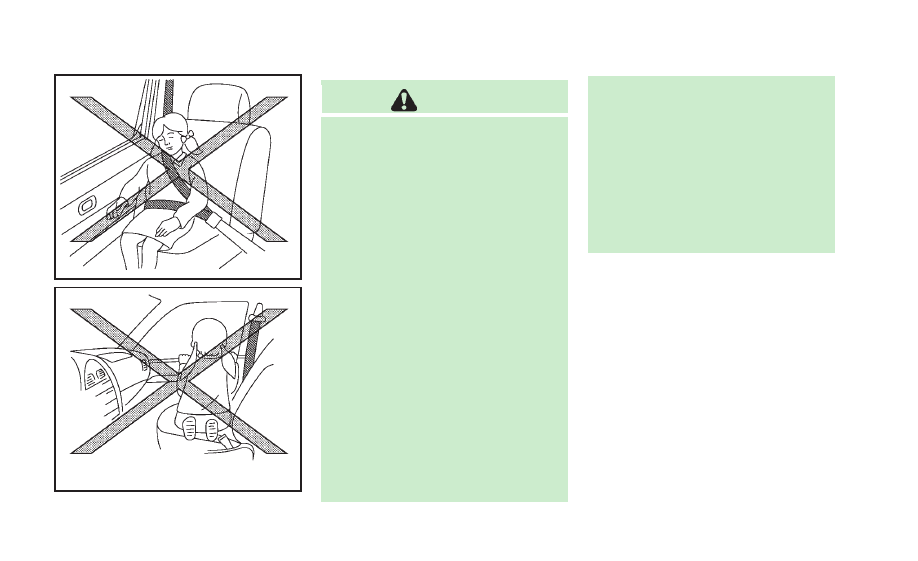

. Never let children ride unrestrained or

extend their hands or face out of the
window. Do not attempt to hold them in
your lap or arms. Some examples of
dangerous riding positions are shown in
the illustrations.

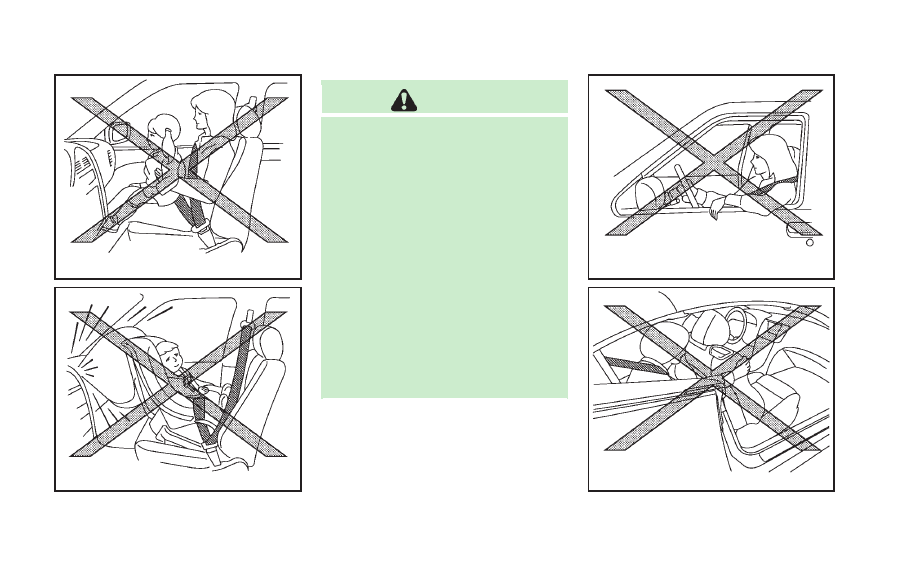

. Children may be severely injured or

killed when the front air bags, side air
bags or curtain air bags inflate if they
are not properly restrained. Pre-teens
and children should be properly re-
strained in the rear seat, if possible.

. Even with the INFINITI Advanced Air Bag

System, never install a rear-facing child
restraint in the front seat. An inflating
front air bag could seriously injure or kill
your child. See

“Child restraints” (P.1-

19) for details.

SSS0059A

SSS0981

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SSS0162

SSS0159

WARNING

Front seat-mounted side-impact supplemen-
tal air bags and door-mounted curtain side-
impact supplemental air bags:

. The front seat-mounted side-impact air

bags and door-mounted curtain air bags
ordinarily will not inflate in the event of
a frontal impact, rear impact or lower
severity side collision. Always wear your
seat belts to help reduce the risk or
severity of injury in various kinds of
accidents.

. The seat belts, side air bags and curtain

air bags are most effective when you are
sitting well back and upright in the seat.
The side air bag and curtain air bag
inflate with great force. Do not allow
anyone to place their hand, leg or face
near the side air bag on the side of the
seatback of the front seat or near the
door finishers. Do not allow anyone
sitting in the front seats or rear outboard
seats to extend their hand out of the
window or lean against the door. Some
examples of dangerous riding positions
are shown in the previous illustrations.

. When sitting in the rear seat, do not

hold onto the seatback of the front seat.
If the supplemental side air bag inflates,
you may be seriously injured. Be espe-
cially careful with children, who should
always be properly restrained. Some
examples of dangerous riding positions
are shown in the illustrations.

. Do not use seat covers on the front

seatbacks. They may interfere with side
air bag inflation.

Safety

— Seats, seat belts and supplemental restraint system

1-39

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-40

Safety

— Seats, seat belts and supplemental restraint system

JVR0095X

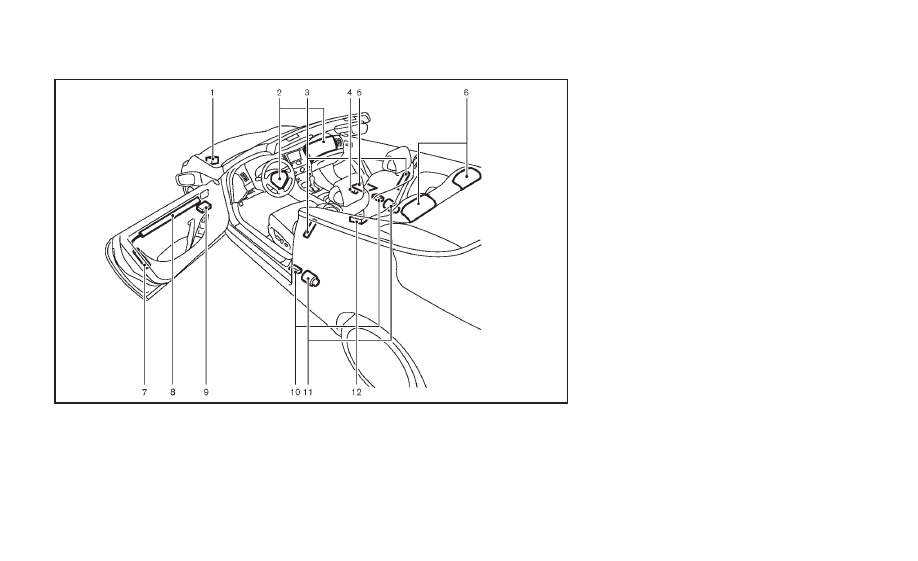

Crash zone sensor

Supplemental front air bag modules
(INFINITI Advanced Air Bags)

Front seat-mounted side-impact sup-
plemental air bags

Occupant classification system con-
trol unit

Occupant classification sensor (pat-
tern sensor)

Pop-up roll bars

Door-mounted curtain side-impact
supplemental air bag inflators

Door-mounted curtain side-impact
supplemental air bags

Satellite sensors

10. Satellite sensors
11. Seat belt pretensioners
12. Air bag Control Unit (ACU)

INFINITI ADVANCED AIR BAG SYS-
TEM (front seats)

This vehicle is equipped with the INFINITI
Advanced Air Bag System for the driver and
front passenger seats. This system is
designed to meet certification require-
ments under U.S. regulations. It is also
permitted in Canada.

However, all of the

information, cautions and warnings in this
manual still apply and must be followed.

The driver supplemental front-impact air
bag is located in the center of the steering
wheel. The front passenger supplemental
front-impact air bag is mounted in the
instrument panel above the glove box. The
front air bags are designed to inflate in
higher severity frontal collisions, although
they may inflate if the forces in another
type of collision are similar to those of a
higher severity frontal impact. They may
not inflate in certain frontal collisions.
Vehicle damage (or lack of it) is not always
an indication of proper front air bag
operation.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The INFINITI Advanced Air Bag System has
dual stage air bag inflators. The system
monitors information from the crash zone
sensor, the Air bag Control Unit (ACU), seat
belt buckle switches and the occupant
classification sensor (pattern sensor). In-
flator operation is based on the severity of
a collision and seat belt usage for the
driver. For the front passenger, the occu-
pant classification sensor is also moni-
tored. Based on information from the
sensors, only one front air bag may inflate
in a crash, depending on the crash severity
and whether the front occupants are belted
or unbelted. Additionally, the front pas-
senger air bag may be automatically turned
OFF under some conditions, depending on
the information provided by the occupant
classification sensor. If the front passenger
air bag is OFF, the passenger air bag status
light will be illuminated (if the seat is
unoccupied, the light will not be illumi-
nated, but the air bag will be off). (See
“Front passenger air bag and status light”
(P.1-42) for further details.) One front air
bag inflating does not indicate improper
performance of the system.

If you have any questions about your air
bag system, contact an INFINITI retailer. If

you are considering modification of your
vehicle due to a disability, you may also
contact INFINITI. Contact information is
contained in the front of this Owner

’s

Manual.

When a front air bag inflates, a fairly loud
noise may be heard, followed by release of
smoke. This smoke is not harmful and does
not indicate a fire. Care should be taken
not to inhale it, as it may cause irritation
and choking. Those with a history of a
breathing condition should get fresh air
promptly.

Front air bags, along with the use of seat
belts, help to cushion the impact force on
the head and chest of the front occupants.
They can help save lives and reduce
serious injuries. However, an inflating front
air bag may cause facial abrasions or other
injuries. Front air bags do not provide
restraint to the lower body.

Even with INFINITI Advanced Air Bags, seat
belts should be correctly worn and the
driver and passenger seated upright as far
as practical away from the steering wheel
or instrument panel. The front air bags
inflate quickly in order to help protect the
front occupants. Because of this, the force
of the front air bag inflating can increase

the risk of injury if the occupant is too
close to, or is against, the air bag module
during inflation.

The front air bags deflate quickly after a
collision.

The front air bags operate only when the
ignition switch is in the ON position.

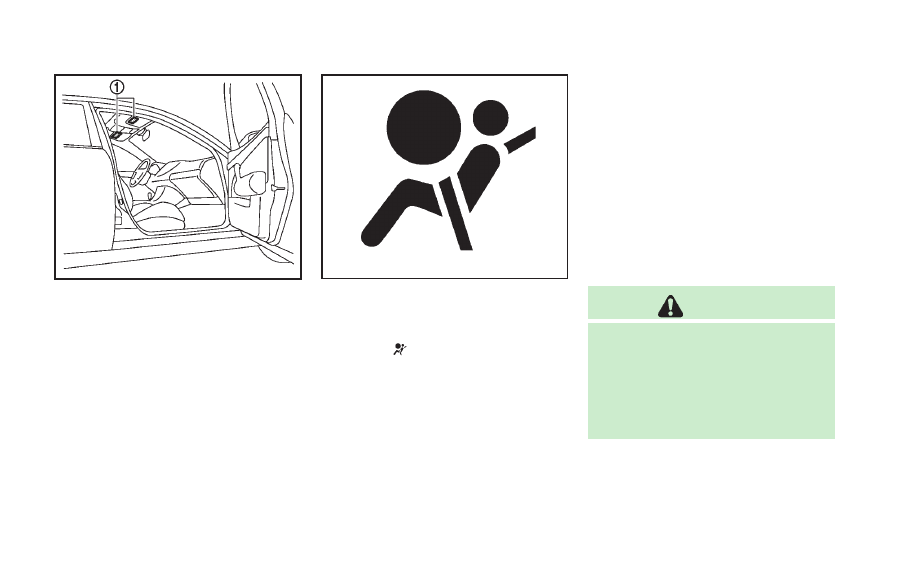

After pushing the ignition switch to the ON
position, the supplemental air bag warn-
ing light illuminates. The supplemental air
bag warning light will turn off after about
7 seconds if the system is operational.

Safety

— Seats, seat belts and supplemental restraint system

1-41

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-42

Safety

— Seats, seat belts and supplemental restraint system

SSS0676

Front passenger air bag status light

Front passenger air bag and status
light

WARNING

The front passenger air bag is designed to
automatically turn OFF under some condi-
tions. Read this section carefully to learn
how it operates. Proper use of the seat, seat
belt and child restraints is necessary for
most effective protection. Failure to follow
all instructions in this manual concerning
the use of seats, seat belts and child
restraints can increase the risk or severity

of injury in an accident.

Status light:

The front passenger air bag status light

is located under the climate controls

on the instrument panel. After the ignition
switch is placed in the "ON" position, the
front passenger air bag status light on the
instrument panel illuminates for about 7
seconds and then turns off or illuminates
depending on the front passenger seat
occupied status. The light operates as
follows:
. Unoccupied passenger seat: The

light is OFF and the front passenger air
bag is OFF and will not inflate in a
crash.

. Passenger seat occupied by a small

adult, child or child restraint as out-
lined in this section: The

light

illuminates to indicate that the front
passenger air bag is OFF and will not
inflate in a crash.

. Occupied passenger seat and the pas-

senger meets the conditions outlined in
this section: The

light is OFF to

indicate that the front passenger air
bag is operational.

Front passenger air bag:

The front passenger air bag is designed to
automatically turn OFF when the vehicle is
operated under some conditions as de-
scribed below as permitted by U.S. regula-
tions. If the front passenger air bag is OFF,
it will not inflate in a crash. The driver air
bag and other air bags in your vehicle are
not part of this system.

The purpose of the regulation is to help
reduce the risk of injury or death from an
inflating air bag to certain front passenger
seat occupants, such as children, by
requiring the air bag to be automatically
turned OFF.

The occupant classification sensor (pattern
sensor) is in the front passenger seat
cushion and is designed to detect an
occupant and objects on the seat. For
example, if a child is in the front passenger
seat, the Advanced Air Bag System is
designed to turn the passenger air bag
OFF in accordance with the regulations.
Also, if a child restraint of the type
specified in the regulations is on the seat,
the occupant classification sensor can
detect it and cause the air bag to turn OFF.

Front passenger seat adult occupants who
are properly seated and using the seat belt

-------------------------------------------------------------------------------------------------------------------------------------------------------------

as outlined in this manual should not
cause the passenger air bag to be auto-
matically turned OFF. For small adults it
may be turned OFF, however, if the
occupant does not sit in the seat properly
(for example, by not sitting upright, by
sitting on an edge of the seat, or by
otherwise being out of position), this could
cause the sensor to turn the air bag OFF.
Always be sure to be seated and wearing
the seat belt properly for the most effective
protection by the seat belt and supple-
mental air bag.

INFINITI recommends that pre-teens and
children be properly restrained in a rear
seat. INFINITI also recommends that appro-
priate child restraints and booster seats be
properly installed in a rear seat. If this is
not possible, the occupant classification
sensor is designed to operate as described
above to turn the front passenger air bag
OFF for specified child restraints. Failing to
properly secure child restrains and to use
the ALR mode (child restraint mode) may
allow the restraint to tip or move in an
accident or sudden stop. This can also
result in the passenger air bag inflating in
a crash instead of being OFF. (See

“Child

restraints

” (P.1-19) for proper use and

installation.)

If the front passenger seat is not occupied,
the passenger air bag is designed not to
inflate in a crash. However, heavy objects
placed on the seat could result in air bag
inflation, because of the object being
detected by the occupant classification
sensor. Other conditions could also result
in air bag inflation, such as if a child is
standing on the seat, or if two children are
on the seat, contrary to the instructions in
this manual. Always be sure that you and
all vehicle occupants are seated and
restrained properly.

Using the passenger air bag status light,
you can monitor when the front passenger
air bag is automatically turned OFF with the
seat occupied. The light will not illuminate
when the front passenger seat is unoccu-
pied.

If an adult occupant is in the seat but the
passenger air bag status light is illumi-
nated (indicating that the air bag is OFF), it
could be that the person is a small adult,
or is not sitting on the seat properly.

If a child restraint must be used in the front
seat, the passenger air bag status light
may or may not be illuminated, depending
on the size of the child and the type of

child restraint being used. If the passenger
air bag status light is not illuminated
(indicating that the air bag might inflate
in a crash), it could be that the child
restraint or seat belt is not being used
properly. Make sure that the child restraint
is installed properly, the seat belt is used
properly and the occupant is positioned
properly. If the passenger air bag status
light is still not illuminated, reposition the
occupant or child restraint in a rear seat.

If the passenger air bag status light will not
illuminate even though you believe that the
child restraint, the seat belts and the
occupant are properly positioned, the
system may be sensing an unoccupied
seat (in which case the air bag is OFF). Your
INFINITI retailer can check that the system
is OFF by using a special tool. However,
until you have confirmed with your retailer
that your air bag is working properly,
reposition the occupant or child restraint
in a rear seat.

The INFINITI Advanced Air Bag System and
passenger air bag status light will take a
few seconds to register a change in the
passenger seat status. However, if the seat
becomes unoccupied, the air bag status
light will remain off.

Safety

— Seats, seat belts and supplemental restraint system

1-43

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-44

Safety

— Seats, seat belts and supplemental restraint system

If a malfunction occurs in the front
passenger air bag system, the supplemen-
tal air bag warning light

, located in the

meter and gauges area will blink. Have the
system checked by an INFINITI retailer.

Other supplemental front-impact
air bag precautions

WARNING

. Do not place any objects on the steering

wheel pad or on the instrument panel.
Also, do not place any objects between
any occupant and the steering wheel or
instrument panel. Such objects may
become dangerous projectiles and cause
injury if the front air bag inflates.

. Do not place objects with sharp edges

on the seat. Also, do not place heavy
objects on the seat that will leave
permanent impressions in the seat. Such
objects can damage the seat or occupant
classification sensor (pattern sensor).
This can affect the operation of the air
bag system and result in serious perso-
nal injury.

. Do not use water or acidic cleaners (hot

steam cleaners) on the seat. This can

damage the seat or occupant classifica-
tion sensor. This can also affect the
operation of the air bag system and
result in serious personal injury.

. Immediately after inflation, several front

air bag system components will be hot.
Do not touch them; you may severely
burn yourself.

. No unauthorized changes should be

made to any components or wiring of
the air bag system. This is to prevent
accidental inflation of the supplemental
air bag or damage to the supplemental
air bag system.

. Do not make unauthorized changes to

your vehicle

’s electrical system, suspen-

sion system or front end structure. This
could affect proper operation of the front
air bag system.

. Tampering with the air bag system may

result in serious personal injury. Tamper-
ing includes changes to the steering
wheel and the instrument panel assem-
bly by placing material over the steering
wheel pad and above the instrument
panel or by installing additional trim
material around the air bag system.

. Modifying or tampering with the front

passenger seat may result in serious
personal injury. For example, do not
change the front seats by placing
material on the seat cushion or by
installing additional trim material, such
as seat covers, on the seat that is not
specifically designed to assure proper
air bag operation. Additionally, do not
stow any objects under the front pas-
senger seat or the seat cushion and
seatback. Such objects may interfere
with the proper operation of the occu-
pant classification sensor.

. No unauthorized changes should be

made to any components or wiring of
the seat belt system. This may affect the
front air bag system. Tampering with the
seat belt system may result in serious
personal injury.

. Work on and around the front air bag

system should be done by an INFINITI
retailer. Installation of electrical equip-
ment should also be done by an INFINITI
retailer. The Supplemental Restraint
System (SRS) wiring harness* should
not be modified or disconnected. Un-
authorized electrical test equipment and
probing devices should not be used on

-------------------------------------------------------------------------------------------------------------------------------------------------------------

the air bag system.

. A cracked windshield should be replaced

immediately by a qualified repair facility.
A cracked windshield could affect the
function of the supplemental air bag
system.

* The SRS wiring harness connectors are
yellow and orange for easy identification.

When selling your vehicle, we request that
you inform the buyer about the front air
bag system and guide the buyer to the
appropriate sections in this Owner

’s Man-

ual.

SSS0982

FRONT SEAT-MOUNTED SIDE-IM-
PACT SUPPLEMENTAL AIR BAG AND
DOOR-MOUNTED CURTAIN SIDE-IM-
PACT SUPPLEMENTAL AIR BAG SYS-
TEMS

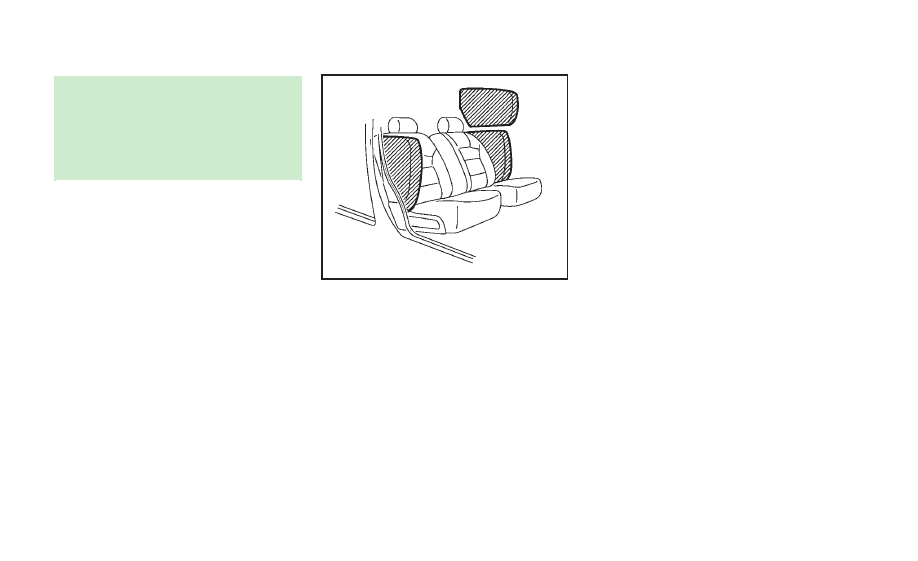

The side air bags are located in the outside
of the seatback of the front seats. The
curtain air bags are located in the upper
side of the door panel.

However, all of the

information, cautions and warnings in this
manual still apply and must be followed.
The side air bags and curtain air bags are
designed to inflate in higher severity side
collisions, although they may inflate if the

forces in another type of collision are
similar to those of a higher severity side
impact. They are designed to inflate on the
side where the vehicle is impacted. They
may not inflate in certain side collisions on
the side where the vehicle is impacted.

Vehicle damage (or lack of it) is not always
an indication of proper supplemental side
air bag and curtain side-impact air bag
operation.

When side air bags and curtain air bags
inflate, a fairly loud noise may be heard,
followed by release of smoke. This smoke
is not harmful and does not indicate a fire.
Care should be taken not to inhale it, as it
may cause irritation and choking. Those
with a history of a breathing condition
should get fresh air promptly.

Side air bags, along with the use of seat
belts, help to cushion the impact force on
the chest and pelvis of the front occupants.
Curtain air bags help to cushion the impact
force to the head of occupants in the front
seating positions. They can help save lives
and reduce serious injuries. However, an
inflating side air bags and curtain air bags
may cause abrasions or other injuries. Side
air bags and curtain air bags do not
provide restraint to the lower body.

Safety

— Seats, seat belts and supplemental restraint system

1-45

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-46

Safety

— Seats, seat belts and supplemental restraint system

The seat belts should be correctly worn
and the driver and passenger seated
upright as far as practical away from the
side air bag. The side air bags and curtain
side air bags inflate quickly in order to help
protect the occupants. Because of this, the
force of the side air bags and curtain air
bags inflating can increase the risk of
injury if the occupant is too close to, or is
against, these air bag modules during
inflation. The side air bags and curtain air
bags will deflate quickly after the collision
is over.

The side air bags and curtain air bags
operate only when the ignition switch is in
the ON position.

After pushing the ignition switch to the ON
position, the supplemental air bag warn-
ing light illuminates. The air bag warning
light will turn off after about 7 seconds if
the systems are operational.

WARNING

. Do not place any objects near the

seatback of the front seats. Also, do
not place any objects (an umbrella, bag,
etc.) between the front door finisher and
the front seat. Such objects may become

dangerous projectiles and cause injury if
side air bag inflates.

. Right after inflation, several side air

bags and curtain air bag system compo-
nents will be hot. Do not touch them;
you may severely burn yourself.

. No unauthorized changes should be

made to any components or wiring of
side air bag and curtain air bags. This is
to prevent accidental inflation of the side
air bag and curtain air bag or damage to
side air bag and curtain air bag systems.

. Do not make unauthorized changes to

your vehicle

’s electrical system, suspen-

sion system, door panel and door trim,
and side panel. This could affect proper
operation of the side air bag and curtain
air bag systems.

. Tampering with the side air bag system

may result in serious personal injury. For
example, do not change the front seats
by placing material near the seatback or
by installing additional trim material,
such as seat covers, around the side air
bags.

. Work around and on the side air bag and

curtain air bag systems should be done
by an INFINITI retailer. Installation of

electrical equipment should also be
done by an INFINITI retailer. The Supple-
mental Restraint System (SRS) wiring
harnesses* should not be modified or
disconnected. Unauthorized electrical
test equipment and probing devices
should not be used on the side-impact
air bag system.

* The SRS wiring harness connectors are
yellow and orange for easy identification.

When selling your vehicle, we request that
you inform the buyer about the side air bag
and curtain air bag systems and guide the
buyer to the appropriate sections in this
Owner

’s Manual.

SEAT BELTS WITH PRETENSIONERS
(front seats)

WARNING

. The pretensioners cannot be reused after

activation. They must be replaced to-
gether with the retractor and buckle as a
unit.

. If the vehicle becomes involved in a

collision but a pretensioner is not

-------------------------------------------------------------------------------------------------------------------------------------------------------------

activated, be sure to have the preten-
sioner system checked and, if necessary,
replaced by an INFINITI retailer.

. No unauthorized changes should be

made to any components or wiring of
the pretensioners. This is to prevent
damage to or accidental activation of the
pretensioner system. Tampering with the
pretensioner system may result in ser-
ious personal injury.

. Work around and on the pretensioners

should be done by an INFINITI retailer.
Installation of electrical equipment
should also be done by an INFINITI
retailer. Unauthorized electrical test
equipment and probing devices should
not be used on the pretensioner system.

. If you need to dispose of the preten-

sioner or scrap the vehicle, contact an
INFINITI retailer. Correct pretensioner
disposal procedures are set forth in the
appropriate INFINITI Service Manual.
Incorrect disposal procedures could
cause personal injury.

The pretensioner system may activate with
the supplemental air bag system in certain
types of collisions. Working with the seat
belt retractors, it helps tighten the seat

belt when the vehicle becomes involved in
certain types of collisions, helping to
restrain front seat occupants.

The pretensioner is encased with the seat
belt retractor. These seat belts are used the
same way as conventional seat belts.

When a pretensioner seat belt activates,
smoke is released and a loud noise may be
heard. The smoke is not harmful, and it
does not indicate a fire. Care should be
taken not to inhale it as it may cause
irritation and choking. Those with a history
of a breathing condition should get fresh
air promptly.

After pretensioner activation, load limiters
allow the seat belt to release webbing (if
necessary) to reduce forces against the
chest.

The supplemental air bag warning light

is used to indicate malfunctions in the

pretensioner system. (See

“Supplemental

air bag warning light

” (P.1-48) for more

details.) If the operation of the supple-
mental air bag warning light indicates
there is a malfunction, have the system
checked by an INFINITI retailer.

When selling your vehicle, we request that
you inform the buyer about the seat belt

pretensioners and guide the buyer to the
appropriate sections in this Owner

’s Man-

ual.

Safety

— Seats, seat belts and supplemental restraint system

1-47

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-48

Safety

— Seats, seat belts and supplemental restraint system

SSS1016

SUPPLEMENTAL AIR BAG WARNING
LABELS

Warning labels about the supplemental
front-impact air bag are placed in the
vehicle as shown in the illustration.

SRS air bag

The warning labels

are located on the

surface of the sun visors.

SPA1097

SUPPLEMENTAL AIR BAG WARNING
LIGHT

The supplemental air bag warning light,
displaying

in the instrument panel,

monitors the circuits for the air bag
systems, pretensioners and all related
wiring.

When the ignition switch is in the ON
position, the supplemental air bag warning
light illuminates for about 7 seconds and
then turns off. This means the system is
operational.

If any of the following conditions occur, the
front air bag, side air bag, curtain air bag

and pretensioner systems need servicing:
. The supplemental air bag warning light

remains on after approximately 7 sec-
onds.

. The supplemental air bag warning light

flashes intermittently.

. The supplemental air bag warning light

does not come on at all.

Under these conditions, the air bags and/
or pretensioner systems may not operate
properly. They must be checked and
repaired. Take your vehicle to the nearest
INFINITI retailer.

WARNING

If the supplemental air bag warning light is
on, it could mean that the front air bag, side
air bag, curtain air bag and/or pretensioner
systems will not operate in an accident. To
help avoid injury to yourself or others, have
your vehicle checked by a retailer as soon as
possible.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

REPAIR AND REPLACEMENT PROCE-
DURE

The front air bags, side air bags, curtain air
bags and pretensioners are designed to
activate on a one-time-only basis. As a
reminder, unless it is damaged, the sup-
plemental air bag warning light will remain
illuminated after inflation has occurred.
Repair and replacement of these systems
should be done only by an INFINITI retailer.

When maintenance work is required on the
vehicle, the front air bags, side air bags,
curtain air bags, pretensioners and related
parts should be pointed out to the person
conducting the maintenance. The ignition
switch should always be in the LOCK
position when working under the hood or
inside the vehicle.

WARNING

. Once a front air bag, side air bag, or

curtain air bag has inflated, the air bag
module will not function again and must
be replaced. Additionally, the activated
pretensioner must also be replaced. The
air bag module and pretensioner system
should be replaced by an INFINITI

retailer. The air bag module and preten-
sioner system cannot be repaired.

. The front air bag, side air bag, curtain air

bag and the pretensioner system should
be inspected by an INFINITI retailer if
there is any damage to the front end or
side portion of the vehicle.

. If you need to dispose of the supple-

mental air bag or pretensioner systems
or scrap the vehicle, contact an INFINITI
retailer. Correct supplemental air bag
and seat belt pretensioner system dis-
posal procedures are set forth in the
appropriate INFINITI Service Manual.
Incorrect disposal procedures could
cause personal injury.

SSS0983

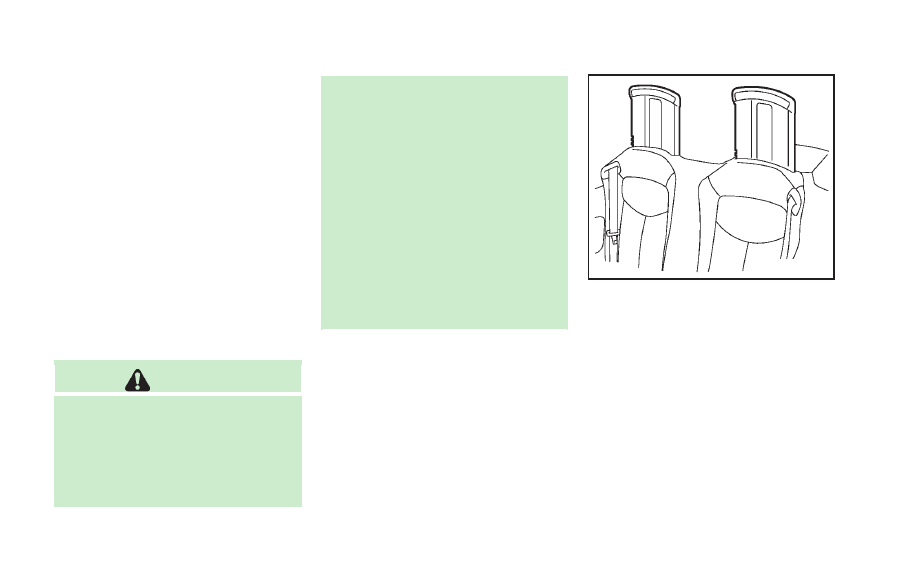

POP-UP ROLL BAR SYSTEM

The pop-up roll bars are designed to
deploy during rollover collisions. The pop-
up roll bars are located behind the rear
seatback and deploy when the Air bag
Control Unit (ACU) judges that the vehicle
will overturn.

The pop-up roll bars, with proper seat belt
usage, help preserve occupant headroom
in a rollover collision and can help reduce
the risk of occupant injury.

Safety

— Seats, seat belts and supplemental restraint system

1-49

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-50

Safety

— Seats, seat belts and supplemental restraint system

WARNING

Failure to follow the warnings and instruc-
tions in this section may result in serious
injury or death.

. The pop-up roll bars deploy upward at a

high speed when activated. Keep hands
and other body parts away from the pop-
up roll bars.

. Never place objects (such as umbrellas

or accessories) near the pop-up roll bars,
which deploy from the top of rear seat-
back. Such objects can become danger-
ous projectiles when pop-up roll bars
deploy.

. Tampering with the pop-up roll bars may

cause them to unintentionally deploy or
operate abnormally.

. Never open the pop-up roll bar covers or

modify or disassemble the pop-up roll
bars.

. Do not sit, place a heavy object, or apply

a strong load on the pop-up roll bar
cover. Doing so could cause damage to
the cover or cause the pop-up roll bar to
not operate properly.

. Never allow anyone other than an

INFINITI retailer to retract or repair the
pop-up roll bars. Always contact an
INFINITI retailer after pop-up roll bars
deploy.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SSI0819

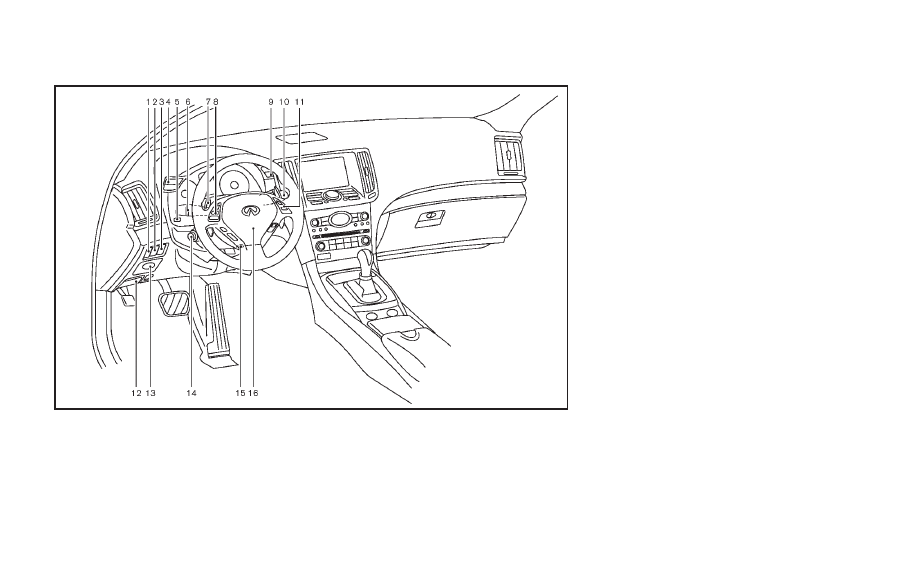

Vehicle Dynamic Control (VDC) OFF
switch (P.5-56)

Trunk lid release switch (P.3-28)

Sonar system OFF switch (if so
equipped) (P.5-51)

Instrument brightness control switch
(P.2-38)

TRIP/RESET switch for twin trip od-
ometer (P.2-7)

Headlight, fog light and turn signal
switch (P.2-34)

Paddle shifter (if so equipped) (P.5-16)

Steering-wheel-mounted controls (Left
side)
— ENTER or tuning switch (P.4-74)
— BACK switch (P.4-74)
— TALK switch (P.4-101)/Phone
switch (P.4-77, 4-87)
— Volume control switches (P.4-74)
— Source select switch (P.4-74)

Trip computer switch (P.2-26)

10. Windshield wiper and washer switch

(P.2-31)

11. Steering-wheel-mounted controls

(Right side)
— Cruise control switches (P.5-21)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P.5-23)

12. Hood release handle (P.3-17)
13. Intelligent Key port (P.5-9)
14. Electric tilting/telescopic steering

wheel lever (if so equipped) (P.3-34)

15. Manual tilting/telescopic steering

wheel lever (if so equipped) (P.3-34)

16. Steering wheel

— Horn (P.2-39)
— Driver supplemental air bag
(P.1-35)

Instruments and controls

2-3

COCKPIT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Infiniti Q60 Coupe (2014 year). Manual - part 4
