Infiniti Jx35 (2013 year). Manual

Checking tire pressure

1. Remove the valve stem cap from the

tire.

2. Press the pressure gauge squarely

onto the valve stem. Do not press too
hard or force the valve stem side-
ways, or air will escape. If the hissing
sound of air escaping from the tire is
heard while checking the pressure,
reposition the gauge to eliminate this
leakage.

3. Remove the gauge.

4. Read the tire pressure on the gauge

stem and compare to the specifica-
tion shown on the Tire and Loading
Information label.

5. Add air to the tire as needed. If too

much air is added, press the core of
the valve stem briefly with the tip of
the gauge stem to release pressure.
Recheck the pressure and add or
release air as needed.

6. Install the valve stem cap.

7. Check the pressure of all other tires,

including the spare.

Size

Cold Tire Inflation
Pressure

Front and Rear
Original Tire:
235/55R20

35 PSI, 240 kPa

Front and Rear
Original Tire:
235/65R18

33 PSI, 230 kPa

Spare Tire:
T165/90D18

60 PSI, 420 kPa

TIRE LABELING

Federal law requires tire manufacturers to
place standardized information on the
sidewall of all tires. This information iden-
tifies and describes the fundamental
characteristics of the tire and also pro-
vides the tire identification number (TIN)
for safety standard certification. The TIN
can be used to identify the tire in case of a
recall.

LDI0393

Example

WDI0394

8-34

Maintenance and do-it-yourself

-------------------------------------------------------------------------------------------------------------------------------------------------------------

䊊

Tire size (example: P215/65R15 95H)

1. P: The “P” indicates the tire is de-

signed for passenger vehicles (not all
tires have this information).

2. Three-digit number (215): This num-

ber gives the width in millimeters of
the tire from sidewall edge to side-
wall edge.

3. Two-digit number (65): This number,

known as the aspect ratio, gives the
tire’s ratio of height to width.

4. R: The “R” stands for radial.

5. Two-digit number (15): This number

is the wheel or rim diameter in inches.

6. Two- or three-digit number (95): This

number is the tire’s load index. It is a
measurement of how much weight
each tire can support. You may not
find this information on all tires be-
cause it is not required by law.

7. H: Tire speed rating. You should not

drive the vehicle faster than the tire
speed rating.

Example

WDI0395

Maintenance and do-it-yourself

8-35

-------------------------------------------------------------------------------------------------------------------------------------------------------------

䊊

TIN (Tire Identification Number) for a

new tire (example: DOT XX XX XXX
XXXX)

1. DOT: Abbreviation for the “Depart-

ment Of Transportation”. The symbol
can be placed above, below or to the
left or right of the Tire Identification
Number.

2. Two-digit

code:

Manufacturer’s

identification mark.

3. Two-digit code: Tire size.

4. Three-digit code: Tire type code

(Optional).

5. Three-digit code: Date of Manufac-

ture.

6. Four numbers represent the week

and year the tire was built. For ex-
ample, the numbers 3103 means the
31st week of 2003. If these numbers
are missing, then look on the other
sidewall of the tire.

䊊

Tire ply composition and material

The number of layers or plies of rubber-
coated fabric in the tire. Tire manufactur-
ers also must indicate the materials in the
tire, which include steel, nylon, polyester,
and others.

䊊

Maximum permissible inflation pres-

sure

This number is the greatest amount of air
pressure that should be put in the tire. Do
not exceed the maximum permissible in-
flation pressure.

䊊

Maximum load rating

This number indicates the maximum load
in kilograms and pounds that can be car-
ried by the tire. When replacing the tires
on the vehicle, always use a tire that has
the same load rating as the factory in-
stalled tire.

䊊

Term of “tubeless” or “tube type”

Indicates whether the tire requires an in-
ner tube (“tube type”) or not (“tubeless”).

Example

WDI0396

8-36

Maintenance and do-it-yourself

-------------------------------------------------------------------------------------------------------------------------------------------------------------

䊊

The word “radial”

The word “radial” is shown if the tire has
radial structure.

䊊

Manufacturer or brand name

Manufacturer or brand name is shown.

Other Tire-related Terminology

In addition to the many terms that are
defined throughout this section, Intended
Outboard Sidewall is (1) the sidewall that
contains a whitewall, bears white lettering
or bears manufacturer, brand, and/or
model name molding that is higher or
deeper than the same molding on the
other sidewall of the tire, or (2) the out-
ward facing sidewall of an asymmetrical
tire that has a particular side that must
always face outward when mounted on a
vehicle.

TYPES OF TIRES

WARNING

● When changing or replacing tires, be

sure all four tires are of the same type
(i.e., Summer, All Season or Snow) and
construction. An INFINITI retailer may
be able to help you with information
about tire type, size, speed rating and
availability.

● Replacement tires may have a lower

speed rating than the factory equipped
tires, and may not match the potential
maximum vehicle speed. Never exceed
the maximum speed rating of the tire.

● Replacing tires with those not originally

specified by INFINITI could affect the
proper operation of the low tire pres-
sure warning system.

● For additional information regarding

tires, refer to “Important Tire Safety In-
formation” (US) or “Tire Safety Informa-
tion” (Canada) in the Warranty Informa-
tion Booklet.

All season tires

INFINITI specifies All Season tires on some mod-
els to provide good performance all year, includ-

ing snowy and icy road conditions. All Season
tires are identified by ALL SEASON and/or M&S
on the tire sidewall. Snow tires have better snow
traction than All Season tires and may be more
appropriate in some areas.

Summer tires

INFINITI specifies summer tires on some models
to provide superior performance on dry roads.
Summer tire performance is substantially re-
duced in snow and ice. Summer tires do not have
the tire traction rating “M&S” on the tire sidewall.

If you plan to operate your vehicle in snowy or icy
conditions, INFINITI recommends the use of
SNOW tires or ALL SEASON tires on all four
wheels.

Snow tires

If snow tires are needed, it is necessary to select
tires equivalent in size and load rating to the
original equipment tires. If you do not, it can
adversely affect the safety and handling of your
vehicle.

Generally, snow tires have lower speed ratings
than factory equipped tires and may not match
the potential maximum vehicle speed. Never ex-
ceed the maximum speed rating of the tire.

Maintenance and do-it-yourself

8-37

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If you install snow tires, they must be the same
size, brand, construction and tread pattern on all
four wheels.

For additional traction on icy roads, studded tires
may be used. However, some U.S. states and
Canadian provinces prohibit their use. Check
local, state and provincial laws before installing
studded tires. Skid and traction capabilities of
studded snow tires on wet or dry surfaces may be
poorer than that of non-studded snow tires.

TIRE CHAINS

CAUTION

Tire chains/cables should not be installed
on 235/55R20 size tires. Installation of the
tire chains/cables on 235/55R20 size tires
will cause damage to the vehicle. If you
plan to use tire chains/cables, you should
install 235/65R18 size tires on your
vehicle.

Use of tire chains may be prohibited according to
location. Check the local laws before installing
tire chains. When installing tire chains, make sure
they are the proper size for the tires on your
vehicle and are installed according to the chain
manufacturer’s suggestions. Use only SAE
class “S” chains. Class “S” chains are used on
vehicles with restricted tire to vehicle clearance.
Vehicles that can use Class “S” chains are de-

signed to meet the minimum clearances between
the tire and the closest vehicle suspension or
body component required to accommodate the
use of a winter traction device (tire chains or
cables). The minimum clearances are determined
using the factory equipped tire size. Other types
may damage your vehicle. Use chain tensioners
when recommended by the tire chain manufac-
turer to ensure a tight fit. Loose end links of the
tire chain must be secured or removed to prevent
the possibility of whipping action damage to the
fenders or underbody. If possible, avoid fully load-
ing your vehicle when using tire chains. In addi-
tion, drive at a reduced speed. Otherwise, your
vehicle may be damaged and/or vehicle handling
and performance may be adversely affected.

Do not use tire chains on dry roads. Driving with
chains in such conditions can cause damage to
the various mechanisms of the vehicle due to
some overstress.

CHANGING WHEELS AND TIRES

Tire rotation

INFINITI recommends rotating the tires
every 7,500 miles (12,000 km).

See “Flat tire” in the “In case of emer-
gency” section of this manual for tire re-
placing procedures.

As soon as possible, tighten the
wheel nuts to the specified torque
with a torque wrench.

WDI0258

8-38

Maintenance and do-it-yourself

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Wheel nut tightening torque:

83 ft-lb (113 N·m)

The wheel nuts must be kept tight-
ened to specifications at all times. It
is recommended that wheel nuts be
tightened to specification at each
tire rotation interval.

WARNING

● After rotating the tires, check and

adjust the tire pressure.

● Retighten the wheel nuts when

the vehicle has been driven for
600 miles (1,000 km) (also in
cases of a flat tire, etc.).

● Do not include the spare tire in

the tire rotation.

● For additional information re-

garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire

Safety

Information”

(Canada) in the Warranty Infor-
mation Booklet.

Wear indicator

Location mark

Tire wear and damage

WARNING

● Tires should be periodically in-

spected for wear, cracking, bulg-
ing or objects caught in the tread.
If excessive wear, cracks, bulging
or deep cuts are found, the tire(s)
should be replaced.

● The original tires have built-in

tread wear indicators. When the
wear indicators are visible, the
tire(s) should be replaced.

● Tires degrade with age and use.

Have tires, including the spare,
over 6 years old checked by a
qualified

technician

because

some tire damage may not be ob-
vious. Replace the tires as neces-
sary to prevent tire failure and
possible personal injury.

● Improper service of the spare tire

may result in serious personal in-
jury. If it is necessary to repair the
spare tire, contact an INFINITI
retailer.

● For additional information re-

garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire

Safety

Information”

(Canada) in the Warranty Infor-
mation Booklet.

WDI0259

Maintenance and do-it-yourself

8-39

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Replacing wheels and tires

When replacing a tire, use the same size, tread
design, speed rating and load carrying capacity
as originally equipped. Recommended types and
sizes are shown in “Wheels and tires” in the
“Technical and consumer information” section of
this manual.

WARNING

● The use of tires other than those recom-

mended or the mixed use of tires of
different brands, construction (bias,
bias-belted or radial), or tread patterns
can adversely affect the ride, braking,
handling, VDC system, ground clear-
ance, body-to-tire clearance, tire chain
clearance,

speedometer

calibration,

headlight

aim

and

bumper

height.

Some of these effects may lead to acci-
dents and could result in serious per-
sonal injury.

● If your vehicle was originally equipped

with 4 tires that were the same size and
you are only replacing 2 of the 4 tires,
install the new tires on the rear axle.
Placing new tires on the front axle may
cause loss of vehicle control in some
driving conditions and cause an acci-
dent and personal injury.

● If the wheels are changed for any rea-

son, always replace with wheels which
have

the

same

off-set

dimension.

Wheels of a different off-set could
cause premature tire wear, degrade ve-
hicle handling characteristics, affect
the VDC system and/or interference
with the brake discs/drums. Such inter-
ference can lead to decreased braking
efficiency and/or early brake pad/shoe
wear. Refer to “Wheels and tires” in the
“Technical and consumer information”
section of this manual for wheel off-set
dimensions.

● When a spare tire is mounted or a wheel

is replaced, tire pressure will not be
indicated, the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute.
Contact your INFINITI retailer as soon
as possible for tire replacement and/or
system resetting.

● Replacing tires with those not originally

specified by INFINITI could affect the
proper operation of the TPMS.

● Do not install a damaged or deformed

wheel or tire even if it has been re-
paired. Such wheels or tires could have
structural damage and could fail with-
out warning.

● The use of retread tires is not

recommended.

● For additional information regarding

tires, refer to “Important Tire Safety In-
formation” (US) or “Tire Safety Informa-
tion” (Canada) in the Warranty Informa-
tion Booklet.

Wheel balance

Unbalanced wheels may affect vehicle handling
and tire life. Even with regular use, wheels can get
out of balance. Therefore, they should be bal-
anced as required.

Wheel balance service should be per-
formed with the wheels off the vehicle.
Spin balancing the wheels on the vehicle
could lead to mechanical damage.

● For additional information regarding

tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety Infor-
mation” (Canada) in the Warranty In-
formation Booklet.

8-40

Maintenance and do-it-yourself

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The following are approximate capacities. The actual refill capacities may be slightly different. When refilling, follow the procedure
described in the “Maintenance and do-it-yourself” section to determine the proper refill capacity.

Capacity (Approximate)

Recommended Fluids and Lubricants

US measure

Imp measure

Liter

Fuel

19-1/2 gal

16-1/4 gal

74.0

See “Fuel recommendation” later in this section.

Engine oil *7

Drain and Refill

With oil filter
change

5-1/8 qt

4-1/4 qt

4.8

• Engine oil with API Certification Mark *1, *2
• Viscosity SAE 5W-30 *1, *2

Without oil filter
change

4-3/4 qt

4 qt

4.5

Cooling system

With reservoir

2-1/2 gal

2-1/8 gal

9.6

Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent

Continuously Variable Transmission (CVT) fluid

—

Genuine NISSAN CVT Fluid NS-3 *3

Power steering fluid (PSF)

—

Genuine NISSAN E-PSF or equivalent.*4

Differential gear oil

—

Genuine NISSAN Differential Oil Hypoid Super Semi-Synthetic API GL-5, Vis-
cosity SAE 75W-90 *8

Transfer fluid

—

API GL-5, Viscosity SAE 80W-90 or equivalent

Brake fluid

—

Genuine NISSAN Super Heavy Duty Brake Fluid *5 or equivalent DOT 3

Multi-purpose grease

—

NLGI No. 2 (Lithium Soap base)

Air conditioning system refrigerant

—

HFC-134a (R-134a) *6

Air conditioning system oil

—

Genuine NISSAN A/C System Oil Type S or equivalent *6

Windshield-washer fluid

1-1/4 gal

1 gal

4.6

Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze fluid
or equivalent

*1: For further details, see “Engine oil and oil filter recommendations” in this section.
*2: INFINITI recommends Genuine NISSAN Ester Oil available at an INFINITI dealer.
*3: Use only Genuine NISSAN CVT Fluid NS-3. Using transmission fluid other than Genuine NISSAN CVT Fluid NS-3 will damage the CVT, which is not covered by

the INFINITI new vehicle limited warranty.

*4: Use of power steering fluid other than Genuine NISSAN E-PSF will prevent the power steering system from operating properly.
*5: Available in mainland USA through an INFINITI retailer.
*6: For further details, see “Air conditioner system refrigerant and oil recommendations” in this section.
*7: For further details, see “Engine Oil” in the “Maintenance and do-it-yourself” section of this manual.
*8: The use of differential gear oil other than the specified may cause vehicle malfunctions and result in non-warranty vehicle repairs.

CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS

9-2

Technical and consumer information

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FUEL RECOMMENDATION

INFINITI recommends the use of unleaded pre-
mium gasoline with an octane rating of at least
91 AKI (Anti-Knock Index) number (Research
octane number 96). If unleaded premium gaso-
line is not available, you may use unleaded regular
gasoline with an octane rating of at least 87 AKI
number (Research octane number 91), but you
may notice a decrease in performance.

CAUTION

● Using a fuel other than that specified

could adversely affect the emission
control system, and may also affect the
warranty coverage.

● Under no circumstances should a

leaded gasoline be used, because this
will damage the three-way catalyst.

● Do not use E-15 or E-85 fuel in your

vehicle. Your vehicle is not designed to
run on E-15 or E-85 fuel. Using E-15 or
E-85 fuel in a vehicle not specifically
designed for E-15 or E-85 fuel can ad-
versely affect the emission control de-
vices and systems of the vehicle. Dam-
age caused by such fuel is not covered
by the INFINITI new vehicle limited
warranty.

● U.S. government regulations require

ethanol dispensing pumps to be identi-
fied by a small, square, orange and
black label with the common abbrevia-
tion or the appropriate percentage for
that region.

Gasoline specifications

INFINITI recommends using gasoline that meets
the World-Wide Fuel Charter (WWFC) specifi-
cations where it is available. Many of the automo-
bile manufacturers developed this specification
to improve emission control system and vehicle
performance. Ask your service station manager if
the gasoline meets the WWFC specifications.

Reformulated gasoline

Some fuel suppliers are now producing reformu-
lated gasolines. These gasolines are specially
designed to reduce vehicle emissions. INFINITI
supports efforts towards cleaner air and sug-
gests that you use reformulated gasoline when
available.

Gasoline containing oxygenates

Some fuel suppliers sell gasoline containing oxy-
genates such as ethanol, MTBE and methanol
with or without advertising their presence.
INFINITI does not recommend the use of fuels of
which the oxygenate content and the fuel com-

patibility for your INFINITI cannot be readily de-
termined. If in doubt, ask your service station
manager.

If you use oxygenate-blend gasoline, please take
the following precautions as the usage of such
fuels may cause vehicle performance problems
and/or fuel system damage.

● The fuel should be unleaded and have

an octane rating no lower than that
recommended for unleaded gasoline.

● If an oxygenate-blend other than

methanol blend is used, it should con-
tain no more than 10% oxygenate.
(MTBE may, however, be added up to
15%.)

● E-15 fuel contains more than 10% oxy-

genate. E-15 fuel will adversely affect
the emission control devices and sys-
tems of the vehicle and should not be
used. Damage caused by such fuel is
not covered by the INFINITI new ve-
hicle limited warranty.

Technical and consumer information

9-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

● If a methanol blend is used, it should

contain no more than 5% methanol
(methyl alcohol, wood alcohol). It
should also contain a suitable amount
of appropriate cosolvents and corro-
sion inhibitors. If not properly formu-
lated with appropriate cosolvents and
corrosion inhibitors, such methanol
blends may cause fuel system damage
and/or vehicle performance problems.
At this time, sufficient data is not avail-
able to ensure that all methanol blends
are suitable for use in INFINITI ve-
hicles.

If any driveability problems such as engine stall-
ing and difficult hot-starting are experienced after
using

oxygenate-blend

fuels,

immediately

change to a non-oxygenate fuel or a fuel with a
low blend of MTBE.

Take care not to spill gasoline during refu-
eling. Gasoline containing oxygenates can
cause paint damage.

E–15 fuel

E-15 fuel is a mixture of approximately 15% fuel
ethanol and 85% unleaded gasoline. E-15 can
only be used in vehicles designed to run on E-15
fuel. Do not use E-15 in your vehicle. U.S. gov-
ernment regulations require fuel ethanol dispens-
ing pumps to be identified with small, square,

orange and black label with the common abbre-
viation or the appropriate percentage for that
region.

E–85 fuel

E-85 fuel is a mixture of approximately 85% fuel
ethanol and 15% unleaded gasoline. E-85 can
only be used in a Flexible Fuel Vehicle (FFV). Do
not use E-85 in your vehicle. U.S. government
regulations require fuel ethanol dispensing
pumps to be identified by a small, square, orange
and black label with the common abbreviation or
the appropriate percentage for that region.

Aftermarket fuel additives

INFINITI does not recommend the use of any
aftermarket fuel additives (for example, fuel injec-
tor cleaner, octane booster, intake valve deposit
removers, etc.) which are sold commercially.
Many of these additives intended for gum, varnish
or deposit removal may contain active solvents or
similar ingredients that can be harmful to the fuel
system and engine.

Octane rating tips

Using unleaded gasoline with an octane
rating lower than recommended can cause
persistent, heavy “spark knock.” (“Spark
knock” is a metallic rapping noise.) If se-
vere, this can lead to engine damage. If you

detect a persistent heavy spark knock even
when using gasoline of the stated octane
rating, or if you hear steady spark knock
while holding a steady speed on level
roads, have an INFINITI retailer correct the
condition. Failure to correct the condition
is misuse of the vehicle, for which INFINITI
is not responsible.

Incorrect ignition timing may result in spark
knock, after-run and/or overheating, which may
cause excessive fuel consumption or engine
damage. If any of the above symptoms are en-
countered, have your vehicle checked at an
INFINITI retailer.

However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is not a
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.

9-4

Technical and consumer information

-------------------------------------------------------------------------------------------------------------------------------------------------------------

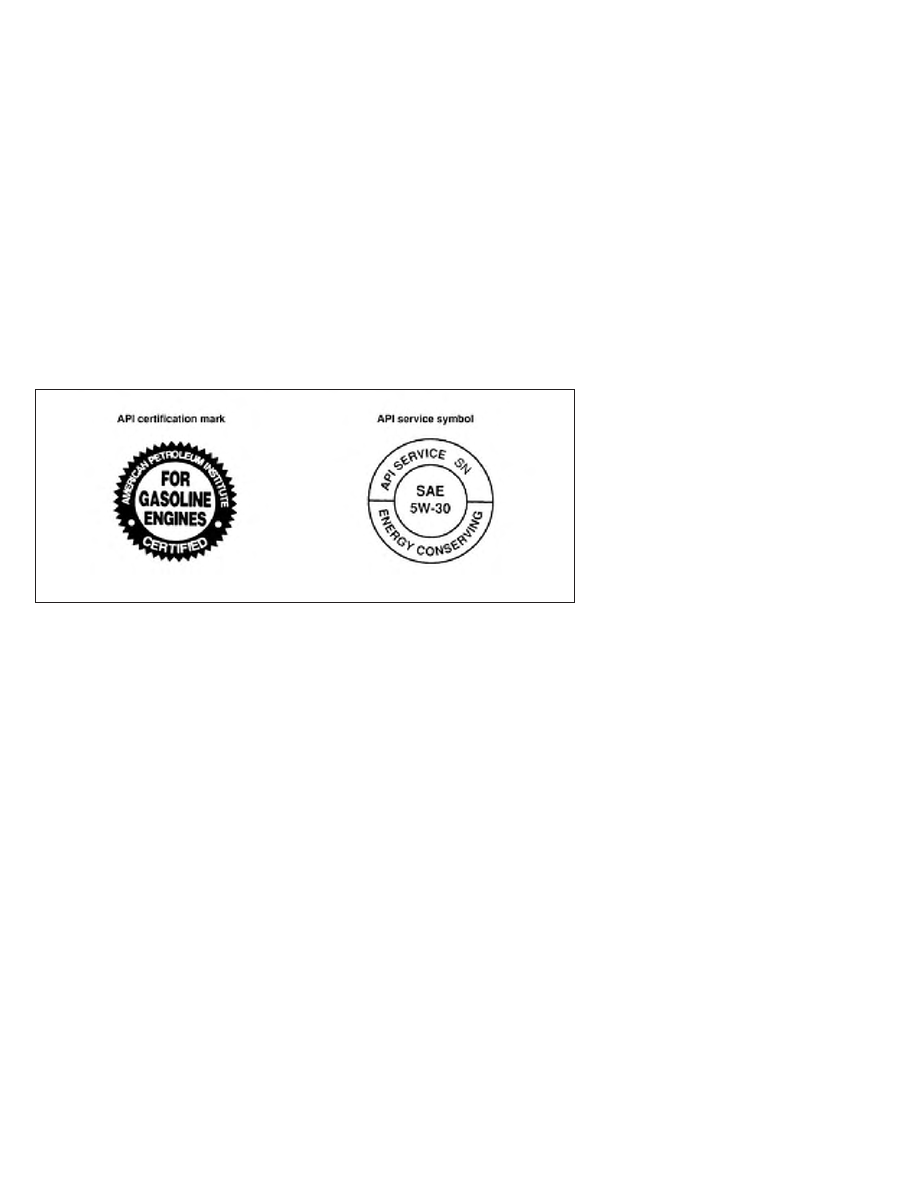

ENGINE OIL AND OIL FILTER
RECOMMENDATIONS

Selecting the correct oil

It is essential to choose the correct grade, quality
and viscosity engine oil to ensure satisfactory
engine life and performance. See

⬙Capacities

and recommended fuel/lubricants

⬙ earlier in this

section. INFINITI recommends the use of an en-
ergy conserving oil in order to improve fuel
economy.

Select only engine oils that meet the American
Petroleum Institute (API) certification or Interna-
tional Lubricant Standardization and Approval

Committee (ILSAC) certification and SAE vis-
cosity standard. These oils have the API certifica-
tion mark on the front of the container. Oils which
do not have the specified quality label should not
be used as they could cause engine damage.

Oil additives

INFINITI does not recommend the use of oil ad-
ditives. The use of an oil additive is not necessary
when the proper oil type is used and maintenance
intervals are followed.

Oil which may contain foreign matter or has been
previously used should not be used.

Oil viscosity

The engine oil viscosity or thickness changes
with temperature. Because of this, it is important
to select the engine oil viscosity based on the
temperatures at which the vehicle will be oper-
ated before the next oil change. Choosing an oil
viscosity other than that recommended could
cause serious engine damage.

Selecting the correct oil filter

Your new INFINITI vehicle is equipped with a
high-quality genuine NISSAN oil filter. When re-
placing, use a genuine NISSAN oil filter or its
equivalent for the reason described in “Change
intervals”.

Change intervals

The oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Using engine oil and filters
that are not of the specified quality, or exceeding
recommended oil and filter change intervals
could reduce engine life. Damage to the engine
caused by improper maintenance or use of incor-
rect oil and filter quality and/or viscosity is not
covered by the INFINITI new vehicle limited war-
ranty.

LTI2024

Technical and consumer information

9-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Your engine was filled with a high-quality engine
oil when it was built. You do not have to change
the oil before the first recommended change
interval. Oil and filter change intervals depend
upon how you use your vehicle.

Operation under the following conditions may
require more frequent oil and filter changes:

● repeated short distance driving at cold out-

side temperatures

● driving in dusty conditions
● extensive idling
● towing a trailer
● stop and go commuting

Refer to the “INFINITI Service and Maintenance
Guide” for the maintenance schedule.

AIR CONDITIONER SYSTEM
REFRIGERANT AND OIL
RECOMMENDATIONS

The air conditioner system in your INFINITI
vehicle must be charged with the refriger-
ant HFC-134a (R-134a) and the oil, NISSAN
A/C system oil DH-PS or the exact equiva-
lents.

CAUTION

The use of any other refrigerant or oil will
cause severe damage to the air condition-
ing system and will require the replace-
ment

all

air

conditioner

system

components.

The refrigerant HFC-134a (R-134a) in your
INFINITI vehicle does not harm the earth’s ozone
layer. Although this refrigerant does not affect the
earth’s atmosphere, certain government regula-
tions require the recovery and recycling of any
refrigerant during automotive air conditioner sys-
tem service. An INFINITI retailer has the trained
technicians and equipment needed to recover
and recycle your air conditioner system refriger-
ant.

Contact an INFINITI retailer when servicing your
air conditioner system.

9-6

Technical and consumer information

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ENGINE

Model

VQ35DE

Type

Gasoline, 4-cycle, DOHC

Cylinder arrangement

6-cylinder, V-block, Slanted at 60°

Bore x Stroke

in (mm) 3.760 x 3.205 (95.5 x 81.4)

Displacement

cu in (cm

) 213.45 (3,498)

Firing order

1–2–3–4–5–6

Idle speed

No adjustment is necessary.

CVT (in “N” position)

Ignition timing (degree B.T.D.C. at idle speed)

CO % at idle

Spark plug

FXE22HR-11

Spark plug gap (Nominal)

in (mm) 0.043 (1.1)

Camshaft operation

Timing chain

This spark ignition system complies with the Canadian standard ICES-002.

SPECIFICATIONS

Technical and consumer information

9-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Infiniti Jx35 (2013 year). Manual - part 32
