Infiniti Jx35 (2013 year). Manual

Speaker Adaptation:

Starts a system training procedure to learn the
specific sounds of your voice. See “Speaker ad-
aptation function” in this section.

Alternate Command Mode:

For advanced operation, an Alternate Command
Mode is provided. This setting enables control of
the audio system as well as additional commands
for the Phone and Navigation systems. With this
setting active, the system does not announce or
display the available commands at each step.
When this mode is activated, the Voice Recogni-
tion Settings will change to show more options.

Minimize Voice Feedback:

Reduces the amount of the information spoken
for each voice instruction.

SPEAKER ADAPTATION FUNCTION

The Voice Recognition system has a function to
learn the user’s voice for better voice recognition
performance. The system can memorize the
voices of up to three persons.

Having the system learn the user’s
voice

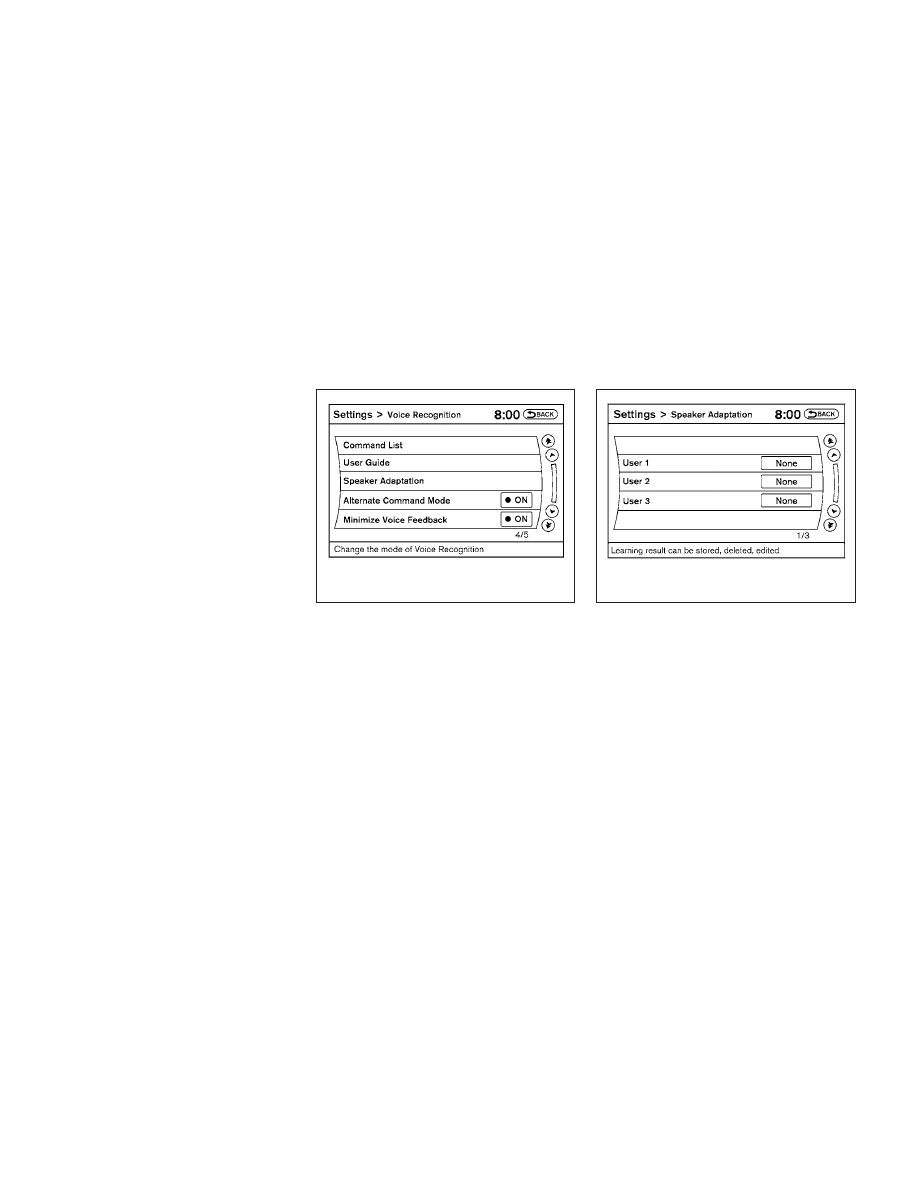

1. Press the SETTING button on the instru-

ment panel, select the “Others” key on the
display.

2. Select the “Voice Recognition” key.

3. Select the “Speaker Adaptation” key.

4. Select the user whose voice is to be memo-

rized by the system.

LHA1341

LHA1346

4-160

Monitor, climate, audio, phone and voice recognition systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

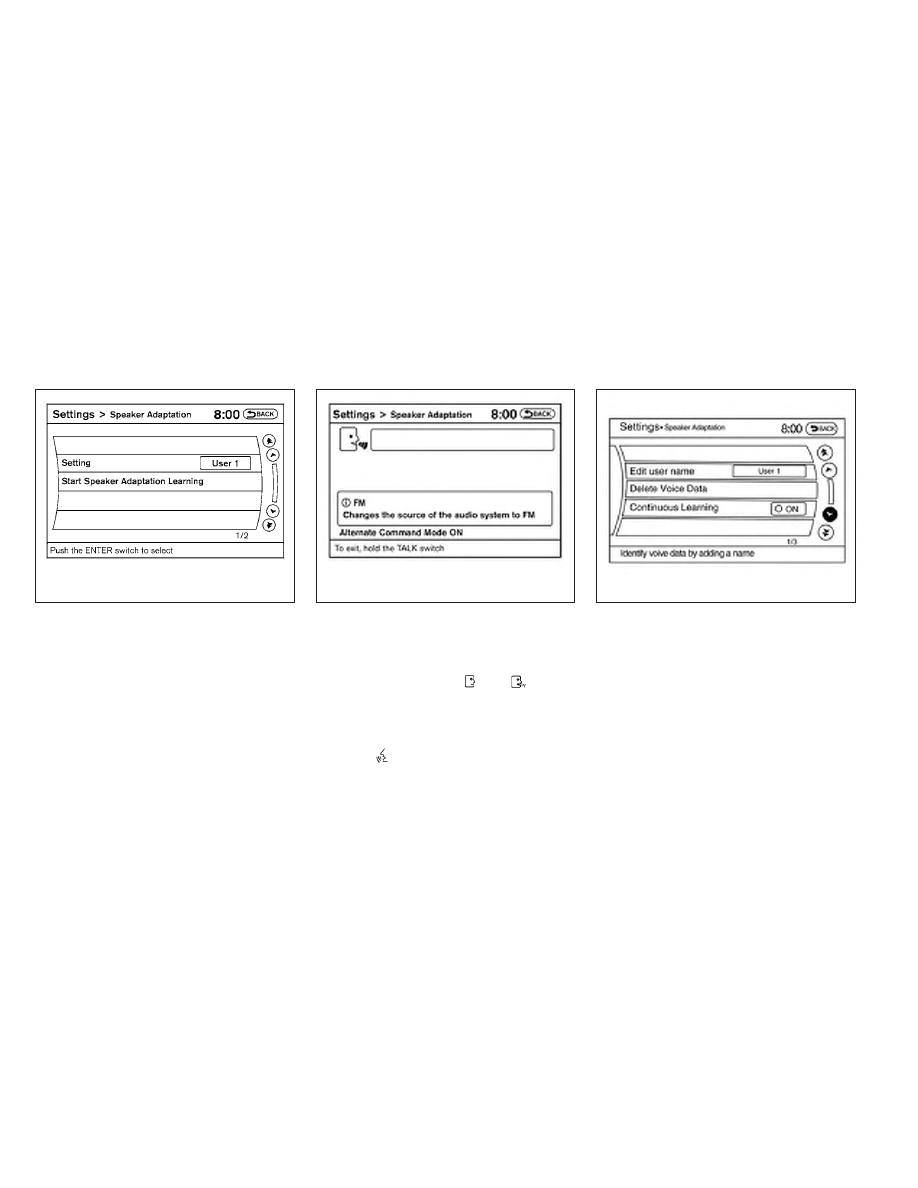

5. Select a category to be learned by the sys-

tem from the following list:

● Phone
● Navigation
● Information
● Audio
● Help

The voice commands in the category are
displayed.

6. Select a voice command to train.

The Voice Recognition system starts.

7. The system requests that you repeat a com-

mand after a tone. This command is also
displayed on the screen.

8. After the tone sounds and the icon on the

screen changes from

, speak

the command that the system requested.

9. When the system has recognized the voice

command, the voice of the user is learned.

Press the

switch or the BACK button to

return to the previous screen.

If the system has learned the command correctly,
the voice command indicator on the screen turns
on.

Speaker Adaptation function settings

Edit User Name:

Edit the user name using the keypad displayed on
the screen.

Delete Voice Data:

Resets the user’s voice that the Voice Recogni-
tion system has learned.

Continuous Learning:

When this item is turned to ON, you can have the
system learn the voice commands in succession,
without selecting commands one by one.

LHA1347

LHA2457

LHA2170

Monitor, climate, audio, phone and voice recognition systems

4-161

-------------------------------------------------------------------------------------------------------------------------------------------------------------

TROUBLESHOOTING GUIDE

The system should respond correctly to all voice
commands without difficulty. If problems are en-
countered, follow the solutions given in this guide
for the appropriate error.

Where the solutions are listed by number, try
each solution in turn, starting with number one,
until the problem is resolved.

Symptom/error message

Solution

Displays “COMMAND NOT RECOG-
NIZED” or the system fails to interpret
the command correctly.

1. Ensure that the command format is valid, see “Standard Mode command list” or “Alternate Command Mode command list” in this

section.

2. Speak clearly using your normal speech pattern and at a level appropriate to the ambient noise level.
3. Ensure that the ambient noise level is not excessive, for example, windows open or defrost on.

NOTE:

If it is too noisy to use the phone, it is likely that voice commands will not be recognized.

The system consistently selects the
wrong voicetag in the phonebook.

1. Ensure that the voicetag requested matches what was originally stored. See “Bluetooth® Hands-Free Phone System with Navigation

System” in this section.

2. Replace one of the voicetags being confused with a different voicetag.

4-162

Monitor, climate, audio, phone and voice recognition systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

● Do not leave children or adults who

would normally require the assistance
of others alone in your vehicle. Pets
should also not be left alone. They
could accidentally injure themselves or
others through inadvertent operation of
the vehicle. Also, on hot, sunny days,
temperatures in a closed vehicle could
quickly become high enough to cause
severe or possibly fatal injuries to
people or animals.

● Properly secure all cargo with ropes or

straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or col-
lision, unsecured cargo could cause
personal injury.

EXHAUST GAS (carbon monoxide)

WARNING

● Do not breathe exhaust gases; they

contain colorless and odorless carbon
monoxide. Carbon monoxide is danger-
ous. It can cause unconsciousness or
death.

● If you suspect that exhaust fumes are

entering the vehicle, drive with all win-
dows fully open, and have the vehicle
inspected immediately.

● Do not run the engine in closed spaces

such as a garage.

● Do not park the vehicle with the engine

running for any extended length of time.

● Keep the rear vent windows, liftgates,

doors and trunk lids (if so equipped)
closed while driving, otherwise exhaust
gases could be drawn into the passen-
ger compartment. If you must drive with
one

these

open,

follow

these

precautions:

1. Open all the windows.

2. Set the

air recirculation but-

ton to off and the fan control dial to
high to circulate the air.

● If electrical wiring or other cable con-

nections must pass to a trailer through
the seal on the lift gate or the body,
follow the manufacturer’s recommen-
dation to prevent carbon monoxide en-
try into the vehicle.

● The exhaust system and body should be

inspected by a qualified mechanic
whenever:

a. The vehicle is raised for service.

b. You suspect that exhaust fumes are

entering

into

the

passenger

compartment.

c. You notice a change in the sound of

the exhaust system.

d. You have had an accident involving

damage to the exhaust system, un-
derbody, or rear of the vehicle.

THREE-WAY CATALYST

The three-way catalyst is an emission control
device installed in the exhaust system. Exhaust
gases in the three-way catalyst are burned at
high temperatures to help reduce pollutants.

WARNING

● The exhaust gas and the exhaust sys-

tem are very hot. Keep people, animals
or flammable materials away from the
exhaust system components.

PRECAUTIONS WHEN STARTING
AND DRIVING

5-2

Starting and driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

● Do not stop or park the vehicle over

flammable materials such as dry grass,
waste paper or rags. They may ignite
and cause a fire.

CAUTION

● Do not use leaded gasoline. Deposits

from leaded gasoline will seriously re-
duce the three-way catalyst’s ability to
help reduce exhaust pollutants.

● Keep your engine tuned up. Malfunc-

tions in the ignition, fuel injection, or
electrical systems can cause overrich
fuel flow into the three-way catalyst,
causing it to overheat. Do not keep driv-
ing if the engine misfires, or if notice-
able loss of performance or other un-
usual

operating

conditions

are

detected. Have the vehicle inspected
promptly by an INFINITI retailer.

● Avoid driving with an extremely low fuel

level. Running out of fuel could cause
the engine to misfire, damaging the
three-way catalyst.

● Do not race the engine while warming it

up.

● Do not push or tow your vehicle to start

the engine.

TIRE PRESSURE MONITORING
SYSTEM (TPMS)

Each tire, including the spare (if provided),
should be checked monthly when cold and in-
flated to the inflation pressure recommended by
the vehicle manufacturer on the vehicle placard
or tire inflation pressure label. (If your vehicle has
tires of a different size than the size indicated on
the vehicle placard or tire inflation pressure label,
you should determine the proper tire inflation
pressure for those tires.)

As an added safety feature, your vehicle has been
equipped with a Tire Pressure Monitoring System
(TPMS) that illuminates a low tire pressure telltale
when one or more of your tires is significantly
under-inflated. Accordingly, when the low tire
pressure telltale illuminates, you should stop and
check your tires as soon as possible, and inflate
them to the proper pressure. Driving on a signifi-
cantly under-inflated tire causes the tire to over-
heat and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life, and
may affect the vehicle’s handling and stopping
ability.

Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure,

even if under-inflation has not reached the level to
trigger illumination of the TPMS low tire pressure
telltale.

Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when the
system is not operating properly. The TPMS mal-
function indicator is combined with the low tire
pressure telltale. When the system detects a
malfunction, the telltale will flash for approxi-
mately one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the mal-
function exists. When the malfunction indicator is
illuminated, the system may not be able to detect
or signal low tire pressure as intended. TPMS
malfunctions may occur for a variety of reasons,
including the installation of replacement or alter-
nate tires or wheels on the vehicle that prevent
the TPMS from functioning properly. Always
check the TPMS malfunction telltale after replac-
ing one or more tires or wheels on your vehicle to
ensure that the replacement or alternate tires and
wheels allow the TPMS to continue to function
properly.

Additional information:

● The TPMS does not monitor the tire

pressure of the spare tire.

Starting and driving

5-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

● The TPMS will activate only when the vehicle

is driven at speeds above 16 MPH
(25 km/h). Also, this system may not detect a
sudden drop in tire pressure (for example a
flat tire while driving).

● The low tire pressure warning light does not

automatically turn off when the tire pressure
is adjusted. After the tire is inflated to the
recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h)
to activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.

● The “Check Tire Pressure” warning appears

in the vehicle information display when the
low tire pressure warning light is illuminated
and low tire pressure is detected. The
“Check Tire Pressure” warning turns off
when the low tire pressure warning light
turns off.

● The “Check Tire Pressure” warning does not

appear if the low tire pressure warning light
illuminates to indicate a TPMS malfunction.

● Tire pressure rises and falls depending on

the heat caused by the vehicle’s operation
and the outside temperature. Low outside
temperature can lower the temperature of
the air inside the tire which can cause a
lower tire inflation pressure. This may cause
the low tire pressure warning light to illumi-
nate. If the warning light illuminates, check
the tire pressure for all 4 tires.

● The Tire and Loading Information label (also

referred to as the vehicle placard or tire
inflation pressure label) is located in the
driver’s door opening.

● You can also check the pressure of all tires

(except the spare tire) on the vehicle infor-
mation display screen. The order of the tire
pressure figures displayed on the screen
corresponds with the actual order of the tire
position.

For additional information, see “Low tire pressure
warning light” in the “Instruments and controls”
section, “Tire Pressure Monitoring System
(TPMS)” in the “In case of emergency” section.

WARNING

● Radio waves could adversely affect

electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufac-
turer for the possible influences before
use.

● If the low tire pressure warning light

illuminates while driving, avoid sudden
steering maneuvers or abrupt braking,
reduce vehicle speed, pull off the road
to a safe location and stop the vehicle
as soon as possible. Driving with under-
inflated tires may permanently damage
the tires and increase the likelihood of
tire failure. Serious vehicle damage
could occur and may lead to an acci-
dent and could result in serious per-
sonal injury. Check the tire pressure for
all four tires. Adjust the tire pressure to
the recommended COLD tire pressure
shown on the Tire and Loading Informa-
tion label to turn the low tire pressure
warning light OFF. If you have a flat tire,
replace it with a spare tire as soon as
possible. (See “Flat tire” in the “In case
of emergency” section for changing a
flat tire.)

5-4

Starting and driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

● When a spare tire is mounted or a wheel

is replaced, tire pressure will not be
indicated, the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute.
Contact your INFINITI reatailer as soon
as possible for tire replacement and/or
system resetting.

● Replacing tires with those not originally

specified by INFINITI could affect the
proper operation of the TPMS.

● Do not inject any tire liquid or aerosol

tire sealant into the tires, as this may
cause a malfunction of the tire pressure
sensors.

CAUTION

● The TPMS may not function properly

when the wheels are equipped with tire
chains or the wheels are buried in snow.

● Do not place metalized film or any

metal parts (antenna, etc.) on the win-
dows. This may cause poor reception of
the signals from the tire pressure sen-
sors, and the TPMS will not function
properly.

Some devices and transmitters may temporarily
interfere with the operation of the TPMS and
cause the low tire pressure warning light to illu-
minate.

Some examples are:

– Facilities or electric devices using similar radio

frequencies are near the vehicle.

– If a transmitter set to similar frequencies is

being used in or near the vehicle.

– If a computer (or similar equipment) or a

DC/AC converter is being used in or near the
vehicle.

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions:

1. This device may not cause harmful in-

terference, and

2. This device must accept any interfer-

ence received, including interference
that may cause undesired operation.
Note: Changes or modification not ex-
pressly approved by the party respon-
sible for compliance could void the us-
er’s authority to operate the equipment.

For Canada:

This device complies with RSS-210 of In-
dustry Canada. Operation is subject to the
following two conditions:

1. This device may not cause interfer-

ence, and

2. This device must accept any interfer-

ence, include interference that may
cause undesired operation of the de-
vice.

3. The term “IC:” before the radio certifi-

cation number only signifies that In-
dustry Canada technical specifications
were met.

TPMS with Tire Inflation Indicator

When adding air to an under-inflated tire, the
TPMS with Tire Inflation Indicator provides visual
and audible signals outside the vehicle to help
you inflate the tires to the recommended COLD
tire pressure.

Vehicle set-up:

1. Park the vehicle in a safe and level place.

2. Apply the parking brake and place the shift

selector to the P (Park) position.

3. Place the ignition switch to the ON position.

Do not start the engine.

Starting and driving

5-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Operation:

1. Add air to the tire.

2. After a few seconds, the hazard indicators

will start flashing.

3. When the designated pressure is reached,

the horn beeps once and the hazard indica-
tors stop flashing.

4. Perform the above steps for each tire.

● If the tire is over-inflated more than ap-

proximately 4 psi (30 kPa), the horn
beeps and the hazard indicators flash 3
times. To correct the pressure, push the
core of the valve stem on the tire briefly to
release pressure. When the pressure
reaches the designated pressure, the
horn beeps once.

● If the hazard indicator does not flash

within approximately 15 seconds after
starting to inflate the tire, it indicates that
the TPMS with Tire Inflation Indicator is
not operating.

● The TPMS will not activate the TPMS with

Tire Inflation Indicator under the following
conditions:

– If there is interference from an external

device or transmitter.

– The air pressure from the inflation device

is not sufficient to inflate the tire.

– There is a malfunction in the TPMS sys-

tem.

– There is a malfunction in the horn or haz-

ard indicators.

– The identification code of the tires pres-

sure sensor is not registered to the sys-
tem.

– The battery of the tire pressure sensor is

low.

● If the TPMS with Tire Inflation Indicator

does not operate due to TPMS interfer-
ence, move the vehicle about 3 ft (1 m)
backward or forward and try again.

If the TPMS with Tire Inflation Indicator is not
working, use a tire pressure gauge.

ON-PAVEMENT AND OFF-ROAD
DRIVING PRECAUTIONS

Utility vehicles have a significantly higher
rollover rate than other types of vehicles.

They have higher ground clearance than passen-
ger cars to make them capable of performing in a
variety of on-pavement and off-road applications.
This gives them a higher center of gravity than
ordinary cars. An advantage of higher ground

clearance is a better view of the road, allowing
you to anticipate problems. However, they are not
designed for cornering at the same speeds as
conventional two-wheel drive vehicles any more
than low-slung sports cars are designed to per-
form satisfactorily under off-road conditions. If at
all possible, avoid sharp turns at high speeds. As
with other vehicles of this type, failure to operate
this vehicle correctly may result in loss of control
or vehicle rollover. In a rollover crash, an unbelted
person is significantly more likely to die than a
person wearing a seat belt.

Be sure to read the driving safety precautions
later in this section.

AVOIDING COLLISION AND
ROLLOVER

WARNING

Failure to operate this vehicle in a safe
and prudent manner may result in loss of
control or an accident.

Be alert and drive defensively at all times. Obey
all traffic regulations. Avoid excessive speed,
high speed cornering, or sudden steering ma-
neuvers, because these driving practices could
cause you to lose control of your vehicle. As with
any vehicle, loss of control could result in a
collision with other vehicles or objects or

5-6

Starting and driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

cause the vehicle to roll over, particularly if
the loss of control causes the vehicle to
slide sideways. Be attentive at all times, and
avoid driving when tired. Never drive when under
the influence of alcohol or drugs (including pre-
scription or over-the-counter drugs which may
cause drowsiness). Always wear your seat belt
as outlined in the “Safety – Seats, seat belts and
supplemental restraint system” section of this
manual, and also instruct your passengers to do
so.

Seat belts help reduce the risk of injury in colli-
sions and rollovers. In a rollover crash, an
unbelted or improperly belted person is
significantly more likely to be injured or
killed than a person properly wearing a
seat belt.

OFF-ROAD RECOVERY

If the right side or left side wheels unintentionally
leave the road surface, maintain control of the
vehicle by following the procedure below. Please
note that this procedure is only a general guide.
The vehicle must be driven as appropriate based
on the conditions of the vehicle, road and traffic.

1. Remain calm and do not overreact.

2. Do not apply the brakes.

3. Maintain a firm grip on the steering wheel

with both hands and try to hold a straight
course.

4. When appropriate, slowly release the accel-

erator pedal to gradually slow the vehicle.

5. If there is nothing in the way, steer the ve-

hicle to follow the road while vehicle speed
is reduced. Do not attempt to drive the ve-
hicle back onto the road surface until vehicle
speed is reduced.

6. When it is safe to do so, gradually turn the

steering wheel until both tires return to the
road surface. When all tires are on the road
surface, steer the vehicle to stay in the ap-
propriate driving lane.

● If you decide that it is not safe to return the

vehicle to the road surface based on vehicle,
road or traffic conditions, gradually slow the
vehicle to a stop in a safe place off the road.

RAPID AIR PRESSURE LOSS

Rapid air pressure loss or a “blow-out” can occur
if the tire is punctured or is damaged due to
hitting a curb or pothole. Rapid air pressure loss
can also be caused by driving on under-inflated
tires.

Rapid air pressure loss can affect the handling
and stability of the vehicle, especially at highway
speeds.

Help prevent rapid air pressure loss by maintain-
ing the correct air pressure and visually inspect
the tires for wear and damage. See “Wheels and
tires” in the “Maintenance and do-it-yourself”
section of this manual. If a tire rapidly loses air
pressure or “blows-out” while driving, maintain
control of the vehicle by following the procedure
below. Please note that this procedure is only a
general guide. The vehicle must be driven as
appropriate based on the conditions of the ve-
hicle, road and traffic.

WARNING

The following actions can increase the
chance of losing control of the vehicle if
there is a sudden loss of tire air pressure.
Losing control of the vehicle may cause a
collision and result in personal injury.

● The vehicle generally moves or pulls in

the direction of the flat tire.

● Do not rapidly apply the brakes.
● Do not rapidly release the accelerator

pedal.

● Do not rapidly turn the steering wheel.

Starting and driving

5-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1. Remain calm and do not over react.

2. Maintain a firm grip on the steering wheel

with both hands and try to hold a straight
course.

3. When appropriate, slowly release the accel-

erator pedal to gradually slow the vehicle.

4. Gradually steer the vehicle to a safe location

off the road and away from traffic if possible.

5. Lightly apply the brake pedal to gradually

stop the vehicle.

6. Turn on the hazard warning flashers and

either contact a roadside emergency service
to change the tire or see “Changing a flat
tire” in the “In case of emergency” section of
this manual.

DRINKING ALCOHOL/DRUGS AND
DRIVING

WARNING

Never drive under the influence of alcohol
or drugs. Alcohol in the bloodstream re-
duces coordination, delays reaction time
and impairs judgement. Driving after
drinking alcohol increases the likelihood
of being involved in an accident injuring
yourself and others. Additionally, if you
are injured in an accident, alcohol can
increase the severity of the injury.

INFINITI is committed to safe driving. However,
you must choose not to drive under the influence
of alcohol. Every year thousands of people are
injured or killed in alcohol-related accidents. Al-
though the local laws vary on what is considered
to be legally intoxicated, the fact is that alcohol
affects all people differently and most people
underestimate the effects of alcohol.

Remember, drinking and driving don’t mix! And
that is true for drugs, too (over-the-counter, pre-
scription, and illegal drugs). Don’t drive if your
ability to operate your vehicle is impaired by alco-
hol, drugs, or some other physical condition.

DRIVING SAFETY PRECAUTIONS

Your INFINITI is designed for both normal and
off-road use. However, avoid driving in deep wa-
ter or mud as your INFINITI is mainly designed for
leisure use, unlike a conventional off-road ve-
hicle.

Remember that two-wheel drive models are less
capable than four-wheel drive models for rough
road driving and extrication when stuck in deep
snow or mud, or the like.

Please observe the following precautions:

WARNING

● Spinning the front wheels on slippery

surface may cause the AWD warning
message to display and the AWD sys-
tem to automatically switch from the
AWD to the 2WD mode. This could re-
duce the traction. Be especially careful
when towing a trailer. (AWD models)

● Drive carefully when off the road and

avoid dangerous areas. Every person
who drives or rides in this vehicle
should be seated with their seat belt
fastened. This will keep you and your
passengers in position when driving
over rough terrain.

5-8

Starting and driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

● Do not drive across steep slopes. In-

stead drive either straight up or straight
down the slopes. Off-road vehicles can
tip over sideways much more easily
than they can forward or backward.

● Many hills are too steep for any vehicle.

If you drive up them, you may stall. If
you drive down them, you may not be
able to control your speed. If you drive
across them, you may roll over.

● Do not shift gears while driving on

downhill grades as this could cause
loss of control of the vehicle.

● Stay alert when driving to the top of a

hill. At the top there could be a drop-off
or other hazard that could cause an
accident.

● If your engine stalls or you cannot make

it to the top of a steep hill, never at-
tempt to turn around. Your vehicle
could tip or roll over. Always back
straight down in R (Reverse) gear and
apply brakes to control your speed.

● Heavy braking going down a hill could

cause your brakes to overheat and fade,
resulting in loss of control and an acci-
dent. Apply brakes lightly and use a low
gear to control your speed.

● Unsecured cargo can be thrown around

when driving over rough terrain. Prop-
erly secure all cargo so it will not be
thrown forward and cause injury to you
or your passengers.

● Secure heavy loads in the cargo area as

far forward and as low as possible. Do
not equip the vehicle with tires larger
than specified in this manual. This
could cause your vehicle to roll over.

● Do not grip the inside or spokes of the

steering wheel when driving off-road.
The steering wheel could move sud-
denly and injure your hands. Instead
drive with your fingers and thumbs on
the outside of the rim.

● Before operating the vehicle, ensure

that the driver and all passengers have
their seat belts fastened.

● Always drive with the floor mats in

place as the floor may become hot.

● Lower your speed when encountering

strong crosswinds. With a higher center
of gravity, your INFINITI is more af-
fected by strong side winds. Slower
speeds ensure better vehicle control.

● Do not drive beyond the performance

capability of the tires, even with AWD
engaged.

● For AWD equipped vehicles, do not at-

tempt to raise two wheels off the
ground and shift the transmission to
any drive or reverse position with the
engine running. Doing so may result in
drivetrain damage or unexpected ve-
hicle movement which could result in
serious vehicle damage or personal
injury.

● Do not attempt to test a AWD equipped

vehicle on a 2-wheel dynamometer
(such as the dynamometers used by
some states for emissions testing), or
similar equipment even if the other two
wheels are raised off the ground. Make
sure you inform test facility personnel
that your vehicle is equipped with AWD
before it is placed on a dynamometer.
Using the wrong test equipment may
result in drivetrain damage or unex-
pected vehicle movement which could
result in serious vehicle damage or per-
sonal injury.

● When a wheel is off the ground due to

an unlevel surface, do not spin the
wheel excessively.

Starting and driving

5-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

● Accelerating quickly, sharp steering

maneuvers or sudden braking may
cause loss of control.

● If at all possible, avoid sharp turning

maneuvers, particularly at high speeds.
Your INFINITI vehicle has a higher cen-
ter of gravity than a passenger car. The
vehicle is not designed for cornering at
the same speeds as passenger cars.
Failure to operate this vehicle correctly
could result in loss of control and/or a
rollover accident.

● Always use tires of the same type, size,

brand, construction (bias, bias-belted,
or radial), and tread pattern on all four
wheels. Install tire chains on the front
wheels when driving on slippery roads
and drive carefully.

● Be sure to check the brakes immedi-

ately after driving in mud or water. See
“Brake system” later in this section for
“Wet brakes”.

● Avoid parking your vehicle on steep

hills. If you get out of the vehicle and it
rolls forward, backward or sideways,
you could be injured.

● Whenever you drive off-road through

sand, mud or water as deep as the
wheel hub, more frequent maintenance
may be required. See “Periodic mainte-
nance” in the “INFINITI Service and
Maintenance Guide.”

WARNING

Do not operate the push-button ignition
switch while driving the vehicle except in
an emergency. (The engine will stop when
the ignition switch is pushed 3 consecu-
tive times in quick succession or the igni-
tion switch is pushed and held for more
than 2 seconds.) If the engine stops while
the vehicle is being driven, this could lead
to a crash and serious injury.

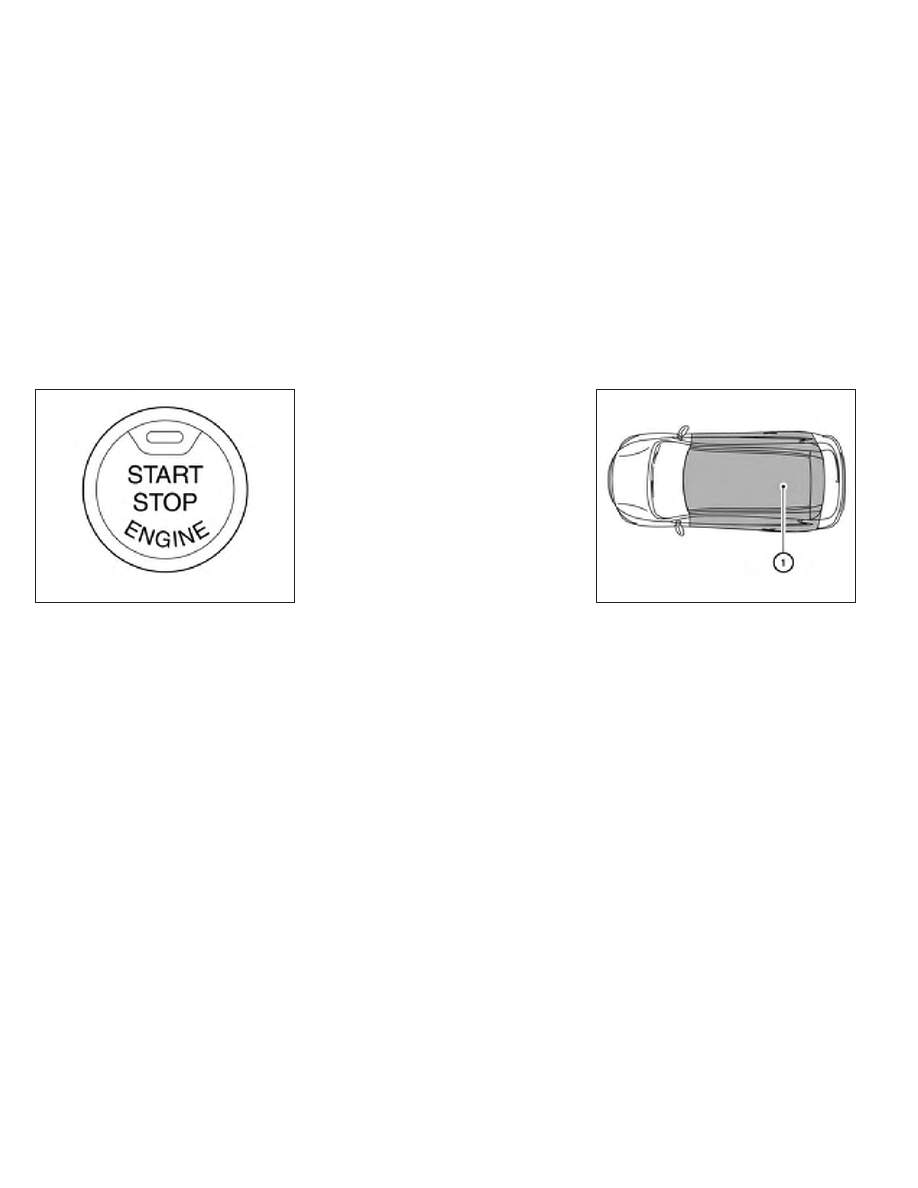

PUSH-BUTTON IGNITION SWITCH

5-10

Starting and driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When the ignition switch is pushed without de-
pressing the brake pedal, the ignition switch will
illuminate.

Push the ignition switch center:

● once to change to ACC.
● two times to change to ON.
● three times to return to OFF.

The ignition switch will automatically return to the
LOCK position when any door is either opened or
closed with the switch in the OFF position.

The ignition lock is designed so that the ignition
switch position cannot be switched to OFF until
the shift selector is moved to the P (Park) posi-
tion.

When the ignition switch cannot be pushed to-
ward the OFF position, proceed as follows:

1. Move the shift selector into the P (Park)

position.

2. Push the ignition switch. The ignition switch

position will change to the ON position.

3. Push the ignition switch again to the OFF

position.

The shift selector can be moved from the P
(Park) position if the ignition switch is in
the ON position and the brake pedal is
depressed.

If the battery of the vehicle is discharged,
the push-button ignition switch cannot be
moved from the LOCK position.

Some indicators and warnings for operation are
displayed on the vehicle information display. See
“Vehicle information display” in the “Instruments
and controls” section of this manual.

OPERATING RANGE

The Intelligent Key functions can only be used
when the Intelligent Key is within the specified
operating range.

When the Intelligent Key battery is almost dis-
charged or strong radio waves are present near
the operating location, the Intelligent Key sys-
tem’s operating range becomes narrower and
may not function properly.

If the Intelligent Key is within the operating range,
it is possible for anyone, even someone who does
not carry the Intelligent Key, to push the ignition
switch to start the engine.

LSD2014

LSD2020

Starting and driving

5-11

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Infiniti Jx35 (2013 year). Manual - part 22
