5-52

Starting and driving

all times.

.

As there is a performance limit to the
Preview Function, never rely solely on
this system. This system does not
correct careless inattentive or absent-
minded driving, or overcome poor visi-
bility in rain, fog, or other bad weather.
Reduce vehicle speed by depressing the
brake pedal, in order to maintain a safe
distance between vehicles.

.

The system may not detect the vehicle in
front of you in certain road or weather
conditions. The Preview Function may
not operate properly under the following
conditions. The vehicle is still driveable
under normal conditions and the Brake
Assist will operate.

— When rain, snow or dirt adhere to

the system sensor

— When strong light (for example, at

sunrise or sunset) is directly shining
on the front of the vehicle

— Winding or hilly roads may cause

the sensor to temporarily not detect
a vehicle in the same lane or may
detect objects or vehicles in other
lanes.

— Vehicle position in the lane may

cause the sensor to temporarily not
detect a vehicle in the same lane or
may detect objects or vehicles in
other lanes.

SSD0471

Warning light and display

When the Preview Function is not operating
properly, a chime sounds and the system
warning light (orange) will come on.

Action to take:
If the warning light comes on, park the
vehicle in a safe place. Turn the engine off,
restart the engine and resume driving.

If the indicator stays on, it may indicate
that the Preview Function is malfunction-
ing (the brake is operative). Although the
Vehicle is still driveable under normal
conditions, have the vehicle checked at
an INFINITI retailer.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

How to handle the sensor

The sensor for the Preview Function is
common with Intelligent Cruise Control and
is located below the front bumper.

To keep the Preview Function operating
properly, be sure to observe the following:

. Always keep the sensor clean. Wipe

with a soft cloth carefully so as not to
damage the sensor.

. Do not strike or damage the areas

around the sensor. Do not touch or
remove the screw located on the
sensor. Doing so could cause failure
or malfunction. If the sensor is da-
maged due to an accident, contact an
INFINITI retailer.

. Do not attach a sticker (including

transparent material) or install an
accessory near the sensor. This could
cause failure or malfunction.

ANTI-LOCK BRAKING SYSTEM (ABS)

WARNING

.

The Anti-lock Braking System (ABS) is a
sophisticated device, but it cannot pre-
vent accidents resulting from careless or
dangerous driving techniques. It can
help maintain vehicle control during
braking on slippery surfaces. Remember
that stopping distances on slippery
surfaces will be longer than on normal
surfaces even with ABS. Stopping dis-
tances may also be longer on rough,
gravel or snow covered roads, or if you
are using tire chains. Always maintain a
safe distance from the vehicle in front of
you. Ultimately, the driver is responsible
for safety.

.

Tire type and condition may also affect
braking effectiveness.

— When replacing tires, install the

specified size of tires on all four
wheels.

— When installing a spare tire, make

sure that it is the proper size and
type as specified on the Tire and
Loading Information label. See
Tire

and loading information label” (P.9-
13) of this manual.

— For detailed information, see

Wheels and tires” (P.8-29) of this
manual.

The Anti-lock Braking System (ABS) con-
trols the brakes so the wheels do not lock
during hard braking or when braking on
slippery surfaces. The system detects the
rotation speed at each wheel and varies
the brake fluid pressure to prevent each
wheel from locking and sliding. By pre-
venting each wheel from locking, the
system helps the driver maintain steering
control and helps to minimize swerving
and spinning on slippery surfaces.

Using the system

Depress the brake pedal and hold it down.
Depress the brake pedal with firm steady
pressure, but do not pump the brakes. The
ABS will operate to prevent the wheels
from locking up. Steer the vehicle to avoid
obstacles.

Starting and driving

5-53

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-54

Starting and driving

WARNING

Do not pump the brake pedal. Doing so may
result in increased stopping distances.

Self-test feature

The ABS includes electronic sensors, elec-
tric pumps, hydraulic solenoids and a
computer. The computer has a built-in
diagnostic feature that tests the system
each time you start the engine and move
the vehicle at a low speed in forward or
reverse. When the self-test occurs, you may
hear a “clunk” noise and/or feel a pulsa-
tion in the brake pedal. This is normal and
does not indicate a malfunction. If the
computer senses a malfunction, it switches
the ABS off and illuminates the ABS
warning light on the instrument panel.
The brake system then operates normally,
but without anti-lock assistance.

If the ABS warning light illuminates during
the self-test or while driving, have the
vehicle checked by an INFINITI retailer.

Normal operation

The ABS operates at speeds above 3 to 6
MPH (5 to 10 km/h).

When the ABS senses that one or more
wheels are close to locking up, the actuator
rapidly applies and releases hydraulic
pressure. This action is similar to pumping
the brakes very quickly. You may feel a
pulsation in the brake pedal and hear a
noise from under the hood or feel a
vibration from the actuator when it is
operating. This is normal and indicates
that the ABS is operating properly. How-
ever, the pulsation may indicate that road
conditions are hazardous and extra care is
required while driving.

The Vehicle Dynamic Control (VDC) system
uses various sensors to monitor driver
inputs and vehicle motion. Under certain
driving conditions, the VDC system helps
to perform the following functions.

. Controls brake pressure to reduce

wheel slip on one slipping drive wheel
so power is transferred to a non
slipping drive wheel on the same axle.

. Controls brake pressure and engine

output to reduce drive wheel slip based
on vehicle speed (traction control func-
tion).

. Controls brake pressure at individual

wheels and engine output to help the
driver maintain control of the vehicle in
the following conditions:
— understeer (vehicle tends to not

follow the steered path despite
increased steering input)

— oversteer (vehicle tends to spin due

to certain road or driving condi-
tions).

The VDC system can help the driver to
maintain control of the vehicle, but it
cannot prevent loss of vehicle control in
all driving situations.

When the VDC system operates, the VDC
warning light

in the instrument panel

VEHICLE DYNAMIC CONTROL (VDC) SYSTEM

-------------------------------------------------------------------------------------------------------------------------------------------------------------

flashes so note the following:

. The road may be slippery or the system

may determine some action is required
to help keep the vehicle on the steered
path.

. You may feel a pulsation in the brake

pedal and hear a noise or vibration
from under the hood. This is normal
and indicates that the VDC system is
working properly.

. Adjust your speed and driving to the

road conditions.

See “Vehicle Dynamic Control (VDC) warn-
ing light” (P.2-14).

If a malfunction occurs in the system, the
VDC warning light

illuminates in the

instrument panel. The VDC system auto-
matically turns off.

The VDC OFF switch is used to turn off the
VDC system. The VDC off indicator
illuminates to indicate the VDC system is
off. When the VDC switch is used to turn off
the system, the VDC system still operates
to prevent one drive wheel from slipping by
transferring power to a non slipping drive
wheel. The VDC warning light

flashes if

this occurs. All other VDC functions are off,
and the VDC warning light

will not

flash. The VDC system is automatically

reset to on when the ignition switch is
placed in the off position then back to the
on position.

See “Vehicle Dynamic Control (VDC) warn-
ing light” (P.2-14) and “Vehicle Dynamic
Control (VDC) off indicator light” (P.2-16).

The computer has a built-in diagnostic
feature that tests the system each time you
start the engine and move the vehicle
forward or in reverse at a slow speed.
When the self-test occurs, you may hear a
“clunk” noise and/or feel a pulsation in the
brake pedal. This is normal and is not an
indication of a malfunction.

WARNING

.

The VDC system is designed to help the
driver maintain stability but does not
prevent accidents due to abrupt steering
operation at high speeds or by careless
or dangerous driving techniques. Reduce
vehicle speed and be especially careful
when driving and cornering on slippery
surfaces and always drive carefully.

.

Do not modify the vehicles suspension.
If suspension parts such as shock
absorbers, struts, springs, stabilizer

bars, bushings and wheels are not
INFINITI recommended for your vehicle
or are extremely deteriorated, the VDC
system may not operate properly. This
could adversely affect vehicle handling
performance, and the VDC warning light

may illuminate.

.

If brake related parts such as brake
pads, rotors and calipers are not INFINITI
recommended or are extremely deterio-
rated, the VDC system may not operate
properly and the VDC warning light
may illuminate.

.

If engine control related parts are not
INFINITI recommended or are extremely
deteriorated, the VDC warning light
may illuminate.

.

When driving on extremely inclined
surfaces such as higher banked corners,
the VDC system may not operate prop-
erly and the VDC warning light

may

illuminate. Do not drive on these types
of roads.

.

When driving on an unstable surface
such as a turntable, ferry, elevator or
ramp, the VDC warning light

may

illuminate. This is not a malfunction.
Restart the engine after driving onto a

Starting and driving

5-55

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-56

Starting and driving

stable surface.

.

If wheels or tires other than the INFINITI
recommended ones are used, the VDC
system may not operate properly and
the VDC warning light

may illumi-

nate.

.

The VDC system is not a substitute for
winter tires or tire chains on a snow
covered road.

FREEING A FROZEN DOOR LOCK

To prevent a door lock from freezing, apply
deicer through the key hole. If the lock
becomes frozen, heat the key before
inserting it into the key hole or use the
Intelligent Key system.

ANTIFREEZE

In the winter when it is anticipated that the
outside temperature will drop below 328F
(08C), check antifreeze to assure proper
winter protection. For additional informa-
tion, see “Engine cooling system” (P.8-8).

BATTERY

If the battery is not fully charged during
extremely cold weather conditions, the
battery fluid may freeze and damage the
battery. To maintain maximum efficiency,
the battery should be checked regularly.
For additional information, see “Battery”
(P.8-15).

DRAINING OF COOLANT WATER

If the vehicle is to be left outside without
antifreeze, drain the cooling system, in-
cluding the engine block. Refill before
operating the vehicle. For details, see
“Engine cooling system” (P.8-8).

TIRE EQUIPMENT

SUMMER tires have a tread designed to
provide superior performance on dry pave-
ment. However, the performance of these
tires will be substantially reduced in snowy
and icy conditions. If you operate your
vehicle on snowy or icy roads, INFINITI
recommends the use of MUD & SNOW or
ALL SEASON tires on all four wheels.
Consult an INFINITI retailer for the tire
type, size, speed rating and availability
information.

For additional traction on icy roads,
studded tires may be used. However, some
U.S. states and Canadian provinces prohi-
bit their use. Check local, state and
provincial laws before installing studded
tires.

Skid and traction capabilities of studded
snow tires, on wet or dry surfaces, may be
poorer than that of non-studded snow
tires.

Tire chains may be used. For details, see
“Tire chains” (P.8-35) of this manual.

COLD WEATHER DRIVING

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIAL WINTER EQUIPMENT

It is recommended that the following items
be carried in the vehicle during winter:

. A scraper and stiff-bristled brush to

remove ice and snow from the windows
and wiper blades.

. A sturdy, flat board to be placed under

the jack to give it firm support.

. A shovel to dig the vehicle out of

snowdrifts.

. Extra window washer fluid to refill the

reservoir tank.

DRIVING ON SNOW OR ICE

WARNING

.

Wet ice (328F, 08C and freezing rain),
very cold snow or ice can be slick and
very hard to drive on. The vehicle will
have much less traction or
grip” under
these conditions. Try to avoid driving on
wet ice until the road is salted or
sanded.

.

Whatever the condition, drive with cau-
tion. Accelerate and slow down with
care. If accelerating or downshifting too
fast, the drive wheels will lose even

more traction.

.

Allow more stopping distance under
these conditions. Braking should be
started sooner than on dry pavement.

.

Allow greater following distances on
slippery roads.

.

Watch for slippery spots (glare ice).
These may appear on an otherwise clear
road in shaded areas. If a patch of ice is
seen ahead, brake before reaching it. Try
not to brake while on the ice, and avoid
any sudden steering maneuvers.

.

Do not use the cruise control on slippery
roads.

.

Snow can trap dangerous exhaust gases
under your vehicle. Keep snow clear of
the exhaust pipe and from around your
vehicle.

ENGINE BLOCK HEATER (if so
equipped)

Engine block heaters are used to assist in
cold temperature starting.

The engine block heater should be used
when the outside temperature is 208F
(−78C) or lower.

To use the engine block heater

1. Turn the engine off.

2. Open the hood and unwrap the engine

block heater cord.

3. Plug the engine block heater cord into a

grounded 3-wire, 3-pronged extension
cord.

4. Plug the extension cord into a Ground

F a u l t I n t e r r u p t ( G F I ) p r o t e c t e d ,
grounded 110-volt AC (VAC) outlet.

5. The engine block heater must be

plugged in for at least 2 - 4 hours,
depending on outside temperatures, to
properly warm the engine coolant. Use
an appropriate timer to turn the engine
block heater on.

6. Before starting the engine, unplug and

properly store the cord to keep it away
from moving parts.

Starting and driving

5-57

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-58

Starting and driving

WARNING

.

Do not use your engine block heater with
an ungrounded electrical system or a 2-
pronged adapter. You can be seriously
injured by an electrical shock if you use
an ungrounded connection.

.

Disconnect and properly store the en-
gine block heater cord before starting
the engine. Damage to the cord could
result in an electrical shock and can
cause serious injury.

.

Use a heavy-duty 3-wire, 3-pronged
extension cord rated for at least 10A.
Plug the extension cord into a Ground
Fault Interrupt (GFI) protected, grounded
110-VAC outlet. Failure to use the proper
extension cord or a grounded outlet can
result in a fire or electrical shock and
cause serious personal injury.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

6-2

In case of emergency

In the event of a roadside emergency,
Roadside Assistance Service is available to
you. Please refer to your Warranty Informa-
tion Booklet (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada)
for details.

To shut off the engine in an emergency
situation while driving, perform the follow-
ing procedure:

. Rapidly push the push-button ignition

switch 3 consecutive times in less than
1.5 seconds, or

. Push and hold the push-button ignition

switch for more than 2 seconds.

TIRE PRESSURE MONITORING SYS-
TEM (TPMS)

This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS). It
monitors tire pressure of all tires except
the spare. When the low tire pressure
warning light is lit and the CHECK TIRE
PRESSURE warning appears on the dot
matrix crystal display, one or more of your
tires is significantly under-inflated. If the
vehicle is being driven with low tire
pressure, the TPMS will activate and warn
you of it by the low tire pressure warning
light. This system will activate only when
the vehicle is driven at speeds above 16
MPH (25 km/h). For more details, see
“Warning/indicator lights and audible re-
minders” (P.2-10) and “Tire Pressure Mon-
itoring System (TPMS)” (P.5-4).

WARNING

.

If the low tire pressure warning light
illuminates while driving, avoid sudden
steering maneuvers or abrupt braking,
reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as
soon as possible. Driving with under-
inflated tires may permanently damage

ROADSIDE ASSISTANCE PROGRAM

EMERGENCY ENGINE SHUT OFF

FLAT TIRE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

the tires and increase the likelihood of
tire failure. Serious vehicle damage
could occur and may lead to an accident
and could result in serious personal
injury. Check the tire pressure for all
four tires. Adjust the tire pressure to the
recommended COLD tire pressure shown
on the Tire and Loading Information
label to turn the low tire pressure
warning light OFF. If the light still
illuminates while driving after adjusting
the tire pressure, a tire may be flat. If
you have a flat tire, replace it with a
spare tire as soon as possible.

.

When a spare tire is mounted or a wheel
is replaced, the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute.
Contact your INFINITI retailer as soon as
possible for tire replacement and/or
system resetting.

.

Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.

.

Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pressure
sensors (for models not equipped with

the emergency tire puncture repair kit).

.

If you used the Emergency Tire Sealant
to repair a minor tire puncture, your
INFINITI retailer will also need to replace
the TPMS sensor in addition to repairing
or replacing the tire (for models
equipped with the emergency tire punc-
ture repair kit).

.

INFINITI recommends using only NISSAN
Genuine Emergency Tire Sealant pro-
vided with your vehicle. Other tire
sealants may damage the valve stem
seal which can cause the tire to lose air
pressure (for models equipped with the
emergency tire puncture repair kit).

CHANGING FLAT TIRE (for models
with spare tire)

If you have a flat tire, follow the instruc-
tions below.

Stopping the vehicle

1. Safely move the vehicle off the road

and away from traffic.

2. Turn on the hazard warning flashers.

3. Park on a level surface and apply the

parking brake.

4. Automatic Transmission model:

Move the selector lever to the P (Park)
position.

Manual Transmission model:

Move the shift lever to the R (Reverse)
position.

5. Turn off the engine.

6. Raise the hood to warn other traffic,

and to signal professional road assis-
tance personnel that you need assis-
tance.

7. Have all passengers get out of the

vehicle and stand in a safe place, away
from traffic and clear of the vehicle.

WARNING

.

Make sure the parking brake is securely
applied and the manual transmission is
shifted into R (Reverse), or the automatic

In case of emergency

6-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

6-4

In case of emergency

transmission into P (Park).

.

Never change tires when the vehicle is
on a slope, ice or slippery areas. This is
hazardous.

.

Never change tires if oncoming traffic is
close to your vehicle. Wait for profes-
sional road assistance.

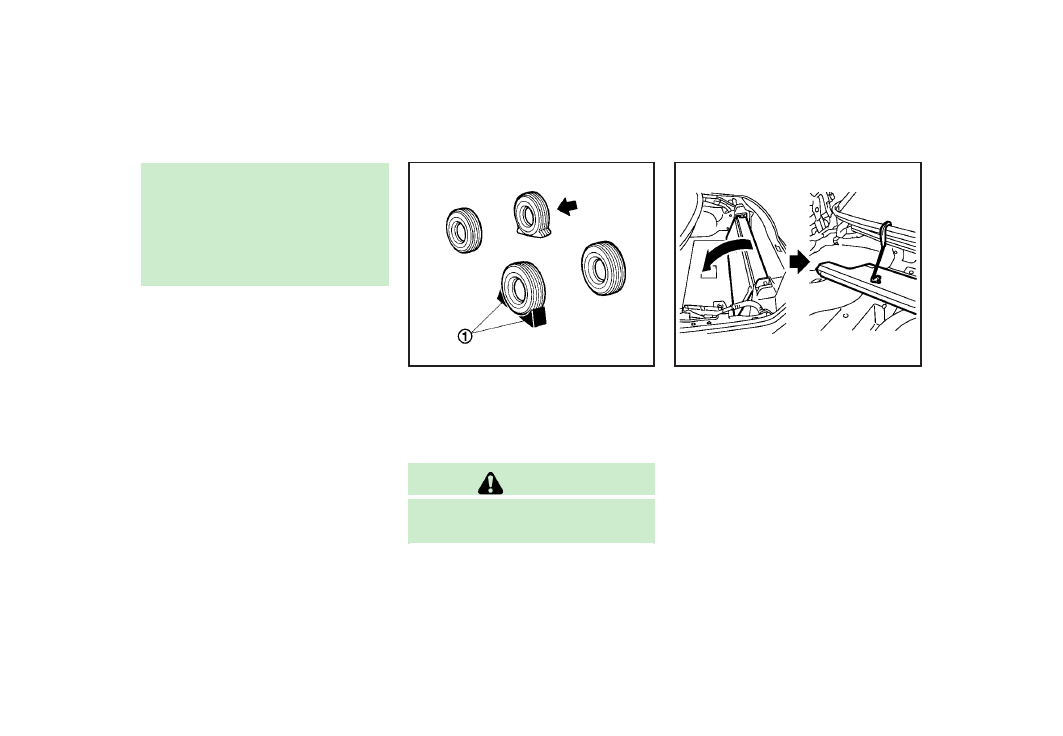

MCE0001A

Blocking wheels

Place suitable blocks

*

1

at both the front

and back of the wheel diagonally opposite
the flat tire to prevent the vehicle from
moving when it is jacked up.

WARNING

Be sure to block the wheel as the vehicle
may move and result in personal injury.

SCE0804

Getting the spare tire and tools

1. Fold the separator down.

2. Raise the trunk floor board, and then

hang it on the edge of the trunk
opening using the hook.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

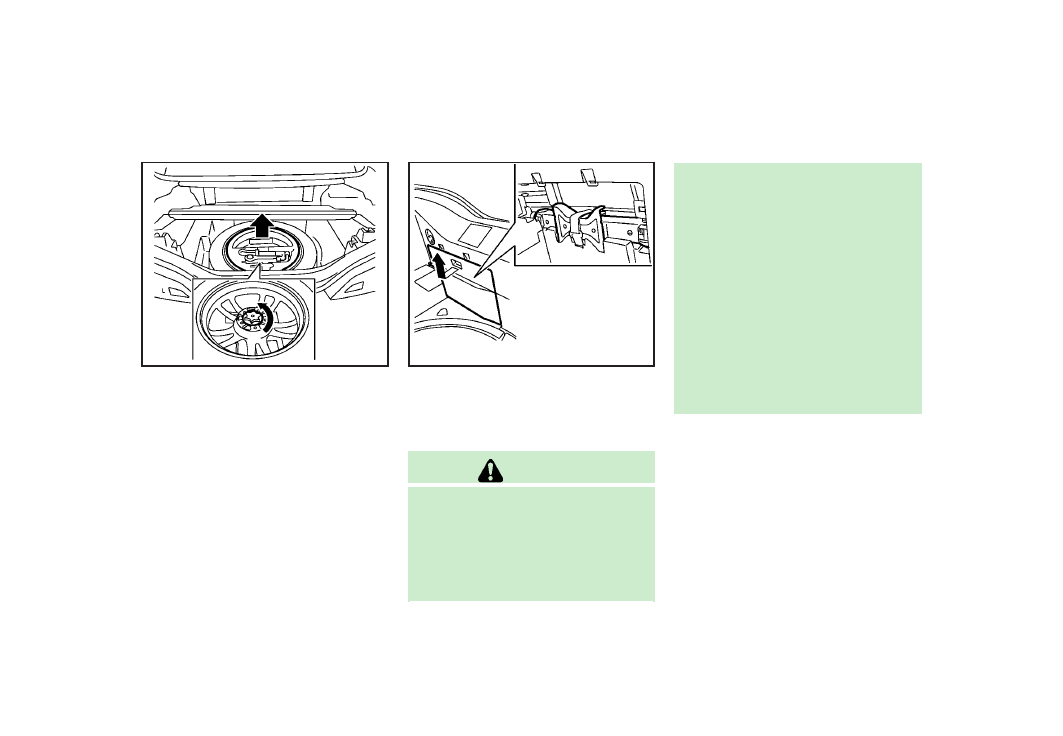

SCE0800

3. Remove the jacking tool case.

4. Remove the retainer by turning it

counterclockwise, and then remove
the spare tire.

SCE0801

5. Remove the jack storage lid, and then

remove the jack.

Jacking up the vehicle and remov-
ing the damaged tire

WARNING

.

Never get under the vehicle while it is
supported only by the jack. If it is
necessary to work under the vehicle,
support it with safety stands.

.

Use only the jack provided with your
vehicle to lift the vehicle. Do not use the
jack provided with your vehicle on other

vehicles. The jack is designed for lifting
only your vehicle during a tire change.

.

Use the correct jack-up points. Never use
any other part of the vehicle for jack
support.

.

Never jack up the vehicle more than
necessary.

.

Never use blocks on or under the jack.

.

Do not start or run the engine while
vehicle is on the jack, as it may cause
the vehicle to move. This is especially
true for vehicles with limited slip differ-
entials.

.

Do not allow passengers to stay in the
vehicle while it is on the jack.

Carefully read the caution label attached to
the jack body and the following instruc-
tions.

In case of emergency

6-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

6-6

In case of emergency

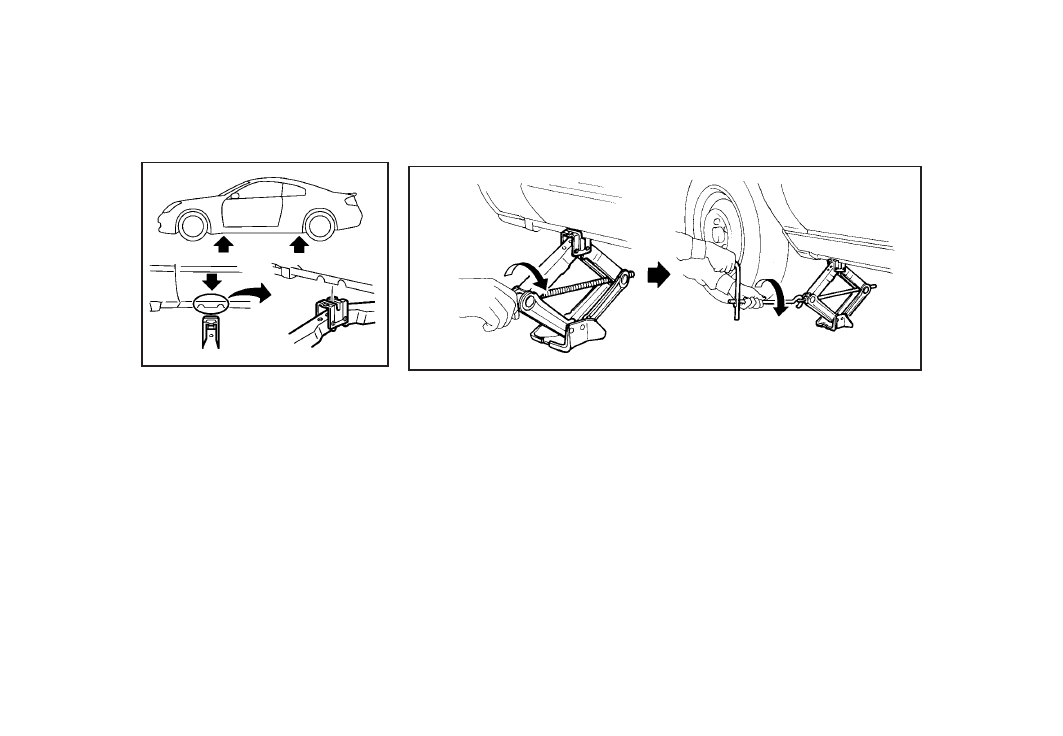

SCE0647

Jack-up point

1. Place the jack directly under the jack-up

point as illustrated so the top of the
jack contacts the vehicle at the jack-up
point. Align the jack head between the
two notches in the front or the rear as
shown. Also fit the groove of the jack
head between the notches as shown.

The jack should be used on level firm
ground.

SCE0504

2. Loosen each wheel nut one or two turns

by turning counterclockwise with the
wheel nut wrench. Do not remove the
wheel nuts until the tire is off the
ground.

3. To lift the vehicle, securely hold the

jack lever and rod with both hands as
shown above. Carefully raise the vehi-
cle until the tire clears the ground.
Remove the wheel nuts, and then
remove the tire.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SCE0661

Installing the spare tire

The T-type spare tire is designed for
emergency use. (See specific instructions
under the heading “Wheels and tires” (P.8-
29).)

1. Clean any mud or dirt from the surface

between the wheel and hub.

2. Carefully put the spare tire on and

tighten the wheel nuts finger tight.
Check that all the wheel nuts contact
the wheel surface horizontally.

When replacing a front tire, make sure
that the hole in the spare tire wheel is
aligned with the pin on the brake rotor.

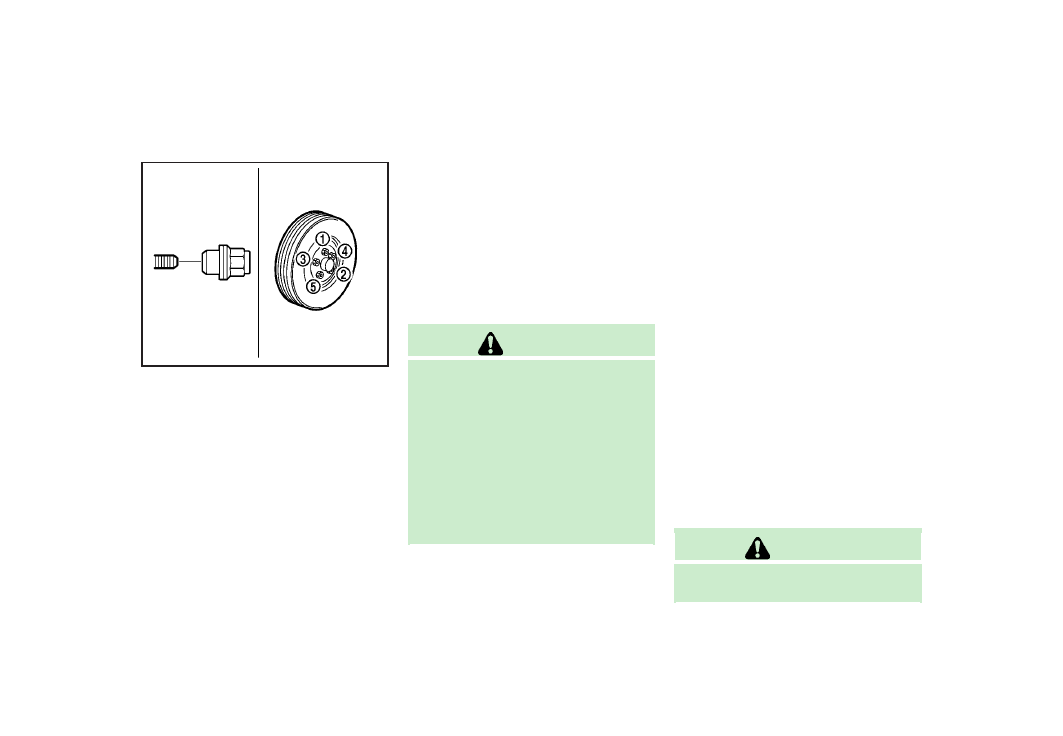

3. With the wheel nut wrench, tighten

wheel nuts alternately and evenly in the
sequence as illustrated (

*

1

,

*

2

,

*

3

,

*

4

,

*

5

) until they are tight.

4. Lower the vehicle slowly until the tire

touches the ground. Then, with the
wheel nut wrench, tighten the wheel
nuts securely in the sequence as
illustrated. Lower the vehicle comple-
tely.

WARNING

.

Incorrect wheel nuts or improperly tigh-
tened wheel nuts can cause the wheel to
become loose or come off. This could
cause an accident.

.

Do not use oil or grease on the wheel
studs or nuts. This could cause the nuts
to become loose.

.

Retighten the wheel nuts when the
vehicle has been driven for 600 miles
(1,000 km) (also in cases of a flat tire,
etc.).

.

As soon as possible, tighten the
wheel nuts to the specified torque
with a torque wrench.

Wheel nut tightening torque:

80 ft-lb (108 N·m)

The wheel nuts must be kept tightened
to specifications at all times. It is
recommended that the wheel nuts be
tightened to specifications at each
lubrication interval.

.

Adjust tire pressure to the COLD
pressure.

COLD pressure:

After the vehicle has been parked for 3
hours or more or driven less than 1
mile (1.6 km).

COLD tire pressures are shown on the
Tire and Loading Information label
affixed to the driver side center pillar.

5. Securely store the flat tire and jacking

equipment in the vehicle.

6. Place the jacking tool case and the

trunk floor board over the damaged
tire.

7. Close the trunk.

WARNING

.

Always make sure that the spare tire and
jacking equipment are properly secured

In case of emergency

6-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

6-8

In case of emergency

after use. Such items can become
dangerous projectiles in an accident or
sudden stop.

.

The spare tire is designed for emergency
use. See specific instructions under the
heading
Wheels and tires” (P.8-29).

If needed Roadside Assistance is available.
Please see your Warranty Information
Booklet or Roadside Assistance I.D. Card
for the toll-free number to call (U.S.) or
Warranty Information Booklet (Canada).

REPAIRING FLAT TIRE (for models
with emergency tire puncture repair
kit)

WARNING

.

After using Emergency Tire Sealant to
repair a minor tire puncture, do not drive
the vehicle at speeds faster than 50 MPH
(80 km/h).

.

Immediately after using the Emergency
Tire Sealant to repair a minor tire
puncture, take your vehicle to an INFINITI
retailer to inspect, and repair or replace
the tire. The Emergency Tire Sealant

cannot permanently seal a punctured
tire. Continuing operation of the vehicle
without a permanent tire repair can lead
to a crash.

.

If you used the Emergency Tire Sealant
to repair a minor tire puncture, your
INFINITI retailer will also need to replace
the TPMS sensor in addition to repairing
or replacing the tire.

.

INFINITI recommends using only INFINITI
Genuine Emergency Tire Sealant pro-
vided with your vehicle. Other tire
sealants may damage the valve stem
seal which can cause the tire to lose air
pressure.

This vehicle does not have a spare tire. The
emergency tire puncture repair kit (Emer-
gency Tire Sealant) is supplied with the
vehicle instead of a spare tire. It can be
used to temporarily repair minor tire
punctures.

If possible, have the vehicle towed to a
facility that can repair or replace the flat
tire. Using the emergency tire puncture
repair kit may cause a malfunction of the
tire pressure sensor and cause the low tire
pressure warning light to illuminate.

If you have a flat tire, follow the instruc-
tions below.

CAUTION

.

To avoid the emergency tire puncture kit
being damaged during storage or use:

— Only use the emergency tire punc-

ture repair kit on your vehicle. Do not
use it on other vehicles.

— Only use the kit to inflate the tires

of your vehicle and to check the
vehicle’s tire pressure.

— Only plug the compressor into a 12V

DC car power point.

— Keep the kit free of water and dirt.

— Do not disassemble or modify the

kit.

— Do not drop the kit or allow hard

impacts to the kit.

.

Do not use the emergency tire puncture
repair kit under the following conditions.
Contact an INFINITI retailer or profes-
sional road assistance.

— when the sealant has passed its

expiration date (shown on the label

-------------------------------------------------------------------------------------------------------------------------------------------------------------

attached to the bottle)

— when the cut or the puncture is

approximately 0.25 in (6 mm) or
longer

— when the tire sidewall is damaged

— when the vehicle has been driven

with extremely low tire pressure

— when the tire has come off the

inside or the outside of the wheel.

— when the tire wheel is damaged

— when two or more tires are flat

Stopping the vehicle

1. Safely move the vehicle off the road

and away from traffic.

2. Turn on the hazard warning flashers.

3. Park on a level surface and apply the

parking brake.

4. Automatic Transmission models:

Move the selector lever to the P (Park)
position.

Manual Transmission models:

Move the shift lever to the R (Reverse)
position.

5. Turn off the engine.

6. Raise the hood to warn other traffic and

to signal professional road assistance
personnel that you need assistance.

7. Have all passengers get out of the

vehicle and stand in a safe place, away
from traffic and clear of the vehicle.

WARNING

Make sure the parking brake is securely
applied and the manual transmission is
shifted into R (Reverse) or the automatic
transmission into P (Park).

.

Never repair tires when the vehicle is on
a slope, ice or slippery areas. This is
hazardous.

.

Never repair tires if oncoming traffic is
close to your vehicle. Wait for profes-
sional road assistance.

SCE0887

Getting emergency tire puncture
repair kit

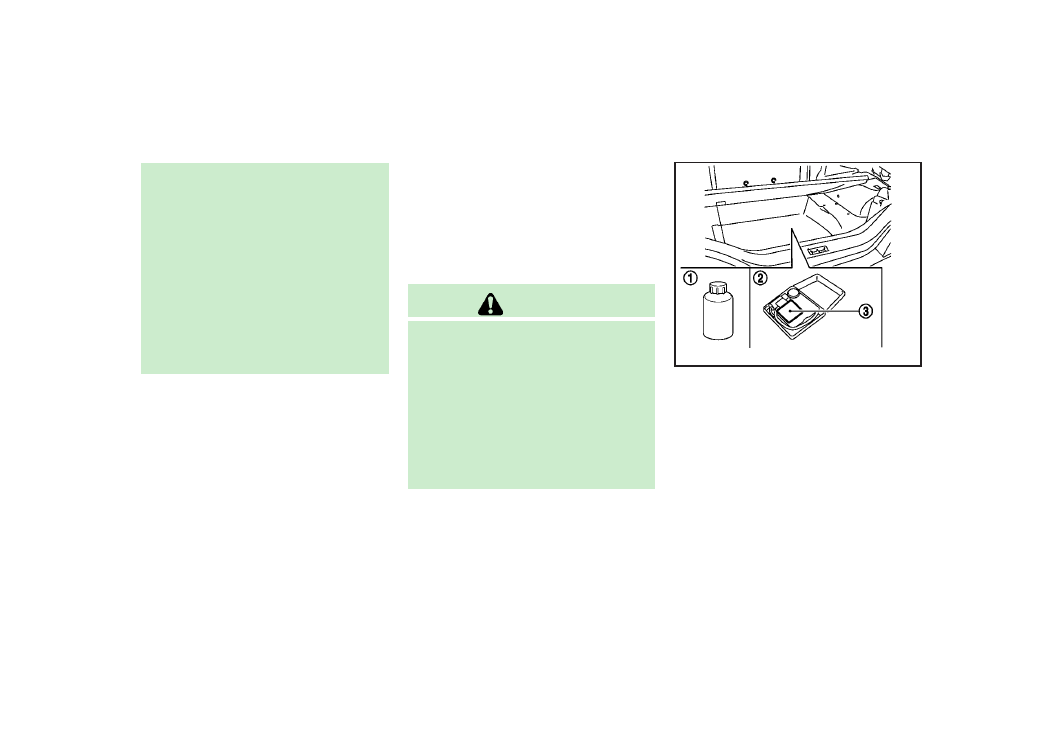

Take out the emergency tire puncture
repair kit located under the cargo room or
in the trunk. The repair kit consists of the
following items:

*

1

Tire sealant bottle

*

2

Air compressor

*

3

Speed restriction sticker

NOTE:

For models with the emergency tire punc-
ture repair kit, a spare tire, jack and rod
are not equipped as standard. These parts
are dealer options. Contact an INFINITI

In case of emergency

6-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     21      22      23      24     ..
