TM-174

< ON-VEHICLE REPAIR >

CONTROL VALVE WITH TCM

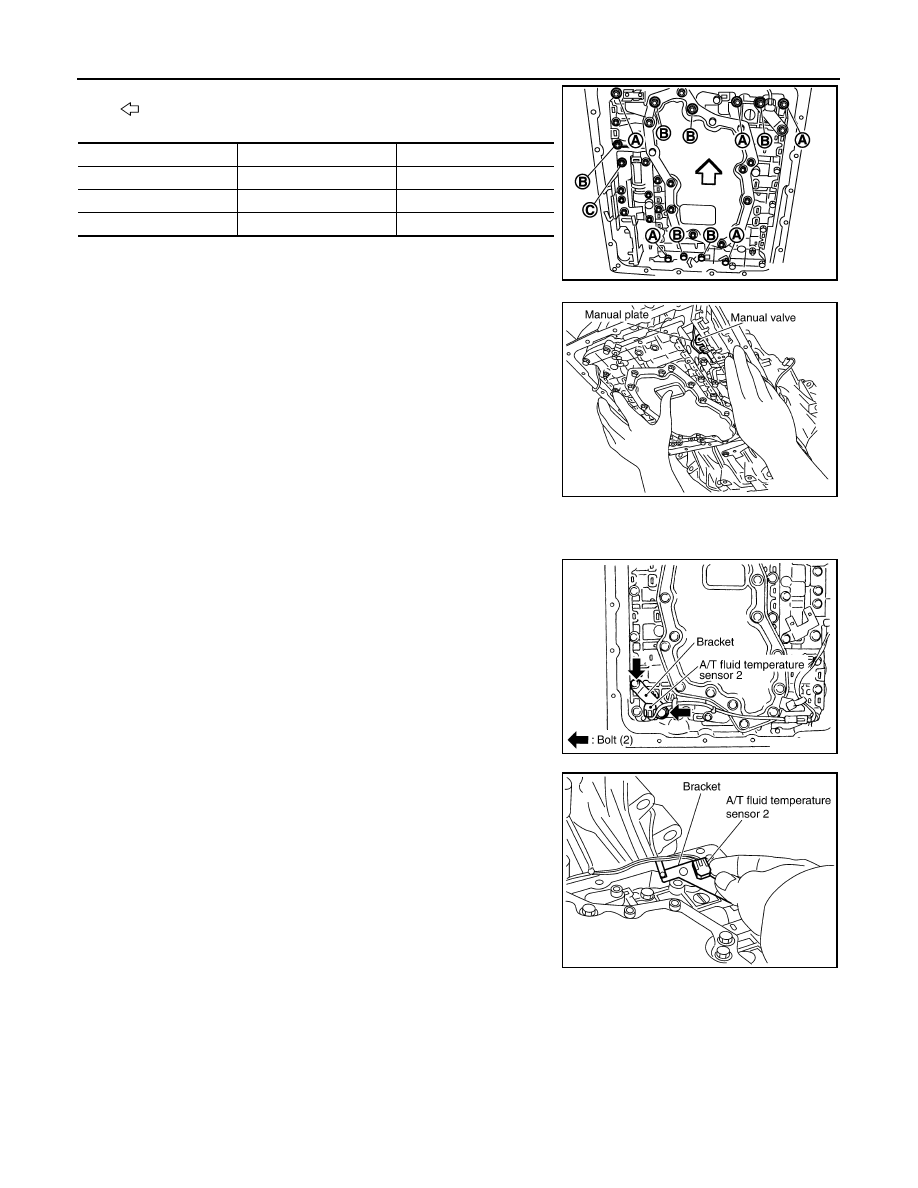

10. Remove bolts (A), (B) and (C) from control valve with TCM.

•

 : Front

11. Remove control valve with TCM from transmission case.

CAUTION:

When removing, be careful with the manual valve notch and

manual plate height. Remove it vertically.

12. Remove the A/T fluid temperature sensor 2 or plug as shown below.
a. A/T fluid temperature sensor 2
i.

Remove A/T fluid temperature sensor 2 with bracket from con-

trol valve with TCM.

ii.

Remove bracket from A/T fluid temperature sensor 2.

b. Plug

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA8074E

SCIA5142E

SCIA5253E

SCIA5264E

CONTROL VALVE WITH TCM

TM-175

< ON-VEHICLE REPAIR >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

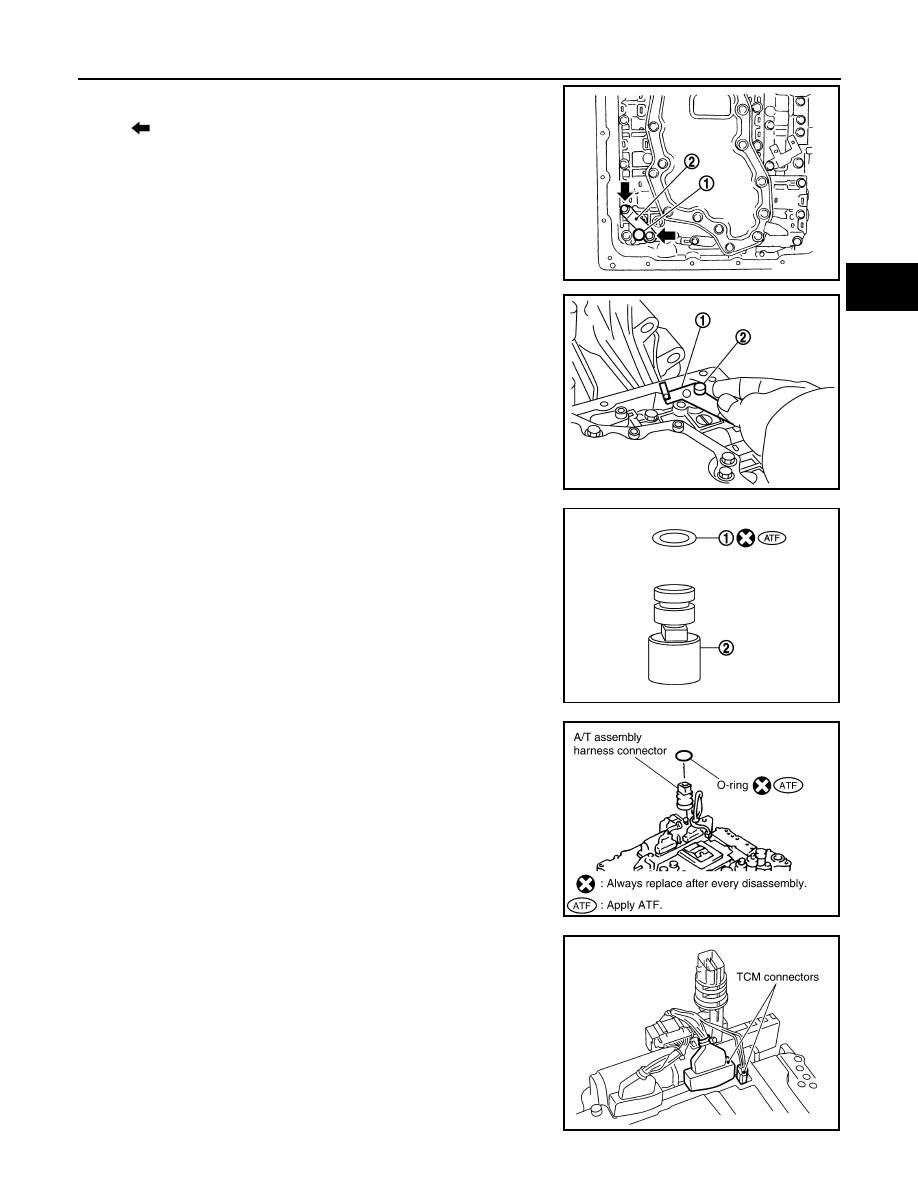

i.

Remove plug (1) with bracket (2) from control valve with TCM.

ii.

Remove bracket (1) from plug (2).

iii. Remove O-ring (1) from plug (2).

13. Remove O-ring from A/T assembly harness connector.

14. Disconnect TCM connectors.

CAUTION:

Do not damage connectors.

: Bolt

JSDIA1311ZZ

JSDIA1312ZZ

JSDIA1313ZZ

SCIA5155E

SCIA5447E

TM-176

< ON-VEHICLE REPAIR >

CONTROL VALVE WITH TCM

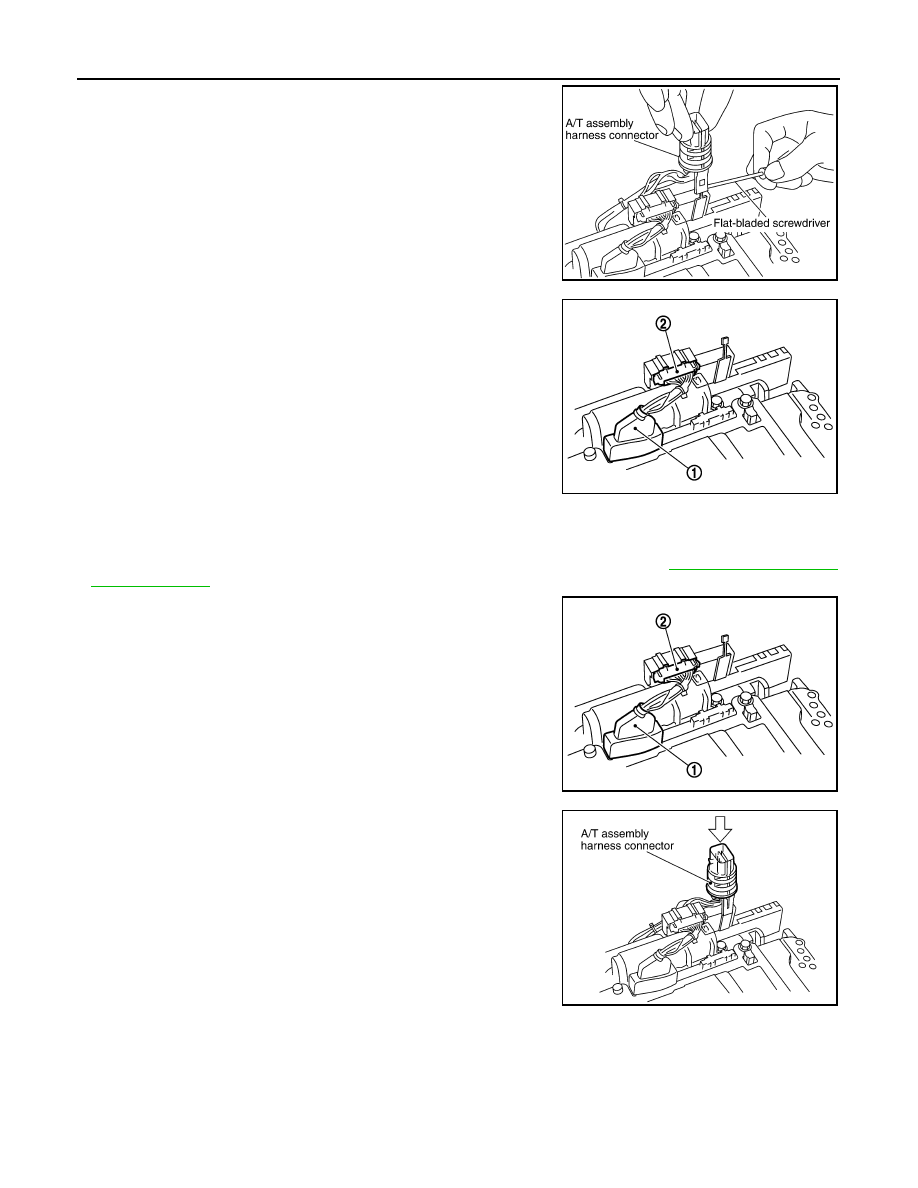

15. Remove A/T assembly harness connector from control valve

with TCM using suitable tool.

16. Disconnect TCM connector (1) and transmission range switch

connector (2).

CAUTION:

Do not damage connectors.

Installation

CAUTION:

• If the A/T fluid temperature sensor 2 has flaws, replace it with a plug.

• After completing installation, check A/T fluid leakage and fluid level. Refer to

TM-148, "Checking the

A/T Fluid (ATF)"

.

1. Connect TCM connector (1) and transmission range switch con-

nector (2).

2. Install A/T assembly harness connector to control valve with

TCM.

SCIA5448E

JSDIA1317ZZ

JSDIA1317ZZ

SCIA5450E

CONTROL VALVE WITH TCM

TM-177

< ON-VEHICLE REPAIR >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

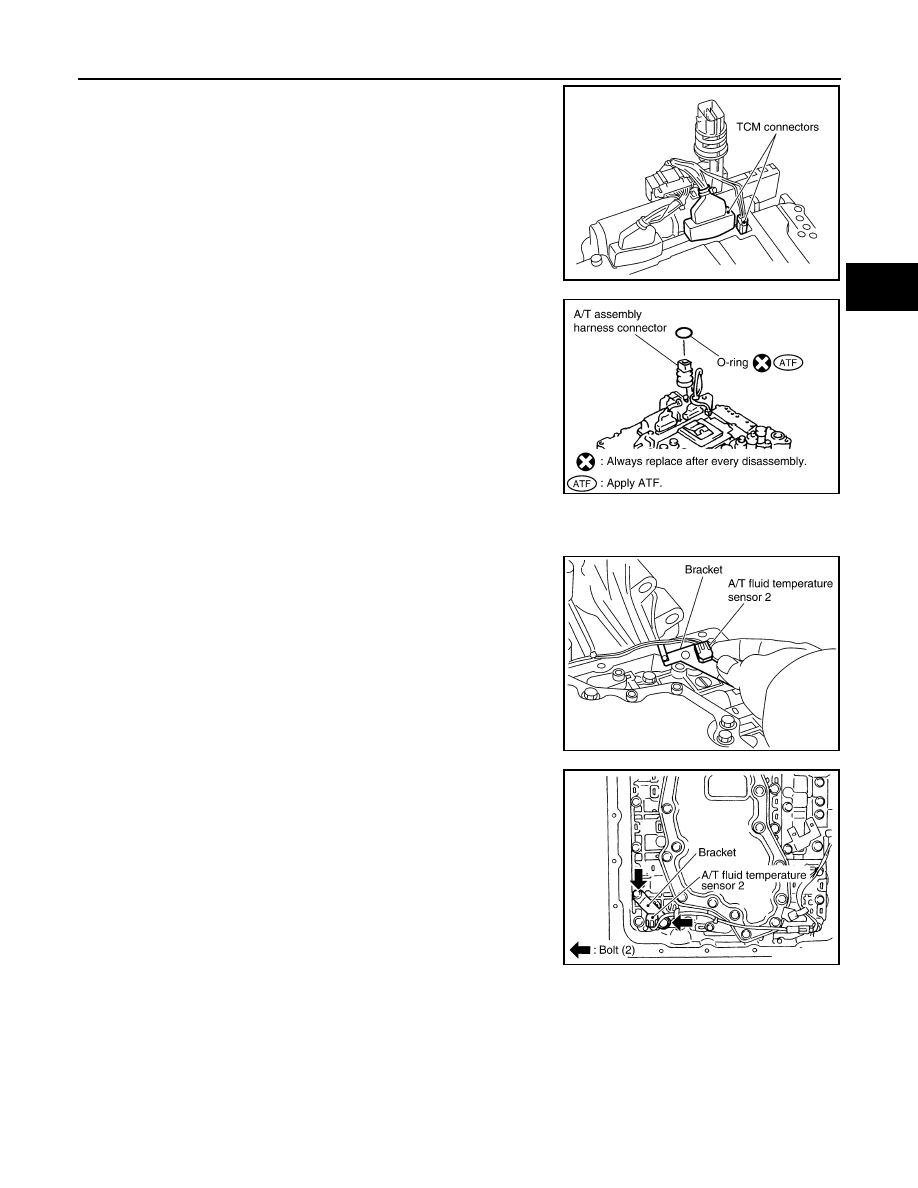

3. Connect TCM connector.

4. Install new O-ring in A/T assembly harness connector.

CAUTION:

• Do not reuse O-ring.

• Apply ATF to O-ring.

5. Install the A/T fluid temperature sensor 2 or plug as shown below.
a. A/T fluid temperature sensor 2
i.

Install A/T fluid temperature sensor 2 to bracket.

ii.

Install A/T fluid temperature sensor 2 (with bracket) to control

valve with TCM. Tighten A/T fluid temperature sensor 2 bolt to

the specified torque.

CAUTION:

Adjust bolt hole of bracket to bolt hole of control valve with

TCM.

b. Plug

NOTE:

• When replacing the A/T fluid temperature sensor 2 with the plug, the A/T fluid temperature sensor 2 con-

nector should not be connected.

• Fold the terminal clips.

SCIA5447E

SCIA5155E

SCIA5264E

SCIA5253E
