TM-166

< ON-VEHICLE REPAIR >

AIR BREATHER HOSE

AIR BREATHER HOSE

Removal and Installation

INFOID:0000000005402587

REMOVAL and INSTALLATION

2WD

CAUTION:

• Install air breather hose with paint mark at upper side.

• When installing the air breather hose, do not crush or block by folding or bending the hose.

• When inserting the hose to the transmission tube, be sure to insert it fully until its end reaches the

tube bend portion.

• Make sure clip is securely installed to bracket.

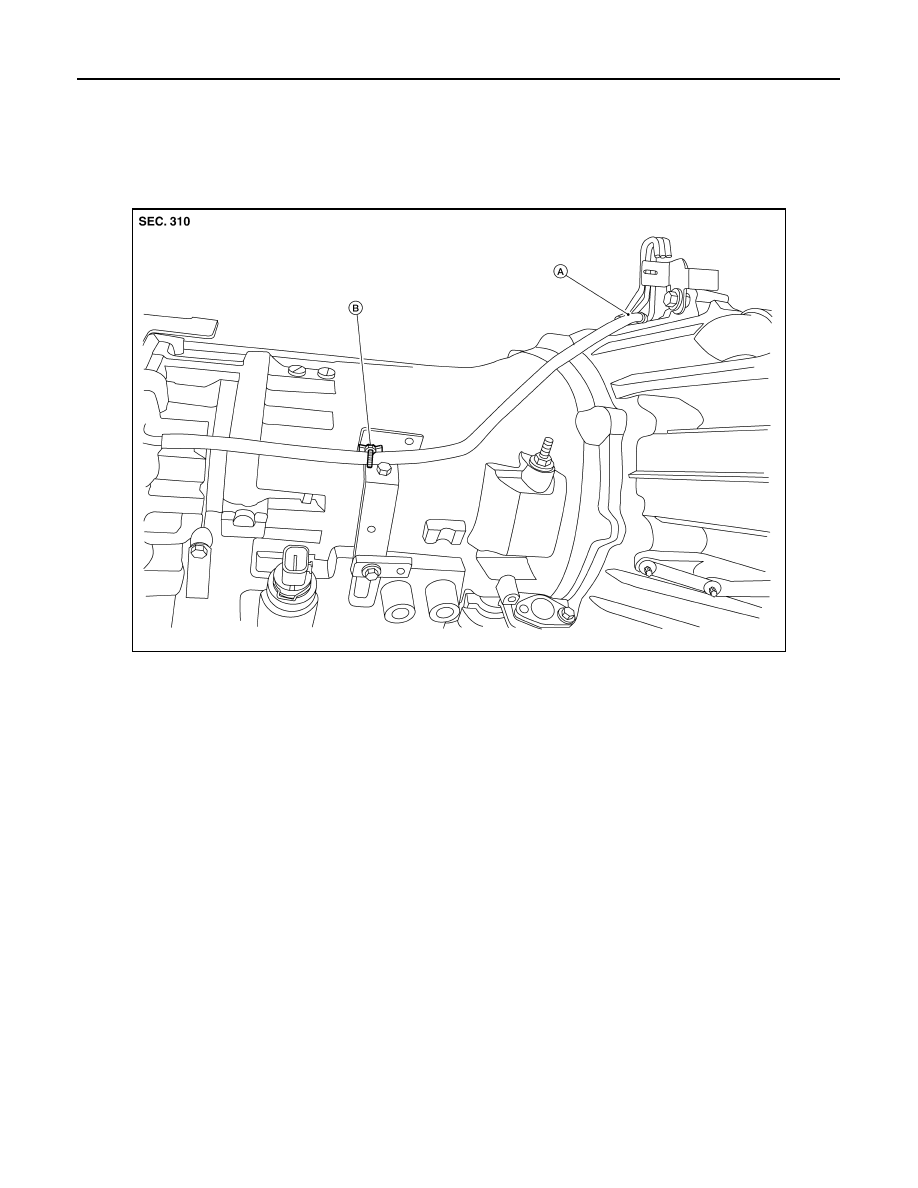

REMOVAL

AWDIA0554GB

A.

Set air breather hose with
paint mark at upper side

B.

Clip (set securely to bracket)

AIR BREATHER HOSE

TM-167

< ON-VEHICLE REPAIR >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

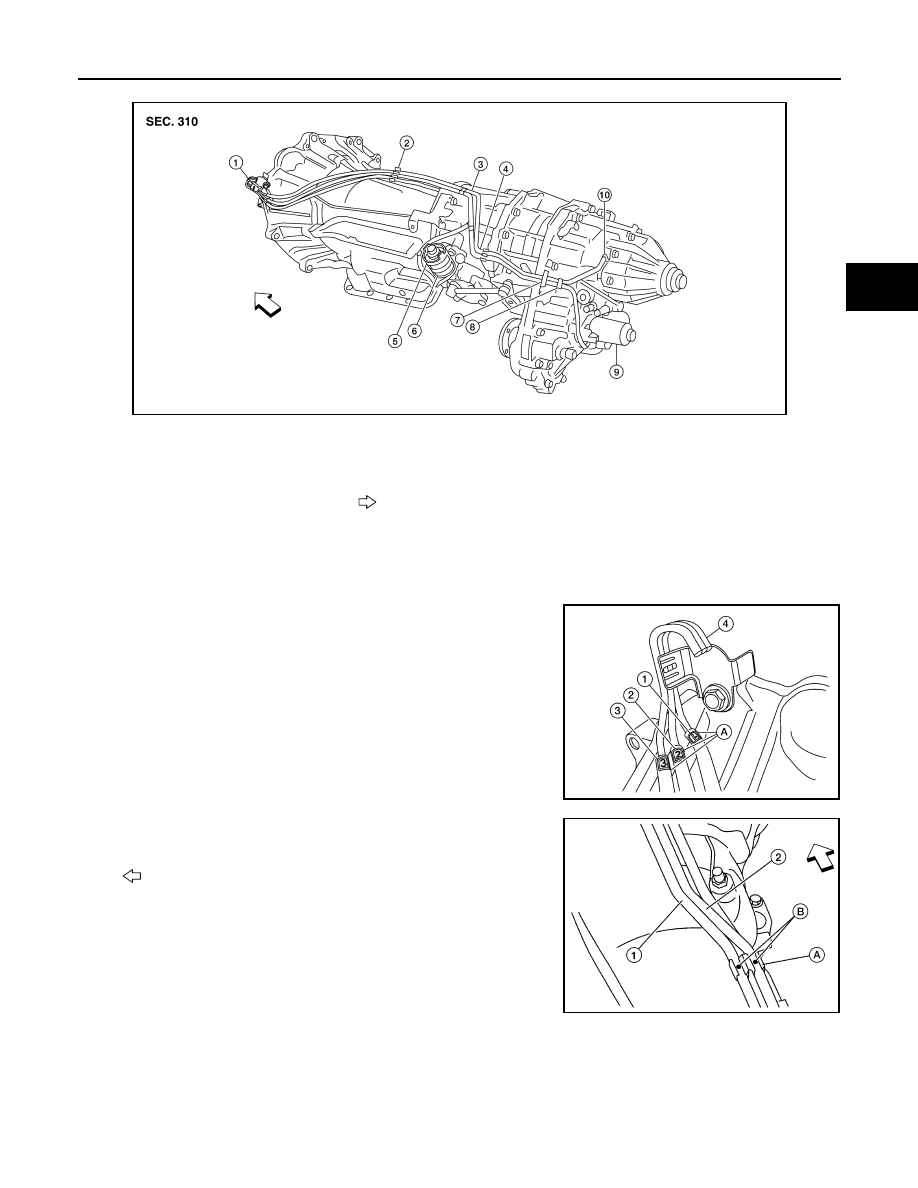

4WD

INSTALLATION

CAUTION:

Make sure there are no pinched or restricted areas on each air breather hose caused by folding or

bending when installing it.
1. Install each air breather hose into the breather tube (4). Set

each air breather hose with paint mark facing upward.

• A/T breather hose (1)

• Transfer breather hose (2)

• Actuator/transfer motor breather hose (3)

• Paint marks (A)

2. Install actuator/transfer motor air breather hose (1) and transfer

air breather hose (2) on clip (A) with the paint mark (B) facing

upward.
•

 :Front

AWDIA0010ZZ

1.

Breather tube

2.

Clip A

3.

Clip B

4.

Clip C

5.

Clip D

6.

Actuator

7.

Air breather hose clamp

8.

 Clip E

9.

Transfer motor

10. Breather tube (transfer)

Vehicle front

ALDIA0110ZZ

ALDIA0111ZZ

TM-168

< ON-VEHICLE REPAIR >

AIR BREATHER HOSE

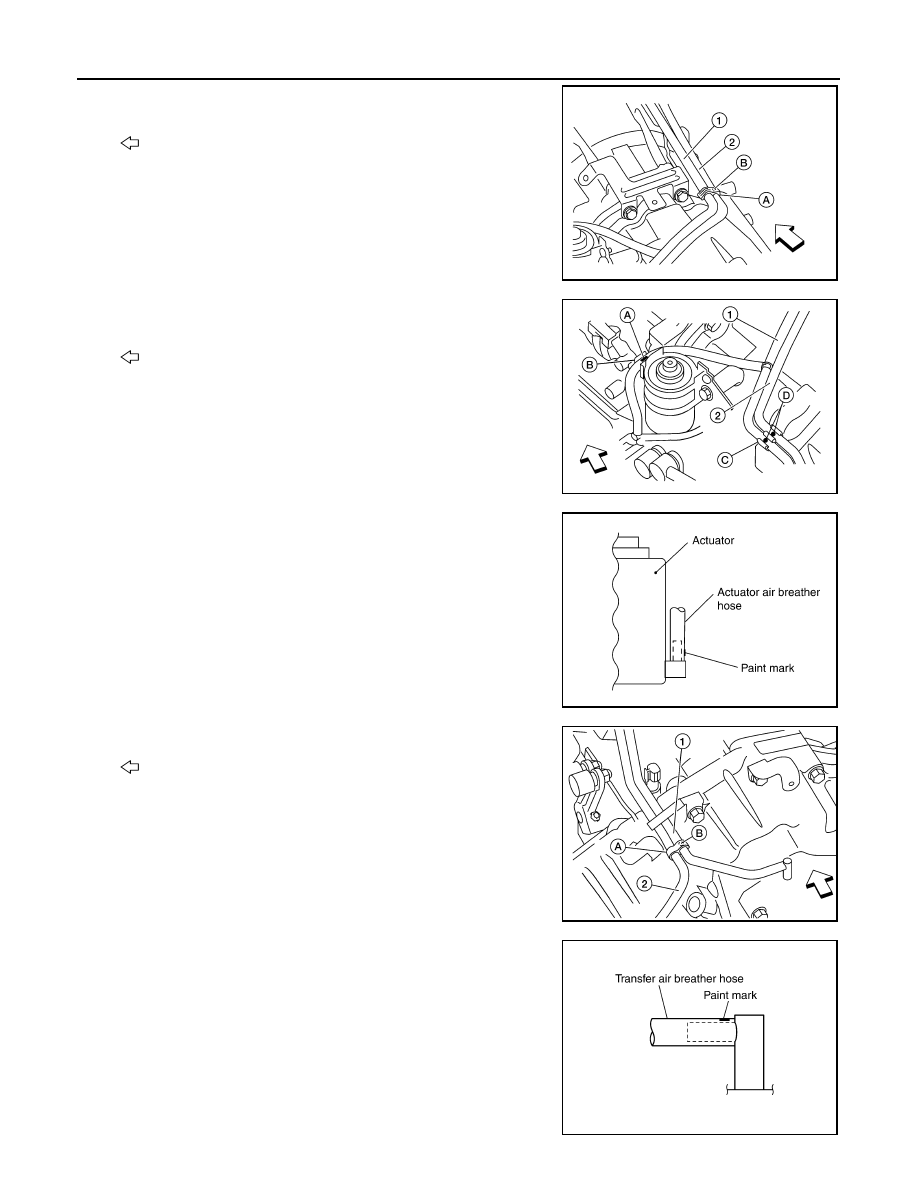

3. Install clip (B) on actuator/transfer motor air breather hose (1)

and transfer air breather hose (2) with the paint mark (A)

matched.
•

 :Front

4. Install actuator/transfer motor air breather hose (1) and transfer

air breather hose (2) on clip (B) and clip (C) with the paint mark

(A) and (D) facing upward.
•

 :Front

5. Install the actuator air breather hose into the actuator (case con-

nector) until the hose end reaches the base of the tube. Set

actuator air breather hose with paint mark facing leftward.

6. Install clip (B) on transfer motor air breather hose (2) and trans-

fer air breather hose (1) with the paint mark (A) matched.
•

 :Front

7. Install the transfer air breather hose into the breather tube

(transfer, metal connector) until the hose end reaches the base

of the tube. Set transfer air breather hose with paint mark facing

upwards.

AWDIA0011ZZ

AWDIA0012ZZ

SDIA3226E

AWDIA0013ZZ

SDIA3196E

AIR BREATHER HOSE

TM-169

< ON-VEHICLE REPAIR >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

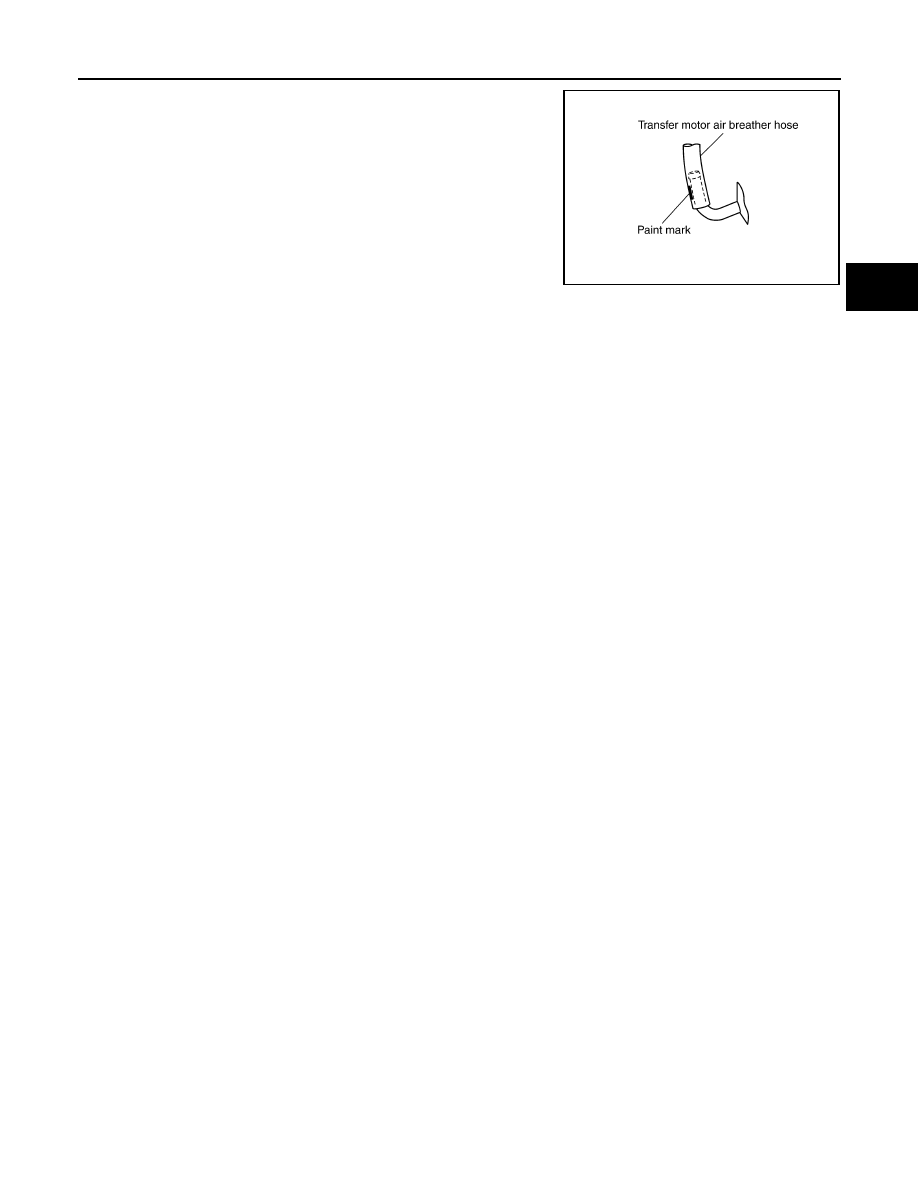

8. Install the transfer motor air breather hose into the transfer

motor (case connector) until the hose end reaches the end of

the curved section. Set transfer motor air breather hose with

paint mark facing leftward.
