PWO-4

< COMPONENT DIAGNOSIS >

POWER SOCKET

COMPONENT DIAGNOSIS

POWER SOCKET

Wiring Diagram

INFOID:0000000005146377

ABMWA0422GB

PWO

POWER SOCKET

PWO-5

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMIA1172GB

PWO-6

< COMPONENT DIAGNOSIS >

POWER SOCKET

AAMIA0070GB

PWO

POWER SOCKET

PWO-7

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ON-VEHICLE REPAIR

POWER SOCKET

Removal and Installation

INFOID:0000000005274244

REMOVAL

1. Access both front and back of power socket assembly. Refer to

IP-15, "Exploded View"

 (Cluster Lid C),

IP-20, "Exploded View"

 (Front Center Console), or

INT-19, "Removal and Installation"

 (Rear Luggage

Floor Trim).

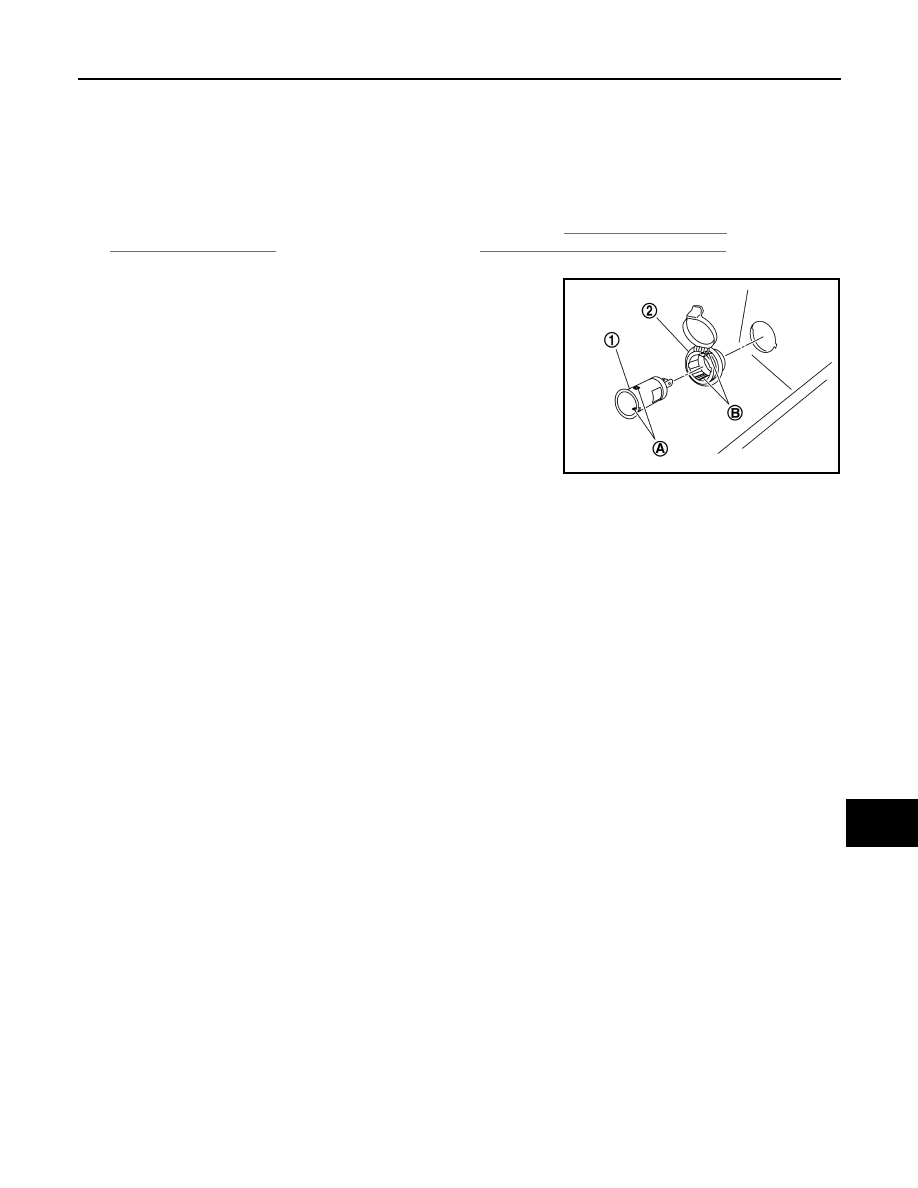

2. Remove inner socket (1) from the ring (2) while pressing the

hook (B) on the ring out from square hole (A).

3. Disconnect power socket connector.
4. Remove ring from power socket finisher while pressing pawls.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Align notches of inner socket and ring, and socket finisher when installing.

SKIB4263E
