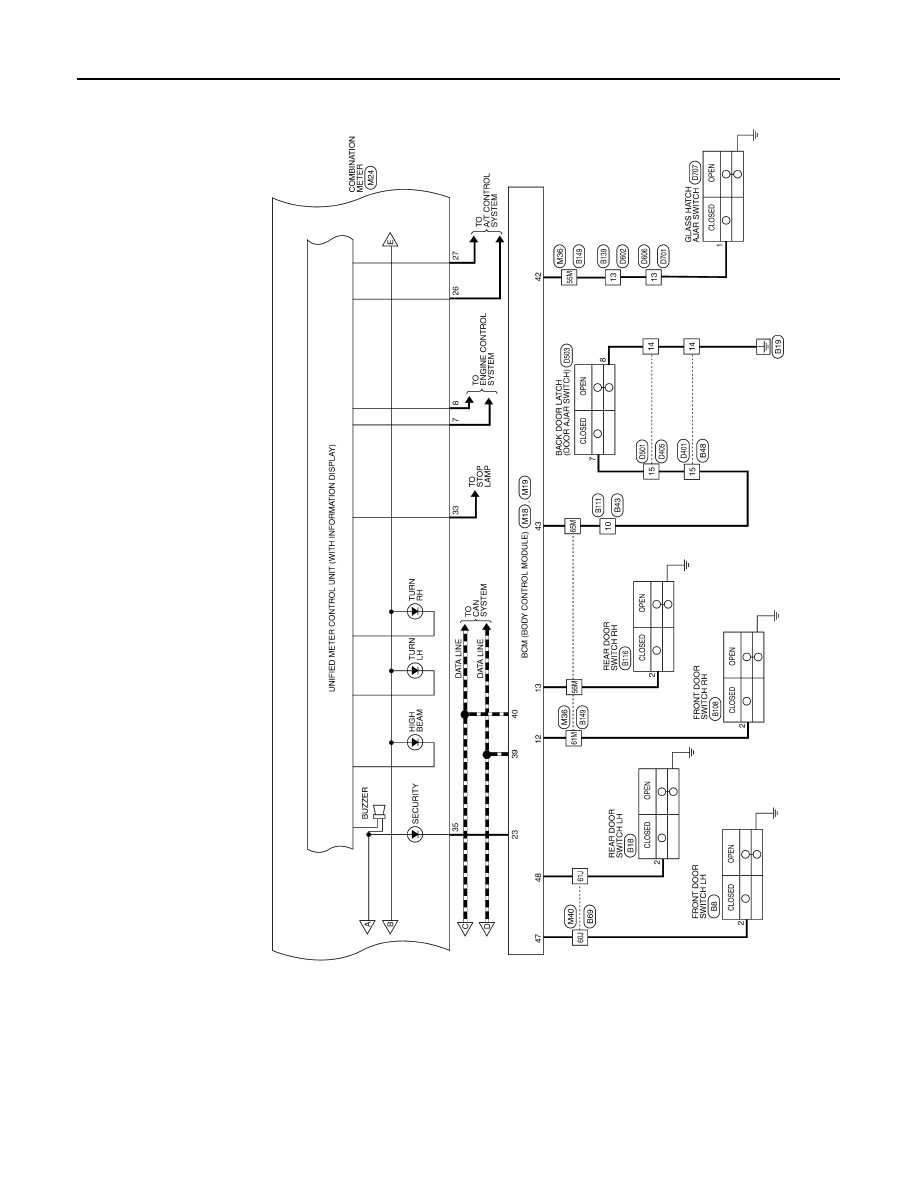

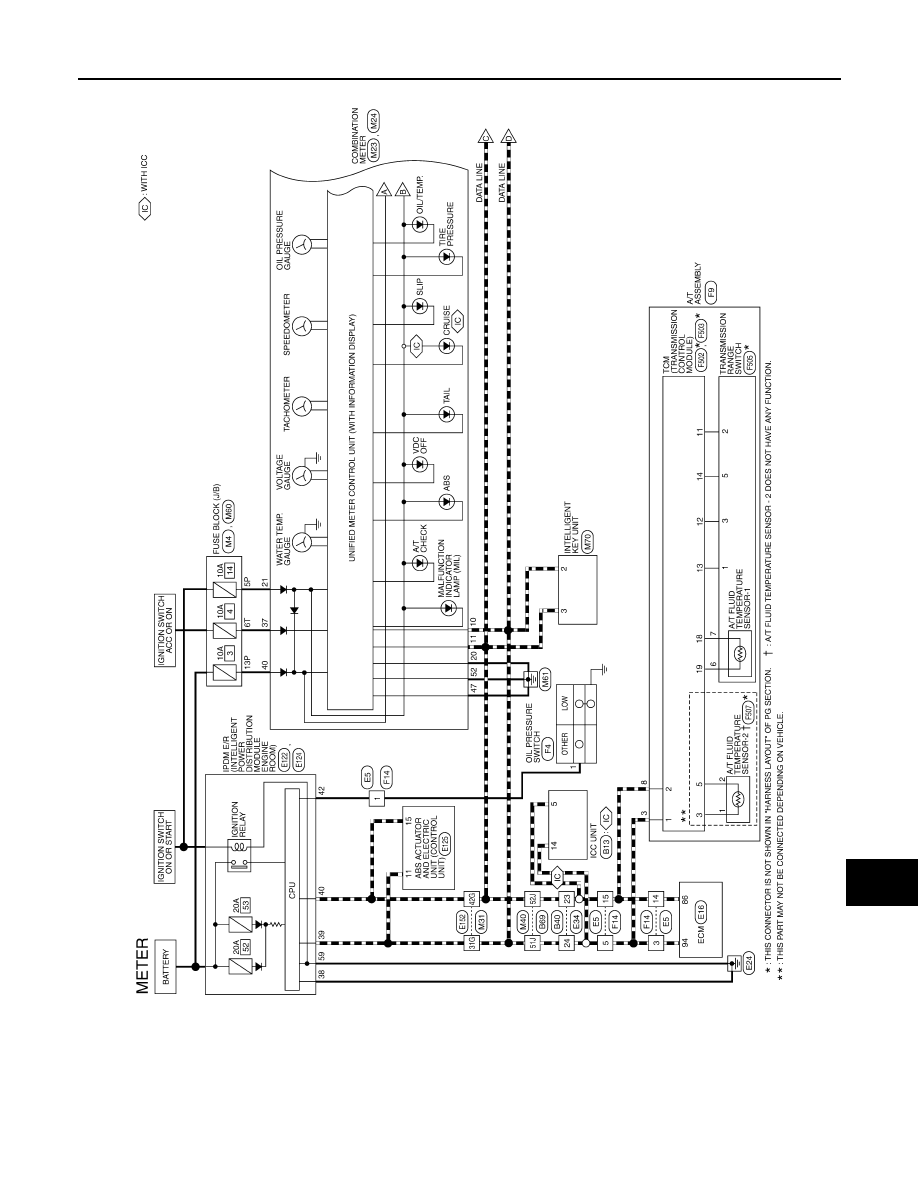

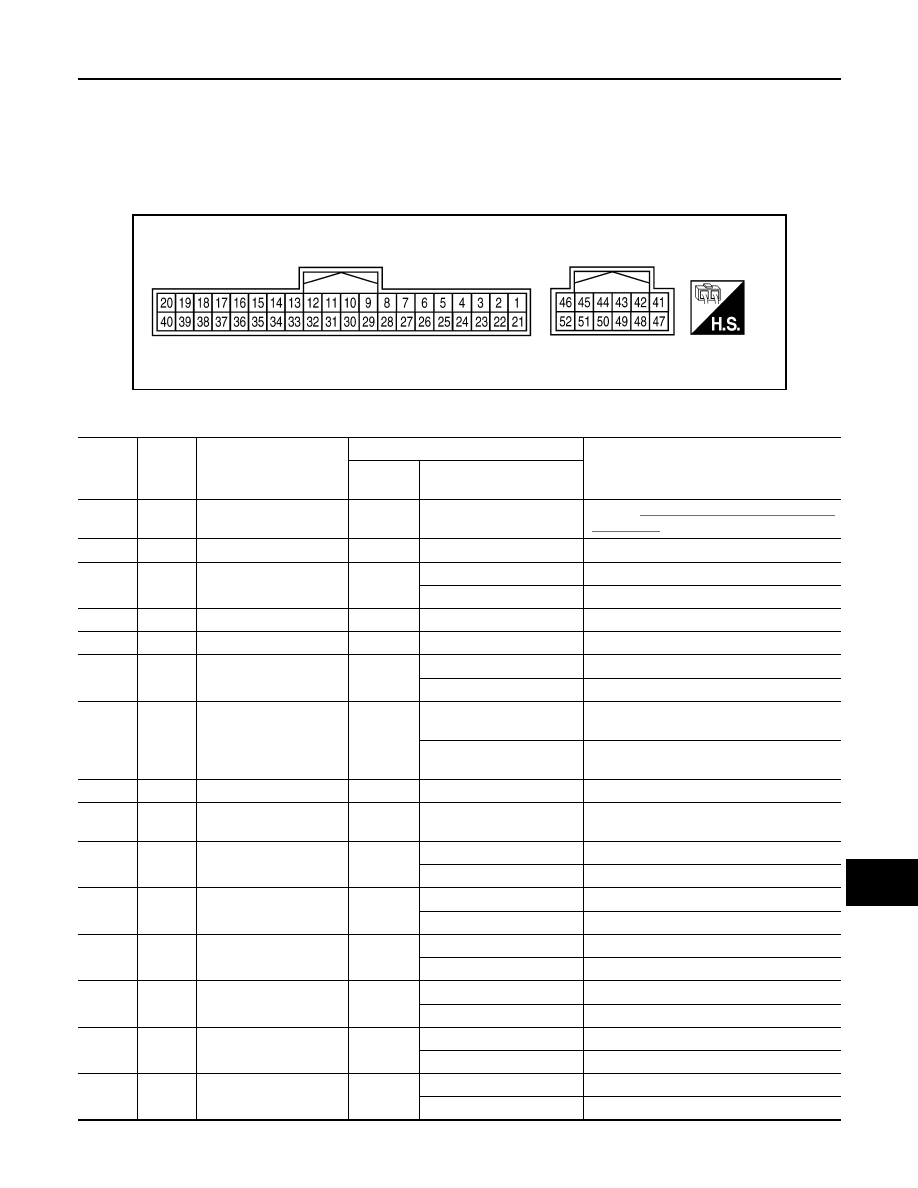

MWI COMBINATION METER MWI-39 < ECU DIAGNOSIS > C D E F G H I J K L M B A O P ECU DIAGNOSIS COMBINATION METER Reference Value INFOID:0000000005146098 TERMINAL LAYOUT PHYSICAL VALUES WKIA5724E Termi- nal Wire color Item Condition Reference value (V) (Approx.) Ignition switch Operation or condition 3 Y/L Fuel level sensor signal — — Refer to 4 B/P Fuel level sensor ground ON — 0 6 BR/W Generator ON Generator voltage low 0 Generator voltage normal Battery voltage 10 L CAN-H — — — 11 P CAN-L — — — 13 P Air bag warning lamp in- ON Air bag warning lamp ON 4 Air bag warning lamp OFF 0 15 BR CK SUSP warning lamp — CK SUSP warning lamp 0 CK SUSP warning lamp Battery voltage 20 B Ground — — 0 21 O/L Ignition switch ON or ON — Battery voltage 23 W/L Washer fluid level switch ON Washer fluid level low 0 Washer fluid level normal Battery voltage 24 O/B Seat belt buckle switch ON Unfastened (ON) 0 Fastened (OFF) Battery voltage 25 P/L Seat belt buckle switch ON Unfastened (ON) 0 Fastened (OFF) Battery voltage 31 G Parking brake switch ON Parking brake applied 0 Parking brake released Battery voltage 32 P/B Brake fluid level switch ON Brake fluid level low 0 Brake fluid level normal Battery voltage 35 G/O Security indicator input OFF Security indicator ON 0 Security indicator OFF Battery voltage |
