POWER SUPPLY AND GROUND CIRCUIT

MWI-31

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

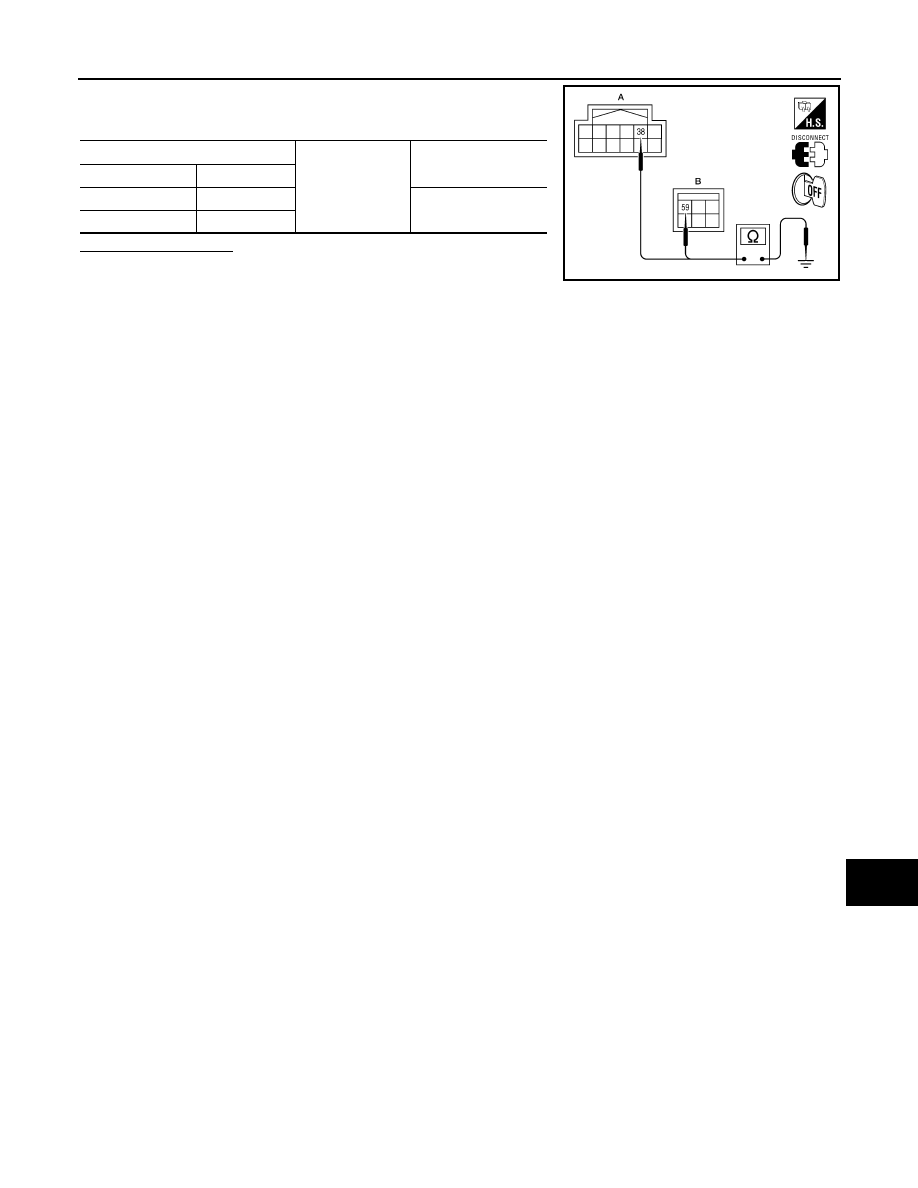

2. Check continuity between IPDM E/R harness connectors and

ground.

Does continuity exist?

YES

>> Inspection End.

NO

>> Repair or replace harness.

IPDM E/R

Ground

Continuity

Connector

Terminal

E122 (A)

38

Yes

E124 (B)

59

AWMIA0024ZZ

MWI-32

< COMPONENT DIAGNOSIS >

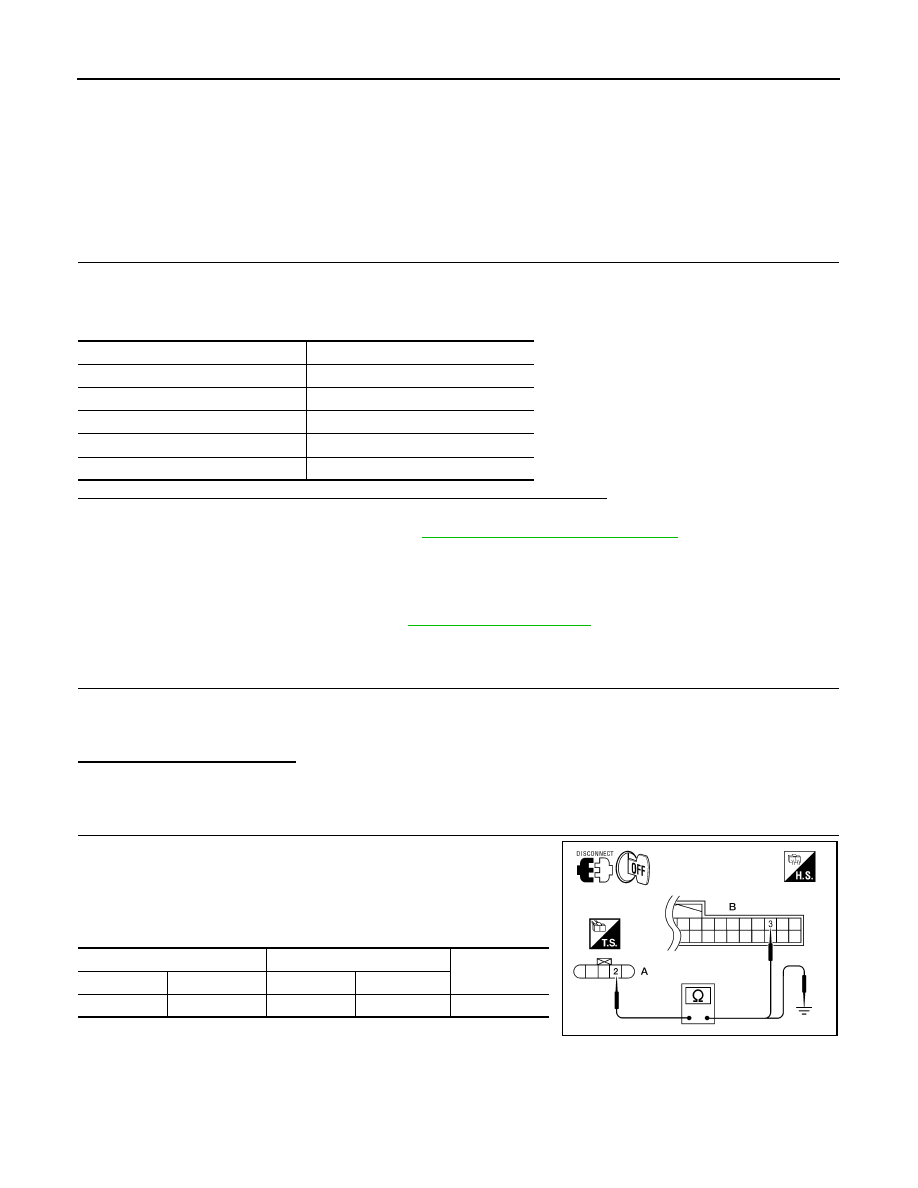

FUEL LEVEL SENSOR SIGNAL CIRCUIT

FUEL LEVEL SENSOR SIGNAL CIRCUIT

Description

INFOID:0000000005146081

The fuel level sensor unit and fuel pump detects the approximate fuel level in the fuel tank and transmits the

fuel level signal to the combination meter.

Component Function Check

INFOID:0000000005146082

1.

COMBINATION METER INPUT SIGNAL

1. Select “METER/M&A” on CONSULT-III.

2. Using “FUEL METER” of “DATA MONITOR”, compare the value of DATA MONITOR with fuel gauge

pointer of combination meter.

Does the data monitor value approximately match the fuel gauge indication?

YES

>> Inspection End.

NO

>> Replace combination meter. Refer to

MWI-100, "Removal and Installation"

.

Diagnosis Procedure

INFOID:0000000005146083

Regarding Wiring Diagram information, refer to

MWI-41, "Wiring Diagram"

.

1.

CHECK HARNESS CONNECTOR

1. Turn ignition switch OFF.

2. Check combination meter and fuel level sensor unit terminals (meter-side and harness-side) for poor con-

nection.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace terminals or connectors.

2.

CHECK FUEL LEVEL SENSOR UNIT CIRCUIT

1. Disconnect combination meter connector and fuel level sensor

unit connector.

2. Check continuity between combination meter harness connector

(B) and fuel level sensor unit and fuel pump harness connector

(A).

3. Check continuity between fuel level sensor unit and fuel pump

harness connector (A) and ground.

Fuel gauge pointer

Reference value of data monitor [lit.]

Full

Approx. 93

3/4

Approx. 73

1/2

Approx. 52

1/4

Approx. 30

Empty

Approx. 11

A

B

Continuity

Connector

Terminal

Connector

Terminal

C5

2

M24

3

Yes

AWNIA0206ZZ

MWI

FUEL LEVEL SENSOR SIGNAL CIRCUIT

MWI-33

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

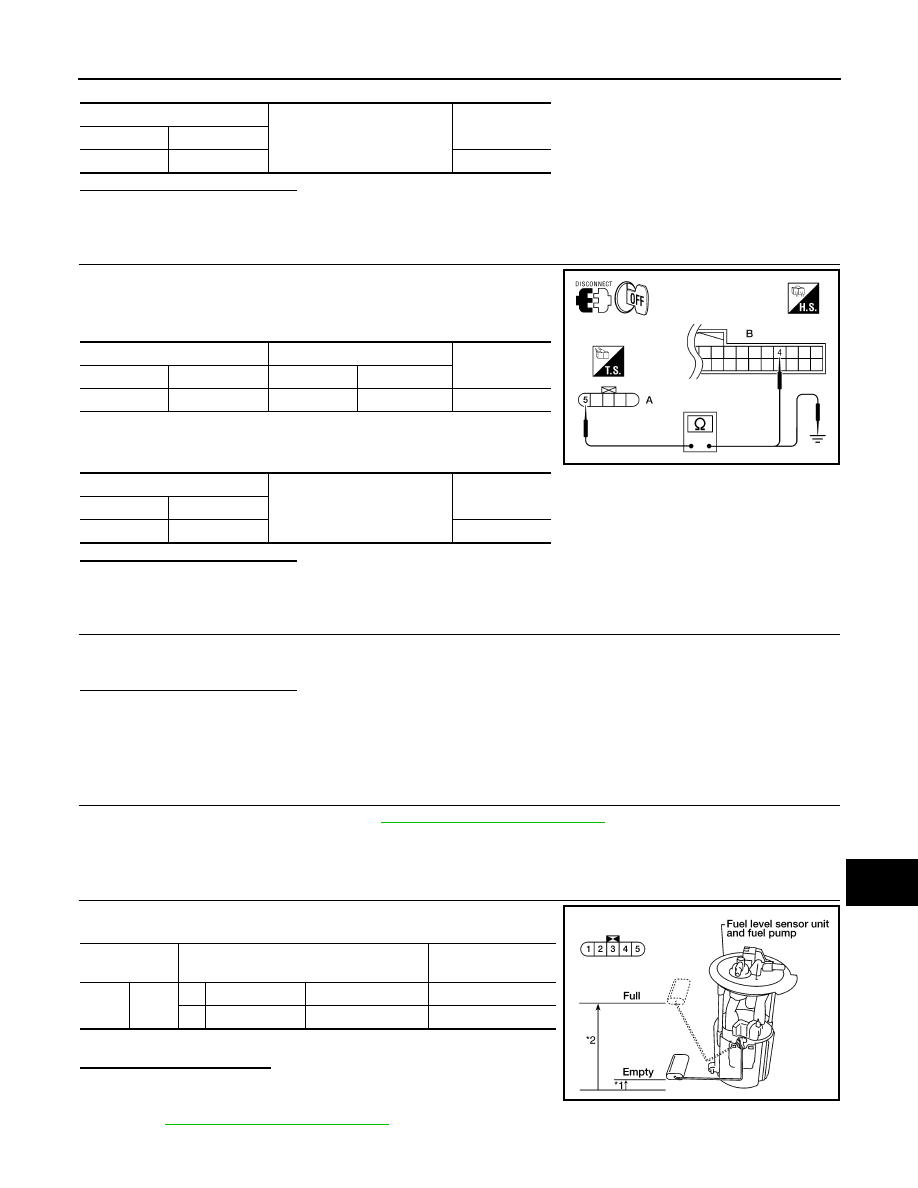

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair harness or connector.

3.

CHECK FUEL LEVEL SENSOR UNIT GROUND CIRCUIT

1. Check continuity between combination meter harness connector

(B) and fuel level sensor unit and fuel pump harness connector

(A).

2. Check continuity between fuel level sensor unit and fuel pump

harness connector (A) and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair harness or connector.

4.

CHECK INSTALLATION CONDITION

Check fuel level sensor unit installation, and check whether the float arm interferes or binds with any of the

internal components in the fuel tank.
Is the inspection result normal?

YES

>> Inspection End.

NO

>> Install the fuel level sensor unit properly.

Component Inspection

INFOID:0000000005146084

1.

REMOVE FUEL LEVEL SENSOR UNIT

Remove the fuel level sensor unit. Refer to

FL-7, "Removal and Installation"

.

>> GO TO 2

2.

CHECK FUEL LEVEL SENSOR UNIT AND FUEL PUMP

Check the resistance between terminals 2 and 5.

*1 and *2: When float arm is in contact with stopper.

Is inspection result normal?

YES

>> Inspection End.

NO

>> Replace fuel level sensor unit and fuel pump. Refer to

FL-7, "Removal and Installation"

.

A

Ground

Continuity

Connector

Terminal

C5

2

No

A

B

Continuity

Connector

Terminal

Connector

Terminal

C5

5

M24

4

Yes

A

Ground

Continuity

Connector

Terminal

C5

5

No

AWNIA0207ZZ

Terminal

Float position

mm (in)

Resistance value

(Approx.)

2

5

*1

Empty

7.5 (0.3)

80

Ω

*2

Full

218.9 (8.6)

6

Ω

LKIA0402E

MWI-34

< COMPONENT DIAGNOSIS >

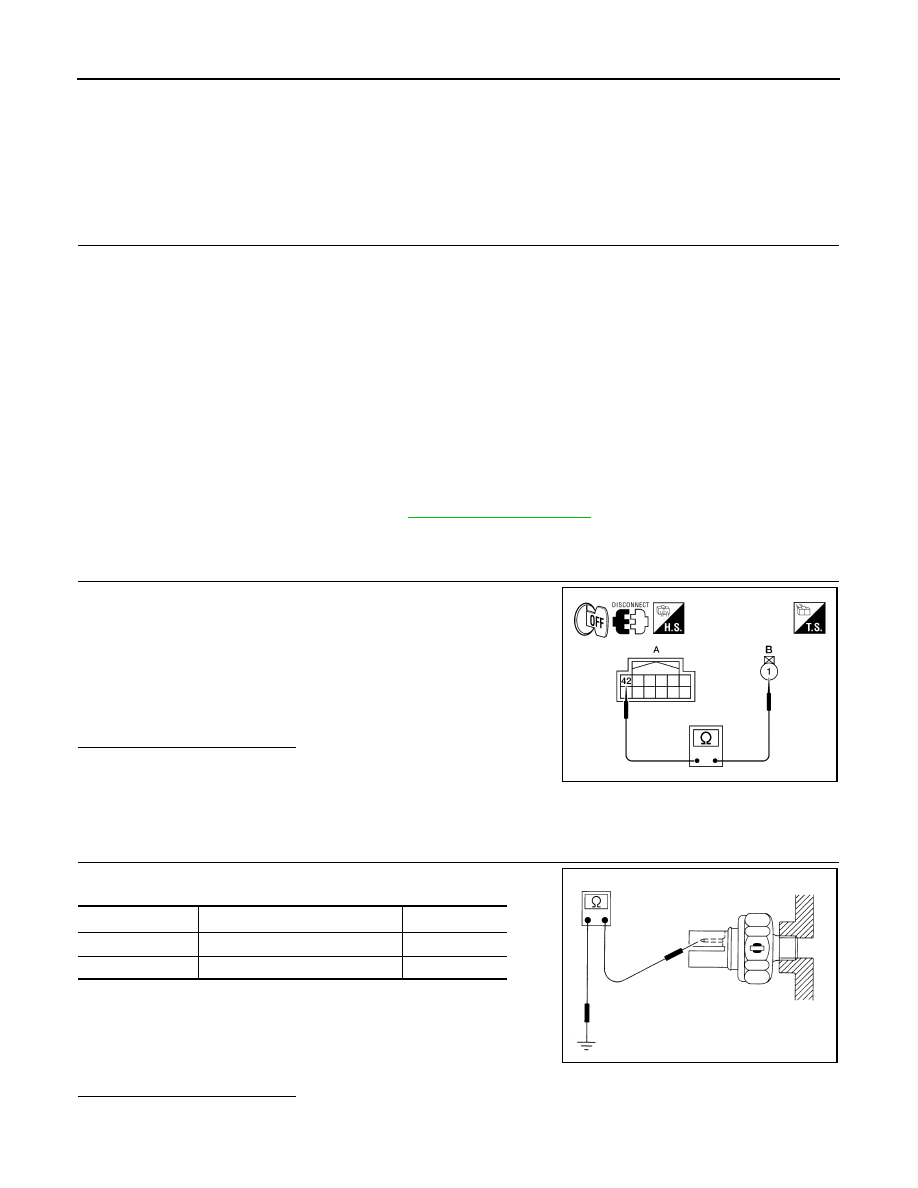

OIL PRESSURE SWITCH SIGNAL CIRCUIT

OIL PRESSURE SWITCH  SIGNAL CIRCUIT

Description

INFOID:0000000005146085

Detects the engine oil pressure and transmits the oil pressure switch signal to the IPDM E/R.

Component Function Check

INFOID:0000000005146086

1.

COMBINATION METER INPUT SIGNAL

1. Select “METER/M&A” on CONSULT-III.

2. Monitor “OIL W/L” of “DATA MONITOR” while operating ignition switch.

>> Inspection End.

Diagnosis Procedure

INFOID:0000000005146087

Regarding Wiring Diagram information, refer to

MWI-41, "Wiring Diagram"

.

1.

CHECK OIL PRESSURE SWITCH CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect IPDM E/R connector E122 and oil pressure switch

connector F4.

3. Check continuity between IPDM E/R harness connector E122

(A) terminal 42 and oil pressure switch harness connector F4 (B)

terminal 1.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Repair harness or connector.

Component Inspection

INFOID:0000000005146088

1.

CHECK OIL PRESSURE SWITCH

Check continuity between oil pressure switch and ground.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace the oil pressure switch.

OIL W/L
When ignition switch is in ON
position (Engine stopped)

: ON

When engine is running

: OFF

Continuity should exist.

WKIA5607E

Condition

Oil pressure [kPa (kg/cm

2

, psi)]

Continuity

Engine stopped

Less than 29 (0.3, 4)

Yes

Engine running

More than 29 (0.3, 4)

No
