Infiniti QX56 (JA60). Manual - part 691

MIR-18

< REMOVAL AND INSTALLATION >

DOOR MIRROR

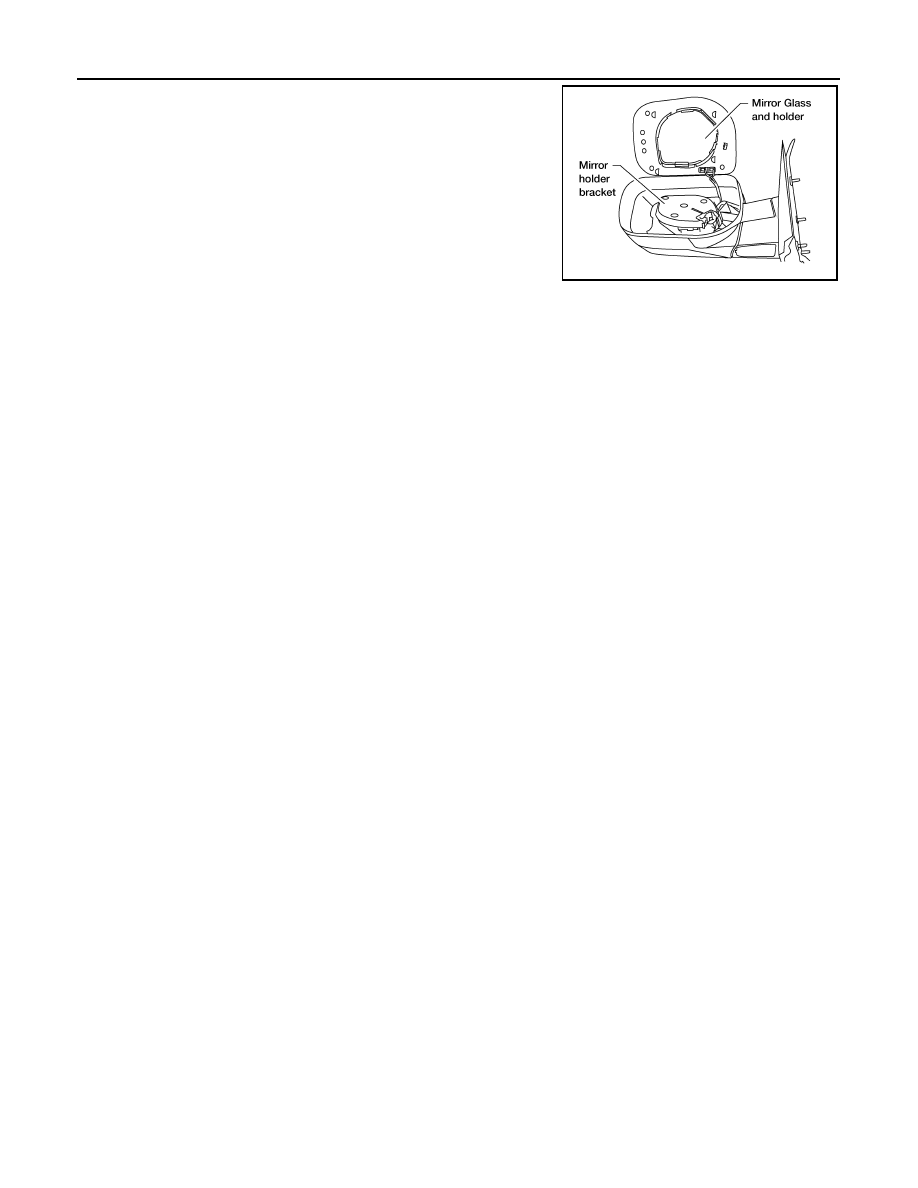

1. Set mirror holder bracket and mirror glass and holder in the hor-

izontal position.

2. Connect the two connectors to the back of the mirror holder.
3. Align mirror glass and holder with mirror holder bracket and

push mirror glass and holder onto mirror holder bracket.

4. Rotate mirror to ensure proper installation.

LIIA1592E

DOOR MIRROR

MIR-19

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DISASSEMBLY AND ASSEMBLY

DOOR MIRROR

Mirror Actuator

INFOID:0000000005146602

DISASSEMBLY AND ASSEMBLY

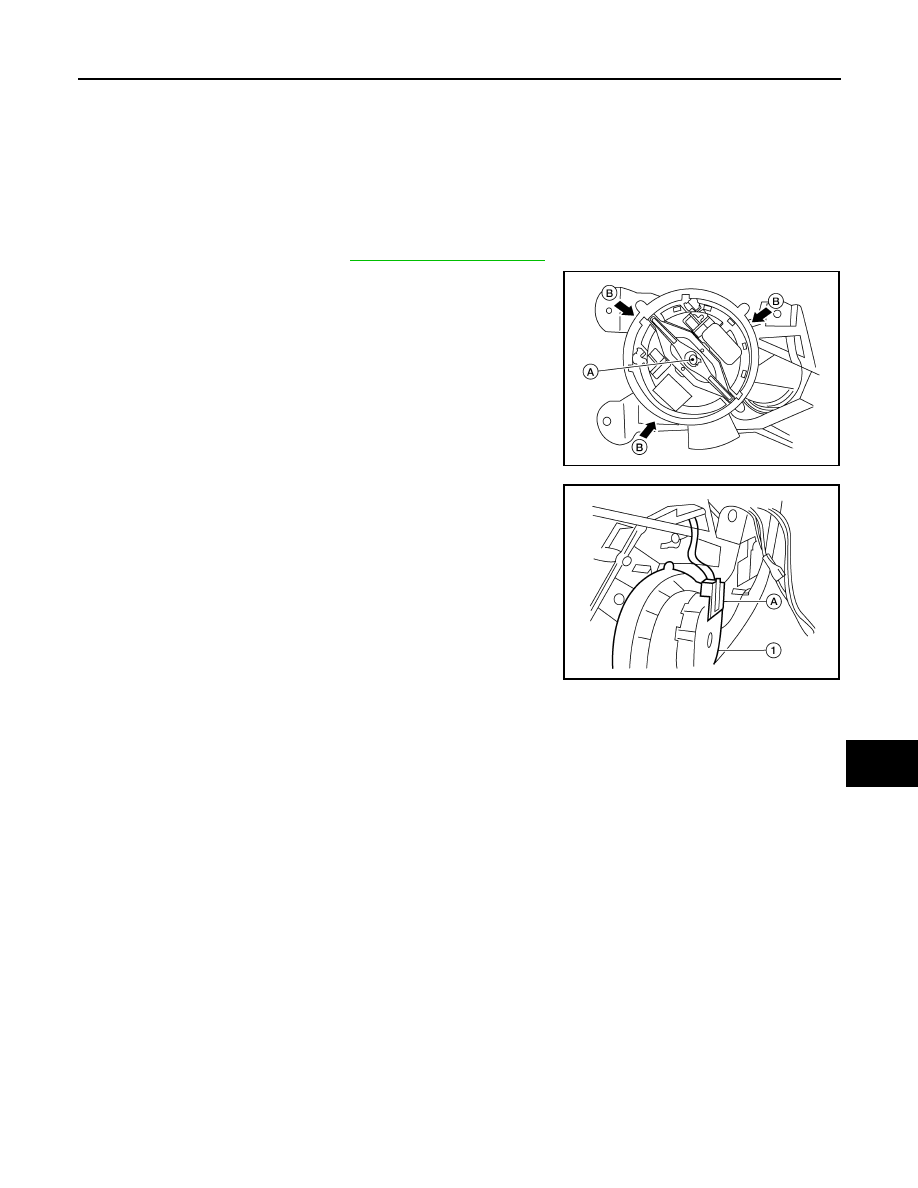

Disassembly

1. Remove the mirror glass. Refer to

MIR-17, "Door Mirror Glass"

2. Remove the center screw (A) and release the actuator hooks

from housing (B).

3. Disconnect the connector (A) and remove the actuator (1).

Assembly

Assembly is the reverse order of disassembly.

ALIIA0317GB

ALIIA0318GB

MWI

MWI-1

DRIVER INFORMATION & MULTIMEDIA

C

D

E

F

G

H

I

J

K

L

M

B

SECTION

MWI

A

O

P

CONTENTS

METER, WARNING LAMP & INDICATOR

BASIC INSPECTION  ....................................

4

DIAGNOSIS AND REPAIR WORKFLOW  ..........

4

Work Flow  .................................................................

4

FUNCTION DIAGNOSIS ...............................

5

METER SYSTEM .................................................

5

METER SYSTEM .........................................................

5

METER SYSTEM : System Diagram ........................

5

METER SYSTEM : System Description ....................

5

METER SYSTEM : Arrangement of Combination
Meter .........................................................................

6

METER SYSTEM : Component Parts Location  ........

7

METER SYSTEM : Component Description  .............

7

SPEEDOMETER ..........................................................

8

SPEEDOMETER : System Diagram  .........................

8

SPEEDOMETER : System Description .....................

8

SPEEDOMETER : Component Parts Location  .........

9

SPEEDOMETER : Component Description  ..............

9

TACHOMETER ............................................................

9

TACHOMETER : System Diagram ...........................

9

TACHOMETER : System Description .....................

10

TACHOMETER : Component Parts Location  .........

10

TACHOMETER : Component Description  ..............

10

ENGINE COOLANT TEMPERATURE GAUGE  ........

10

ENGINE COOLANT TEMPERATURE GAUGE :
System Diagram ......................................................

11

ENGINE COOLANT TEMPERATURE GAUGE :
System Description  .................................................

11

ENGINE COOLANT TEMPERATURE GAUGE :
Component Parts Location ......................................

11

ENGINE COOLANT TEMPERATURE GAUGE :
Component Description ...........................................

12

FUEL GAUGE ............................................................

12

FUEL GAUGE : System Diagram  ...........................

12

FUEL GAUGE : System Description  .......................

12

FUEL GAUGE : Component Parts Location  ...........

12

FUEL GAUGE : Component Description .................

13

ENGINE OIL PRESSURE GAUGE ............................

13

ENGINE OIL PRESSURE GAUGE : System Dia-
gram ........................................................................

13

ENGINE OIL PRESSURE GAUGE : System De-
scription ...................................................................

13

ENGINE OIL PRESSURE GAUGE : Component
Parts Location ..........................................................

14

ENGINE OIL PRESSURE GAUGE : Component
Description ...............................................................

14

VOLTAGE GAUGE  ....................................................

14

VOLTAGE GAUGE : System Diagram  ....................

15

VOLTAGE GAUGE : System Description ................

15

VOLTAGE GAUGE : Component Parts Location ....

15

VOLTAGE GAUGE : Component Description  .........

16

ODO/TRIP METER .....................................................

16

ODO/TRIP METER : System Diagram  ....................

16

ODO/TRIP METER : System Description ................

16

ODO/TRIP METER : Component Parts Location ....

16

ODO/TRIP METER : Component Description  .........

17

SHIFT POSITION INDICATOR  ..................................

17

SHIFT POSITION INDICATOR : System Diagram ....

17

SHIFT POSITION INDICATOR : System Descrip-
tion ...........................................................................

17

SHIFT POSITION INDICATOR : Component
Parts Location ..........................................................

18

SHIFT POSITION INDICATOR : Component De-
scription ...................................................................

18

WARNING LAMPS/INDICATOR LAMPS ..................

18

WARNING LAMPS/INDICATOR LAMPS : System
Diagram ...................................................................

18

WARNING LAMPS/INDICATOR LAMPS : System
Description ...............................................................

19

WARNING LAMPS/INDICATOR LAMPS : Com-
ponent Parts Location ..............................................

19

WARNING LAMPS/INDICATOR LAMPS : Com-
ponent Description ...................................................

19

MWI-2

INFORMATION DISPLAY .........................................

19

INFORMATION DISPLAY : System Diagram .........

20

INFORMATION DISPLAY : System Description  ....

20

INFORMATION DISPLAY : Component Parts Lo-
cation ......................................................................

21

INFORMATION DISPLAY : Component Descrip-
tion ..........................................................................

21

DIAGNOSIS SYSTEM (METER)  .......................

22

Diagnosis Description .............................................

22

CONSULT-III Function (METER/M&A) ...................

23

COMPONENT DIAGNOSIS  ........................

26

DTC U1000 CAN COMMUNICATION  ...............

26

DTC Logic ...............................................................

26

Diagnosis Procedure .............................................

26

DTC B2205 VEHICLE SPEED CIRCUIT  ...........

27

Description ..............................................................

27

DTC Logic ...............................................................

27

Diagnosis Procedure .............................................

27

POWER SUPPLY AND GROUND CIRCUIT  .....

28

COMBINATION METER  ...........................................

28

COMBINATION METER : Diagnosis Procedure  ....

28

BCM (BODY CONTROL MODULE)  .........................

29

BCM (BODY CONTROL MODULE) : Diagnosis
Procedure ...............................................................

29

IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM)  .............................

30

IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM) : Diagnosis Pro-
cedure .....................................................................

30

FUEL LEVEL SENSOR SIGNAL CIRCUIT  .......

32

Description ..............................................................

32

Component Function Check  ...................................

32

Diagnosis Procedure .............................................

32

Component Inspection ............................................

33

OIL PRESSURE SWITCH SIGNAL CIRCUIT ...

34

Description ..............................................................

34

Component Function Check  ...................................

34

Diagnosis Procedure  ..............................................

34

Component Inspection ............................................

34

PARKING BRAKE SWITCH SIGNAL CIR-
CUIT ...................................................................

35

Description ..............................................................

35

Component Function Check  ...................................

35

Diagnosis Procedure  ..............................................

35

Component Inspection ............................................

35

WASHER LEVEL SWITCH SIGNAL CIRCUIT ...

36

Description ..............................................................

36

Diagnosis Procedure  ..............................................

36

Component Inspection ............................................

36

CLOCK ..............................................................

37

Wiring Diagram  .......................................................

37

ECU DIAGNOSIS  .......................................

39

COMBINATION METER ....................................

39

Reference Value  .....................................................

39

Wiring Diagram  .......................................................

41

Fail Safe ..................................................................

58

DTC Index ...............................................................

59

BCM (BODY CONTROL MODULE) ..................

61

Reference Value  .....................................................

61

Terminal Layout  ......................................................

64

Physical Values .......................................................

64

Wiring Diagram  .......................................................

70

Fail Safe .................................................................

74

DTC Inspection Priority Chart ...............................

75

DTC Index ..............................................................

75

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM) .................

77

Reference Value  .....................................................

77

Terminal Layout  ......................................................

79

Physical Values .......................................................

80

Wiring Diagram  .......................................................

85

Fail Safe .................................................................

88

DTC Index ..............................................................

90

SYMPTOM DIAGNOSIS  ............................

91

THE FUEL GAUGE POINTER DOES NOT
MOVE .................................................................

91

Description ..............................................................

91

Diagnosis Procedure ...............................................

91

THE FUEL GAUGE POINTER DOES NOT
MOVE TO "F" WHEN REFUELING  ..................

92

Description ..............................................................

92

Diagnosis Procedure ...............................................

92

THE OIL PRESSURE WARNING LAMP
DOES NOT TURN ON .......................................

93

Description ..............................................................

93

Diagnosis Procedure ...............................................

93

THE OIL PRESSURE WARNING LAMP
DOES NOT TURN OFF .....................................

94

Description ..............................................................

94

Diagnosis Procedure ...............................................

94

THE PARKING BRAKE RELEASE WARNING
CONTINUES DISPLAYING, OR DOES NOT
DISPLAY ............................................................

95

Description ..............................................................

95

Diagnosis Procedure ...............................................

95

THE LOW WASHER FLUID WARNING CON-
TINUES DISPLAYING, or DOES NOT DIS-
PLAY ..................................................................

96
