Infiniti QX56 (JA60). Manual - part 690

MIR-14

< REMOVAL AND INSTALLATION >

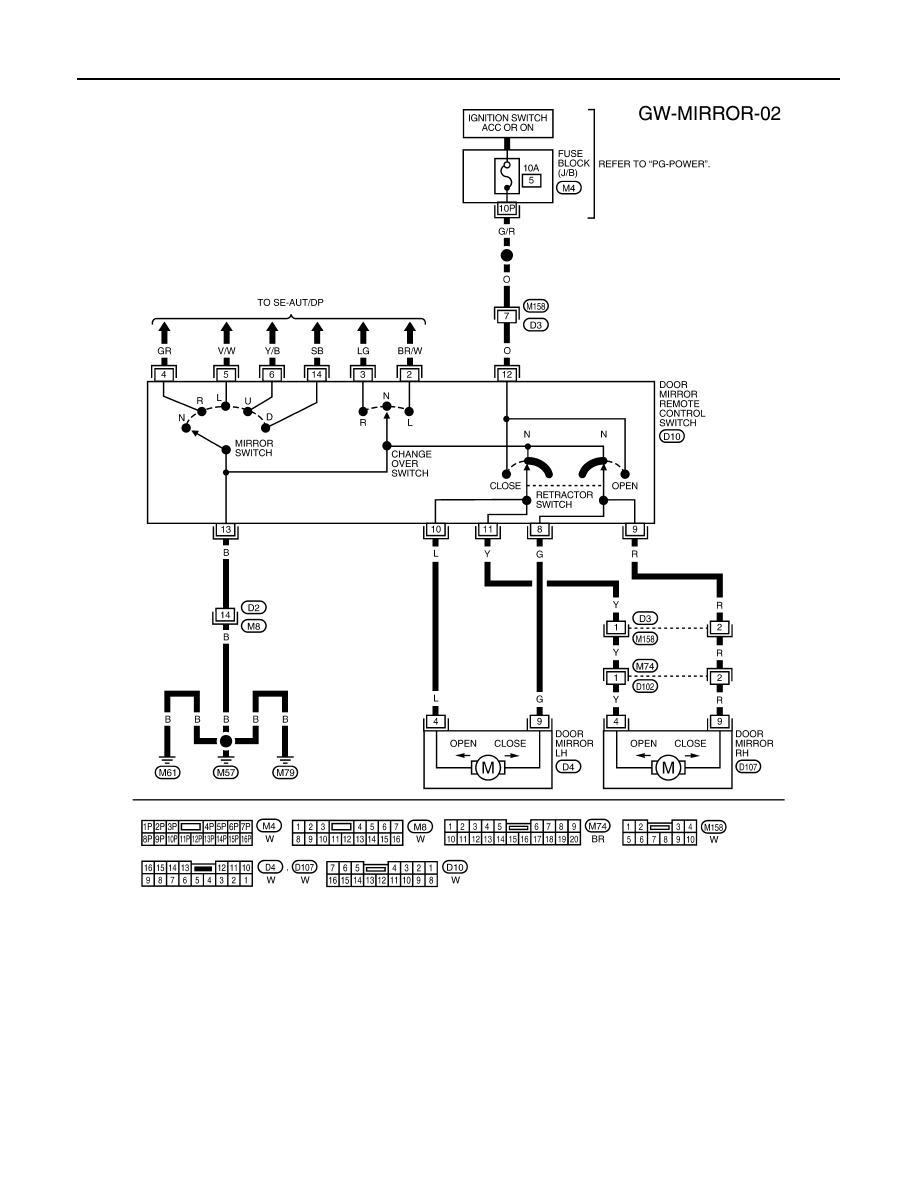

DOOR MIRROR

With Power Folding Mirrors

WIWA2064E

DOOR MIRROR

MIR-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

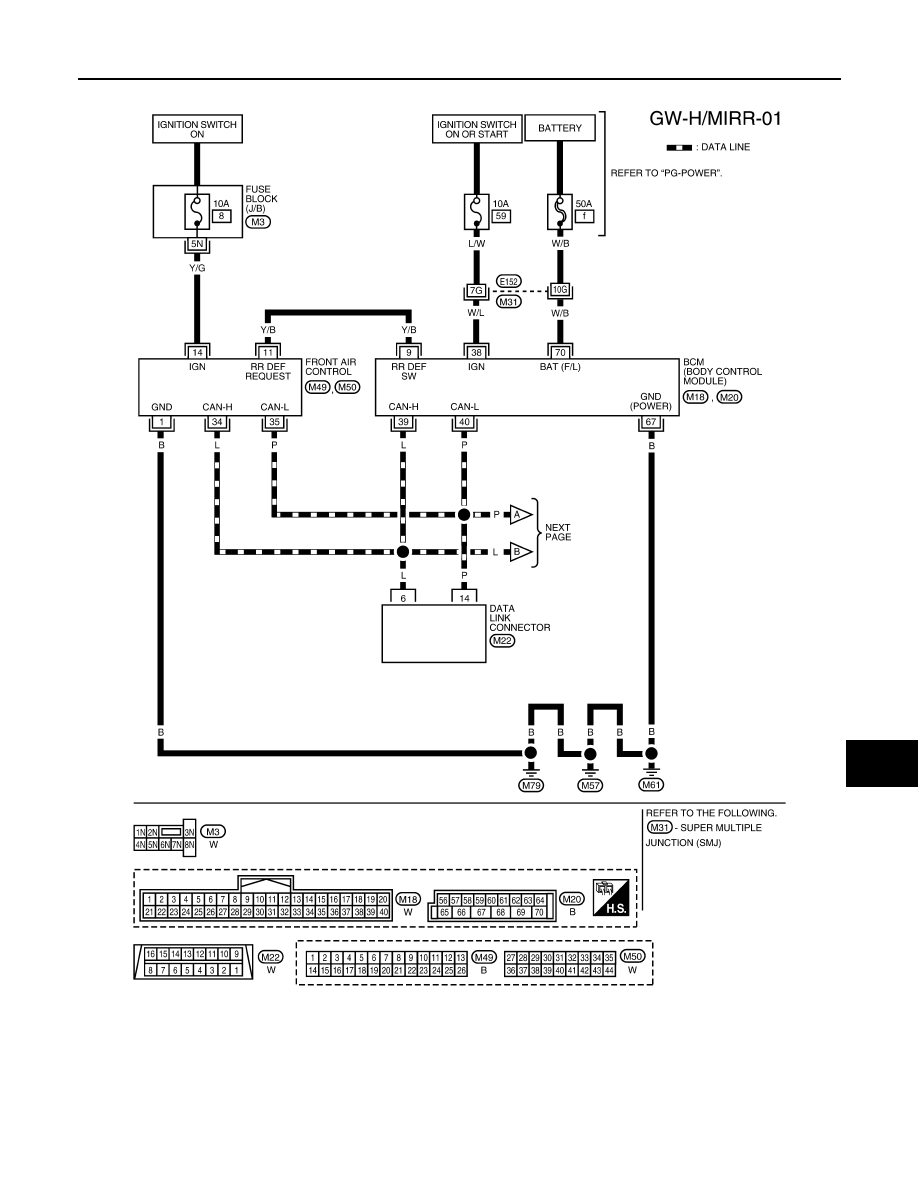

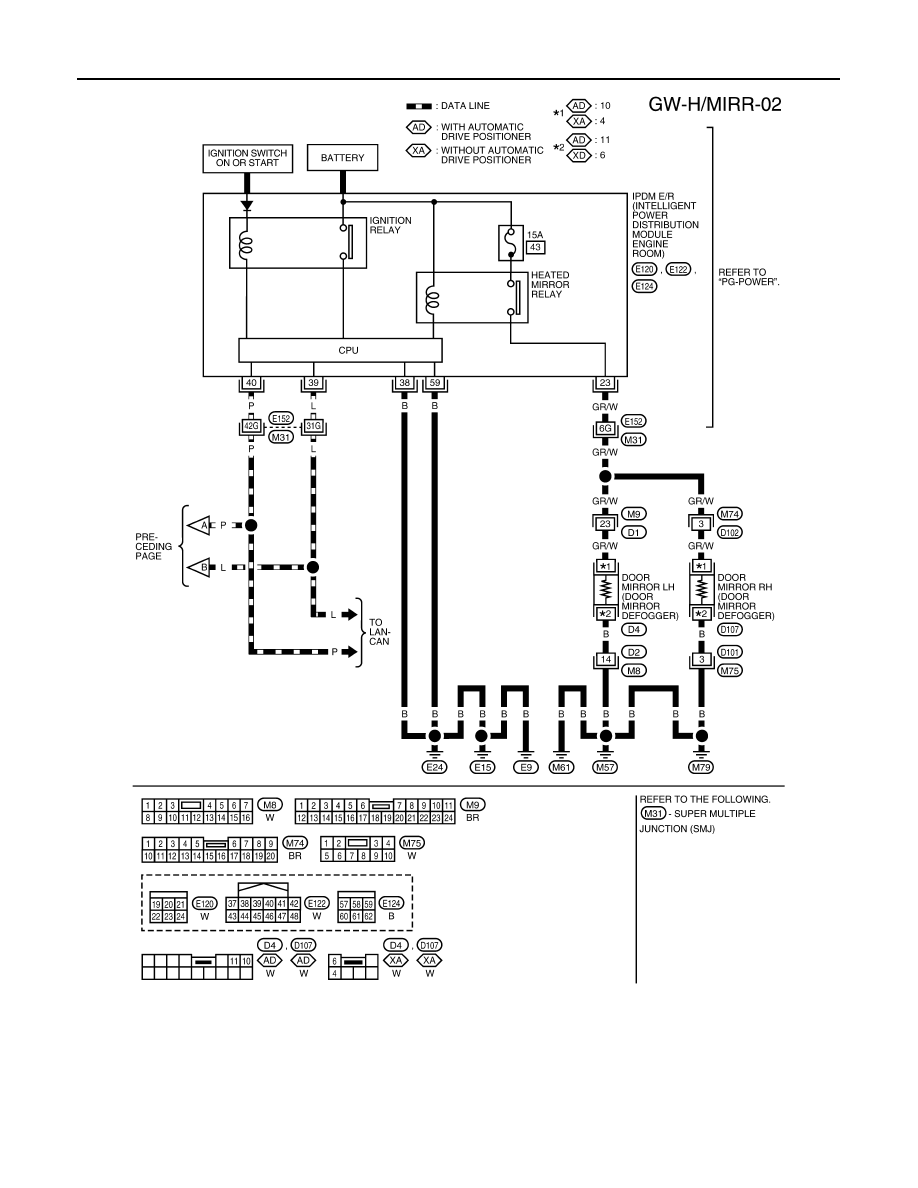

Wiring Diagram - H/MIRR -

INFOID:0000000005146599

WIWA1387E

MIR-16

< REMOVAL AND INSTALLATION >

DOOR MIRROR

WIWA2065E

DOOR MIRROR

MIR-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

Door Mirror Assembly

INFOID:0000000005146600

STANDARD MIRROR

Removal

1. Remove the front door finisher. Refer to

INT-11, "Removal and Installation"

 .

2. Disconnect the mirror connector.
3. Remove the door mirror assembly.

Installation

Installation is in the reverse order of removal.

Door Mirror Glass

INFOID:0000000005146601

REMOVAL

1. Set mirror assembly mirror glass upward.
2. Apply protective tape to mirror housing.
3. Insert a suitable tool at notch and gently pry mirror glass and

holder from mirror holder bracket.

4. Disconnect two electrical connectors from mirror glass and

holder.

INSTALLATION

WIIA0944E

LIIA1591E
