Infiniti QX56 (JA60). Manual - part 684

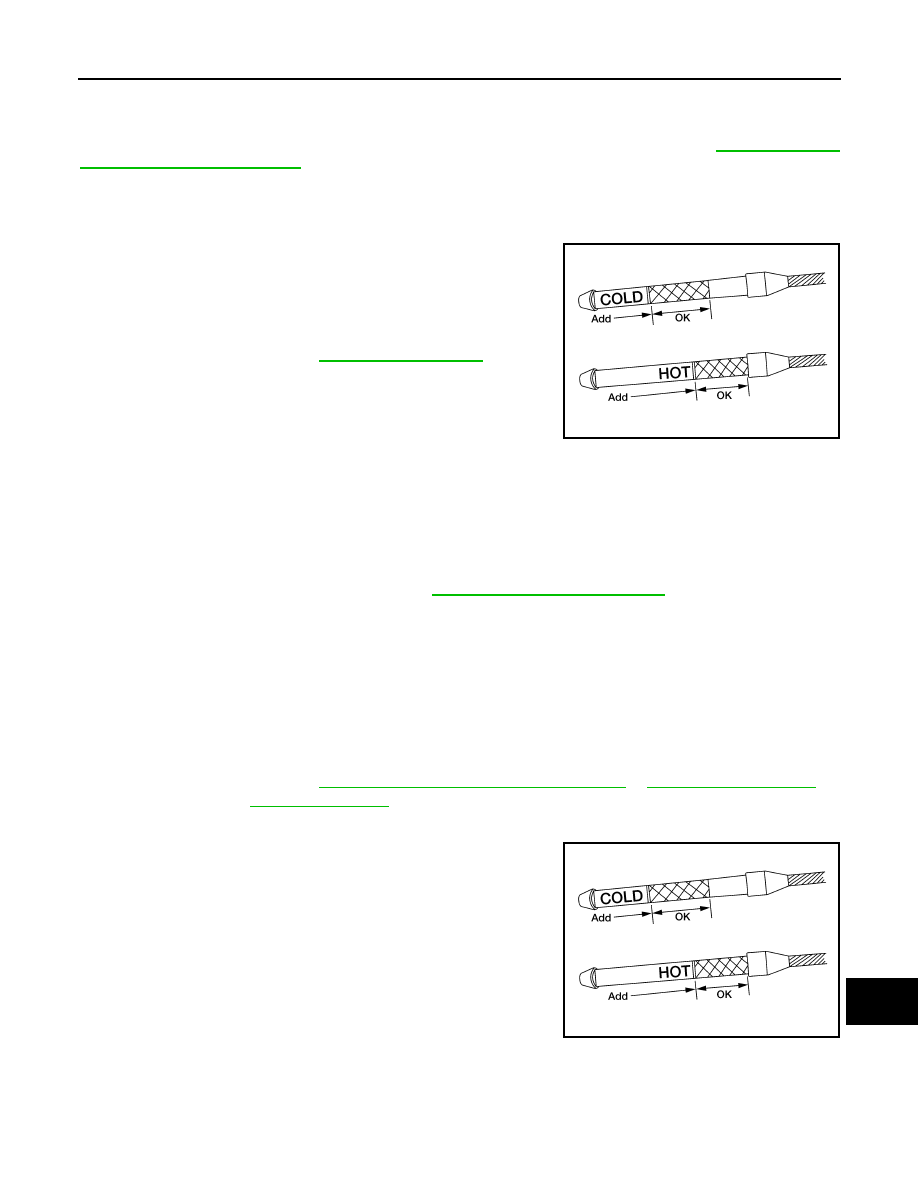

CHASSIS AND BODY MAINTENANCE

MA-29

< ON-VEHICLE MAINTENANCE >

A/T FLUID : Changing the A/T Fluid (ATF)

INFOID:0000000005403152

CAUTION:

If using the vehicle for towing, the A/T fluid must be replaced as specified. Refer to

MA-9, "Introduc-

tion of Periodic Maintenance"

1. Drive the vehicle to warm up the A/T fluid to approximately 80

° C (176° F).

2. Stop the engine.
3. Remove the A/T fluid level gauge.
4. Drain the A/T fluid from the drain plug hole, then install the drain

plug with a new gasket. Refill the transmission with new A/T

fluid. Always refill with the same volume as the drained A/T fluid.

Use the A/T fluid level gauge to check the A/T fluid level as

shown. Add A/T fluid as necessary.

• To flush out the old A/T fluid from the transmission oil coolers, pour new A/T fluid into the A/T fluid charg-

ing pipe with the engine idling and at the same time drain the old A/T fluid from the auxiliary transmis-

sion oil cooler hose return line.

• When the color of the A/T fluid coming out of the auxiliary transmission oil cooler hose return line is

about the same as the color of the new A/T fluid, flushing out the old A/T fluid is complete. The amount

of new A/T fluid used for flushing should be 30% to 50% increase of the specified capacity.

CAUTION:

• If Genuine NISSAN Matic S ATF is not available, Genuine NISSAN Matic J ATF may also be used.

• Using ATF fluid other than Genuine NISSAN Matic S ATF or Matic J ATF will cause deterioration

in driveability and A/T durability, and may damage the A/T, which is not covered by the warranty.

• When filling the transmission with A/T fluid, do not spill the A/T fluid on any heat generating

parts such as the exhaust parts.

• Do not reuse the drain plug gasket.

5. Install the A/T fluid level gauge and tighten the A/T fluid level gauge bolt to specification.

6. Drive the vehicle to warm up the A/T fluid to approximately 80

° C (176° F).

7. Check the fluid level and condition. If the A/T fluid is still dirty,

repeat steps 2 through 6.

8. Install the A/T fluid level gauge in the A/T fluid charging pipe and install the A/T fluid level gauge bolt.
9. Tighten the A/T fluid level gauge bolt to specification.

Drain plug

: Refer to

TM-192, "Component"

LLIA0071E

A/T fluid grade and capacity

: Refer to

MA-13, "Fluids and Lubricants"

A/T fluid level
gauge bolt

: Refer to

TM-186, "Removal and Installation (2WD)"

TM-188, "Removal and

Installation (4WD)"

LLIA0071E

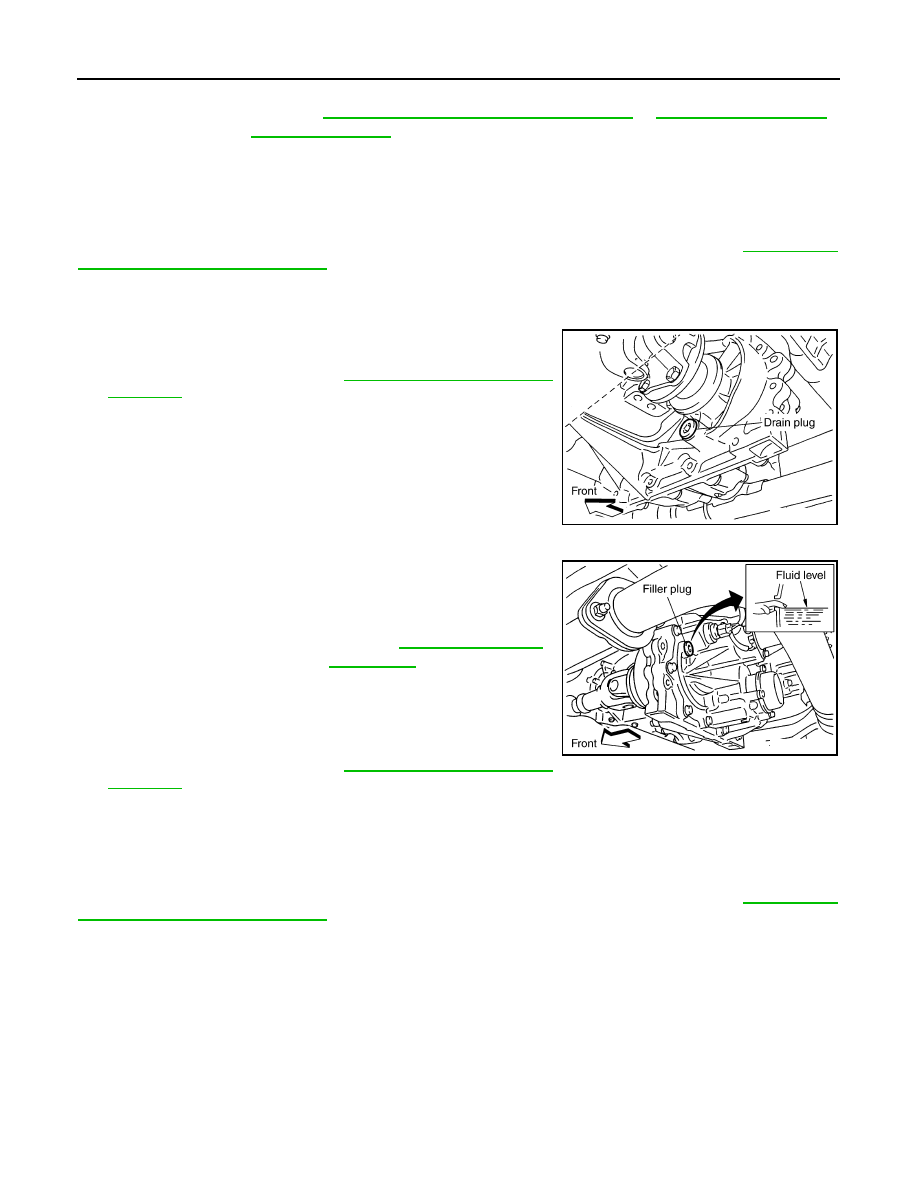

MA-30

< ON-VEHICLE MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

TRANSFER FLUID
TRANSFER FLUID : Replacement

INFOID:0000000005403153

CAUTION:

If using the vehicle for towing, the transfer fluid must be replaced as specified. Refer to

MA-9, "Intro-

duction of Periodic Maintenance"

DRAINING

1. Stop engine.
2. Remove the drain plug and gasket and drain the fluid.
3. Install the drain plug with a new gasket to the transfer. Tighten to

the specified torque. Refer to

DLN-142, "Disassembly and

Assembly"

CAUTION:

Do not reuse gasket.

FILLING

1. Remove the filler plug and gasket.
2. Fill the transfer with new fluid until the fluid level reaches the

specified limit near the filler plug hole.

CAUTION:

Carefully fill fluid. (Fill up for approx. 3 minutes.)

3. Leave the vehicle for 3 minutes, and check fluid level again.
4. Install the filler plug with a new gasket to the transfer. Tighten to

the specified torque. Refer to

DLN-142, "Disassembly and

Assembly"

CAUTION:

Do not reuse gasket.

TRANSFER FLUID : Inspection

INFOID:0000000005403154

CAUTION:

If using the vehicle for towing, the transfer fluid must be replaced as specified. Refer to

MA-9, "Intro-

duction of Periodic Maintenance"

FLUID LEAKAGE AND FLUID LEVEL

1. Make sure that fluid is not leaking from the transfer assembly or around it.

A/T fluid level
gauge bolt

: Refer to

TM-186, "Removal and Installation (2WD)"

TM-188, "Removal and

Installation (4WD)"

SDIA3208E

Fluid grade and capacity : Refer to

MA-13, "Fluids and

Lubricants"

SDIA3209E

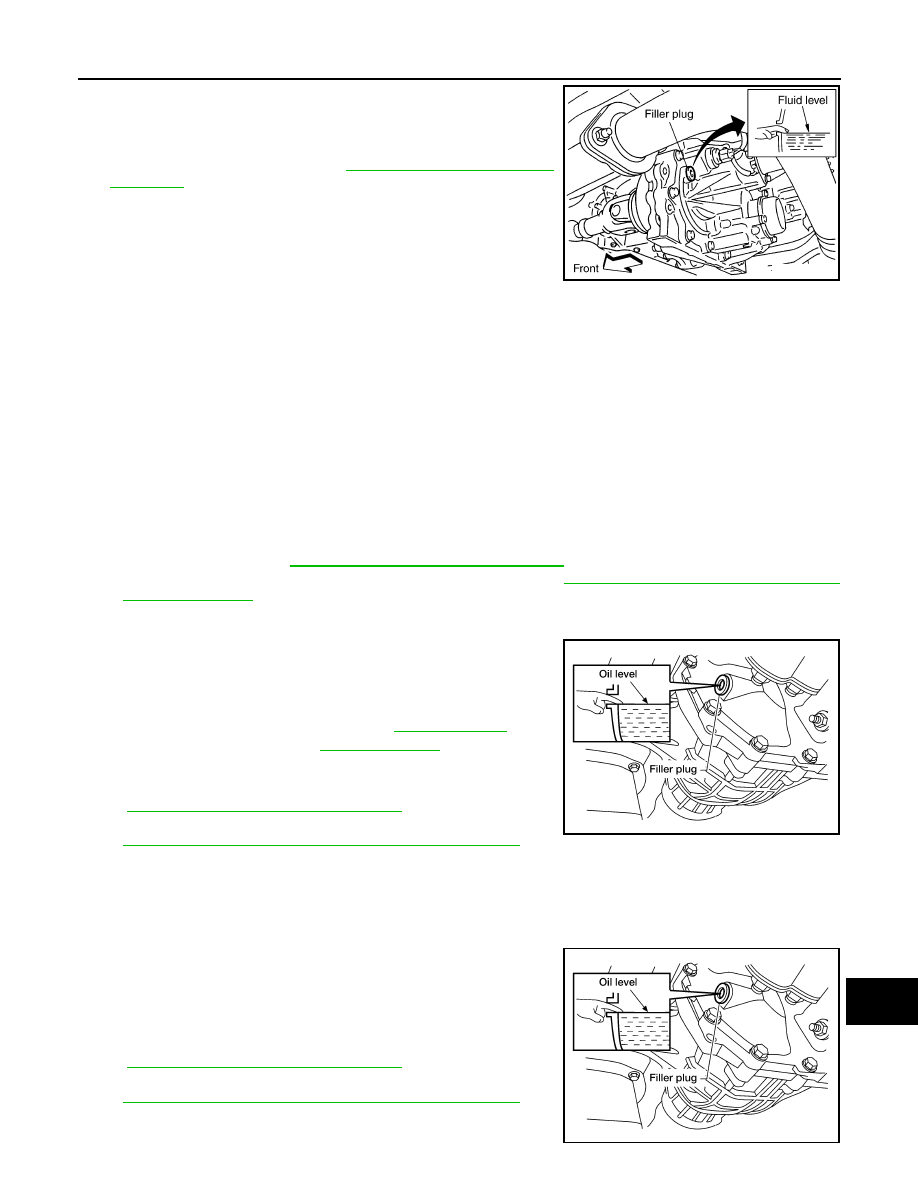

CHASSIS AND BODY MAINTENANCE

MA-31

< ON-VEHICLE MAINTENANCE >

2. Check fluid level from the filler plug hole as shown.

CAUTION:

Do not start engine while checking fluid level.

3. Install the filler plug with a new gasket to the transfer. Tighten to

the specified torque. Refer to

DLN-142, "Disassembly and

Assembly"

CAUTION:

Do not reuse gasket.

PROPELLER SHAFT
PROPELLER SHAFT : Checking Propeller Shaft

INFOID:0000000005259668

Check the front and rear propeller shafts for damage, dents, and cracks. Check the joints for looseness and

any damage. Repair or replace as necessary.

DIFFERENTIAL GEAR OIL
DIFFERENTIAL GEAR OIL : Changing Front Differential Gear Oil

INFOID:0000000005403155

DRAINING

1. Stop the engine.
2. Remove the drain plug from the front final drive assembly to drain the differential gear oil.
3. Install the drain plug with sealant applied on the threads to the front final drive assembly. Tighten to the

specified torque. Refer to

DLN-217, "Disassembly and Assembly"

• Use High Performance Thread Sealant or equivalent. Refer to

GI-15, "Recommended Chemical Prod-

ucts and Sealants"

FILLING

1. Remove the filler plug from the front final drive assembly.
2. Fill the front final drive assembly with new differential gear oil

until the level reaches the specified level near the filler plug hole.

3. Install the filler plug with sealant applied on the threads to the

front final drive assembly. Tighten to the specified torque. Refer

DLN-217, "Disassembly and Assembly"

• Use High Performance Thread Sealant or equivalent. Refer to

DIFFERENTIAL GEAR OIL : Checking Front Differential Gear Oil

INFOID:0000000005403156

DIFFERENTIAL GEAR OIL LEAKAGE AND LEVEL

1. Make sure that differential gear oil is not leaking from the front final drive assembly or around it.
2. Check the differential gear oil level from the filler plug hole as

shown.

CAUTION:

Do not start engine while checking differential gear oil level.

3. Install the filler plug with sealant applied on the threads to the

front final drive assembly. Tighten to the specified torque. Refer

DLN-217, "Disassembly and Assembly"

• Use High Performance Thread Sealant or equivalent. Refer to

SDIA3209E

Differential gear oil
grade and capacity

: Refer to

MA-13, "Fluids

and Lubricants"

LDIA0176E

MA-32

< ON-VEHICLE MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

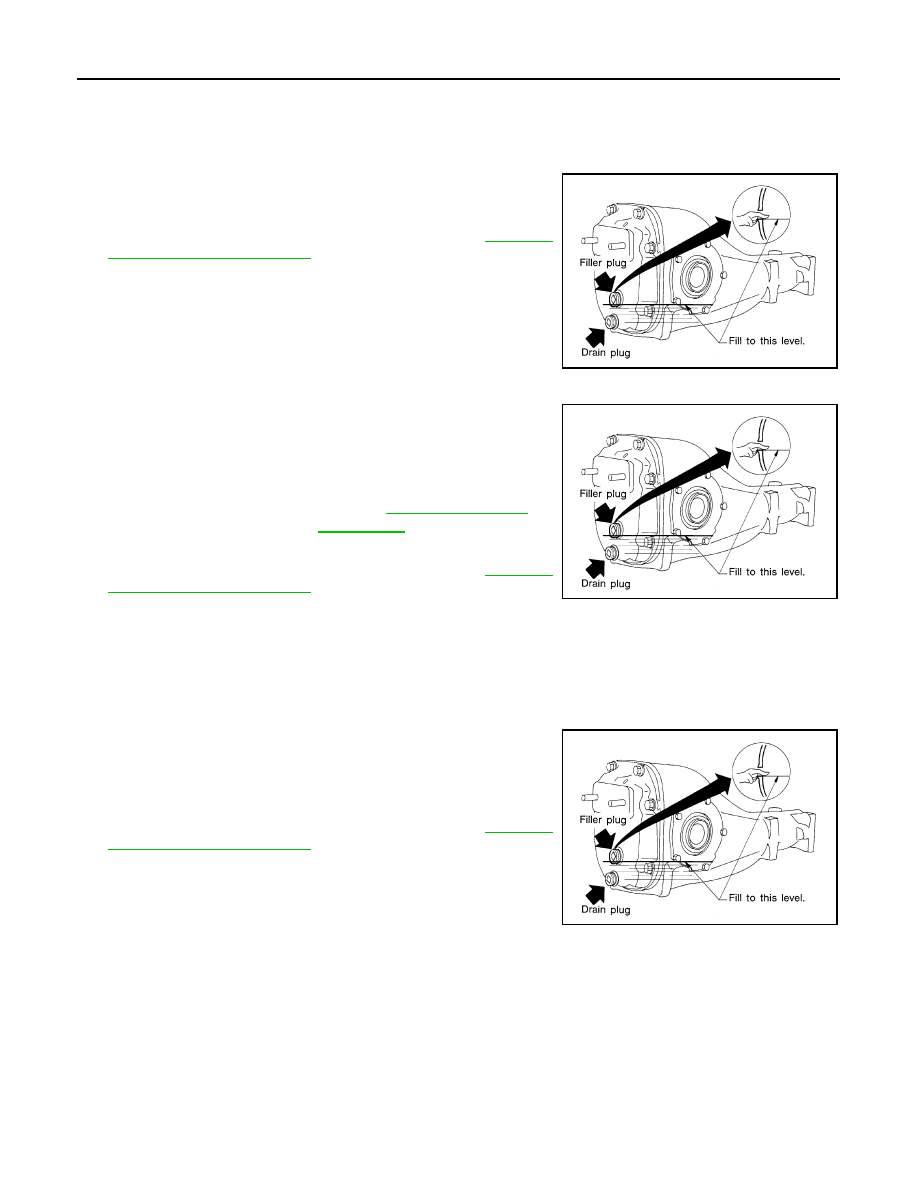

DIFFERENTIAL GEAR OIL : Changing Rear Differential Gear Oil

INFOID:0000000005403157

DRAINING

1. Stop the engine.
2. Remove the drain plug and gasket from the rear final drive

assembly to drain the differential gear oil.

3. Install the drain plug with a new gasket to the rear final drive

assembly. Tighten to the specified torque. Refer to

DLN-253,

"Disassembly and Assembly"

CAUTION:

Do not reuse gasket.

FILLING

1. Remove the filler plug and gasket from the rear final drive

assembly.

2. Fill the rear final drive assembly with new differential gear oil

until the level reaches the specified level near the filler plug hole.

3. Install the filler plug with a new gasket on it to the rear final drive

assembly. Tighten to the specified torque. Refer to

DLN-253,

"Disassembly and Assembly"

CAUTION:

Do not reuse gasket.

DIFFERENTIAL GEAR OIL : Checking Rear Differential Gear Oil

INFOID:0000000005403158

OIL LEAKAGE AND OIL LEVEL

1. Make sure that differential gear oil is not leaking from the rear final drive assembly or around it.
2. Check the differential gear oil level from the filler plug hole as

shown.

CAUTION:

Do not start engine while checking differential gear oil level.

3. Install the filler plug with a new gasket on it to the rear final drive

assembly. Tighten to the specified torque. Refer to

DLN-253,

"Disassembly and Assembly"

CAUTION:

Do not reuse gasket.

WHEELS
WHEELS : Balancing Wheels

INFOID:0000000005403159

Removal
