REAR CENTER CONSOLE

REAR CENTER CONSOLE

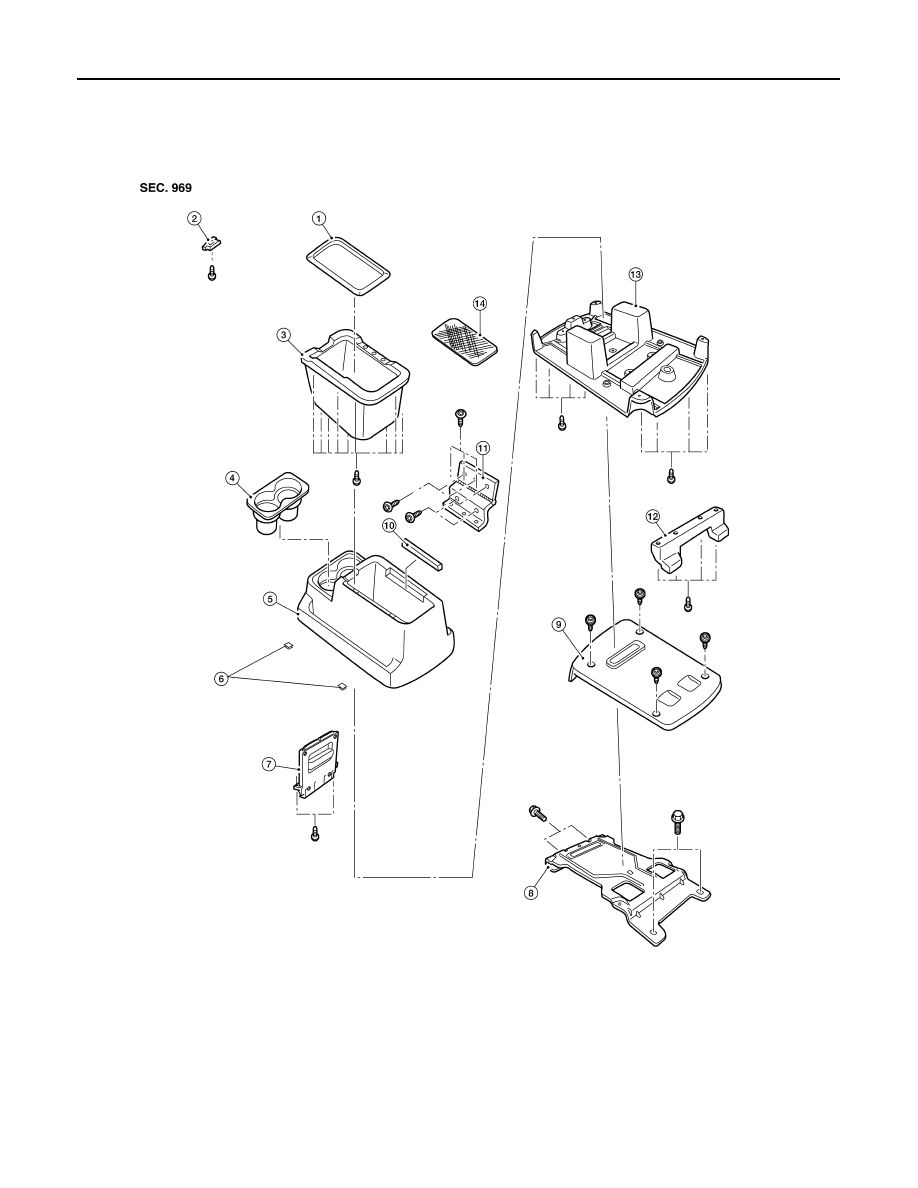

Exploded View

INFOID:0000000005147377

1.

Lid assembly

2.

Lid latch

3.

Console bin

4.

Cup holder insert

5.

Rear upper console assembly

6.

Rubber bumpers

7.

Floor latch

8.

Rear console floor bracket

9.

Rear console floor base

10. Hinge cover

11. Hinge

12. Base hook

13. Rear lower console assembly

14. Console bin mat

AWJIA0340GB

REAR CENTER CONSOLE

IP-25

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

Disassembly and Assembly

INFOID:0000000005147378

DISASSEMBLY

1. Remove cup holder insert.
2. Remove hinge cover.
3. Remove screws and remove lid assembly.
4. Remove screw and remove latch from lid assembly.
5. Remove screws and remove hinge.
6. Remove screws and separate rear upper console assembly and rear lower console assembly.
7. Remove floor latch from rear upper console assembly.
8. Remove screws and remove console bin from rear upper console assembly.
9. Remove screws and remove rear console floor base.
10. Remove bolts and remove rear console floor bracket.

ASSEMBLY

Assembly is in the reverse order of disassembly.
