HEADLINING

INT-17

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

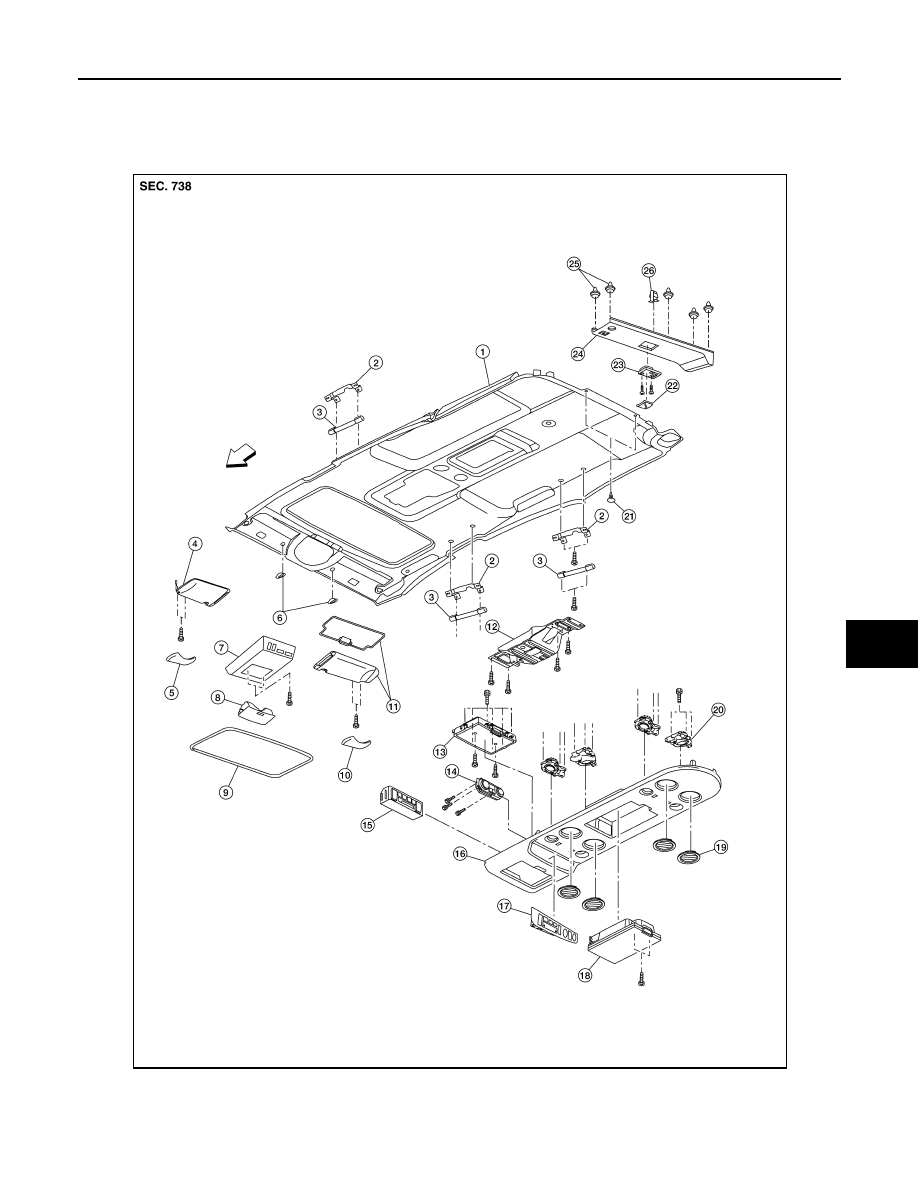

HEADLINING

Removal and Installation

INFOID:0000000005147352

1.

Headlining

2.

Assist grip bracket

3.

Assist grip

4.

Sunvisor assembly LH

5.

Cap LH

6.

Sunvisor holder

7.

Front roof console

8.

Sunglass bin

9.

Sunroof welt

AWJIA0341GB

INT-18

< ON-VEHICLE REPAIR >

HEADLINING

CAUTION:

Disconnect both terminals from battery in advance.

REMOVAL

1. Remove the body side trim. Refer to

INT-14

.

2. Remove the luggage floor trim. Refer to

INT-19

.

3. Remove the sunvisor assemblies.
4. Remove the sunvisor clips.
5. Remove the sunroof welt.
6. Remove the front roof console.

• Disconnect the harnesses.

7. Remove the rear roof console.

• Disconnect the harnesses.

8. Remove the assist grips.
9. Remove the lamp assembly and the rear roof finisher.

• Disconnect the harness.

10. Remove the headlining.

• Remove the clips from the rear of headlining.

• Disconnect the harnesses.

11. Remove the rear air control.

• Disconnect the harness.

12. Remove the rear audio control assembly.

• Disconnect the harness.

13. Remove the lamp assemblies.

• Disconnect the harnesses.

14. Remove the air vents.
15. Remove the front roof console bracket.
16. Remove the rear roof console front bracket.
17. Remove the assist grip brackets from roof.

INSTALLATION

Installation is in the reverse order of removal.

10. Cap RH

11. Sunvisor assembly RH

12. Rear roof console bracket

13.  Rear storage bin or DVD display

14. Rear air control

15. Rear audio control assembly

16. Rear roof console

17. Rear roof console finisher

18. Rear storage bin

19. Air vent

20. Lamp assembly

21. Plastic clip

22. Rear lamp lens

23. Rear lamp

24. Rear roof finisher

25. Plastic clip

26. Metal clip

Vehicle front

LUGGAGE FLOOR TRIM

INT-19

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

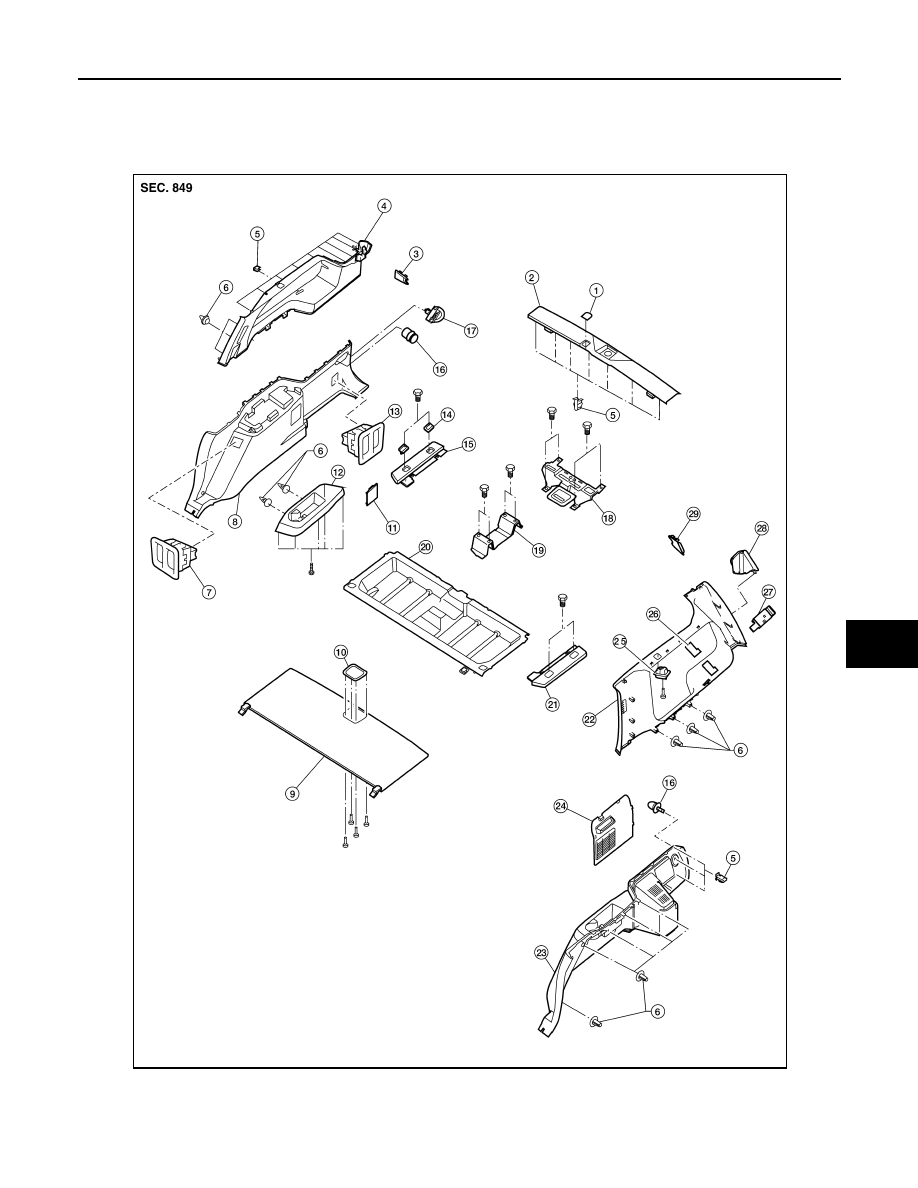

LUGGAGE FLOOR TRIM

Removal and Installation

INFOID:0000000005147353

1.

Rear lower finisher cap

2.

Rear lower finisher

3.

Cap upper seat belt finisher RH

4.

Luggage side finisher RH

5.

Metal clip

6.

Plastic clip

7.

Third row seat switches

8.

Luggage side finisher lower RH

9.

Luggage floor board

AWJIA0216ZZ

INT-20

< ON-VEHICLE REPAIR >

LUGGAGE FLOOR TRIM

REMOVAL

1. Remove the 2nd and 3rd row seat belts. Refer to

SB-7, "Removal and Installation of Second Row Seat

Belt"

 and

SB-8, "Removal and Installation of Third Row Seat Belt"

.

2. Remove the third row seat belt buckles.
3. Remove the third row seat assembly. Refer to

SE-77, "Exploded View"

.

4. Remove the back door weatherstrip. Refer to

INT-21

.

5. Remove the rear luggage room lamp. Refer to

INT-17

.

• Disconnect the harness from lamp.

6. Remove the rear upper finisher. Refer to

INT-17

.

7. Remove the rear door kicking plates. Refer to

INT-14

.

8. Remove the rear lower finisher.
9. Disconnect the door open/close link. Refer to

INT-21, "Removal and Installation"

.

10. Remove the cargo net hooks.
11. Remove the luggage side lower finishers LH/RH.

• Disconnect the power point and the third row seat harness connectors RH side, if equipped.

12. Remove the coat hooks.
13. Remove the luggage side upper finishers LH/RH.

• Disconnect the harness to door open/close switch, LH side.

14. Remove the tie down hooks LH/RH.
15. Remove the floor side finishers LH/RH.
16. Remove the luggage floor board.
17. Remove the storage box.
18. Remove the front luggage floor bracket.
19. Remove the rear luggage box bracket.

INSTALLATION

Installation is in the reverse order of removal.

10. Latch luggage floor board

11. Leak check cap

12. Cup holder

13. Third row seat switches

14. Tie down hook

15. Floor side finisher RH

16. Power point assembly

17. Cargo net hook

18. Rear luggage box bracket

19. Front luggage floor bracket

20. Storage box

21. Floor side finisher LH

22. Luggage side finisher upper LH

23. Luggage side finisher lower LH

24. Lid luggage side lower

25. Coat hook

26. Cap lower seat belt finisher

27. Back door open/close switch

28. Cap luggage side upper

29. Cap upper seat belt finisher LH
