Infiniti QX56 (JA60). Manual - part 642

DOOR FINISHER

INT-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

Removal

1. Remove the power window switch assembly.

• Disconnect the harness connector.

2. Remove the pull handle cover.

• Remove the screws behind the pull handle cover.

3. Remove the cap from the inside door handle escutcheon and the remove screw.
4. Remove the inside door handle escutcheon.

• Remove the screw behind inside door handle escutcheon.

5. Remove step lamp.

• Disconnect the step lamp harness connector.

6. Remove the door finisher and disconnect lock cable and handle cable from inside door handle assembly.

Refer to

INT-11, "Removal and Installation"

.

7. Remove the inside door handle assembly.
8. Remove door lock knob.
9. Remove the rear door tweeter.
10. Remove the armrest screws (A), then remove the armrest (1).

Installation

Installation is in the reverse order of removal.

1.

Armrest

2.

Power window switch assembly

3.

Rear door finisher LH

4.

Pull handle cover

5.

Cap

6.

Inside door handle escutcheon

7.

Door lock knob

8.

Step lamp

9.

Inside door handle assembly

10. Rear door tweeter

AWJIA0452ZZ

INT-14

< ON-VEHICLE REPAIR >

BODY SIDE TRIM

BODY SIDE TRIM

Removal and Installation

INFOID:0000000005147350

CAUTION:

• Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from finishers.

• When removing or installing body side welts, do not allow butyl seal to come in contact with pillar

finisher.

LOWER DASH SIDE FINISHER

Removal

1. Remove the push pin from the lower dash side finisher.
2. Remove the front kicking plate from the center pillar lower finisher. Refer to

INT-16, "Removal and Instal-

lation"

.

3. Remove the lower dash side finisher and the front kicking plate together.
4. Remove the lower dash side finisher from the front kicking plate.

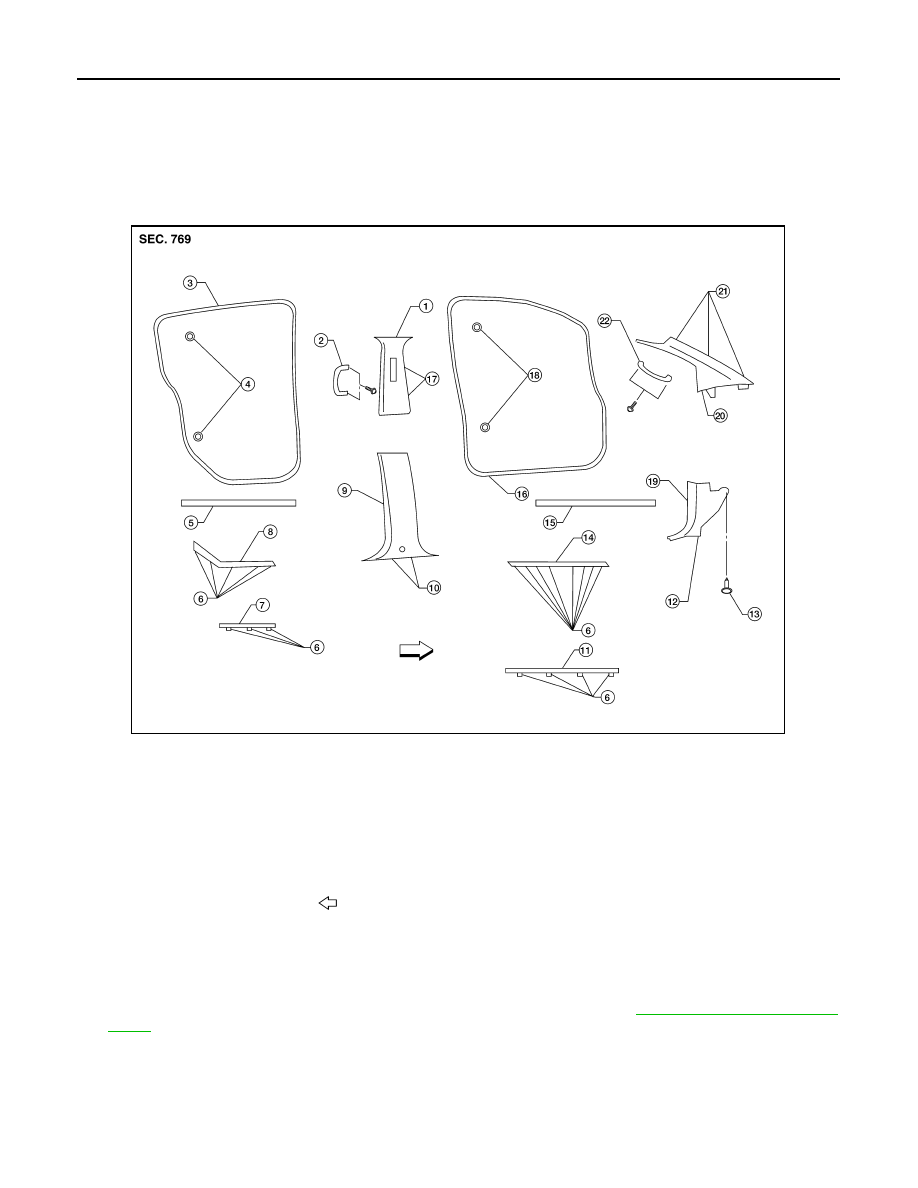

Installation

Installation is in the reverse order of removal.

1.

Center pillar upper finisher LH

2.

Center pillar assist grip

3.

Rear door welt

4.

Rear door bumper

5.

Rear door parting seal

6.

Clip CG104

7.

Rear mudguard finisher

8.

Rear kicking plate

9.

Center pillar lower finisher LH

10. Metal clip

11. Front mudguard finisher

12. Metal clip

13. Clip CG103

14. Front kicking plate

15. Front door parting seal

16. Front door welt

17. Metal clip

18. Front door bumper

19. Lower dash side finisher LH

20. Front pillar finisher LH

21. Metal clip

22. Front pillar assist grip

Vehicle front

WIIA0967E

BODY SIDE TRIM

INT-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

CENTER PILLAR LOWER FINISHER

Removal

CAUTION:

Disconnect both terminals from battery in advance.
1. Disconnect the battery negative terminal.
2. Remove seat belt anchor. Refer to

SB-14, "Removal and Installation"

.

• On RH side, disconnect seat belt tension sensor.

3. Remove front and rear kicking plates.
4. Remove center pillar lower finisher.

Installation

Installation is in the reverse order of removal.

CENTER PILLAR UPPER FINISHER

Removal

1. Remove front and rear door welts.
2. Disconnect the battery negative terminal.
3. Remove seat belt shoulder anchor and D-ring. Refer to

SB-14, "Removal and Installation"

.

4. Remove front and rear kicking plates.
5. Remove center pillar lower finisher.
6. Remove center pillar assist grip.
7. Remove center pillar upper finisher.

Installation

Installation is in the reverse order of removal.

FRONT PILLAR FINISHER

Removal

1. Remove the assist grip.
2. Remove the front pillar finisher.

Installation

Installation is in the reverse order of removal.

KICKING PLATES

Removal

Release the clips and remove the front and/or rear kicking plates.

Installation

Installation is in the reverse order of removal.

MUDGUARD FINISHERS

Removal

Release the clips and remove the front and/or rear mudguard finishers.

Installation

Installation is in the reverse order of removal.

DOOR PARTING SEALS

Removal

1. Open front and/or rear doors fully.
2. Release clips and remove parting seals.

Installation

Installation is in the reverse order of removal.

INT-16

< ON-VEHICLE REPAIR >

FLOOR TRIM

FLOOR TRIM

Removal and Installation

INFOID:0000000005147351

REMOVAL

1. Remove the front seats. Refer to

SE-51, "Removal and Installation"

.

• Remove the subwoofer. Refer to

AV-177, "Removal and Installation"

.

• Remove the navigation display control unit. Refer to

AV-171, "Removal and Installation"

.

2. Remove the second row seats. Refer to

SE-56, "Removal and Installation"

 and

SE-52, "Exploded View"

, if

equipped.

3. Remove the third row rear seats. Refer to

SE-57, "Exploded View"

.

4. Remove the lower seat belt anchors. Refer to

SB-14, "Removal and Installation"

.

5. Remove the lower body side trim. Refer to

INT-14

.

6. Remove the luggage lower side finishers (left / right). Refer to

INT-19

.

7. Remove the kicking plates. Refer to

INT-14

.

8. Remove the center console. Refer to

IP-20, "Removal and Installation"

.

9. Remove the rear console, if equipped. Refer to

IP-21, "Removal and Installation"

.

10. Remove the rear lower finisher. Refer to

INT-19

.

11. Remove the carpet.
12. Remove the floor mat hooks.

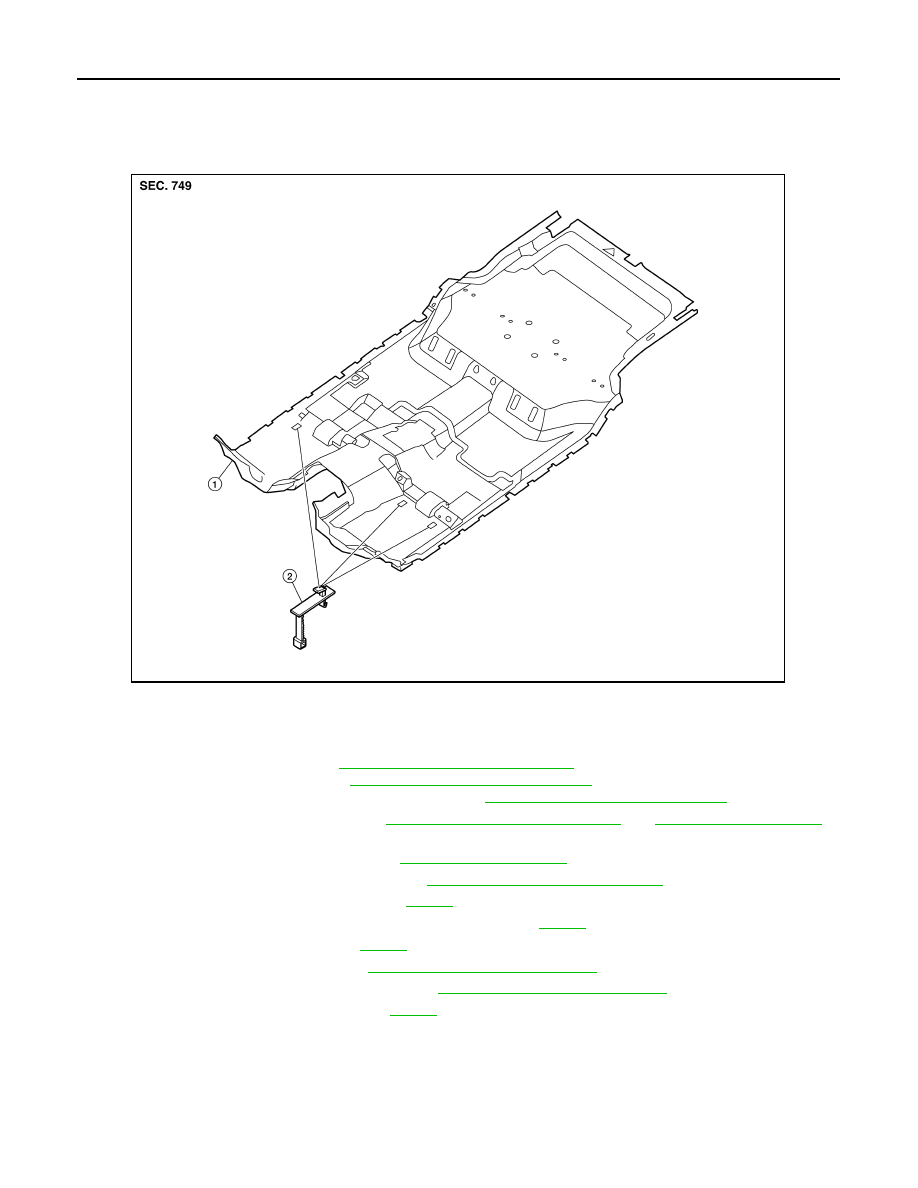

INSTALLATION

Installation is in the reverse order of removal.

1.

Carpet

2.

Floor mat hooks

AWJIA0408ZZ
