INTERIOR ROOM LAMP

Installation is in the reverse order of removal.

Bulb Replacement

1. Using a suitable tool (A), release the pawls and remove per-

sonal lamp lens (1).

: Pawl

2. Pull bulb (2) straight out to remove.

CAUTION:

Wrap a cloth around tool to protect the housing and lens.

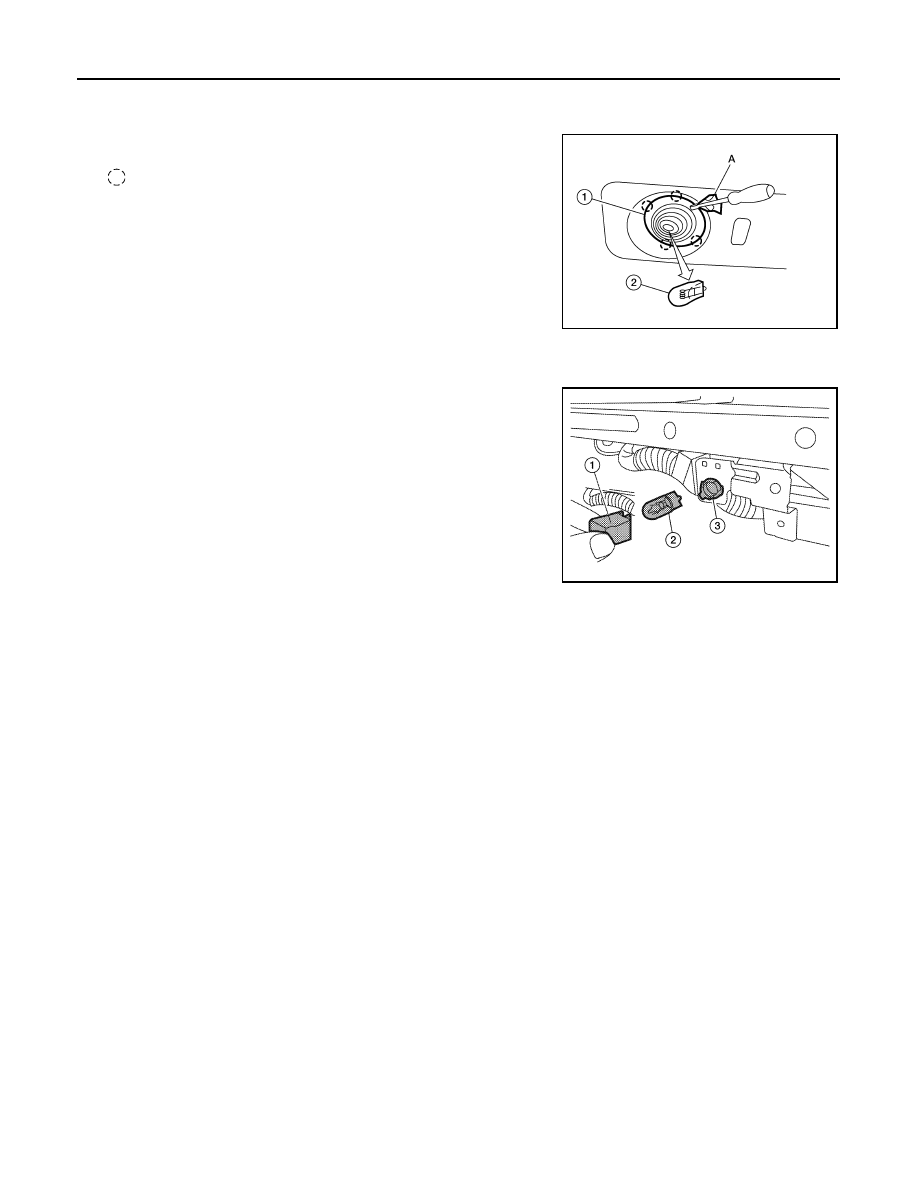

FOOTWELL LAMP

Removal

Rotate footwell lamp socket (3) counterclockwise from bracket.

Installation

Installation is in the reverse order of removal.

Bulb Replacement

1. Release the pawls and remove bulb shield from bracket (1).
2. Pull bulb (2) straight out from footwell lamp socket (3) to remove.

Personal lamp bulb

: 12V - 6W

ALLIA0323ZZ

ALLIA0324ZZ

Footwell lamp bulb

: 12V - 3.4W

ILLUMINATION

INL-81

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

ILLUMINATION

Removal and Installation

INFOID:0000000005146755

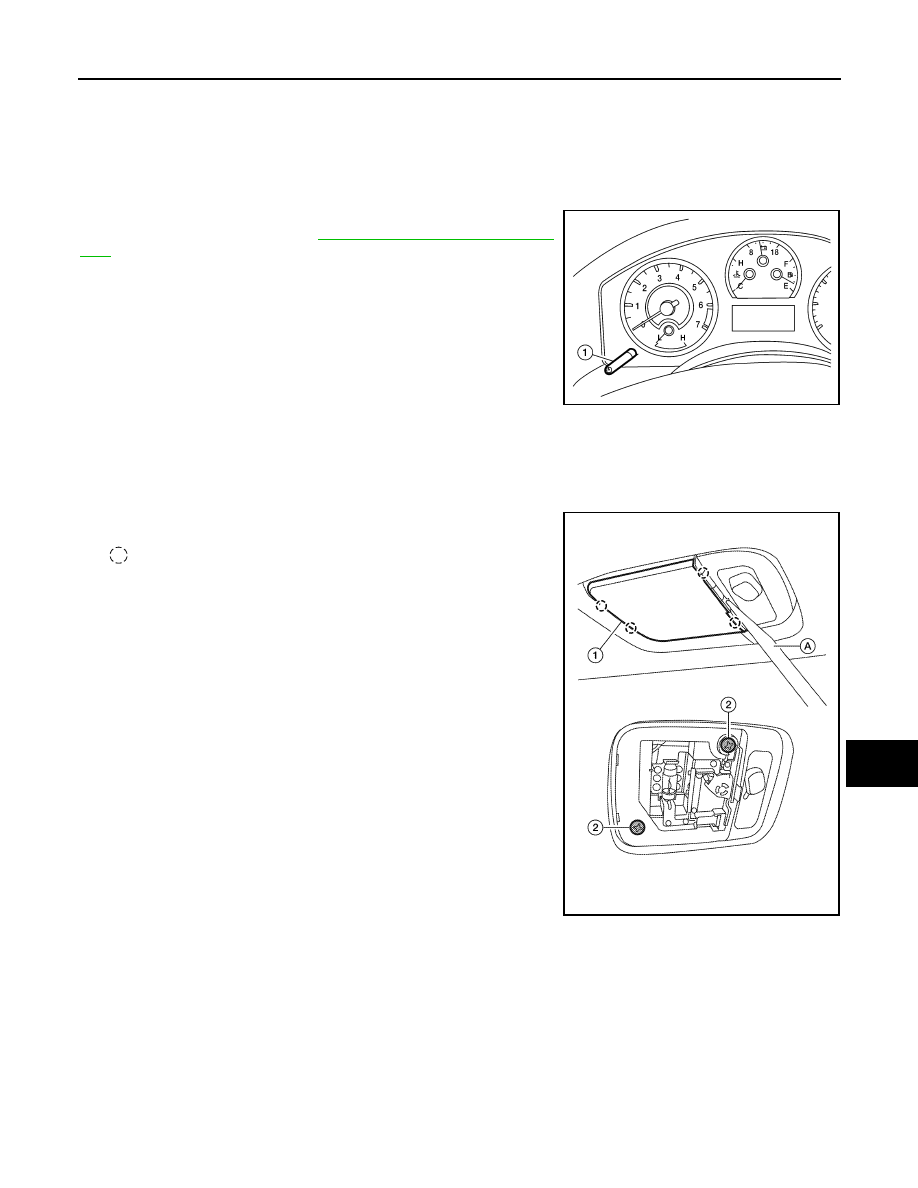

ILLUMINATION CONTROL SWITCH

Removal

The illumination control switch (1) is replaced as a part of the combi-

nation meter assembly. Refer to

MWI-100, "Removal and Installa-

tion"

.

Installation

Installation is in the reverse order of removal.

CARGO LAMP (if equipped)

Removal

1. Using a suitable tool (A), release the pawls and remove the

cargo lamp lens (1).

: Pawl

2. Remove cargo lamp screws (2).
3. Disconnect the connector, then remove cargo lamp.

Installation

Installation is in the reverse order of removal.

Bulb Replacement

ALLIA0329ZZ

ALLIA0325ZZ

INL-82

< ON-VEHICLE REPAIR >

ILLUMINATION

1. Using a suitable tool, release the pawls and remove the cargo

lamp lens.

2. Release the cargo lamp bulb retainers (1), then pull bulb (2)

straight out to remove.

CONSOLE ILLUMINATION LAMP (if equipped)

Removal

The console illumination lamp (1) is replaced as part of the front roof

console (2). Refer to

INT-17, "Removal and Installation"

.

⇐: Vehicle front

: metal clip

Installation

Installation is in the reverse order of removal.

Bulb Replacement

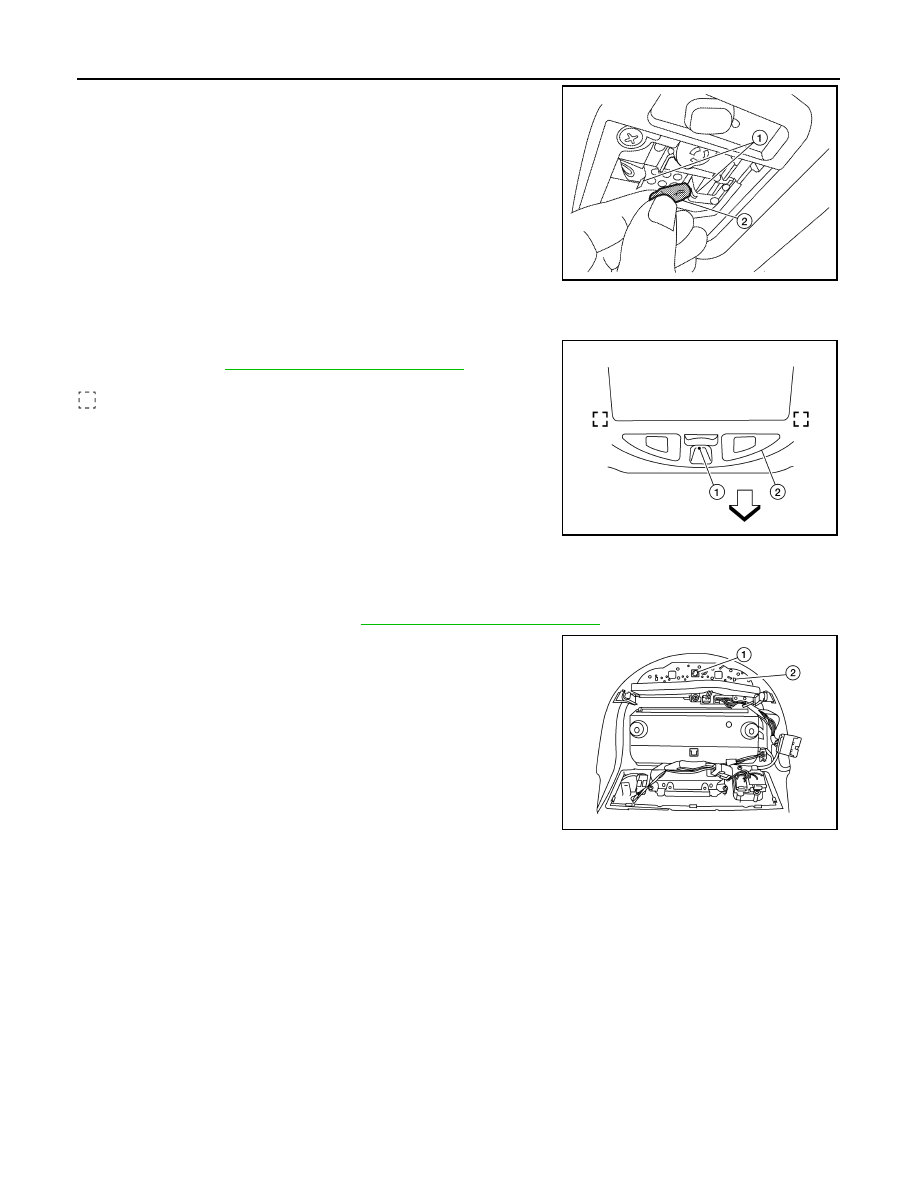

1. Remove front roof console. Refer to

INT-17, "Removal and Installation"

.

2. Rotate console illumination lamp bulb (1) counterclockwise, then

pull straight out away from map lamp assembly (2) to remove.

Cargo lamp bulb

: 12V - 8W

ALLIA0326ZZ

ALLIA0328ZZ

ALLIA0327ZZ

BULB SPECIFICATIONS

INL-83

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

BULB SPECIFICATIONS

Interior Lamp/Illumination

INFOID:0000000005146756

*: Always check with the Parts Department for the latest parts information.

Item

Wattage (W)*

Map Lamp

8

Vanity mirror lamp

1.32

Glove box lamp

3.4

Step lamp

3.8

Personal lamp

6

Footwell lamp

3.4

Cargo lamp

8

Console illumination lamp

-
