INTERIOR ROOM LAMP CONTROL SYSTEM

Component Description

INFOID:0000000005146718

13. Rear step lamp LH D206

Rear step lamp RH D306

14.  Cargo lamp B153

15.  Personal lamp 3rd row R205

16. Personal lamp 2nd row R203

Part name

Description

BCM

Provides power and ground and controls timer functions for the
interior room lamps, step lamps and cargo lamp.

Key switch and ignition knob switch

Provides key in ignition status to the BCM.

Door switches

Provides door OPEN/CLOSED status to the BCM.

Glass hatch switch

Provides glass hatch OPEN/CLOSED status to the BCM.

Back door latch

Provides back door OPEN/CLOSED status to the BCM.

Power window and door lock/unlock switch RH

Provides door lock/unlock position switch RH status to the BCM.

Main power window and door lock/unlock switch [front door lock
assembly LH (key cylinder switch)].

Provides door lock/unlock position switch LH status to the BCM.

ILLUMINATION CONTROL SYSTEM

INL-9

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

ILLUMINATION CONTROL SYSTEM

System Diagram

INFOID:0000000005358668

System Description

INFOID:0000000005358669

The illumination lamps operation is dependent upon the position of the combination switch (lighting and turn

signal switch). When the combination switch (lighting and turn signal switch) is placed in the 1ST or 2ND posi-

tion (or if the auto light system is activated) the BCM (body control module) receives input requesting the park-

ing lamps to illuminate. This input is communicated to the IPDM E/R (intelligent power distribution module

engine room) via the CAN communication lines. The CPU (central processing unit) of the IPDM E/R controls

the tail lamp relay coil. When energized, this relay directs power to the parking and illumination lamps, which

then illuminate.

BATTERY SAVER CONTROL

When the combination switch (lighting and turn signal switch) is in the 1ST or 2ND position and the ignition

switch is turned from ON or ACC to OFF, the battery saver control feature is activated. Under this condition,

the illumination lamps remain illuminated for 30 minutes unless the combination switch (lighting and turn signal

switch) position is changed. If the combination switch (lighting and turn signal switch) position is changed, then

the illumination lamps are turned off after a 30 second delay. When the combination switch (lighting and turn

signal switch) is turned from OFF to 1ST or 2ND position (or if auto light system is activated) after illumination

lamps have been turned off by the battery saver control, the illumination lamps illuminate again.

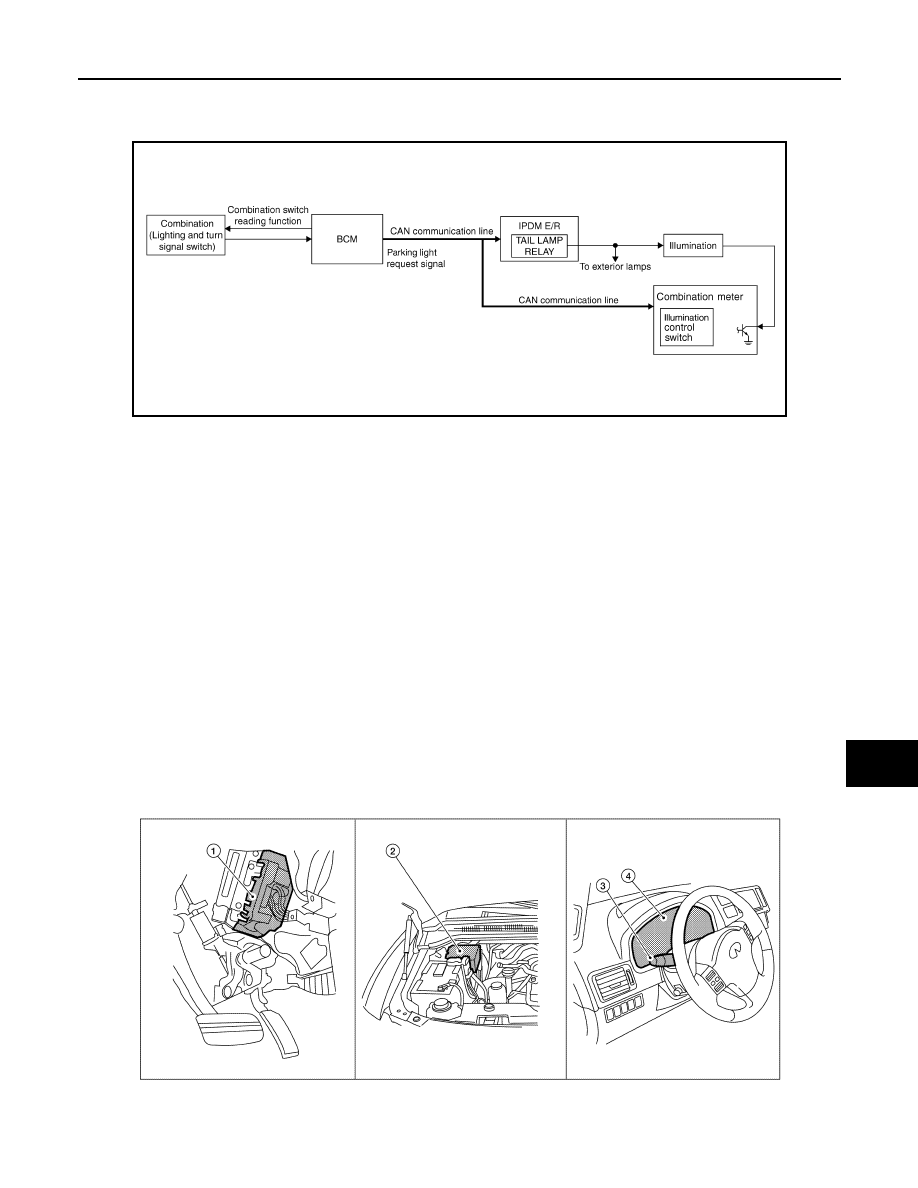

Component Parts Location

INFOID:0000000005146721

AWLIA1754GB

AWLIA0398ZZ

INL-10

< FUNCTION DIAGNOSIS >

ILLUMINATION CONTROL SYSTEM

Component Description

INFOID:0000000005358670

1.

BCM M18, M20 (view with instrument
lower panel LH removed)

2.

IPDM E/R E122, E123, E124

3.

Combination switch (lighting and turn
signal switch) M28

4.

Combination meter (illumination con-
trol switch) M23, M24

Part name

Description

BCM

The BCM monitors the lighting switch position with the combina-
tion switch reading function.  The BCM requests, via CAN com-
munication, that the IPDM E/R activate the tail lamp relay.

IPDM E/R

The IPDM E/R activates the tail lamp relay based on inputs re-
ceived from the BCM via the CAN communication network.

Combination meter (illumination control switch)

The illumination control switch is a part of the combination meter.
The combination meter controls illumination intensity by varying
ground to the illumination lamps based on the illumination control
switch position.

Combination switch (lighting and turn signal switch)

The combination switch provides input to the BCM about the light-
ing switch position.

DIAGNOSIS SYSTEM (BCM)
