INL-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

DETAILED FLOW

1.

INTERVIEW FOR MALFUNCTION

Find out what the customer's concerns are.

>> GO TO 2

2.

SYMPTOM CHECK

Verify the symptom from the customer's information.

>> GO TO 3

3.

BASIC INSPECTION

Check the operation of each part. Check that any concerns occur other than those mentioned in the customer

interview.

>> GO TO 4

4.

SELF-DIAGNOSIS WITH CONSULT-III

Perform the self-diagnosis with CONSULT-III. Check that any DTC is detected.
Is any DTC detected?

YES

>> GO TO 5

NO

>> GO TO 6

5.

TROUBLE DIAGNOSIS BY DTC

Perform the trouble diagnosis for the detected DTC. Specify the malfunctioning part.

>> GO TO 9

6.

FAIL-SAFE ACTIVATION CHECK

Determine if the customer's concern is related to fail-safe activation.
Does the fail-safe activate?

YES

>> GO TO 7

NO

>> GO TO 8

7.

SYSTEM DIAGNOSIS

Perform the system diagnosis for the system in which the fail-safe activates. Specify the malfunctioning part.

>> GO TO 9

8.

SYMPTOM DIAGNOSIS

Perform the symptom diagnosis. Specify the malfunctioning part.

>> GO TO 9

9.

MALFUNCTION PART REPAIR

Repair or replace the malfunctioning part.

>> GO TO 10

10.

REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT-III)

Perform the self-diagnosis with CONSULT-III. Verified that no DTCs are detected. Erase all DTCs detected

prior to the repair. Verify that DTC is not detected again.
Is any DTC detected?

YES

>> GO TO 5

DIAGNOSIS AND REPAIR WORKFLOW

INL-5

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

NO

>> GO TO 11

11.

REPAIR CHECK (OPERATION CHECK)

Check the operation of each part.
Does it operate normally?

YES

>> Inspection End

NO

>> GO TO 3

INL-6

< FUNCTION DIAGNOSIS >

INTERIOR ROOM LAMP CONTROL SYSTEM

FUNCTION DIAGNOSIS

INTERIOR ROOM LAMP CONTROL SYSTEM

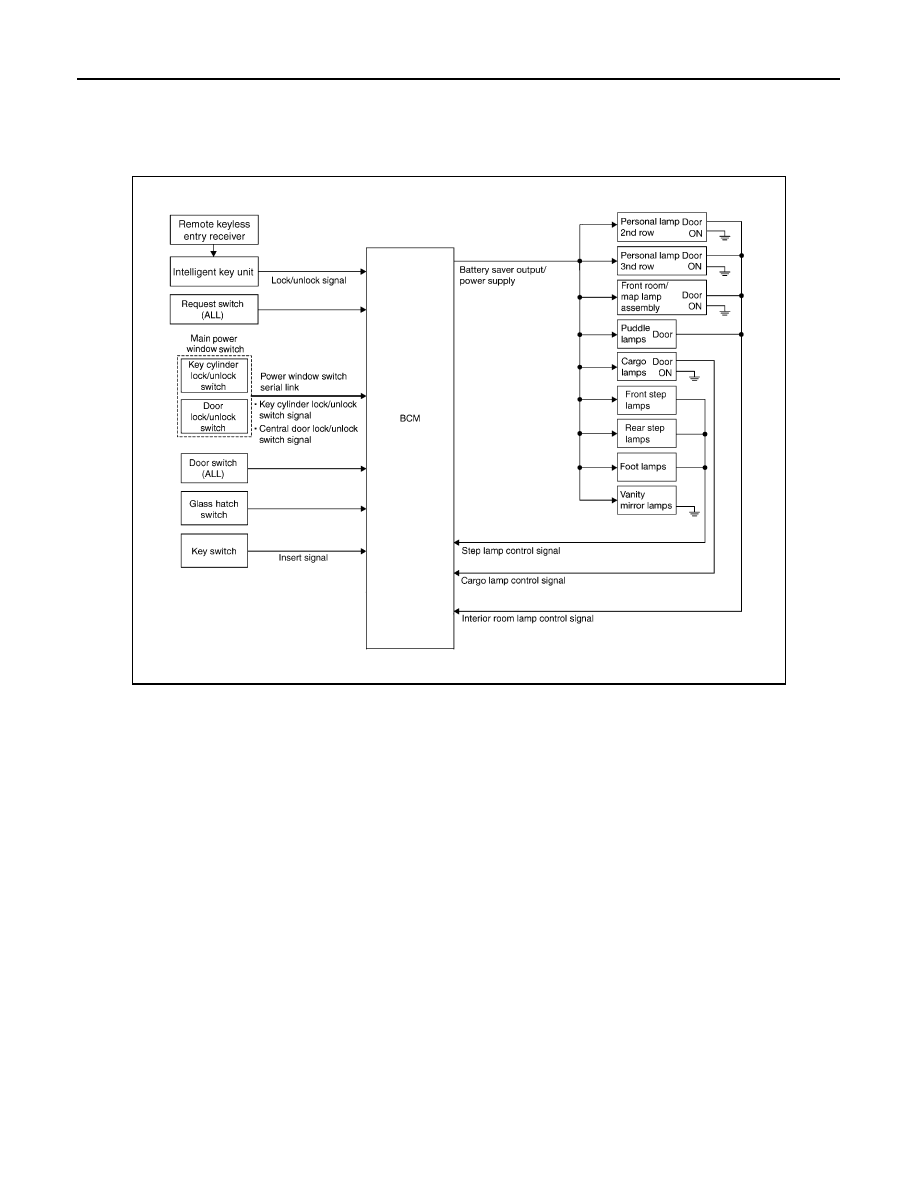

System Diagram

INFOID:0000000005146715

System Description

INFOID:0000000005146716

OUTLINE

• Interior room lamps* are controlled by the interior room lamp timer control function of the BCM.

*Front room/map lamps, personal lamp 2nd row, personal lamp 3rd row (when lamp switch is in DOOR posi-

tion) and puddle lamps.

• Cargo lamp is controlled by the cargo lamp control function of the BCM.

• Step lamps* are controlled by the step lamp control function of the BCM.

*Front step lamps, rear step lamps and foot lamps.

The timer control functions of the BCM activate based on inputs from the remote keyless entry receiver, the

key cylinder lock/unlock switch, the door switches or the key switch and ignition knob switch.

ROOM LAMP TIMER OPERATION

When the interior room lamp switch is in the DOOR position and when all conditions below are met, the BCM

begins timer control (maximum 30 seconds) for interior room lamp ON/OFF.

• When the front door LH is unlocked [with Intelligent Key, main power window and door lock/unlock switch, or

front door lock assembly LH (key cylinder switch)].

• When a door opens

→ closes and the Intelligent Key is not inserted in the ignition switch.

Timer control is cancelled under the following conditions.

• When the front door LH is locked [with Intelligent Key, main power window and door lock/unlock switch, or

front door lock assembly LH (key cylinder switch)].

• A door is opened (door switch turns ON).

• Ignition switch is turned ON.

Interior lamp operational settings can be changed with the function setting of CONSULT-III.

AWLIA1595GB

INTERIOR ROOM LAMP CONTROL SYSTEM

INL-7

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

INTERIOR LAMP BATTERY SAVER CONTROL

If an interior lamp is left ON and does not turn OFF even when the doors are closed, the BCM turns off power

to the interior lamps automatically to save the battery 30 minutes after the ignition switch is turned OFF.

The BCM controls power and ground to all interior lamps.

After the battery saver system turns the lamps OFF, the lamps will illuminate again when

• a signal is received from an Intelligent Key or main power window and door lock/unlock switch, or when the

front door lock assembly LH (key cylinder switch) is locked or unlocked

• a door is opened or closed

• the Intelligent Key is removed from or inserted into the ignition switch.

The Interior lamp battery saver control time period can be changed with the function setting of CONSULT-III.

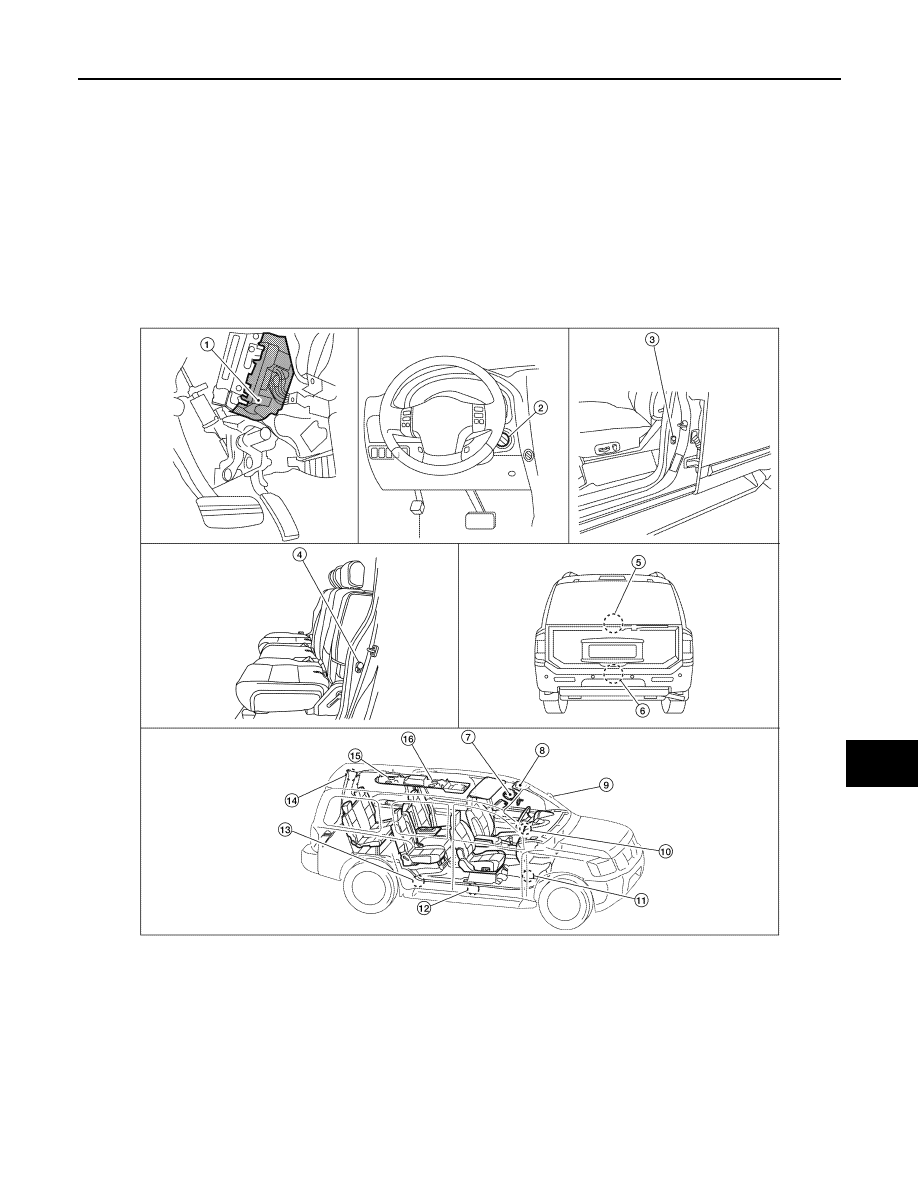

Component Parts Location

INFOID:0000000005146717

1.

BCM M18, M19, M20 (view with instru-
ment lower panel LH removed)

2.

Key switch and ignition knob switch
M12

3.

Front door switch LH B8
Front door switch RH B108

4.

Rear door switch LH B18
Rear door switch RH B116

5.

Glass hatch ajar switch D707

6.

Back door latch (door ajar switch)
D503

7.

Front room/map lamp assembly R102 8.

Vanity lamp LH R3
Vanity lamp RH R8

9.

Door mirror (puddle lamp) LH D4
Door mirror (puddle lamp) RH D107

10. Ignition keyhole illumination M150

11. Foot lamp LH M99

Foot lamp RH M100

12. Front step lamp LH D11

Front step lamp RH D109

AWLIA1062ZZ
