Infiniti QX56 (JA60). Manual - part 577

PREPARATION

HA-13

< PREPARATION >

PREPARATION

Special Service Tool

INFOID:0000000005147639

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

HFC-134a (R-134a) Service Tool and Equipment

INFOID:0000000005147640

Never mix HFC-134a (R-134a) refrigerant and/or the specified oil with CFC-12 (R-12) refrigerant and/or the

oil.

Separate and non-interchangeable service equipment must be used for handling each type of refrigerant/oil.

Refrigerant container fittings, service hose fittings and service equipment fittings (equipment which handles

refrigerant and/or oil) are different between CFC-12 (R-12) and HFC-134a (R-134a). This is to avoid mixed

use of the refrigerants/oil.

Adapters that convert one size fitting to another must never be used refrigerant/oil contamination will occur

and compressor failure will result.

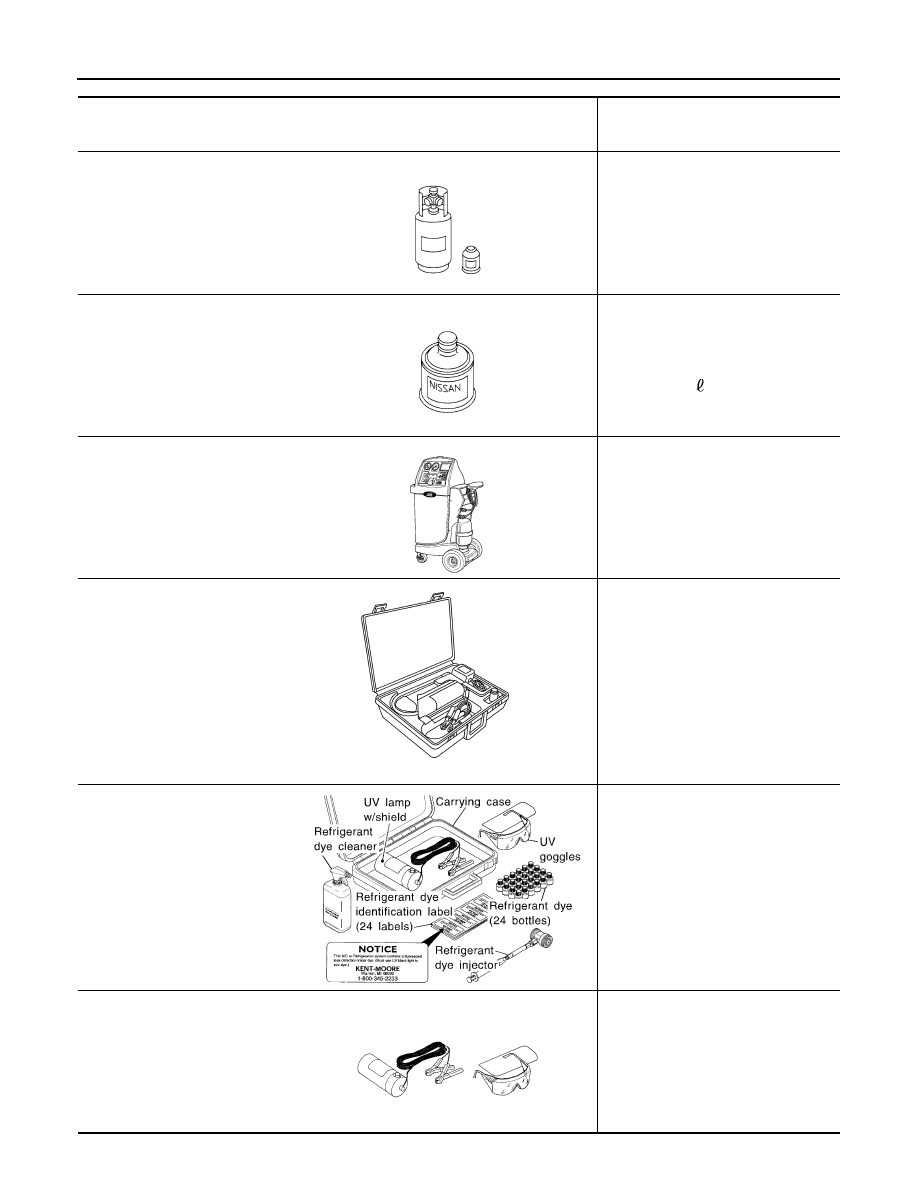

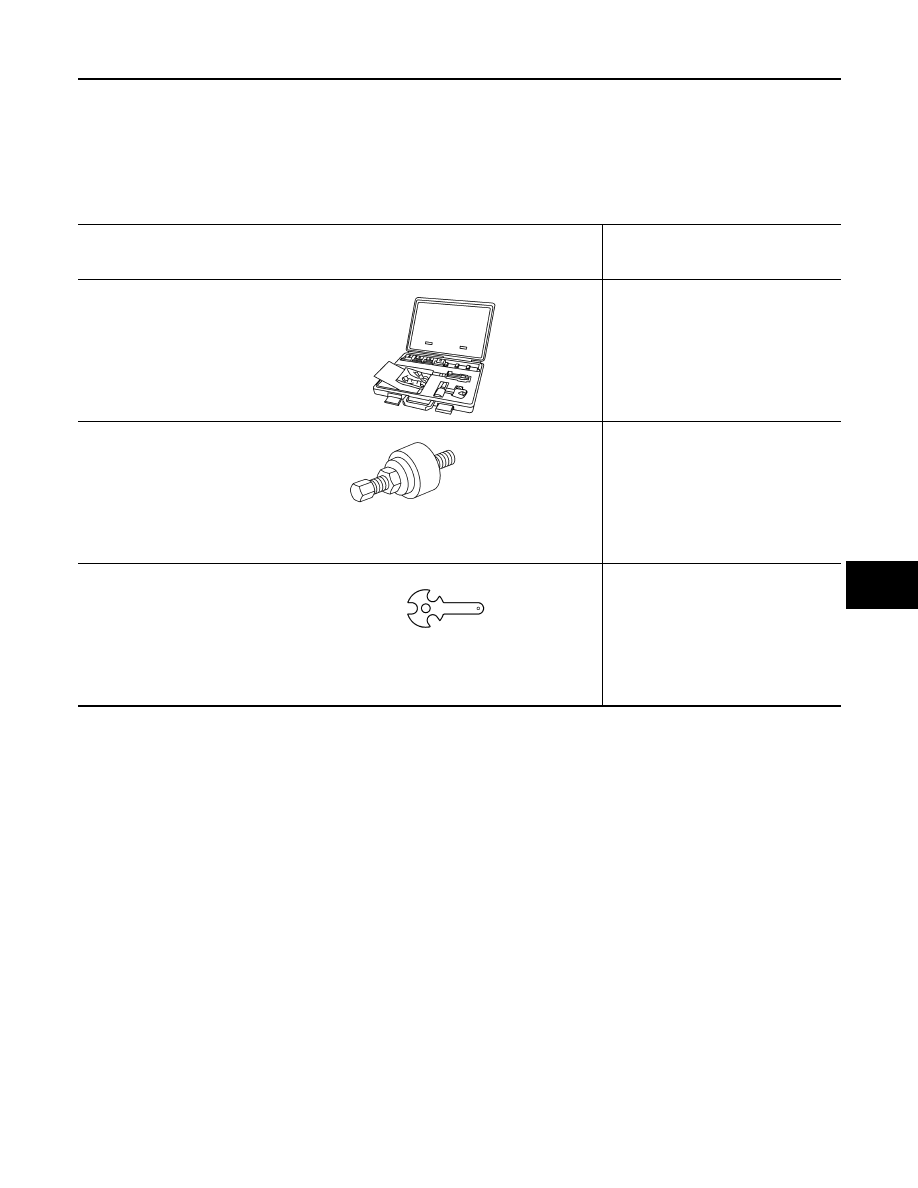

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-41425-NIS)
Aluminum tube repair kit

Repairing leaks in A/C tubes

—

(J-38873-A)
Pulley installer

Installing pulley

—

(J-44614)
Clutch disc holding tool

Clutch disc holding tool

ALIIA0390ZZ

LHA171

WHA230

HA-14

< PREPARATION >

PREPARATION

Tool number
(Kent-Moore No.)
Tool name

Description

HFC-134a (R-134a)
( — )
Refrigerant

Container color: Light blue
Container marking: HFC-134a (R-
134a)
Fitting size: Thread size
• large container 1/2”-16 ACME

—

( — )
NISSAN A/C System Oil Type S

Type: Poly alkylene glycol oil (PAG),
type S
Application: HFC-134a (R-134a)
swash plate compressors (NISSAN
only)
Lubricity: 40 m (1.4 US fl oz, 1.4 Imp
fl oz)

KV991J0130
(ACR2005-NI)
ACR5 A/C Service Center

Refrigerant recovery, recycling and re-
charging

—

(J-41995)
Electronic refrigerant leak detector

Power supply:
• DC 12V (battery terminal)

—

(J-43926)
Refrigerant dye leak detection kit
Kit includes:
(J-42220) UV lamp and UV safety
goggles
(J-41459) Refrigerant dye injector
(J-41447) quantity 24
HFC-134a (R-134a) refrigerant
dye
(J-43872) Refrigerant dye cleaner

Power supply:
• DC 12V (battery terminal)

—

(J-42220)
Fluorescent dye leak detector

Power supply:
• DC 12V (battery terminal)
For checking refrigerant leak when flu-
orescent dye is installed in A/C system.
Includes: UV lamp and UV safety gog-
gles

S-NT196

S-NT197

WJIA0293E

AHA281A

ZHA200H

SHA438F

PREPARATION

HA-15

< PREPARATION >

—

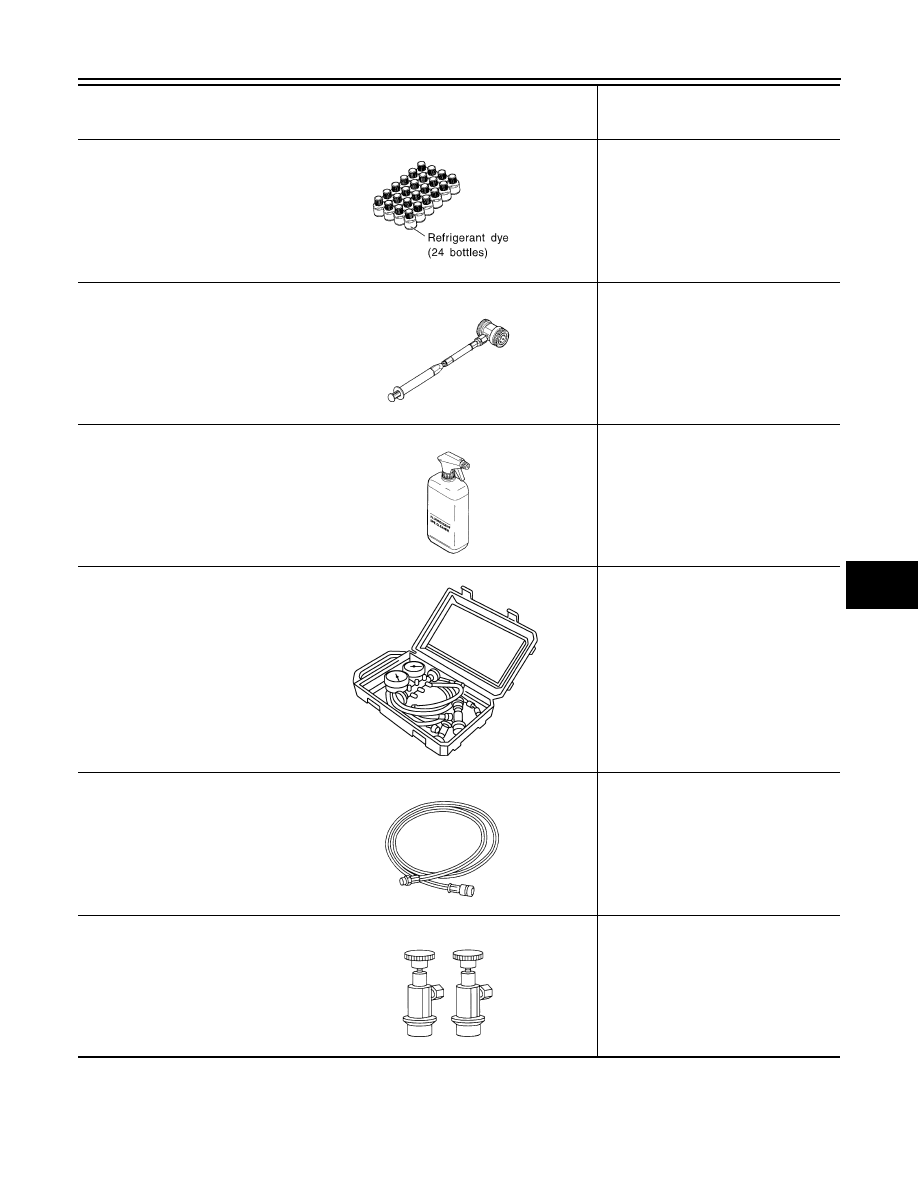

(J-41447)
HFC-134a (R-134a) Fluorescent
leak detection dye
(Box of 24, 1/4 ounce bottles)

Application: For HFC-134a (R-134a)
PAG oil
Container: 1/4 ounce (7.4cc) bottle
(Includes self-adhesive dye identifica-
tion labels for affixing to vehicle after
charging system with dye.)

—

(J-41459)
HFC-134a (R-134a) Dye injector
Use with J-41447, 1/4 ounce bottle

For injecting 1/4 ounce of fluorescent
leak detection dye into A/C system.

—

(J-43872)
Refrigerant dye cleaner

For cleaning dye spills.

—

(J-39183-C)
Manifold gauge set (with hoses
and couplers)

Identification:
• The gauge face indicates R-134a.

Fitting size-Thread size

• 1/2”-16 ACME

Service hoses:
• High side hose

(J-39500-72B)

• Low side hose

(J-39500-72R)

• Utility hose

(J-39500-72Y)

Hose color:
• Low side hose: Blue with black stripe
• High side hose: Red with black stripe
• Utility hose: Yellow with black stripe

or green with black stripe
Hose fitting to gauge:

• 1/2”-16 ACME

Service couplers
• High side coupler

(J-39500-20A)

• Low side coupler

(J-39500-24A)

Hose fitting to service hose:
• M14 x 1.5 fitting is optional or perma-

nently attached.

Tool number
(Kent-Moore No.)
Tool name

Description

SHA439F

SHA440F

SHA441F

RJIA0196E

S-NT201

S-NT202

HA-16

< PREPARATION >

PREPARATION

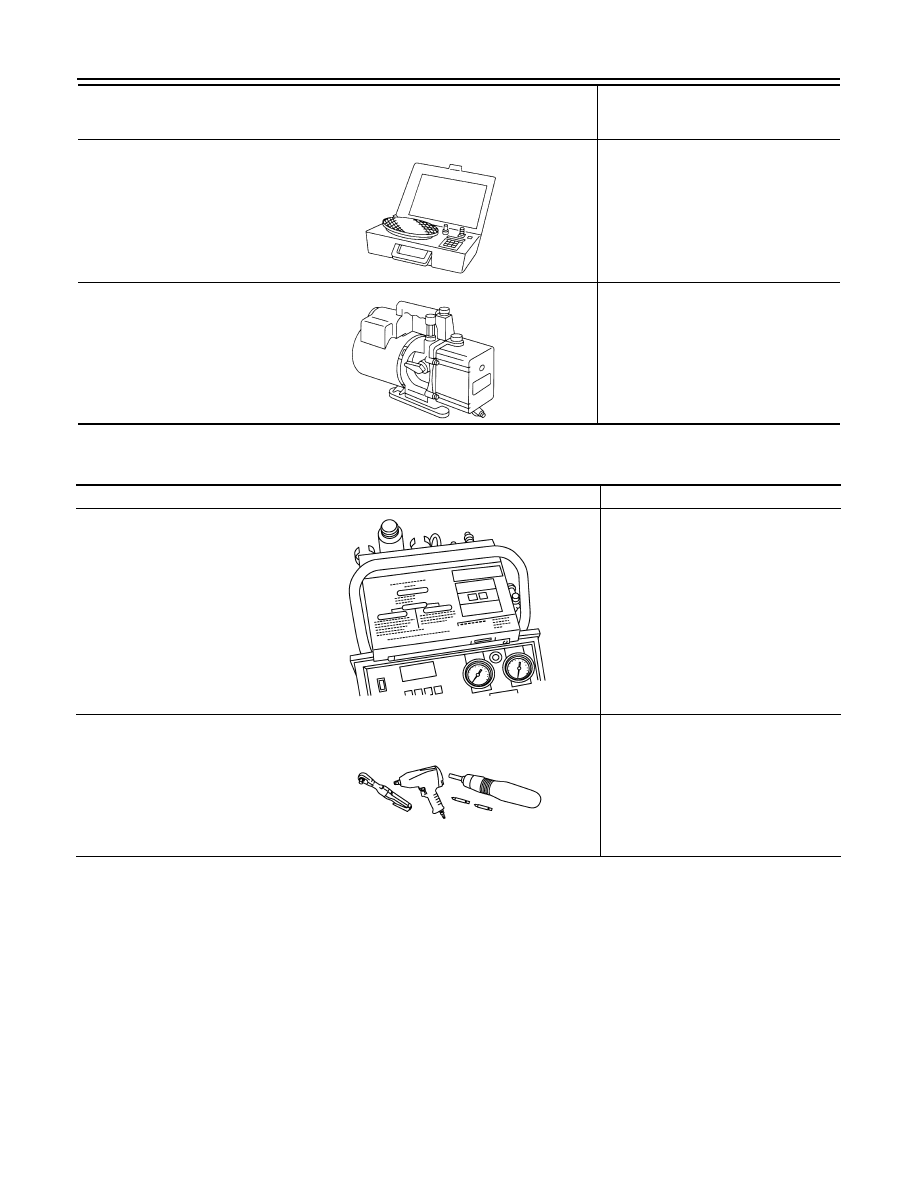

Commercial Service Tool

INFOID:0000000005147641

—

(J-39699)
Refrigerant weight scale

For measuring of refrigerant
Fitting size-Thread size
• 1/2”-16 ACME

—

(J-39649)
Vacuum pump
(Including the isolator valve)

Capacity:
• Air displacement: 4 CFM
• Micron rating: 20 microns
• Oil capacity: 482 g (17 oz)

Fitting size-Thread size

• 1/2”-16 ACME

Tool number
(Kent-Moore No.)
Tool name

Description

S-NT200

S-NT203

Tool name

Description

(J-41810-NI)
Refrigerant identifier equipment (R-
134a)

For checking refrigerant purity and
system contamination

Power tool

Loosening bolts, screws and nuts

RJIA0197E

PIIB1407E
