ENGINE UNIT

DISASSEMBLY AND ASSEMBLY

ENGINE UNIT

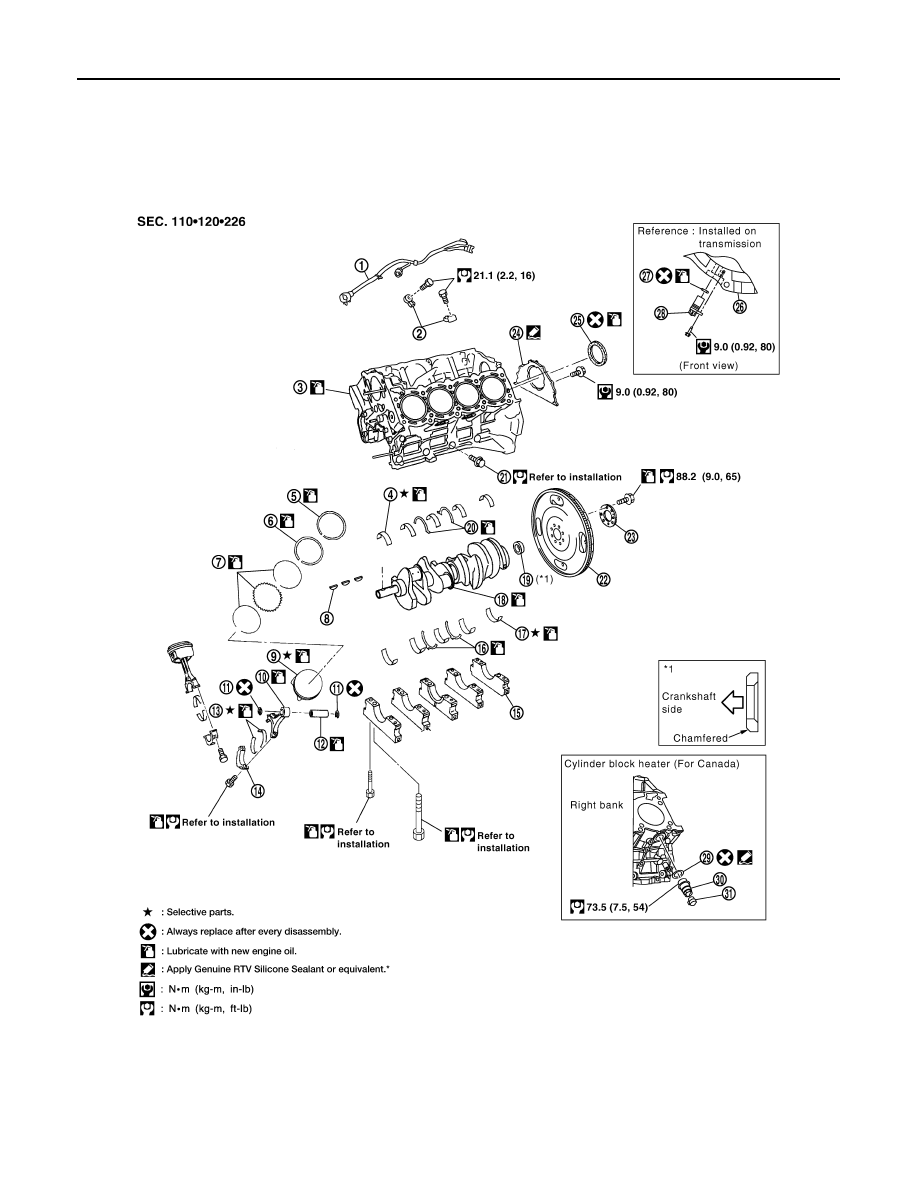

Exploded View

INFOID:0000000005149014

1.

Knock sensor sub-harness

2.

 Knock sensor

3.

Cylinder block

4.

Main bearing upper

5.

Top ring

6.

Second ring

7.

Oil ring

8.

Crankshaft key

9.

Piston

10. Connecting rod

11.

Snap ring

12.

Piston pin

13. Connecting rod bearing

14.

Connecting rod bearing cap

15.

Main bearing cap

WBIA0471E

ENGINE UNIT

EM-83

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Disassembly and Assembly

INFOID:0000000005149015

DISASSEMBLY

NOTE:

Explained here is how to disassemble with engine stand supporting transmission surface. When using differ-

ent type of engine stand, some steps may be different.
1. Remove engine assembly and mount to engine stand. Refer to

EM-78, "Removal and Installation"

.

CAUTION:

Before removing the hanging chains, make sure engine stand is stable and there is no risk of over-

turning.

2. Drain engine oil. Refer to

LU-9, "Changing Engine Oil"

.

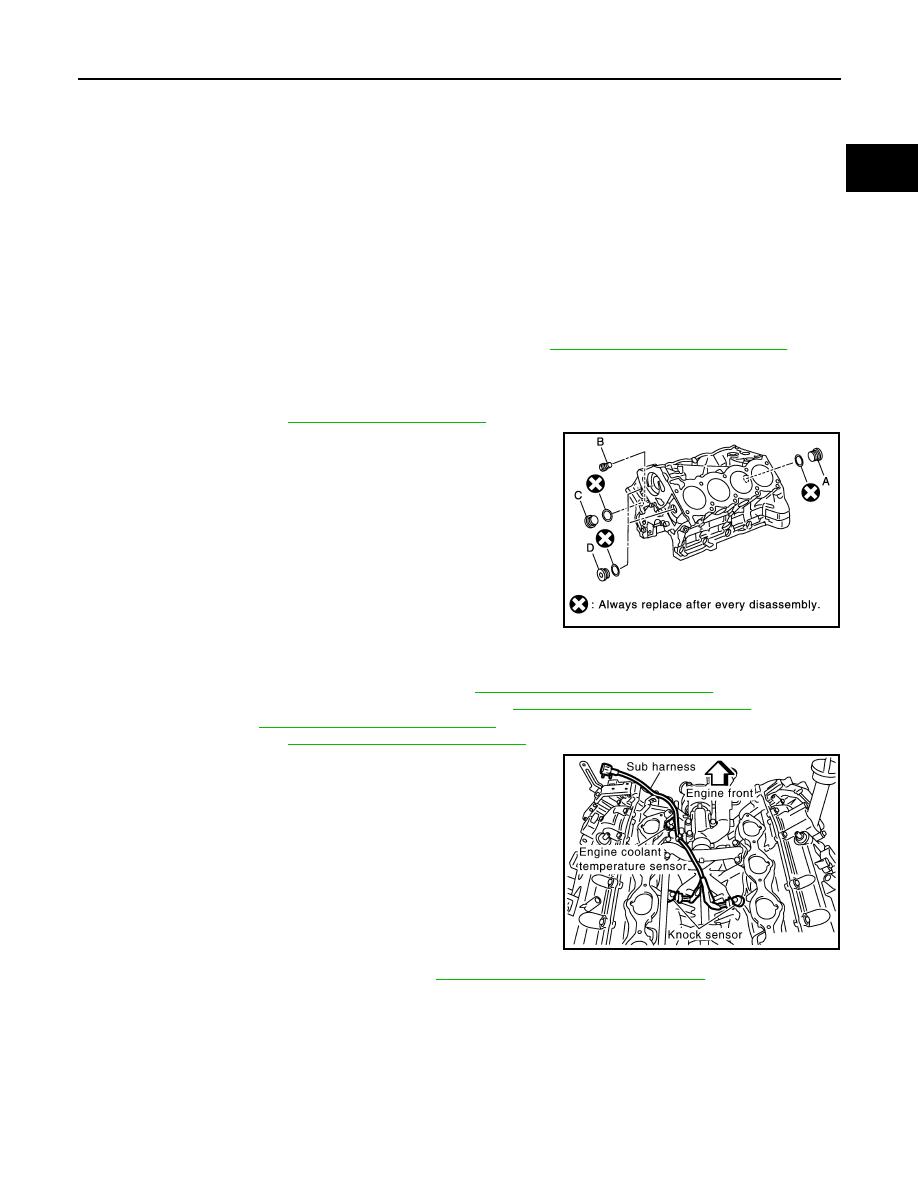

3. Drain engine coolant by removing the cylinder block drain plugs

“A”, “B”, “C” and “D” as shown.

4. Remove the following components and associated parts (the parts referred to in step 1 are not included

here).

• Oil pan (upper and lower) and oil strainer. Refer to

EM-33, "Removal and Installation"

.

• Crankshaft pulley, front cover and timing chain. Refer to

EM-45, "Removal and Installation"

.

• Camshaft. Refer to

EM-53, "Removal and Installation"

.

• Cylinder head. Refer to

EM-68, "Removal and Installation"

.

5. Remove knock sensor and sub harness.

CAUTION:

Carefully handle sensor, avoiding shocks.

6. Check connecting rod side clearance. Refer to

EM-90, "Inspection After Disassembly"

.

7. Remove piston and connecting rod assembly as follows.
a. Position the crankshaft pin corresponding to the connecting rod to be removed onto bottom dead center.
b. Remove connecting rod cap.

16. Thrust bearing lower

17.

Main bearing lower

18.

Crankshaft

19. Pilot converter

20.

Thrust bearing upper

21.

Side bolt

22. Drive plate

23.

Reinforcement plate

24.

Rear oil seal retainer

25. Rear oil seal

26.

Transmission

27.

O-ring

28. Crankshaft position sensor (POS)

29.

Gasket

30.

Cylinder block heater

31. Connector cap

WBIA0419E

KBIA2549E

EM-84

< DISASSEMBLY AND ASSEMBLY >

ENGINE UNIT

c.

Push the piston and connecting rod assembly out to the cylinder

head side using suitable tool.

8. Remove connecting rod bearings.

CAUTION:

When removing them, note the installation position. Keep them in the correct order.

9. Check piston ring side clearance. Refer to

EM-90, "Inspection After Disassembly"

.

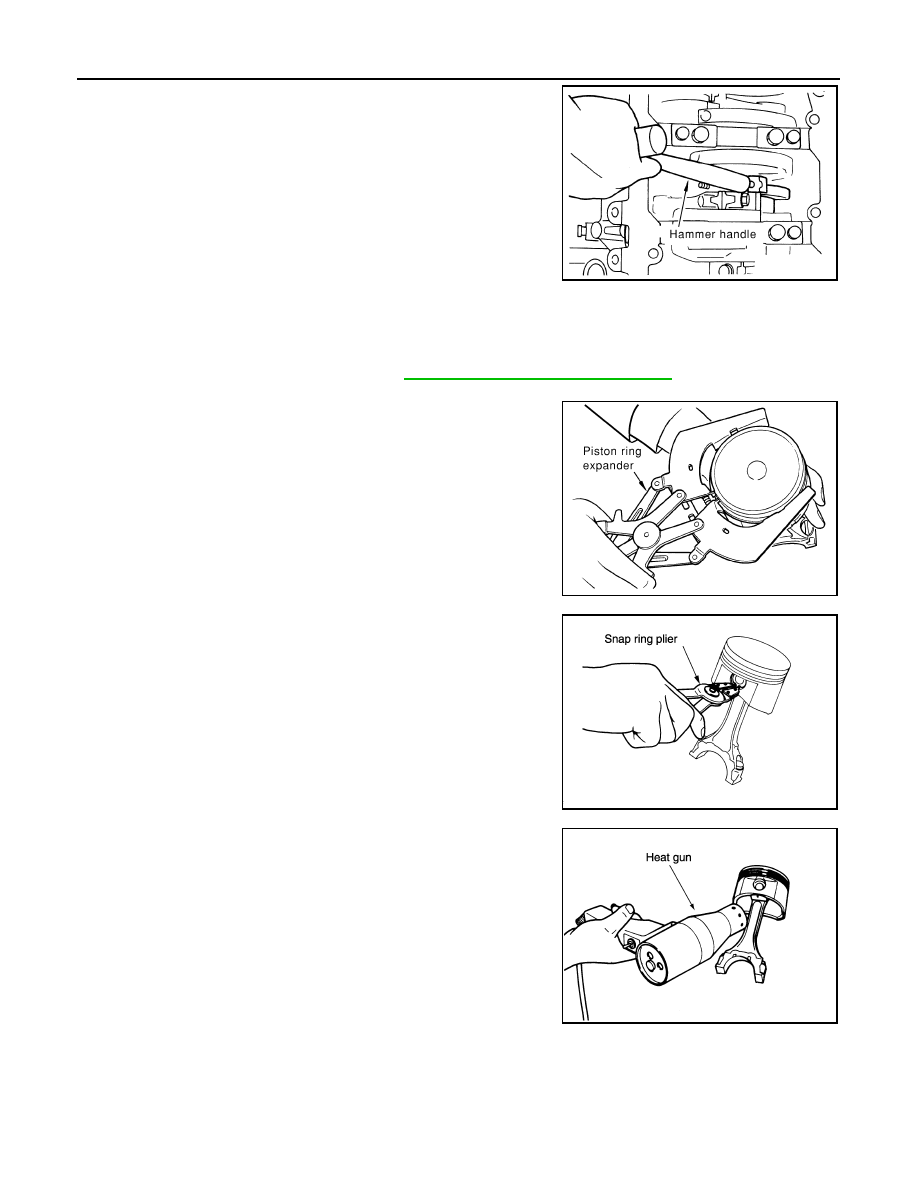

10. Remove piston rings from piston using suitable tool.

CAUTION:

• Do not damage piston.

• Do not damage piston rings by expanding them exces-

sively.

11. Remove piston from connecting rod as follows.
a. Remove snap ring using suitable tool.

b. Heat piston to 60

° to 70°C (140° to 158°F) using suitable tool.

PBIC0086E

PBIC0087E

PBIC0260E

PBIC0261E

ENGINE UNIT

EM-85

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

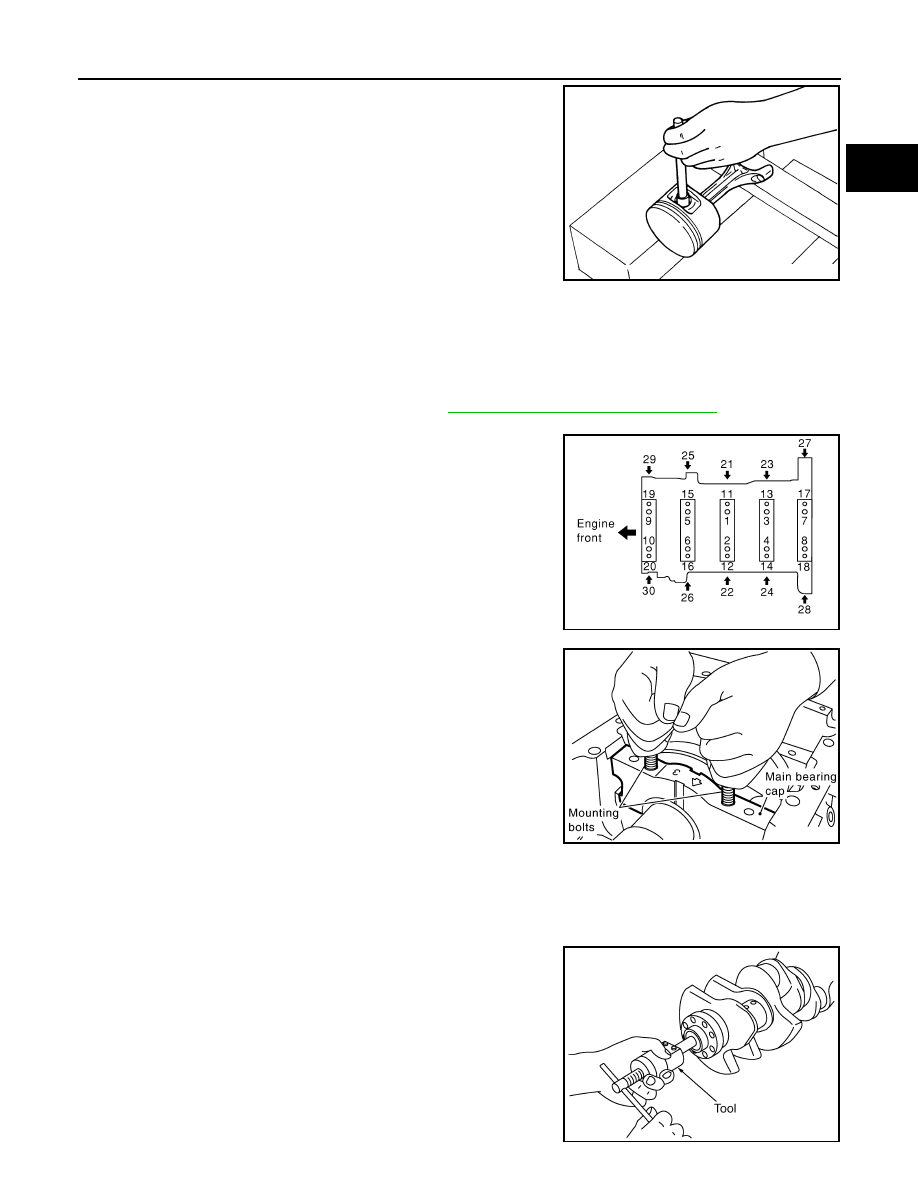

c. Push out piston pin using suitable tool.

12. Separate and remove rear oil seal retainer from cylinder block.

CAUTION:

Do not damage mating surface.

13. Remove rear oil seal from rear oil seal retainer.

14. Measure the crankshaft side clearance. Refer to

EM-90, "Inspection After Disassembly"

.

15. Remove main bearing caps as follows:

• Loosen bolts in several different steps.

a. Loosen side bolts (M10) starting from 30 to 21 to remove.
b. Loosen main bearing cap sub bolts (M9) starting from 20 to 11 to

remove.

c. Loosen main bearing cap bolts (M12) starting from 10 to 1 to

remove.

d. Remove main bearing cap.

• Insert bolts (2) into bolt holes, and then remove main bearing

cap by lifting up and shaking forward and backward.

16. Remove crankshaft.

17. Remove the main bearings and thrust bearings from the cylinder block and main bearing caps.

• When removing them, note the installation position. Keep them in the correct order.

18. Remove pilot converter using Tool if necessary.

PBIC0262E

PBIC0090E

KBIA2492E

Tool number

: ST16610001 (J-23907)

WBIA0596E
