EC-52

< FUNCTION DIAGNOSIS >

[VK56DE]

ON BOARD DIAGNOSTIC (OBD) SYSTEM

 SEC-
OND-
ARY AIR

71H

Secondary Air system

P0411

80H

01H

Secondary Air Injection System Incor-
rect Flow Detected

Bank1: P0491
Bank2: P0492

81H

01H

Secondary Air Injection System Insuffi-
cient Flow

P2445

82H

01H

Secondary Air Injection System Pump
Stuck Off

P2448

83H

01H

Secondary Air Injection System High
Airflow

Bank1: P2440
Bank2: P2442

84H

01H

Secondary Air Injection System Switch-
ing Valve Stuck Open

P2440

85H

01H

Secondary Air Injection System Switch-
ing Valve Stuck Open

P2444

86H

01H

Secondary Air Injection System Pump
Stuck On

FUEL
SYSTEM

81H

Fuel injection system function
(Bank 1)

P0171 or P0172

80H

2FH

Long term fuel trim

P0171 or P0172

81H

24H

The number of lambda control clamped

82H

Fuel injection system function
(Bank 2)

P0174 or P0175

80H

2FH

Long term fuel trim

P0174 or P0175

81H

24H

The number of lambda control clamped

Item

OBD-

MID

Self-diagnostic test item

DTC

Test value and Test

limit

(GST display)

Description

TID

Unit and

Scaling

ID

ON BOARD DIAGNOSTIC (OBD) SYSTEM

EC-53

< FUNCTION DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

MISFIRE

A1H

Multiple Cylinder Misfires

P0301

80H

24H

Misfiring counter at 1000 revolution of
the first cylinder

P0302

81H

24H

Misfiring counter at 1000 revolution of
the second cylinder

P0303

82H

24H

Misfiring counter at 1000 revolution of
the third cylinder

P0304

83H

24H

Misfiring counter at 1000 revolution of
the fourth cylinder

P0305

84H

24H

Misfiring counter at 1000 revolution of
the fifth cylinder

P0306

85H

24H

Misfiring counter at 1000 revolution of
the sixth cylinder

P0307

86H

24H

Misfiring counter at 1000 revolution of
the seventh cylinder

P0308

87H

24H

Misfiring counter at 1000 revolution of
the eighth cylinder

P0300

88H

24H

Misfiring counter at 1000 revolution of
the multiple cylinders

P0301

89H

24H

Misfiring counter at 200 revolution of the
first cylinder

P0302

8AH

24H

Misfiring counter at 200 revolution of the
second cylinder

P0303

8BH

24H

Misfiring counter at 200 revolution of the
third cylinder

P0304

8CH

24H

Misfiring counter at 200 revolution of the
fourth cylinder

P0305

8DH

24H

Misfiring counter at 200 revolution of the
fifth cylinder

P0306

8EH

24H

Misfiring counter at 200 revolution of the
sixth cylinder

P0307

8FH

24H

Misfiring counter at 200 revolution of the
seventh cylinder

P0308

90H

24H

Misfiring counter at 200 revolution of the
eighth cylinder

P0300

91H

24H

Misfiring counter at 1000 revolution of
the single cylinder

P0300

92H

24H

Misfiring counter at 200 revolution of the
single cylinder

P0300

93H

24H

Misfiring counter at 200 revolution of the
multiple cylinders

Item

OBD-

MID

Self-diagnostic test item

DTC

Test value and Test

limit

(GST display)

Description

TID

Unit and

Scaling

ID

EC-54

< FUNCTION DIAGNOSIS >

[VK56DE]

ON BOARD DIAGNOSTIC (OBD) SYSTEM

HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION

How to Erase DTC

 WITH CONSULT-III

• If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once.

Wait at least 10 seconds and then turn it on (engine stopped) again.

• If the DTC is not for A/T related items (see

EC-459, "DTC Index"

), skip step 1.

1. Perform “HOW TO ERASE DTC” in

TM-30, "OBD-II Diagnostic Trouble Code (DTC)"

. (The DTC in TCM

will be erased)

2. Select “ENGINE” with CONSULT-III.

3. Select “SELF DIAGNOSTIC RESULT”.

MISFIRE

A2H

No.1 Cylinder Misfire

P0301

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0301

0CH

24H

Misfire counts for last/current driving cy-
cles

A3H

No.2 Cylinder Misfire

P0302

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0302

0CH

24H

Misfire counts for last/current driving cy-
cles

A4H

No.3 Cylinder Misfire

P0303

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0303

0CH

24H

Misfire counts for last/current driving cy-
cles

A5H

No.4 Cylinder Misfire

P0304

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0304

0CH

24H

Misfire counts for last/current driving cy-
cles

A6H

No.5 Cylinder Misfire

P0305

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0305

0CH

24H

Misfire counts for last/current driving cy-
cles

A7H

No.6 Cylinder Misfire

P0306

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0306

0CH

24H

Misfire counts for last/current driving cy-
cles

A8H

No.7 Cylinder Misfire

P0307

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0307

0CH

24H

Misfire counts for last/current driving cy-
cles

A9H

No.8 Cylinder Misfire

P0308

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0308

0CH

24H

Misfire counts for last/current driving cy-
cles

Item

OBD-

MID

Self-diagnostic test item

DTC

Test value and Test

limit

(GST display)

Description

TID

Unit and

Scaling

ID

ON BOARD DIAGNOSTIC (OBD) SYSTEM

EC-55

< FUNCTION DIAGNOSIS >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

4. Touch “ERASE”. (DTC in ECM will be erased.)

 WITH GST

NOTE:

• If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once.

Wait at least 10 seconds and then turn it on (engine stopped) again.

1. Select Service $04 with GST (Generic Scan Tool).

 No Tools

NOTE:

• If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once.

Wait at least 10 seconds and then turn it on (engine stopped) again.

1. Erase DTC in ECM. Refer to How to Erase Diagnostic Test Mode II (Self-Diagnostic Results).

• If the battery is disconnected, the emission-related diagnostic information will be lost within 24

hours.

• The following data are cleared when the ECM memory is erased.

- Diagnostic trouble codes

- 1st trip diagnostic trouble codes

- Freeze frame data

- 1st trip freeze frame data

- System readiness test (SRT) codes

- Test values

Actual work procedures are explained using a DTC as an example. Be careful so that not only the DTC, but all

of the data listed above, are cleared from the ECM memory during work procedures.

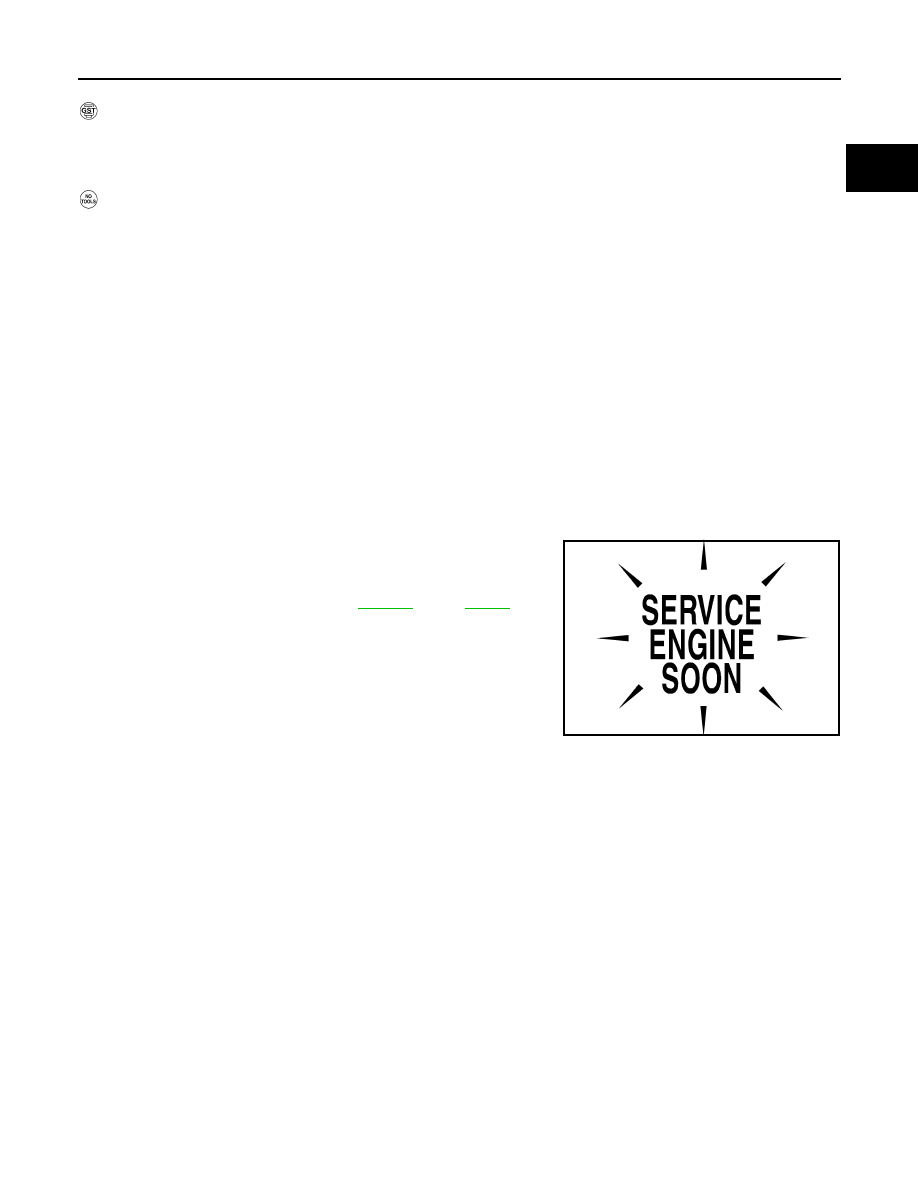

Malfunction Indicator Lamp (MIL)

INFOID:0000000005149077

DESCRIPTION

The MIL is located on the instrument panel.
1. The MIL will light up when the ignition switch is turned ON with-

out the engine running. This is a bulb check.

If the MIL does not light up, refer to

MWI-18

 or see

EC-41

.

2. When the engine is started, the MIL should go off.

If the MIL remains on, the on board diagnostic system has

detected an engine system malfunction.

ON BOARD DIAGNOSTIC SYSTEM FUNCTION

The on board diagnostic system has the following three functions.

SEF217U
